• Model NO.：SJY
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001, En280
• Color：Customized
• Voltage：110V,220V,240V,Customized
• Load Capacity：320-450kg
• Working Height：6m,8m,10m,12m,14m,16m
• Grade Ability：25%
• Platform Size：2270*1120mm
• Power：Battery
• Weight：1460-3600kg
• Extend Platform：900mm
• Max Workers：2
• Lifting Motor：24V,4.5kw
• Working Time：Keep Working Exceed 3 Hours
• Charger Time：8 Hours
• Condition：New
• Transport Package：Plywood Case,Whole Container
• Specification：heavy duty Steel
• Trademark：XINJUXIN
• Origin：China
• HS Code：8428909090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SJY Driven Type DC Running Mode Moving Feature Explosion-Proof Certification GS, CE, RoHS, ISO 9001, En280 Color Customized Voltage 110V/220V/240V/Customized Load Capacity 320-450kg Working Height 6m/8m/10m/12m/14m/16m Grade Ability 25% Platform Size 2270*1120mm Power Battery Weight 1460-3600kg Extend Platform 900mm Max Workers 2 Lifting Motor 24V/4.5kw Working Time Keep Working Exceed 3 Hours Charger Time 8 Hours Condition New Transport Package Plywood Case/Whole Container Specification heavy duty Steel Trademark XINJUXIN Origin China HS Code 8428909090 Production Capacity 500PCS/Month

Product Description

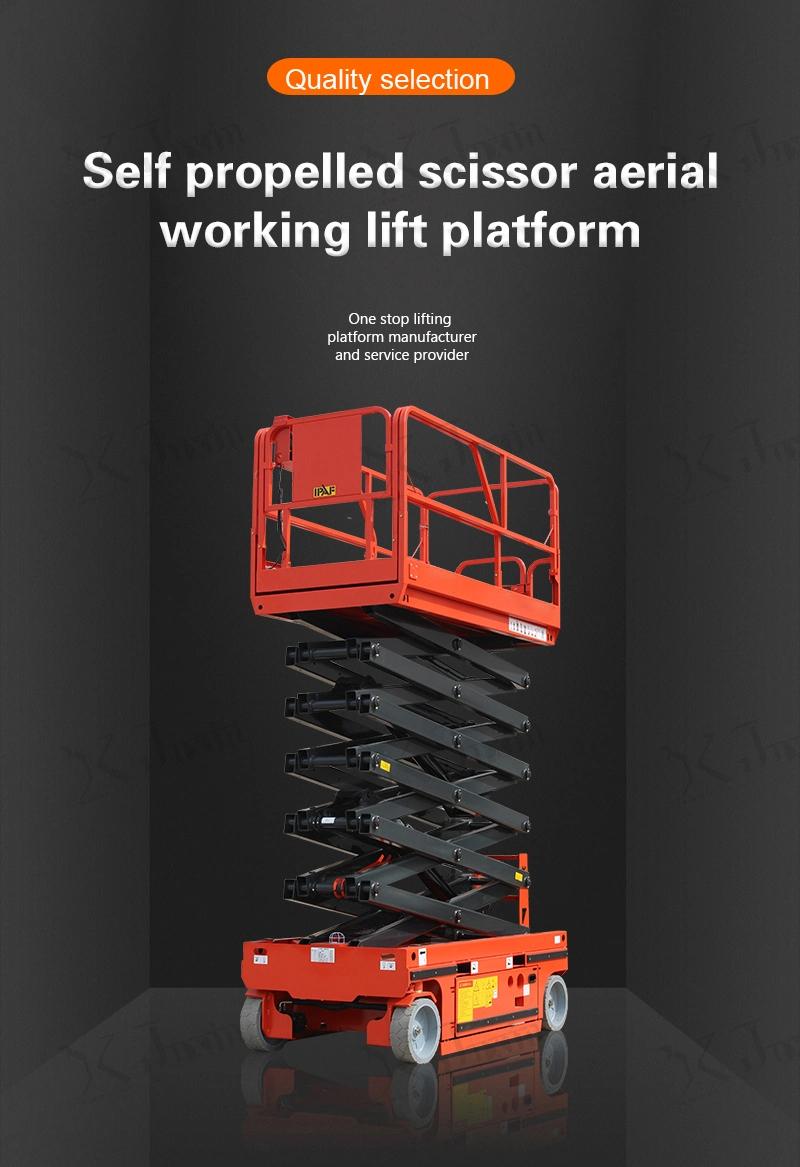

EN280 approved battery powered self propelled electric hydraulic scissor lift platform for saleThis series of proudcts has lifting height ranging from 4m to 20m,and loading weight from 300kg to 500kg,with lifting mode of manual operation,electric,battery and diesel oil.etc.Explosion-proof electric apparatus can be chosen for special places;remove control device platform can be installed according to the users' needs,which has advantages including easy to move,large surface and strong carrying capacity,allowing simultaneous operation of several persons,and safety & reliability,so it is the optimal product for aerial lifting operation.





Parameters


Type	Platform size(m)	Load(kg)	Max. Platform height(m)	Working height(m)	Overall size(m)	Power(kw)	Weight(kg)
SJY0608SP	1.67*0.74	230	5.8	7.8	1.86*0.76*1.84	3.3	1460
SJY0608	2.27*1.12	450	6	8	2.48*1.19*1.66	3.3	2170
SJY0608NP	2.27*0.81	380	6	8	2.48*0.83*1.87	3.3	2090
SJY0810	2.27*1.12	450	8	10	2.48*1.19*1.78	3.3	2360
SJY0810NP	2.27*0.81	230	8	10	2.48*0.83*1.99	3.3	2260
SJY1012	2.27*1.12	320	10	12	2.48*1.19*1.91	3.3	2640
SJY1214	2.27*1.12	320	11.8	13.8	2.48*1.19*2.03	4.5	2980
SJY1416	2.64*1.12	230	13.7	15.7	2.85*1.25*2.1	4.5	3600

FAQ

1.How long will you make it?
Within 7-15 working days after we get your payment.

2.What kind of payment do you support?
T/T,L/C,it has different term of payment,other kinds,please contact us.

3.What is the MOQ?
Generally speaking,the MOQ is 1 set.Different products have different MOQ.More quality,better price.Please contact with us.

4.What is the application filed for it?
Construction,shipyard,industrial,airport,municipal garden or other places.

5.What kind of the trade term will you accept?
FOB/CIF to your nearest seaport.
