• Model NO.：XG1612HD
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：4.5kw
• Min. Lifting Height：1.478m
• Weight：3350kg
• Max. Height of Platform：13.7m
• Max Working Height：15.7m
• Minimum Turning Radius：0,2.65m
• Rated Load：450kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：2840*1270*2600mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

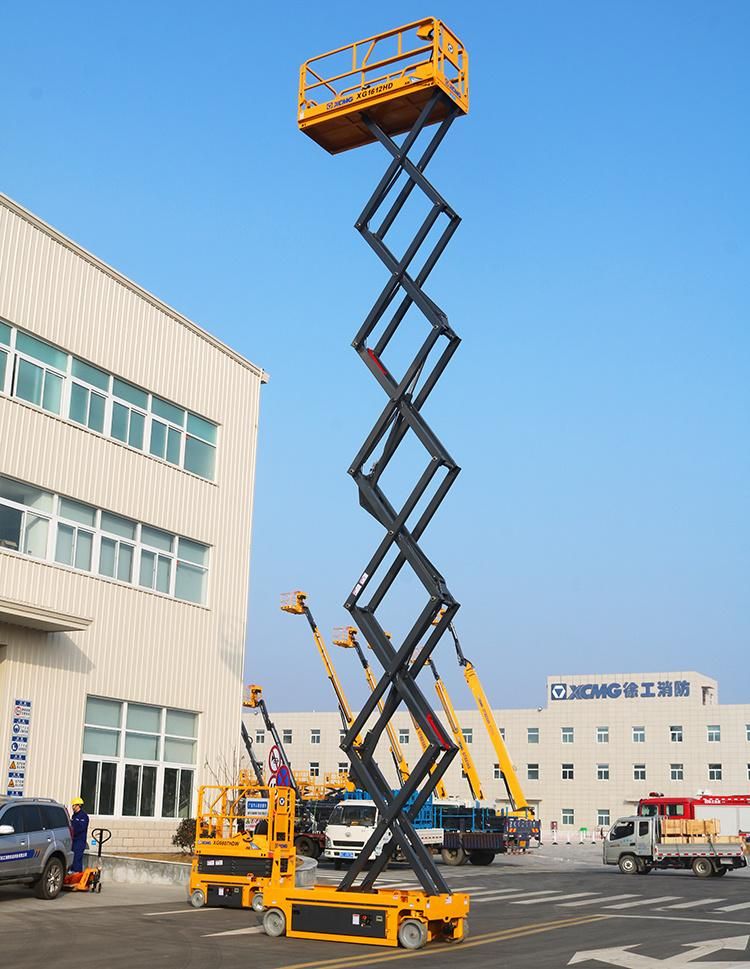

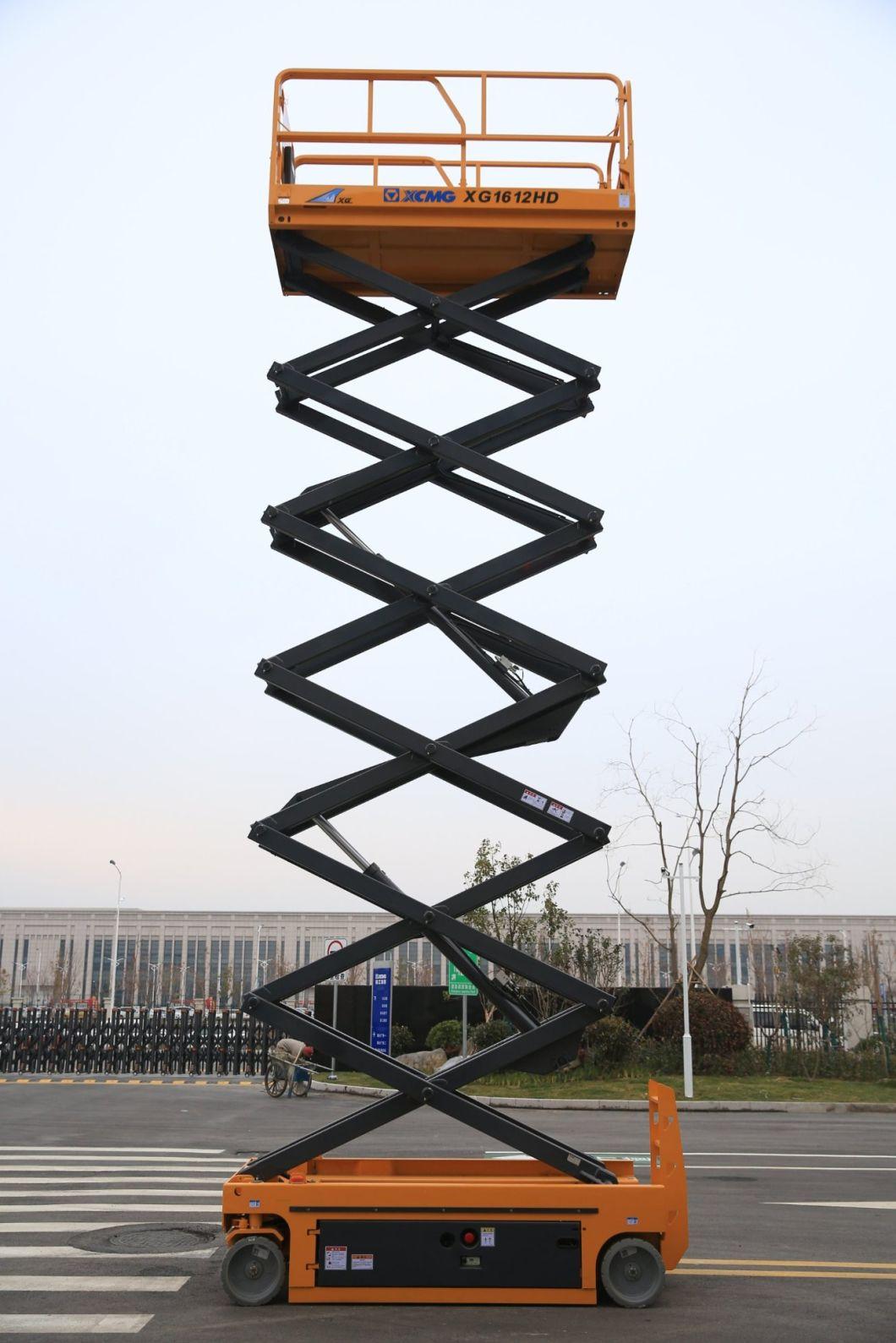

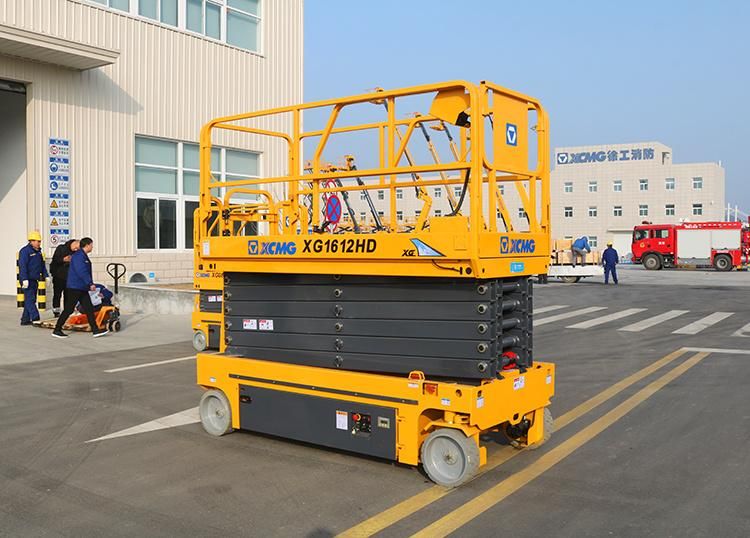

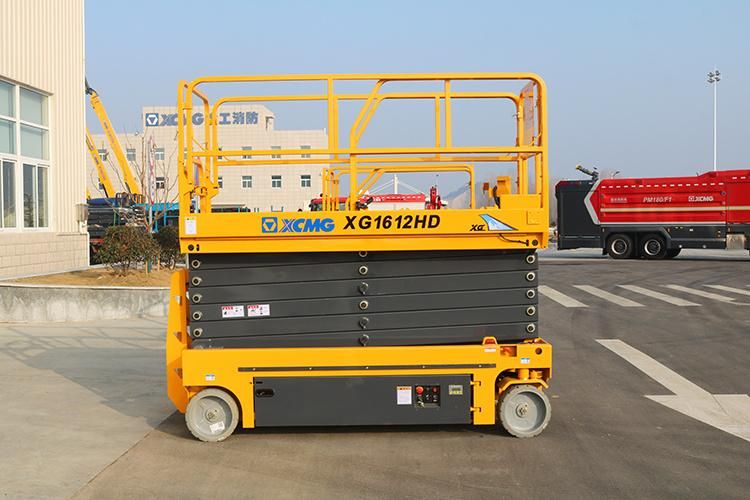

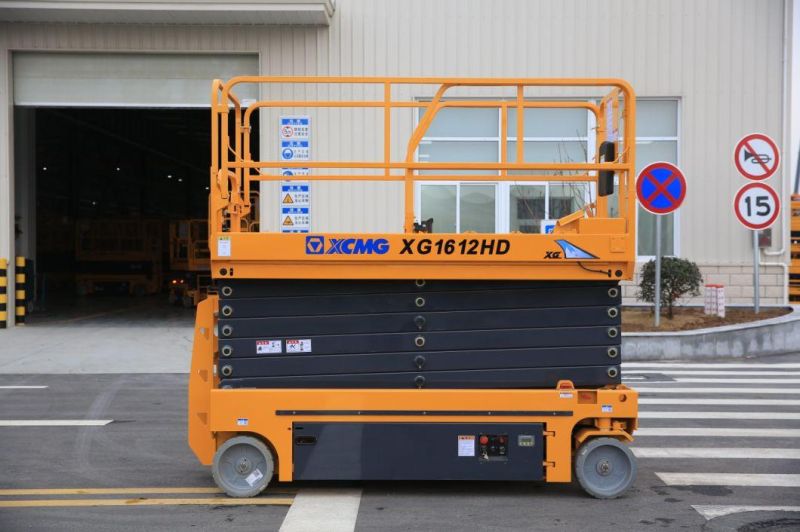

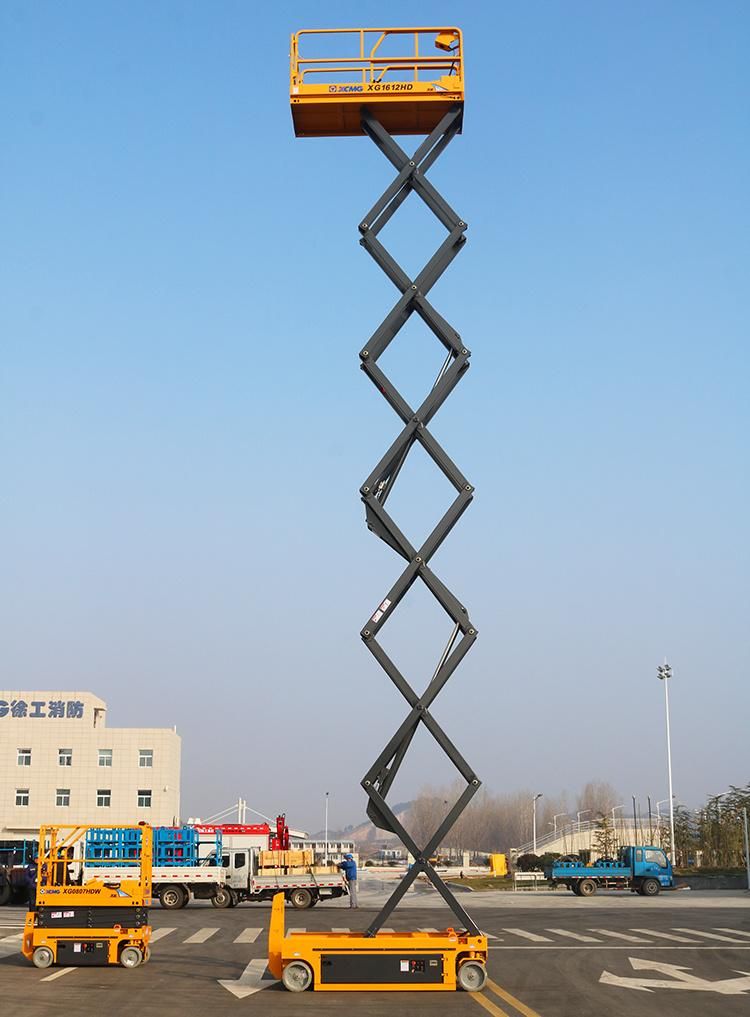

Overview Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm2840 (2630)Widthmm1270Height (platform folded)mm2600 (2060)Wheelbasemm2240Wheel trackmm1123Min ground clearance (Pit protector ascending/descending)mm100/20Dimension of working platformLengthmm2640Widthmm1120Heightmm1263Extension length of the auxiliary platformmm900Centroid position of machineHorizontal distance to front shaftmm1127Height of centroidmm720Total mass of machinekg3350Max. height of platformm13.7Min. height of platformm1.478Max working heightm15.7Min turning radius (inner wheel/outer wheel)m0/2.65Rated loadkg230Payload of extended platformkg115Lifting times65-82Lowering times61-80Drive speed(lowered)km/h3.2Drive speed(elevated)km/h0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting / traveling motorModel--Rated powerkW4.5Manufacturer--BatteryModel-T1275/6-EV-100Voltagev24CapacityAh300Manufacturer-Trojan/ LeochTire models-Traceless and solid /381×127Detailed Photos
