• Model NO.：XG1412HD
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS
• Power：4.5kw
• Min. Lifting Height：1.47m
• Weight：3100kg
• Warranty：1 Year
• Max. Height of Platform：11.8m
• Max. Working Height：13.8m
• Minimum Turning Radius：0,2.3m
• Rated Loading Capacity：320kg
• Table Size：2275*1120mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：2480*1190*2600mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

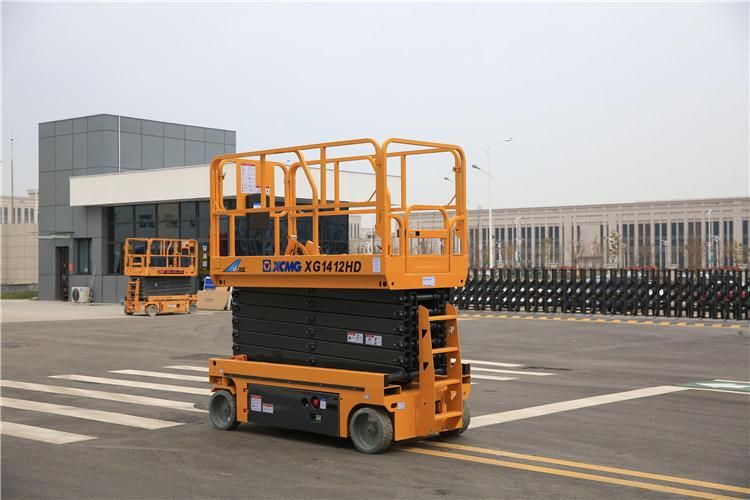

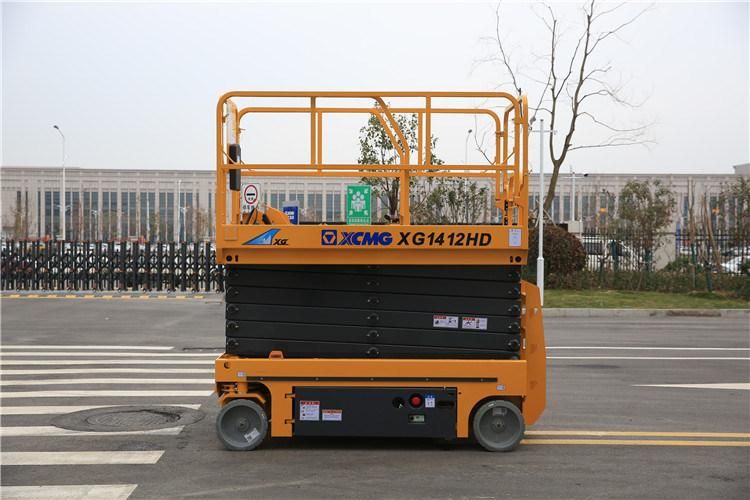

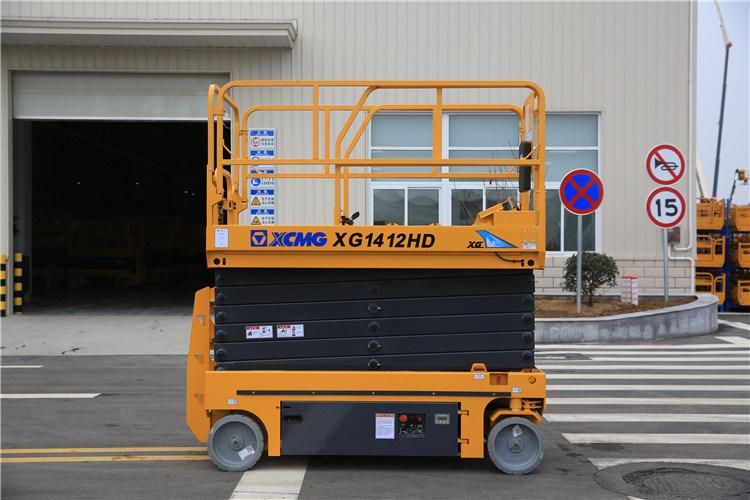

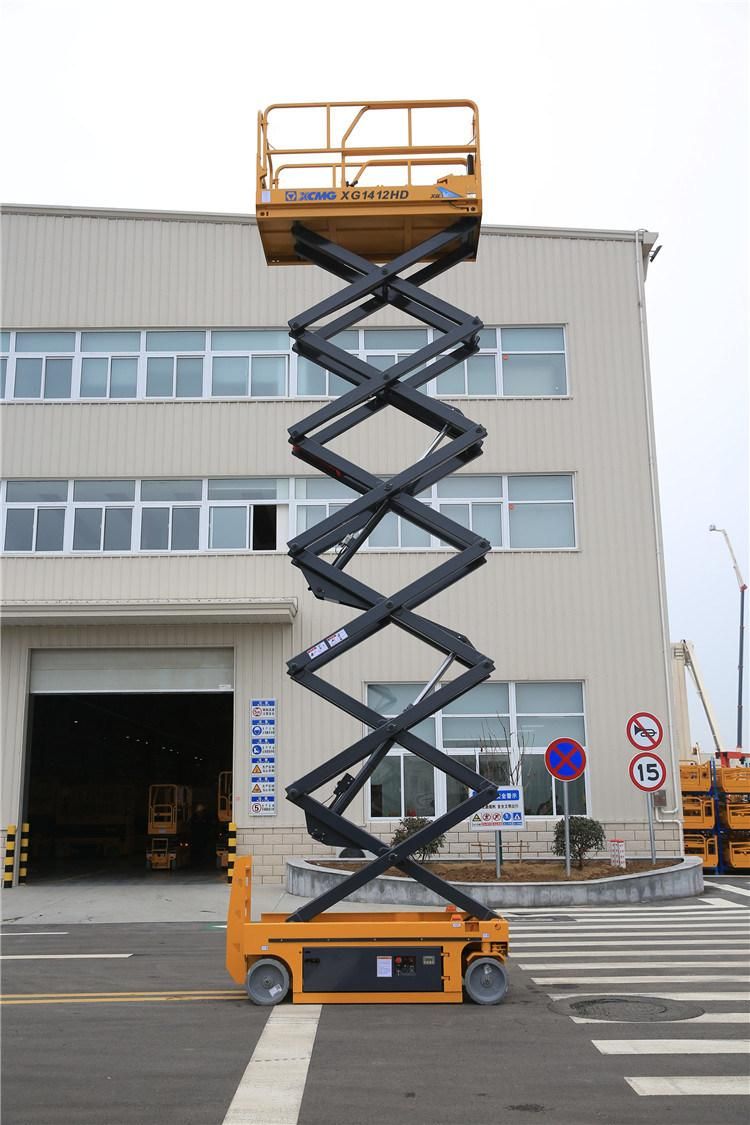

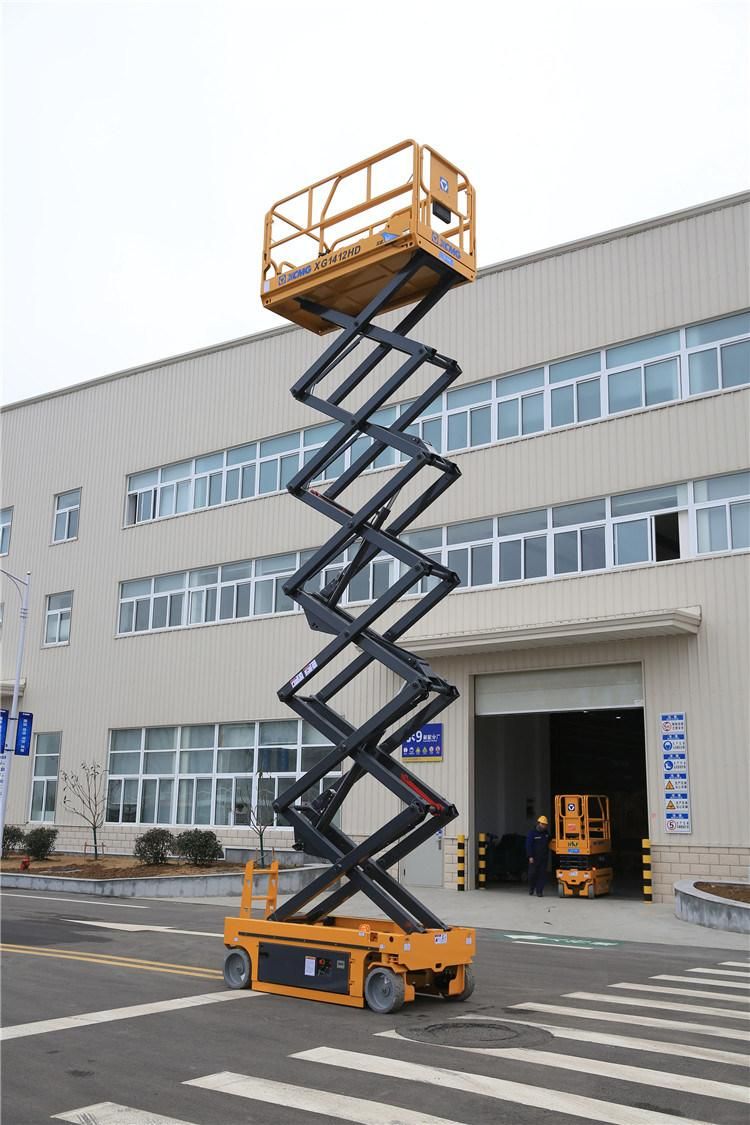

Overview Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm2480 (2270)Widthmm1190Height(platform folded)mm2600 (2060)Wheelbasemm1875Wheel trackmm1063Min. ground clearance (Pit protector ascending/descending)mm100/20Dimension of working platformLengthmm2275Widthmm1120Heightmm1265Extension length of the auxiliary platformmm900Centroid position of machineHorizontal distance to front shaftmm950Height of centroidmm680Total mass of machinekg3100Max. height of platformm11.8Min. height of platformm1.47Max. working heightm13.8Min. turning radius (inner wheel/outer wheel)m0/2.3Rated loadkg320Payload of extended platformkg115Lifting times45-70Lowering times52-78Drive speed(lowered)km/h≥3.9Drive speed(elevated)km/h≥0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting / traveling motorModel--Rated powerkW3.3Manufacturer--BatteryModel-T1275/6-EV-100Voltagev24CapacityAh300Manufacturer-Trojan/LeochTire models-Traceless and solid /381×127Detailed Photos

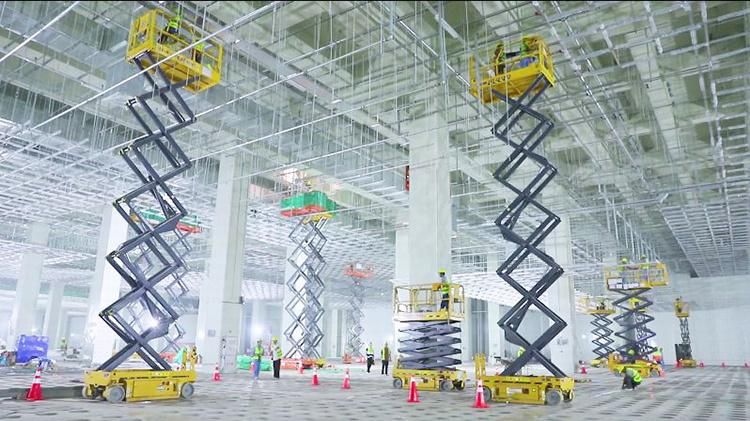

Case
