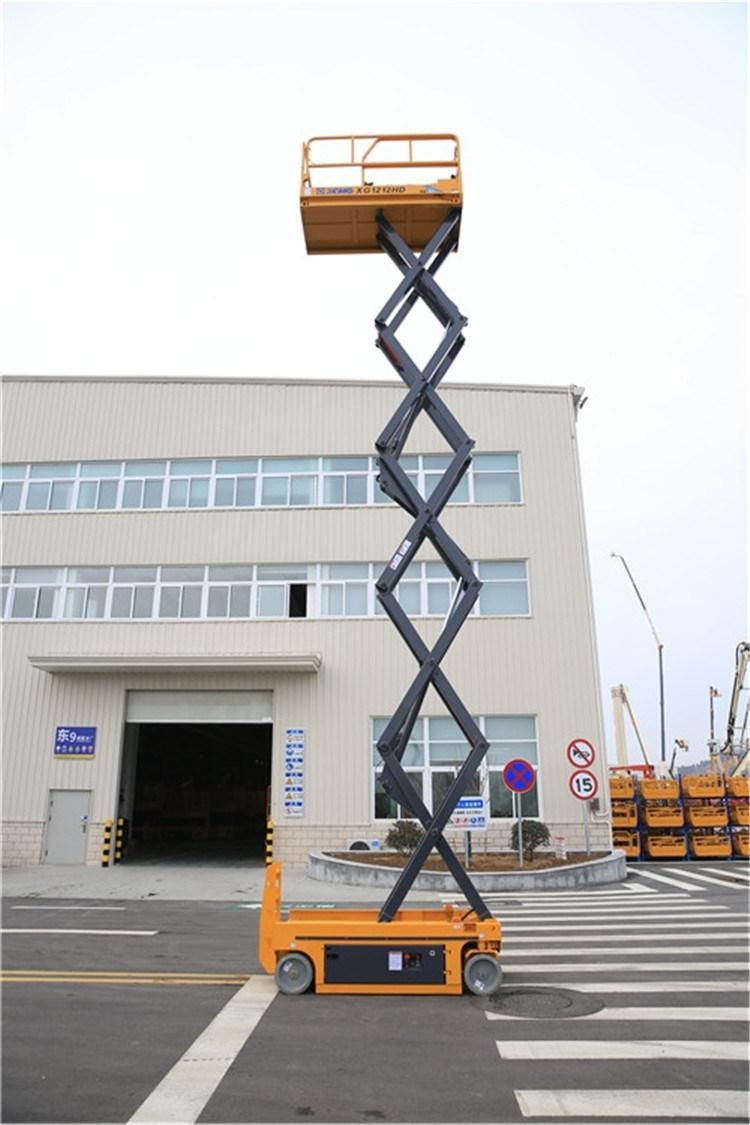

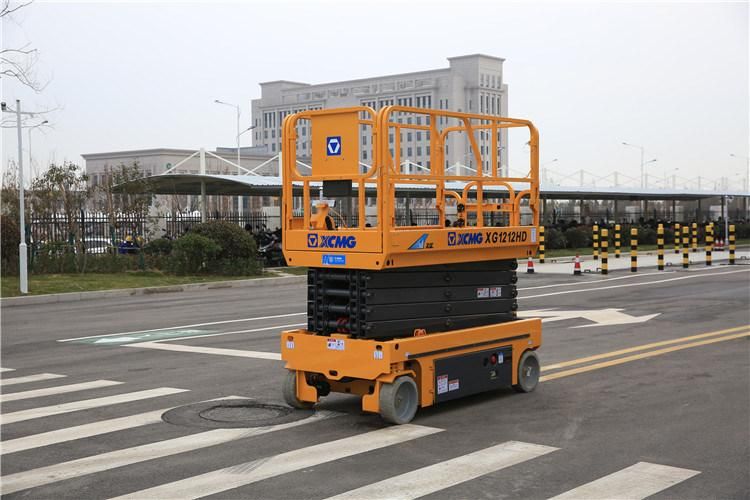

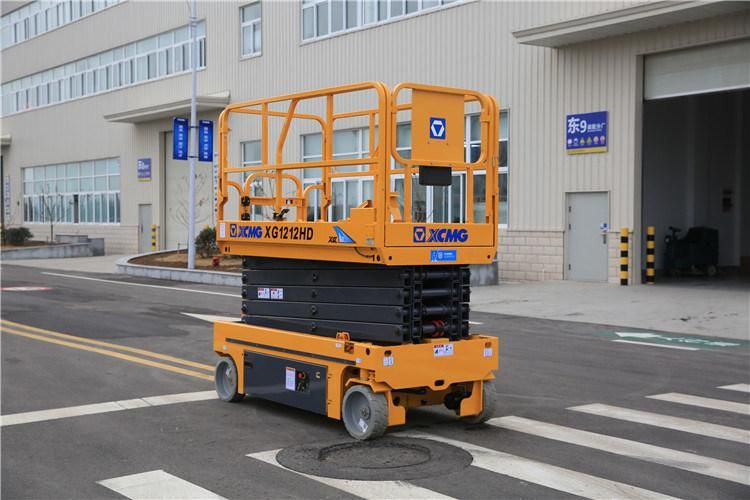

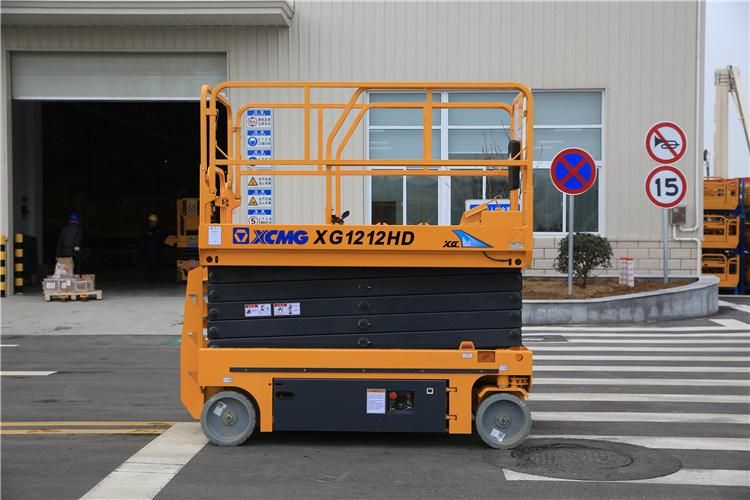

XCMG Official 12 M Hydraulic Scissor Lift Platform Xg1212HD
XCMG E-Commerce Inc.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：XG1212HD
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Power：4.5kw
- Min. Lifting Height：1.34m
- Weight：2900kg
- Max. Height of Platform：10m
- Max. Working Height：12m
- Minimum Turning Radius：0,2.3m
- Rated Loading Capacity：230 Kg
- Table Size：2277*1120mm
- Transport Package：Comply with Export Packaging Requirements
- Specification：2477*1190*2480mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Year
Description
Overview
Product ParametersItemUnit Parameter Dimension of machine Length (without ladder) mm 2477 (2267) Width mm 1190 Height(platform folded) mm 2480 (1930) Wheelbase mm 1877 Wheel track mm 1043 Min. ground clearance (Pit protector ascending/descending) mm 100/20 Dimension of working platform Length mm 2277 Width mm 1120 Height mm 1263 Extension length of the auxiliary platform mm 900 Centroid position of machine Horizontal distance to front shaft mm 950 Height of centroid mm 663 Total mass of machine kg 2900 Max. height of platform m 10 Min. height of platform m 1.34 Max. working height m 12 Min. turning radius (inner wheel/outer wheel) m 0/2.3 Rated load kg 320 Payload of extended platform kg 115 Lifting time s 50-75 Lowering time s 43-65 Drive speed(lowered) km/h 3.2 Drive speed(elevated) km/h 0.8 Max. gradeability % 25 Tilt warning angle (side/forward and backward) ° 1.5/3 Lifting / traveling motor Model - - Rated power kW 3.3 Manufacturer - - Battery Model - T125/3-EV-225 Voltage v 24 Capacity Ah 240 Manufacturer - Trojan/Leoch Tire models - Traceless and solid /381×127
