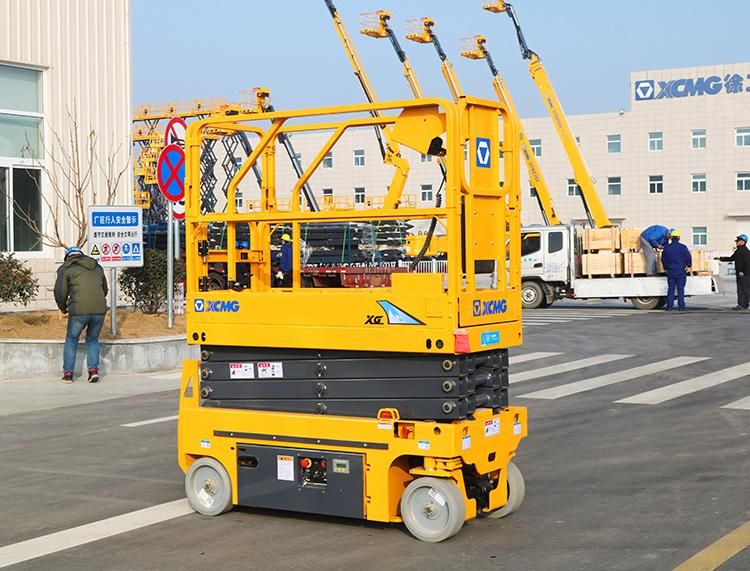

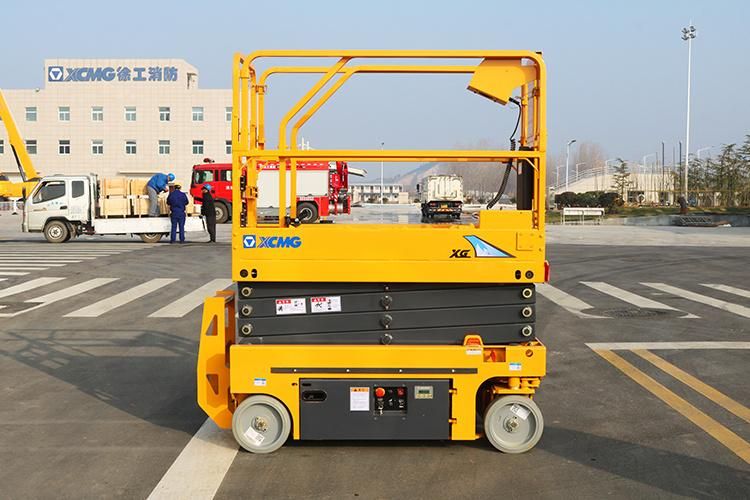

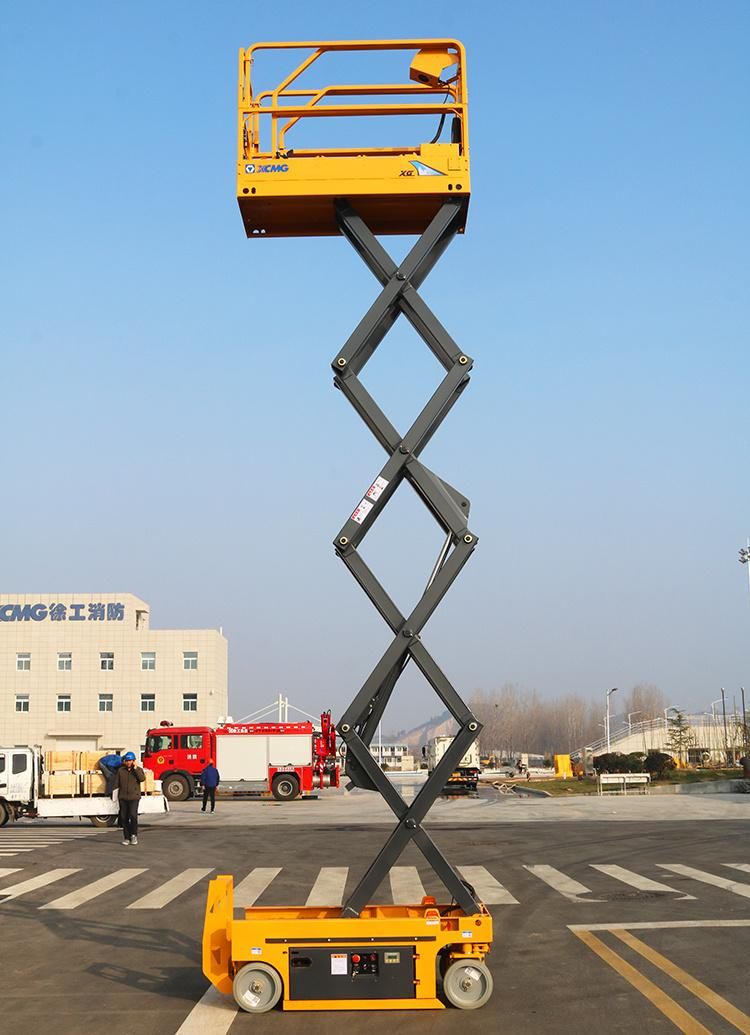

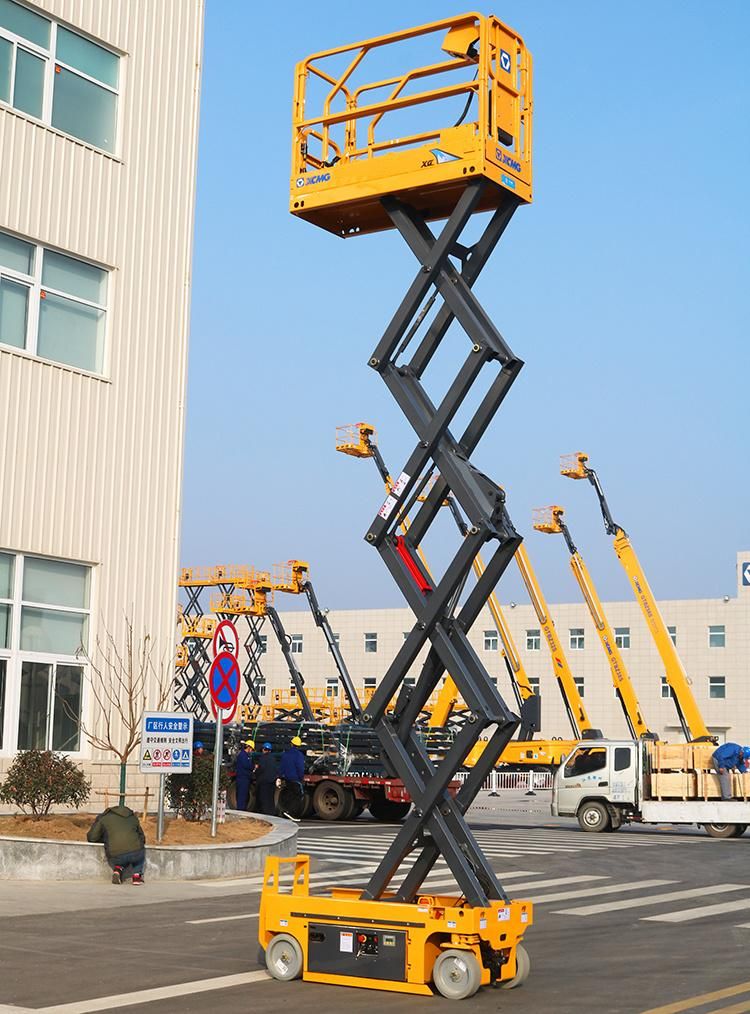

XCMG Official 7m Small Scissor Lift Platform Price Gtjz0607
XCMG E-Commerce Inc.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：GTJZ0607
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Weight：1490kg
- Warranty：2 Years
- Power：3kw
- Min. Lifting Height：1771mm
- Table Size：1665*740*1185 mm
- Overall Length：1882mm
- Overall Width：760mm
- Maximum Working Heigh：7.8m
- Transport Package：Comply with Export Packaging Requirements
- Specification：1882*760*2157mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Year
Description
Overview
Product ParametersItemUnit Parameters a Overall Length mm 1882 b Overall Width mm 760 c Overall Height (Guardrail folding) mm 1771 d Wheel Base mm 1360 Maximum Working Height m 7.8 Maximum Platform Height m 5.8 Maximum Load Capacity kg 230 Extension Platform Load kg 115 Platform Size mm 1655×740×1185 PlatformExtension Length mm 900 Lifting Speed of Working Platform s 16-24 Falling Speed of Working Platform s 20-28 Total Weight kg 1490 Travel Speed (High Speed) km/h 4.0 Travel Speed (low Speed) km/h 0.8 Max. Travel Platform Height m 5.8 Minimum Turning Radius m 0 Minimum Ground Clearance (Pot Hole Protector Rises/Falls) mm 60/20 Maximum Grade Ability % 25 Tire Specification _ Traceless solid 30.5cm×10.0cm Battery V/(Ah) 4×6(225) Charger A 30 Warning Angle of Inclination ° 1.5 (Both sides) ° 3(Front or Rear)
