• Model NO.：XG1212HD
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：3.3kw
• Min. Lifting Height：1.34m
• Weight：2900kg
• Max. Height of Platform：10m
• Max. Working Height：12m
• Minimum Turning Radius：0,2.3m
• Rated Loading Capacity：320kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：2477*1190*2480mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

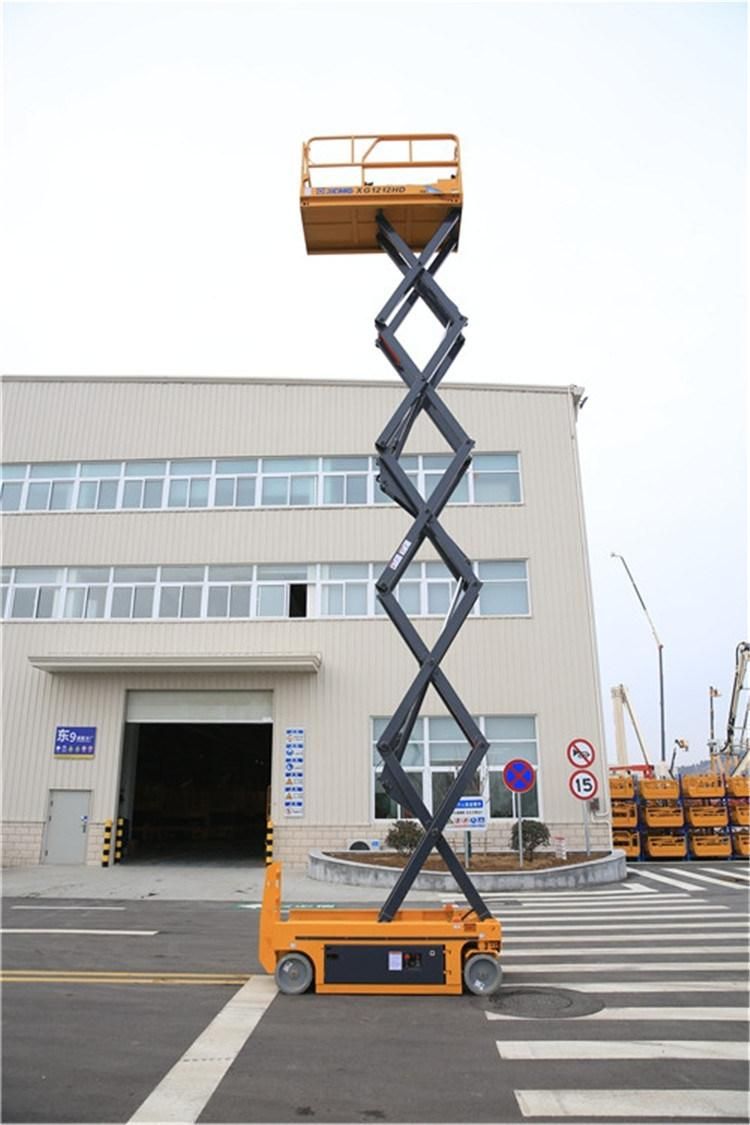

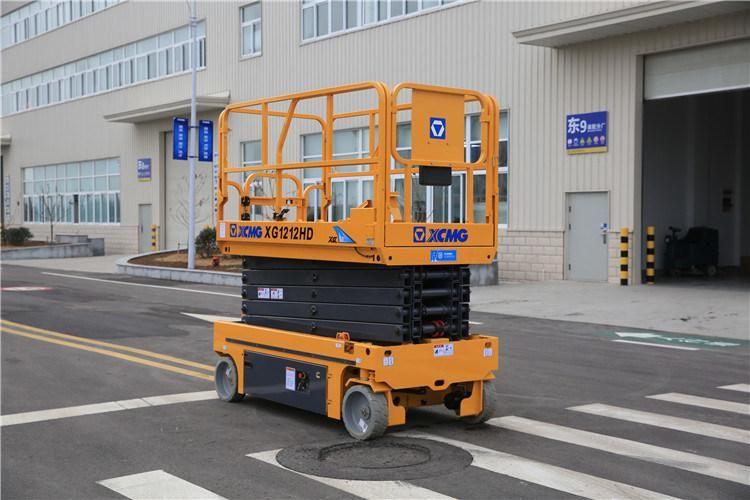

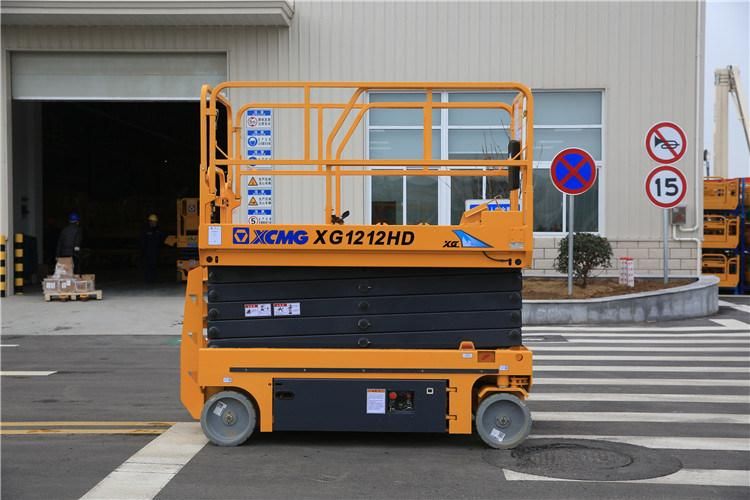

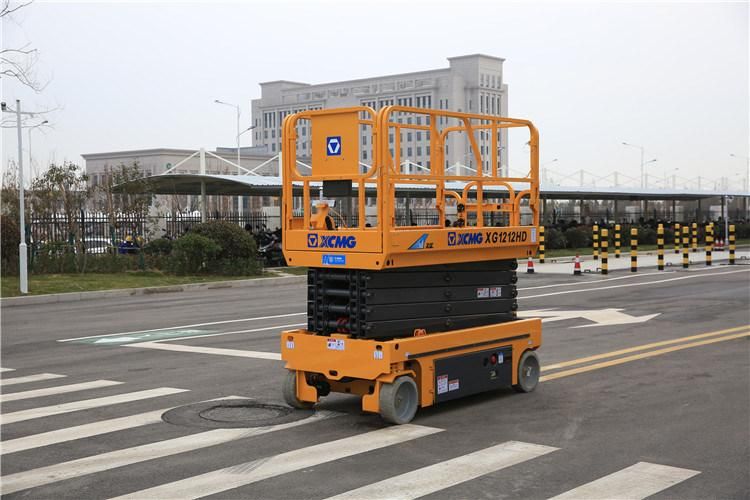

Overview Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm2477 (2267)Widthmm1190Height(platform folded)mm2480 (1930)Wheelbasemm1877Wheel trackmm1043Min. ground clearance (Pit protector ascending/descending)mm100/20Dimension of working platformLengthmm2277Widthmm1120Heightmm1263Extension length of the auxiliary platformmm900Centroid position of machineHorizontal distance to front shaftmm950Height of centroidmm663Total mass of machinekg2900Max. height of platformm10Min. height of platformm1.34Max. working heightm12Min. turning radius (inner wheel/outer wheel)m0/2.3Rated loadkg320Payload of extended platformkg115Lifting times50-75Lowering times43-65Drive speed(lowered)km/h3.2Drive speed(elevated)km/h0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting / traveling motorModel--Rated powerkW3.3Manufacturer--BatteryModel-T125/3-EV-225Voltagev24CapacityAh240Manufacturer-Trojan/LeochTire models-Traceless and solid /381×127Detailed Photos
