• Model NO.：XG1008HD
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：3.3kw
• Min. Lifting Height：1.2m
• Max. Height of Platform：8m
• Minimum Turning Radius：0,2.3m
• Max. Working Height：10m
• Rated Loading Capacity：230kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：2477*830*2335mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Month

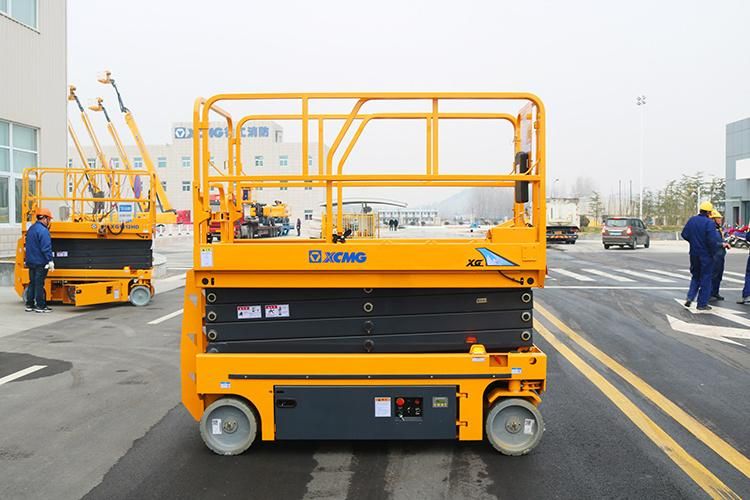

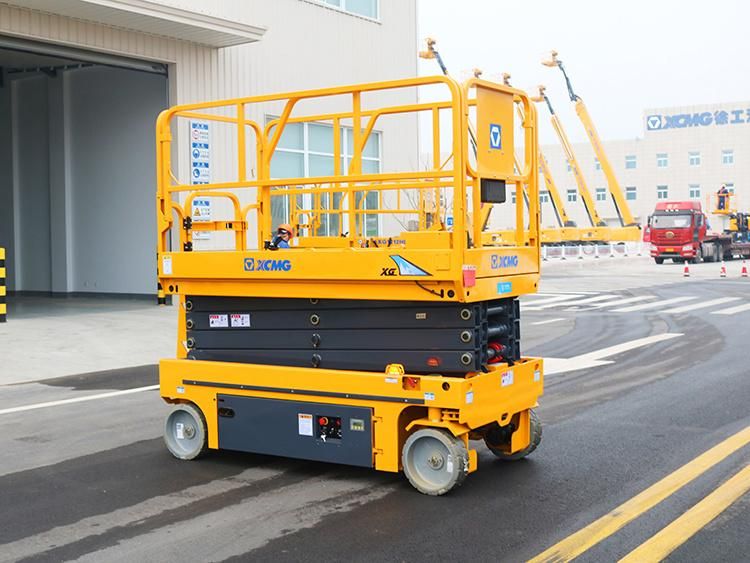

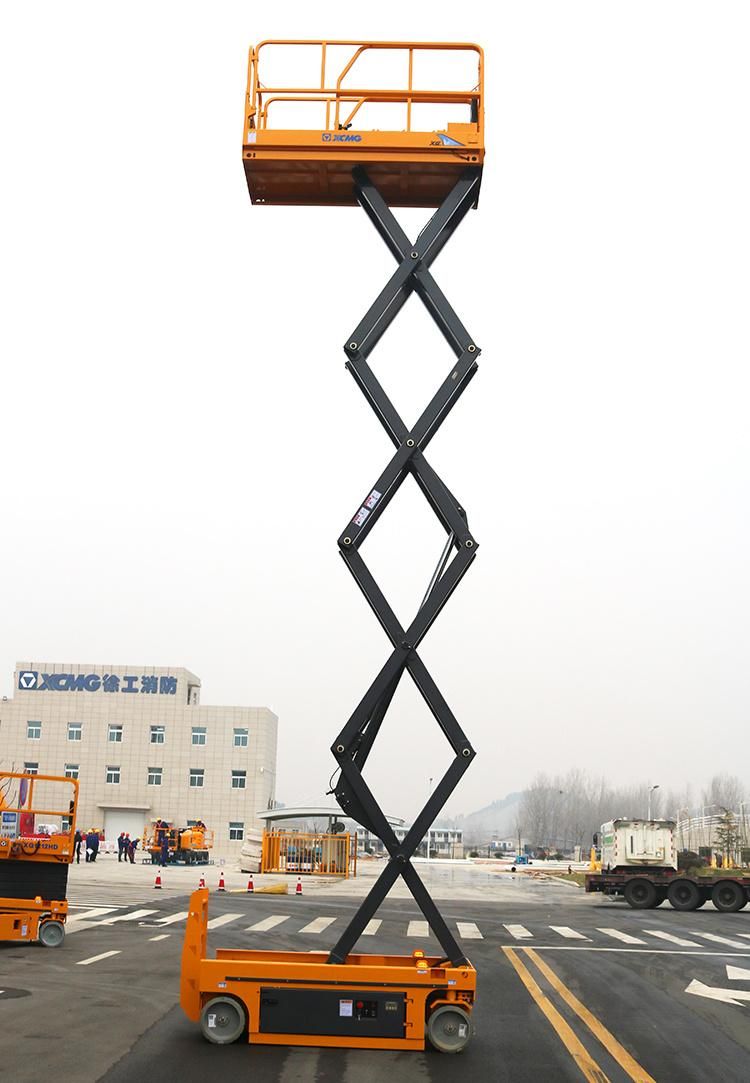

Overview Detailed Photos

Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm2477 (2280)Widthmm830Height (platform folded)mm2335 (2005)Wheelbasemm1877Wheel trackmm689Min. ground clearance (Pit protector ascending / descending)mm100/20Dimension of working platformLengthmm2270Widthmm810Heightmm1246Extension length of the auxiliary platformmm900Centroid position of machineHorizontal distance to front shaftmm927Height of centroidmm475Total mass of machinekg2150Max. height of platformm8Min. height of platformm1.2Max. working heightm10Min. turning radius (inner wheel/outer wheel)m0/2.3Rated loadkg230Payload of extended platformkg115Lifting times29 ~ 40Lowering times34 ~ 45Drive speed(lowered)km/h≥3.5Drive speed(elevated)km/h≥0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting/traveling motorModel--Rated powerkW3.3Manufacturer--BatteryModel-T105/DT106Voltagev24CapacityAh225Manufacturer-Trojan/LeochTire models-Traceless and solid /381×127Company Profile
