• Model NO.：XG0807HDW
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：3.3kw
• Min. Lifting Height：1.05m
• Weight：1550kg
• Max. Height of Platform：5.8m
• Max. Working Height：7.8m
• Minimum Turning Radius：0,1.75m
• Rated Loading Capacity：230kg
• Table Size：1670*740mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：1900*830*2160mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

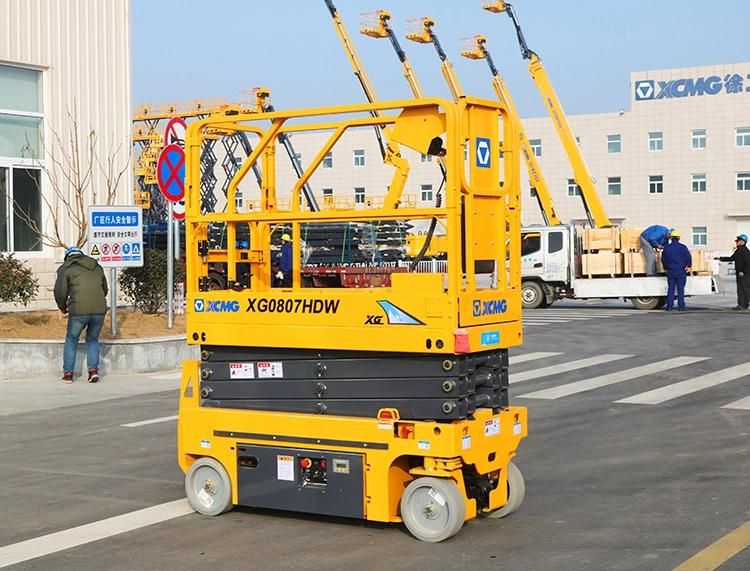

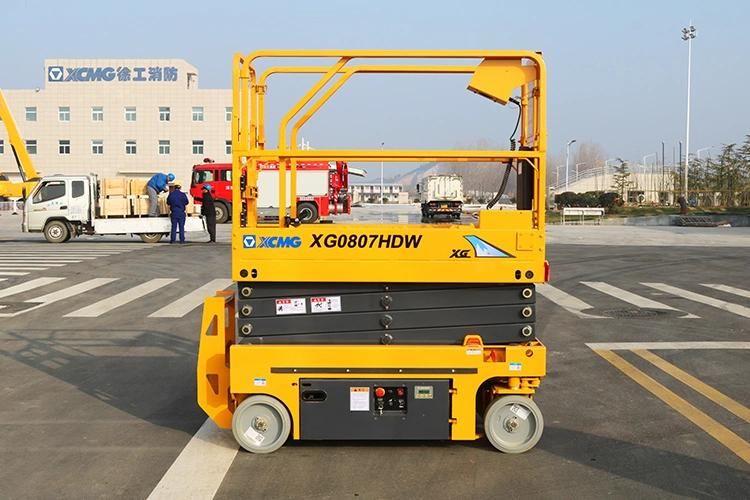

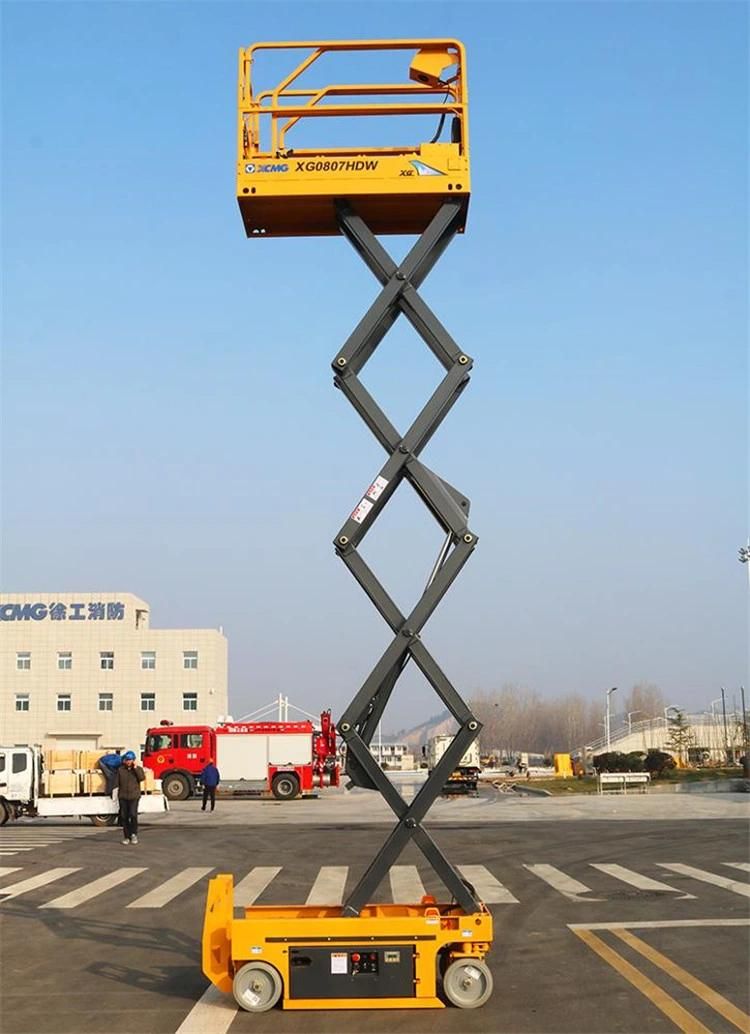

Overview Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm1900(1680)Widthmm830Height(platform folded)mm2160(1830)Wheelbasemm1360Wheel trackmm660Min. ground clearance (Pit protector ascending/descending)mm70/20Dimension of working platformLengthmm1670Widthmm740Heightmm1235Extension length of the auxiliary platformmm900Centroid position of machineHorizontal distance to front shaftmm750Height of centroidmm570Total mass of machinekg1550Max. height of platformm5.8Min. height of platformm1.05Max. working heightm7.8Minimum turning radius (inner wheel/outer wheel)m0/1.75Rated loadkg230Payload of extended platformkg115Lifting times13-30Lowering times25-35Drive speed(lowered)km/h3.9Drive speed(elevated)km/h0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting /traveling motorModel--Rated powerkW3.3Manufacturer--BatteryModel-T105/DT106/3-EV-225Voltagev24CapacityAh225Manufacturer-Trojan/LeochTire models-Traceless and solid/323×100Detailed Photos

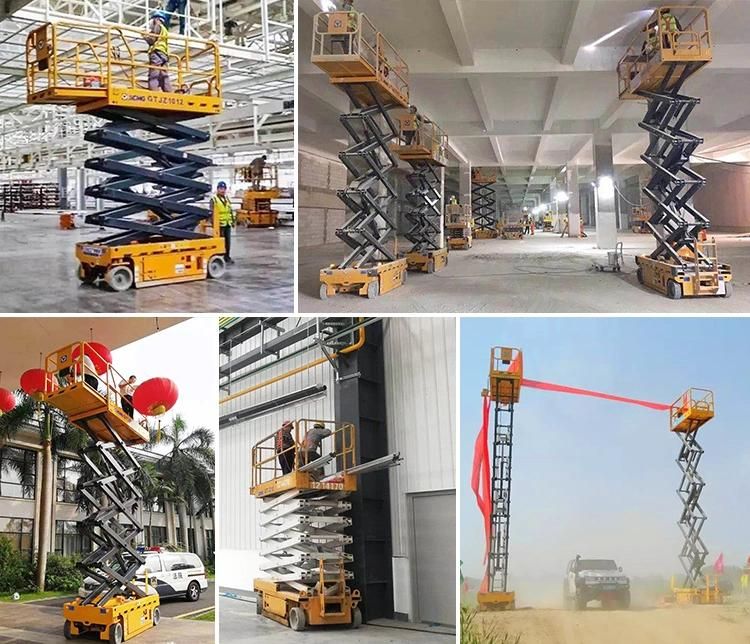

Case

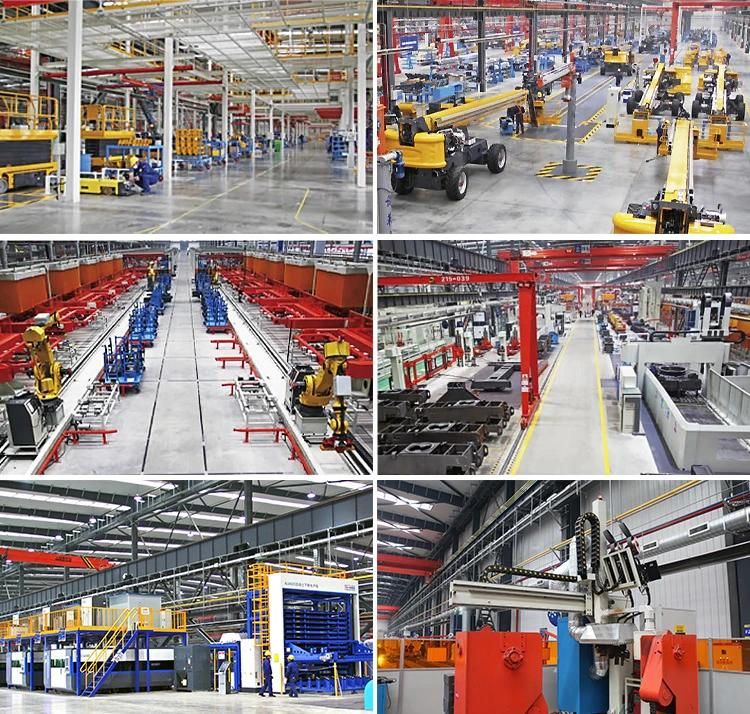

Company Profile
