• Model NO.：XG1012HD
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：3.3kw
• Weight：2620kg
• Max. Height of Platform：8m
• Max. Working Height：10m
• Minimum Turning Radius：0,2.3m
• Rated Loading Capacity：450kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：2477*1190*2355mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

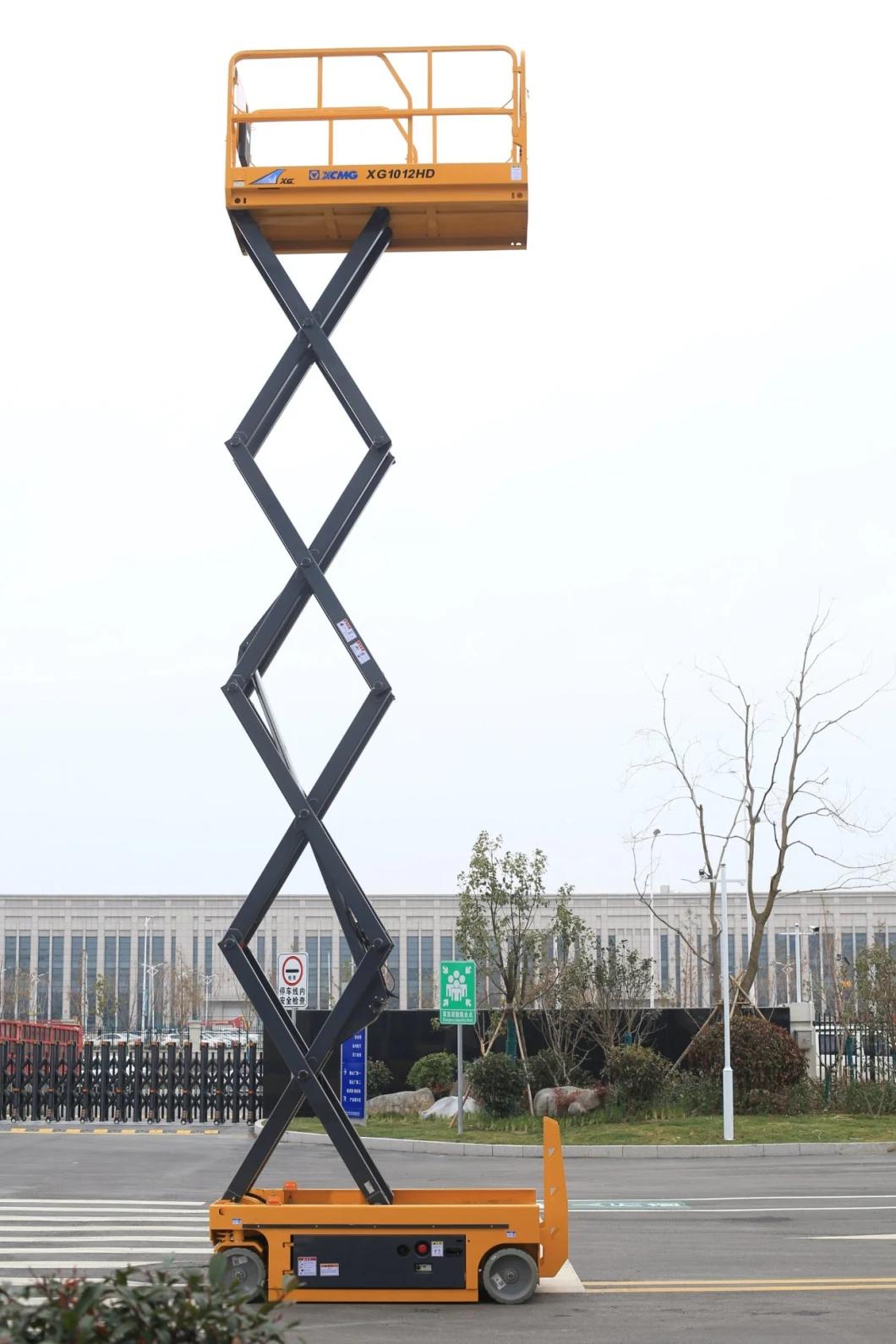

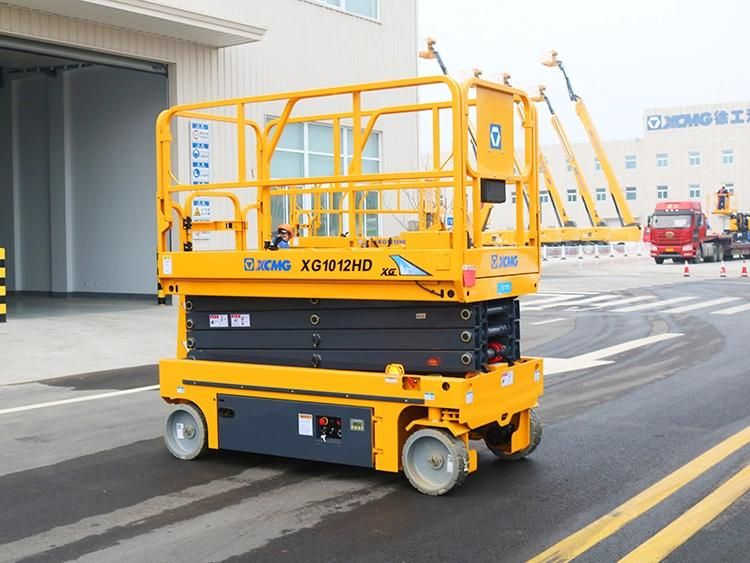

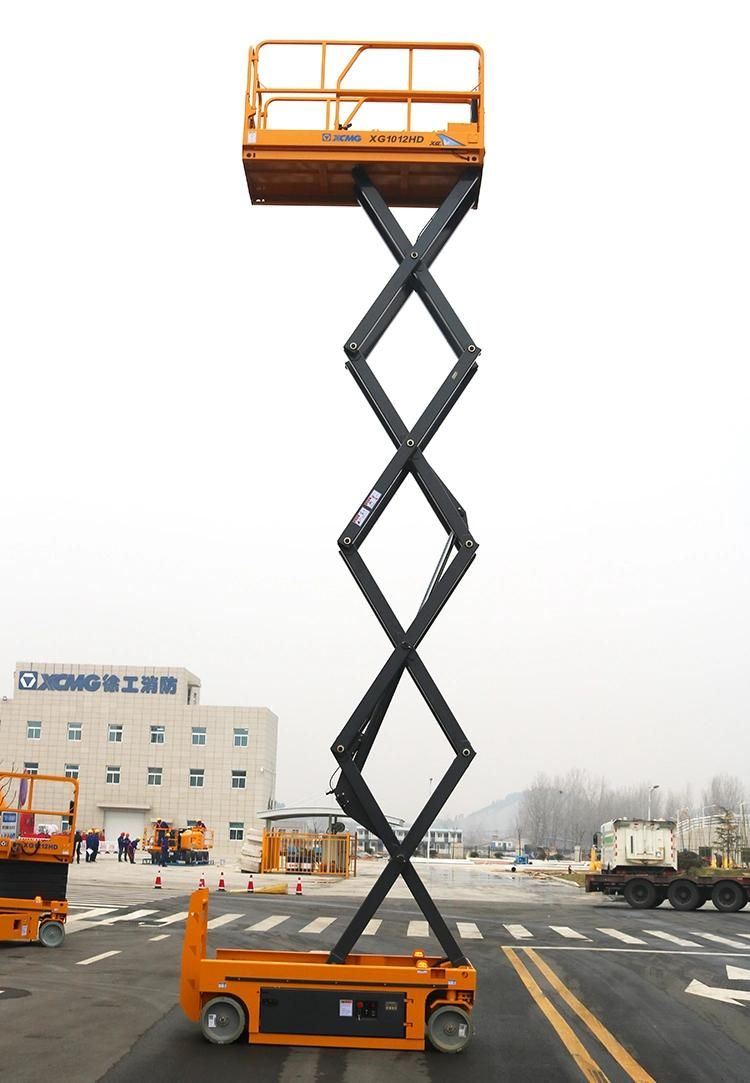

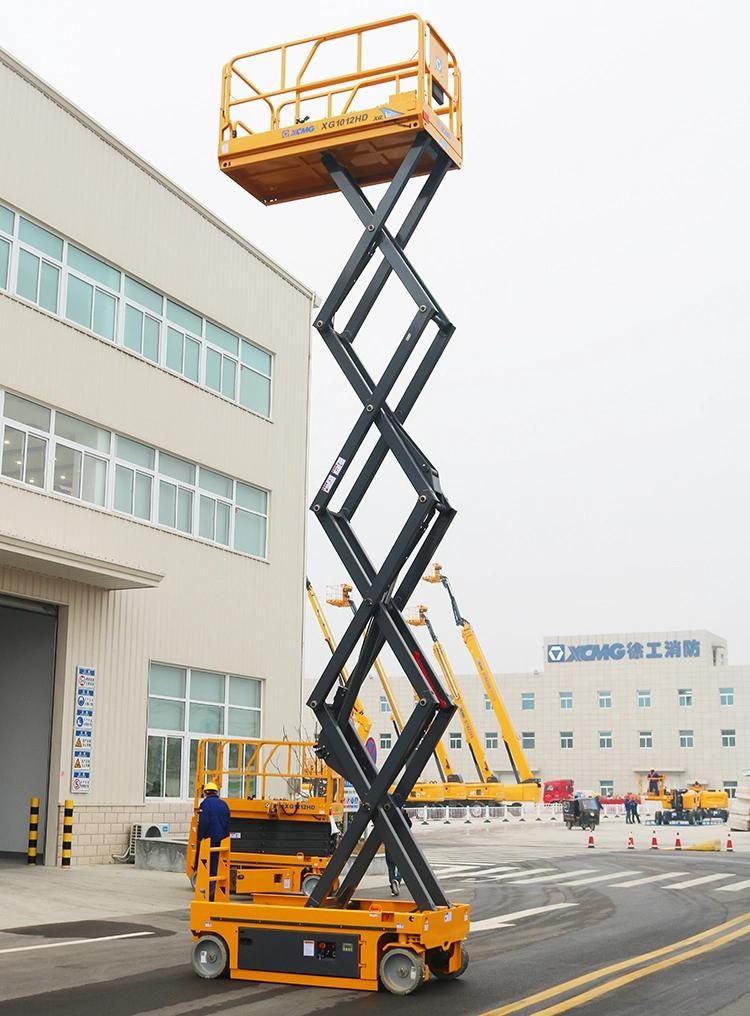

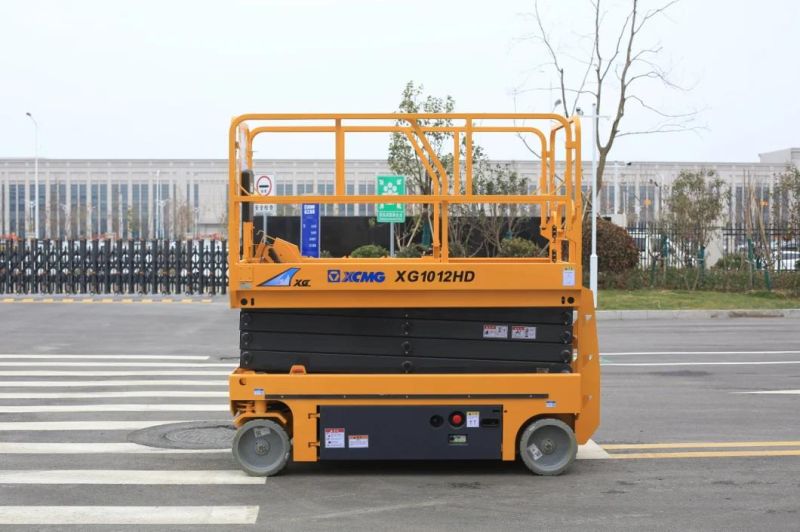

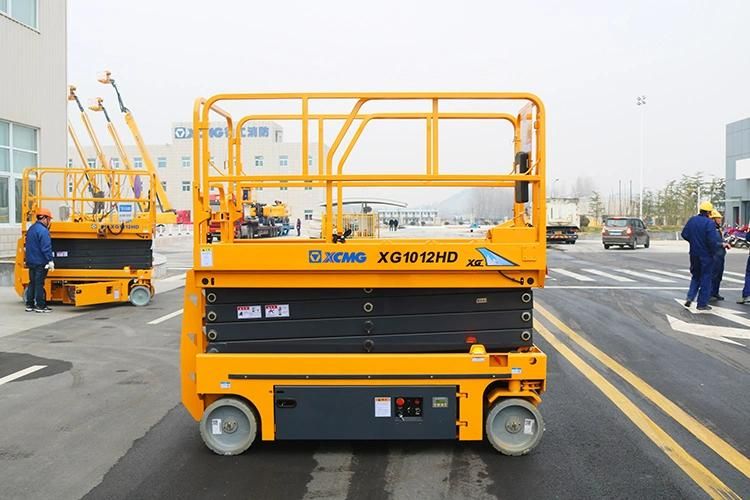

Overview Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm2477(2267)Widthmm1190Height(platform folded)mm2355(1805)Wheelbasemm1877Min. ground clearance (Pit protector ascending/descending)mm100/20Max. height of platformm8Max. working heightm10Minimum turning radius (inner wheel/outer wheel)m0/2.3Rated loadkg450Payload of extended platformkg115Lifting times29-40Lowering times34-45Drive speed(lowered)km/h3.2Drive speed(elevated)km/h0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting /traveling motorModel--Rated powerkW3.3Manufacturer--Batteryv/Ah4x6/225Tire models-Traceless and solid/381×127Detailed Photos
