XCMG Official 8m Scissor Aerial Work Platform Xg0807HD
XCMG E-Commerce Inc.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：XG0807HD
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Power：3.3kw
- Min. Lifting Height：1.05m
- Weight：1550kg
- Max. Height of Platform：5.8m
- Max. Working Height：7.8m
- Minimum Turning Radius：0,1.75m
- Rated Loading Capacity：230kg
- Table Size：1670*740mm
- Transport Package：Comply with Export Packaging Requirements
- Specification：1900*830*2160mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Month
Description
Overview
Product ParametersItemUnitParameterDimension of machineLength (without ladder)mm1900(1680)Widthmm780Height(platform folded)mm2160(1830)Wheelbasemm1360Wheel trackmm660Min. ground clearance (Pit protector ascending/descending)mm70/20Dimension of working platformLengthmm1670Widthmm740Heightmm1235Extension length of the auxiliary platformmm900Centroid position of machineHorizontal distance to front shaftmm750Height of centroidmm570Total mass of machinekg1550Max. height of platformm5.8Min. height of platformm1.05Max. working heightm7.8Minimum turning radius (inner wheel/outer wheel)m0/1.75Rated loadkg230Payload of extended platformkg115Lifting times13-30Lowering times25-35Drive speed(lowered)km/h3.9Drive speed(elevated)km/h0.8Max. gradeability%25Tilt warning angle (side/forward and backward)°1.5/3Lifting /traveling motorModel--Rated powerkW3.3Manufacturer--BatteryModel-T105/DT106/3-EV-225Voltagev24CapacityAh225Manufacturer-Trojan/LeochTire models-Traceless and solid/323×100Detailed Photos

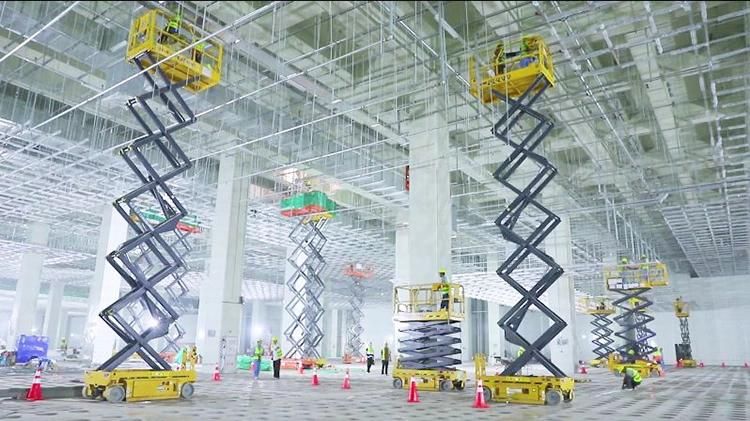

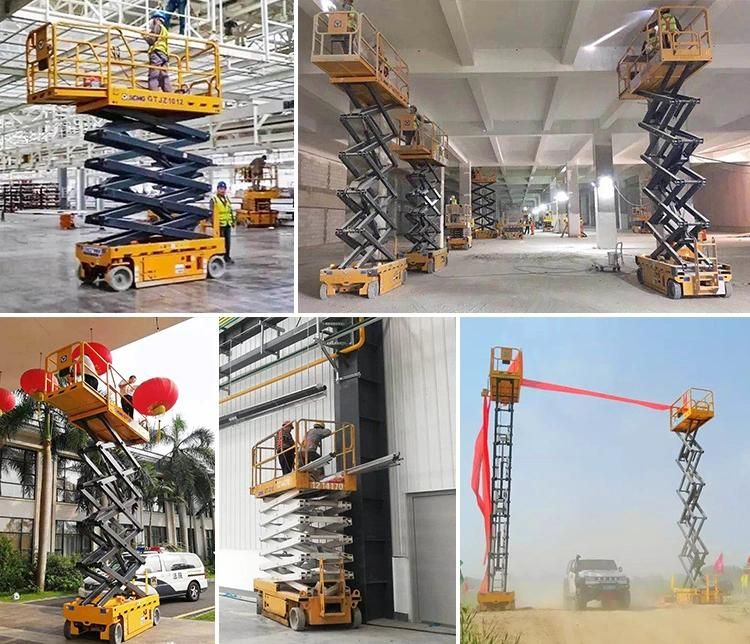

Case
