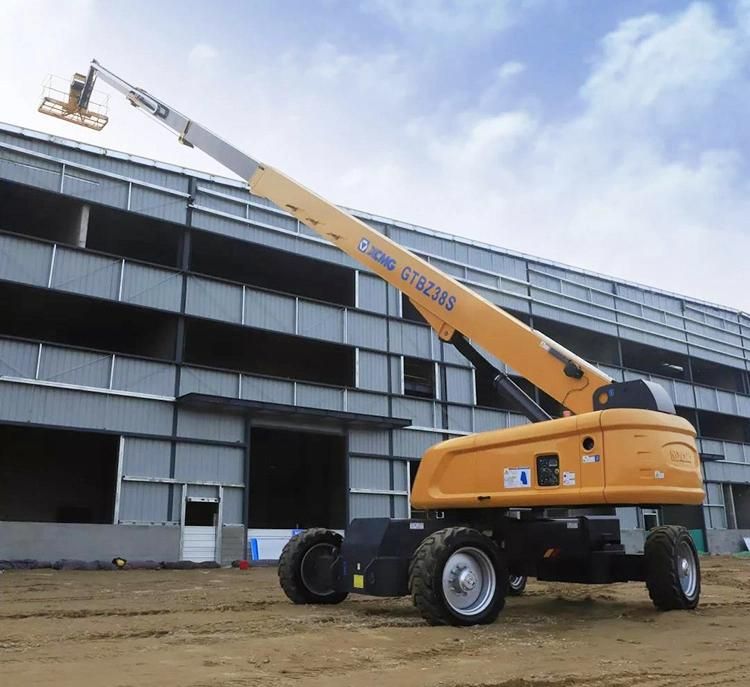

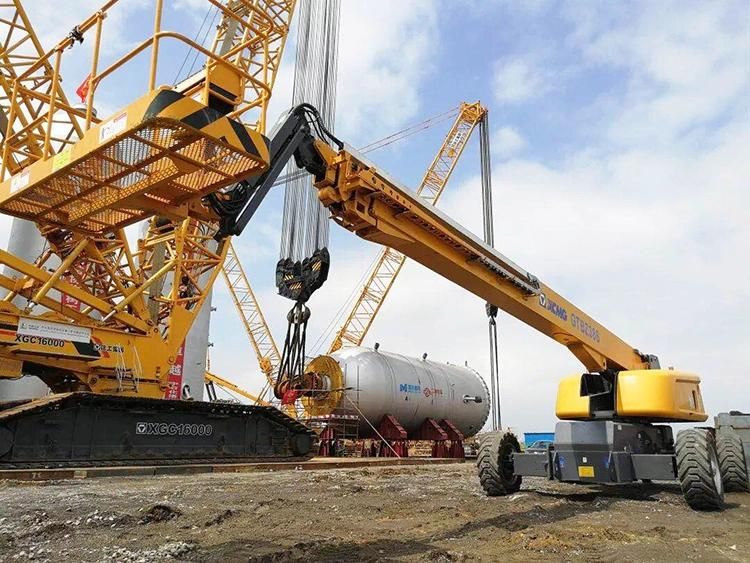

XCMG Official Gtbz38s 38m Telescopic Boom Lift for Sale
XCMG E-Commerce Inc.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Aerial Working
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：GTBZ38S
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Rated Loading Capacity：230kg,340kg
- Max. Lifting Height：39.9m
- Power：55.5kw,2400r,Min
- Table Size：2400*900mm
- Weight：20600kg
- Max. Working Radius：23.3m
- Transport Package：Well
- Specification：14060*2490*3000mm
- Trademark：XCMG
- Origin：Jiangsu, China, Cn; Jia
- Production Capacity：10000 Unit,Units Per Year
Description
Overview
Product ParametersItemUnit Parameter Overall length mm 14060 Overall width (axle retracting/axle extending) mm 2490/3800 Overall height mm 3000 Wheel base mm 3800 Max. working height m 39.9 Max. platform height m 38.2 Max. working radius m 23.3 Max. load capacity kg 230 (no limit)/340 (with limit) Boom elevation range ° -7~+75 Turntable slewing angle ° 360° Max. tail swing (axle retracting/axle extending) mm 2085/1430 Platform dimension mm 2400×900 Slewing angle of platform ° 180 Overall weight kg 20600 Max. travel speed km/h 5 Min. turning radius (axle retracting/axle extending) m 8.2/10.8(turning for twice) 5.8/6.8(turning for four times) Min. ground clearance mm 260 Max. grade ability % 40 Tire specification - 445/50D710 Engine mode - Perkins 1104D-44T Cummins B3.3-85HP Engine rated power kW/(r/min) 55.5/2400 63/2600
