• Model NO.：HSZ
• Certification：CE, ISO9001:2000, GS
• Condition：New
• Color：Orange
• Capacity：01t
• Hmin：230mm
• Chain：G80
• Colour：Can Be Customized
• Transport Package：Carton
• Specification：CE ISO9001 GS
• Trademark：HAIYAN
• Origin：China
• HS Code：8425190000
• Production Capacity：2000PCS,Week

ModelHS0.5HS1HS1.5HS2HS3HS5HS8HS10HS16HS20Capacity(T)0.511.52358101620Standard lift(M)2.52.52.52.5333333Running test load(T)0.751.52.2534.56.251012.52028Headroom(drawn close up)H(MM)2402703473804706007007008201000Load chainColumns1112223468Dia(mm)668681010101010Effort required to lift max load(N)221304343314343381392392392392

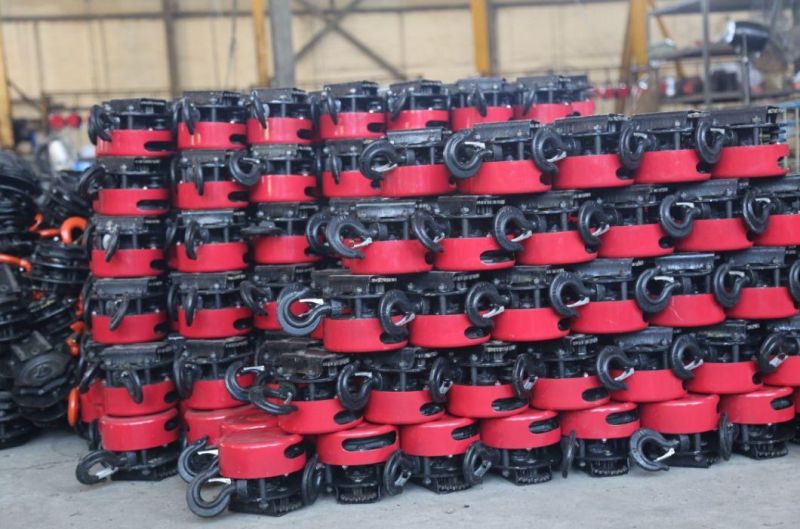

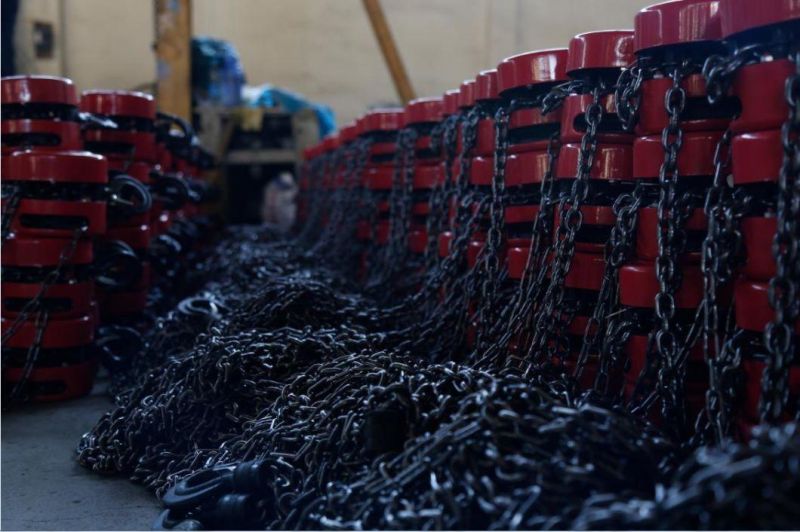

Main Dimensions(MM)A120142178142178210356358400580B108122139122139162162162196189C24283434384864646982D120142178142178210210210210210Extra weight per meter of extra lift(KG)1.71.72.32.53.75.37.39.714.119.4  Product Display:

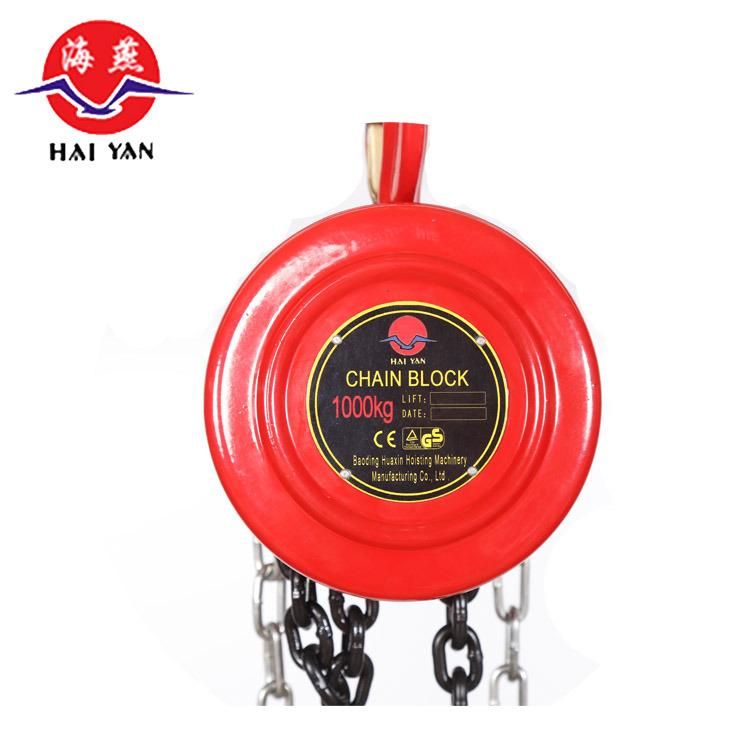

HS series Z chain block is the most widely-used manual hoisting machinery. It has been widely used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the warehouse, especially suitable to be used in the open air and the place without power source.

Our factory manufacture the HSZ series chain block according to the National Standard. With symmetrical arranged two-stage gearing structure the hoist is dainty, beautiful, safe and durable.

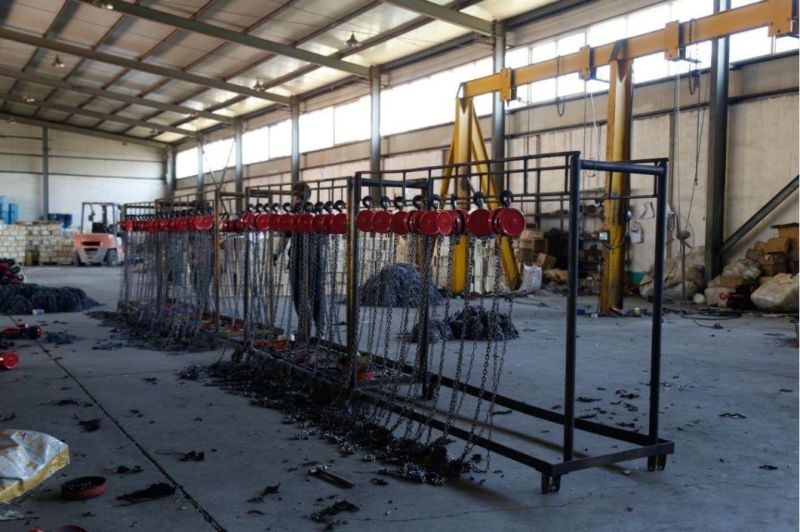

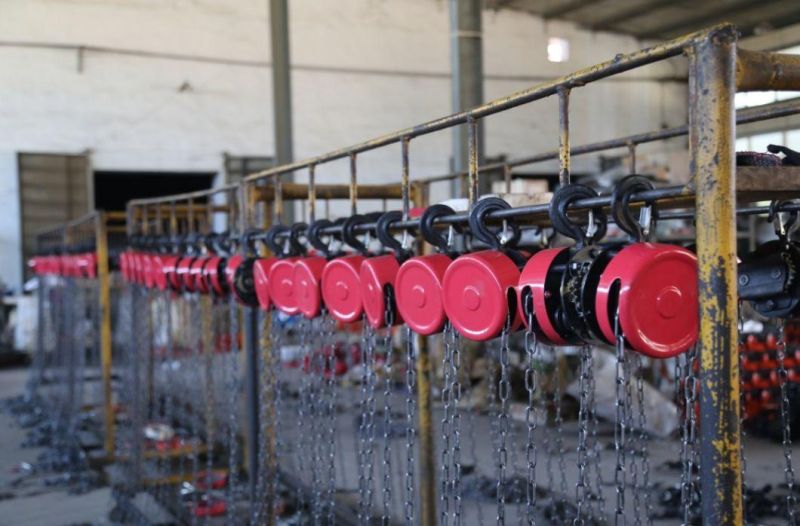

Chain block Factory:




Baoding Jiazhong Hoisting Machinery Plant main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage
our Jiazhong lifting means, Jiazhong hoist chains,Jiazhong Chain block andJiazhong Electric hoist are a guarantee of quality, innovation and safety.

Please don't hesitate to contact to us!

We sincerely hope to build a cooperative and mutual beneficial business relationship with you!
