• Model NO.：RC
• Condition：New
• Name：RC Series Low Price Telescopic Types of Hydraulic
• Capacity：5-95t
• Stroke：16-362mm
• Oil Capacity：10-3466cm^3
• Coll Height：41-449mm
• Cylinder Effective Area：6.5-133.3cm2
• Working Pressure：700bar or 70MPa
• Weight：1-72.6kg
• Body Material：Stainless Steel
• Guarantee Period：1 Years
• Transport Package：Wooden Case
• Specification：CE, ISO, SGS
• Trademark：SOV, Can OEM
• Origin：Jiangsu Province in China
• HS Code：8412210000
• Production Capacity：1000per Month

Basic Info.

Model NO. RC Condition New Name RC Series Low Price Telescopic Types of Hydraulic Capacity 5-95t Stroke 16-362mm Oil Capacity 10-3466cm^3 Coll Height 41-449mm Cylinder Effective Area 6.5-133.3cm2 Working Pressure 700bar or 70MPa Weight 1-72.6kg Body Material Stainless Steel Guarantee Period 1 Years Transport Package Wooden Case Specification CE, ISO, SGS Trademark SOV, Can OEM Origin Jiangsu Province in China HS Code 8412210000 Production Capacity 1000per Month

Product Description

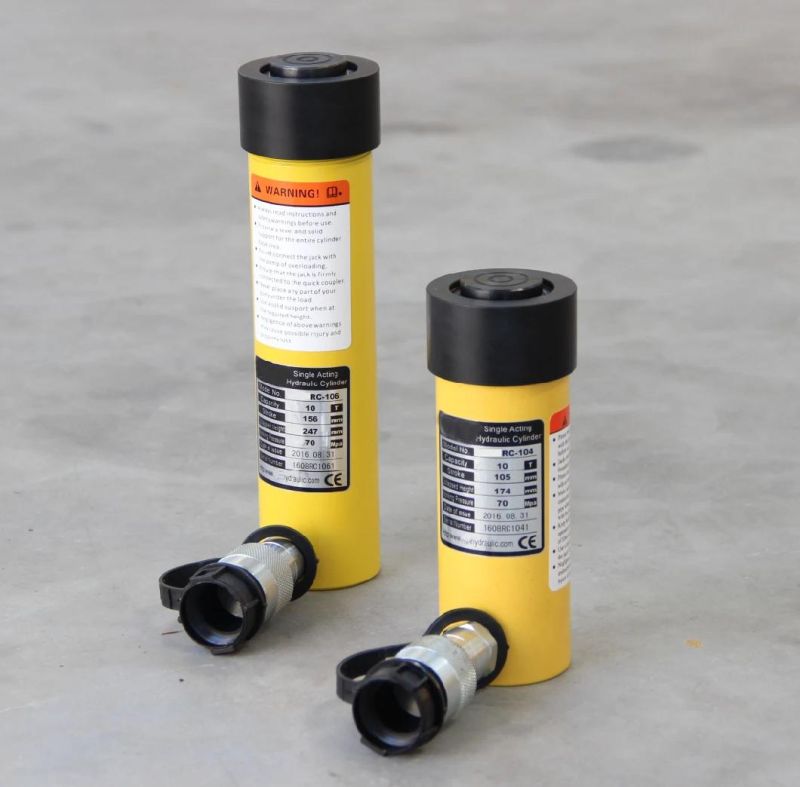

                               RC Series Low Price Telescopic Types of Hydraulic Jack

Discription
SOV RC Series hydraulic jack set the industry standard for general purpose cylinders.
§ Unique GR2 Bearing Design, reduces wear, extending life
§ Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
§ Designed for use in all positions
§ High strength alloy steel for durability
§ Redesigned cylinder thread protector for ease of use
§ Heavy-duty, pretensioned spring improves retraction speed
§ Baked enamel finish for increased corrosion resistance
§ CR-400 coupler and dust cap included on all models
§ Plunger wiper reduces contamination, extending cylinder life

Product Parameter

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height	Weight
	ton (kN)	mm	cm2	cm3	mm	kg
SOV-RC-50**	5 (45)	16	6,5	10	41	1
SOV-RC-51		25	6,5	16	110	1
SOV-RC-53		76	6,5	50	165	1,5
SOV-RC-55*		127	6,5	83	215	1,9
SOV-RC-57		177	6,5	115	273	2,4
SOV-RC-59		232	6,5	151	323	2,8
SOV-RC-101	10 (101)	26	14,5	38	89	1,8
SOV-RC-102*		54	14,5	78	121	2,3
SOV-RC-104		105	14,5	152	171	3,3
SOV-RC-106*		156	14,5	226	247	4,4
SOV-RC-108		203	14,5	294	298	5,4
SOV-RC-1010*		257	14,5	373	349	6,4
SOV-RC-1012		304	14,5	441	400	6,8
SOV-RC-1014		356	14,5	516	450	8,2
SOV-RC-151	15 (142)	25	20,3	51	124	3,3
SOV-RC-152		51	20,3	104	149	4,1
SOV-RC-154*		101	20,3	205	200	5
SOV-RC-156*		152	20,3	308	271	6,8
SOV-RC-158		203	20,3	411	322	8,2
SOV-RC-1510		254	20,3	516	373	9,5
SOV-RC-1512		305	20,3	619	423	10,9
SOV-RC-1514		356	20,3	723	474	11,8
SOV-RC-251	25 (232)	26	33,2	86	139	5,9
SOV-RC-252*		50	33,2	166	165	6,4
SOV-RC-254*		102	33,2	339	215	8,2
SOV-RC-256*		158	33,2	525	273	10
SOV-RC-258		210	33,2	697	323	12,2
SOV-RC-2510		261	33,2	867	374	14,1
SOV-RC-2512		311	33,2	1033	425	16,3
SOV-RC-2514*		362	33,2	1202	476	17,7
SOV-RC-308	30 (295)	209	42,1	880	387	18,1
SOV-RC-502	50 (498)	51	71,2	362	176	15
SOV-RC-504		101	71,2	719	227	19,1
SOV-RC-506*		159	71,2	1131	282	23,1
SOV-RC-5013		337	71,2	2399	460	37,6
SOV-RC-756	75 (718)	156	102,6	1601	285	29,5
SOV-RC-7513		333	102,6	3417	492	59
SOV-RC-1006	95 (933)	168	133,3	2239	357	59
SOV-RC-10010		260	133,3	3466	449	72,6

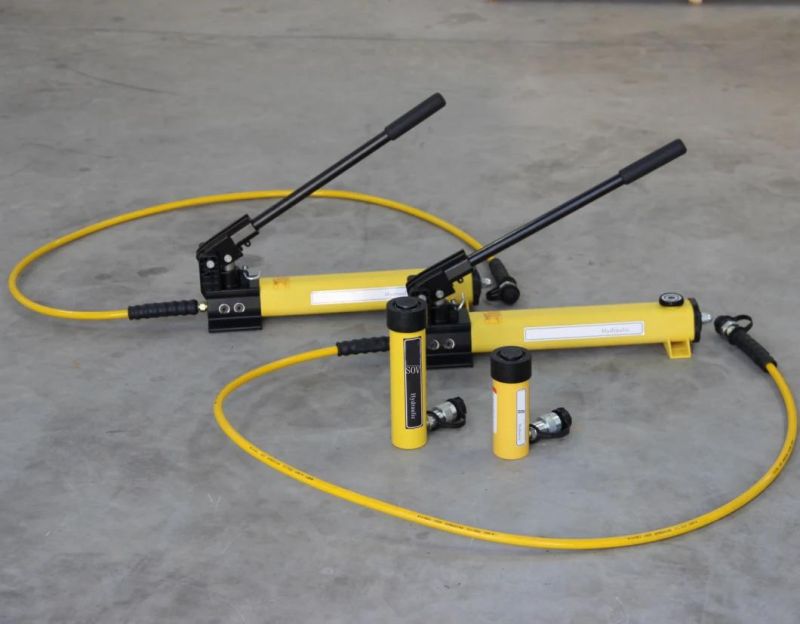

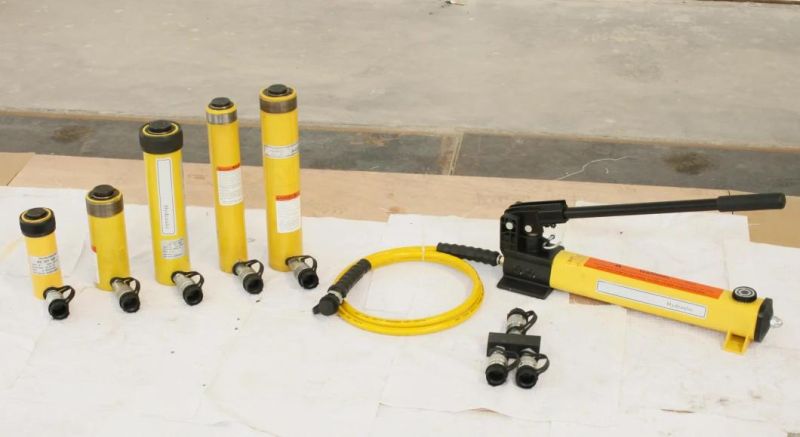

Photos

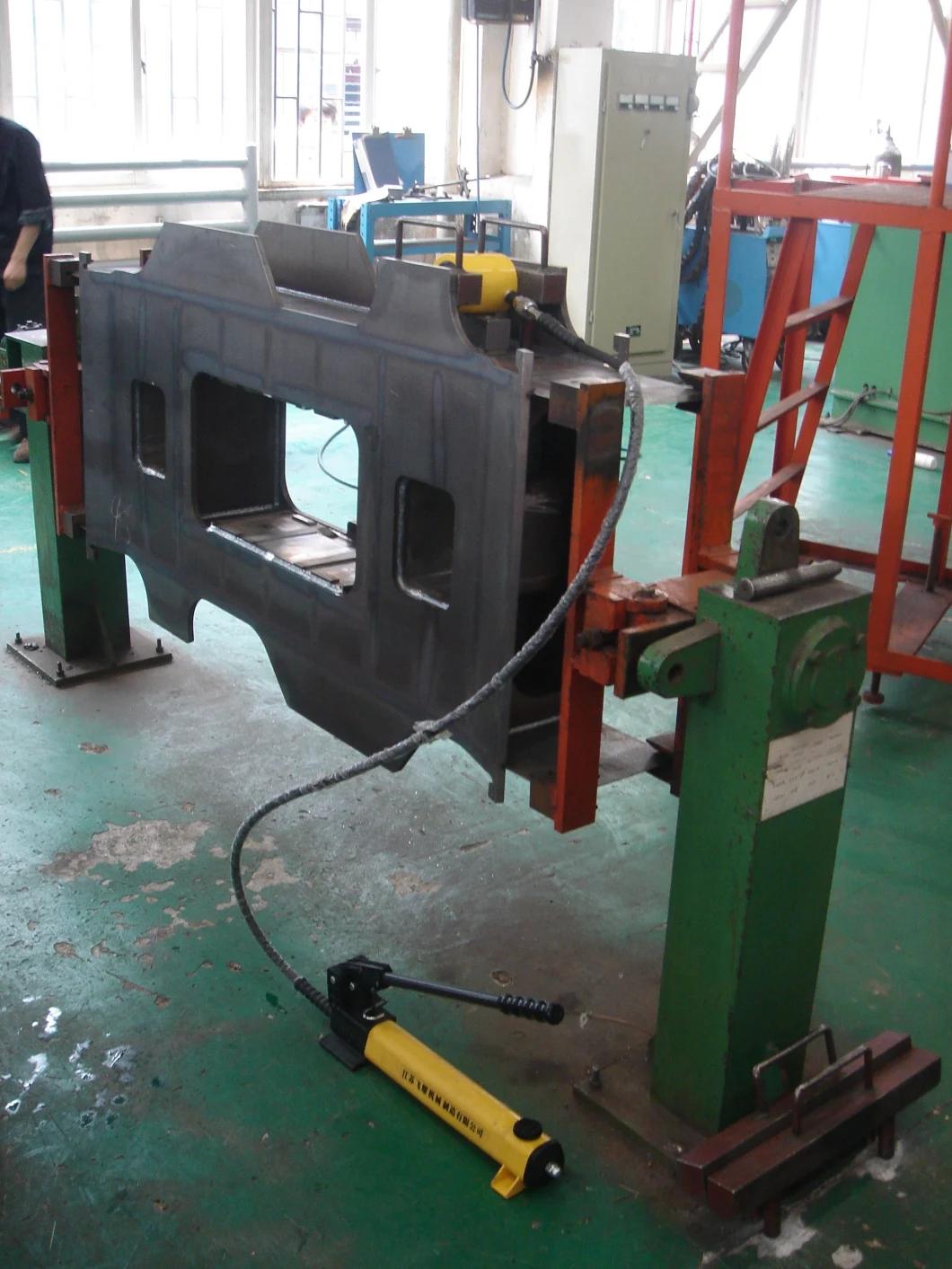

Application

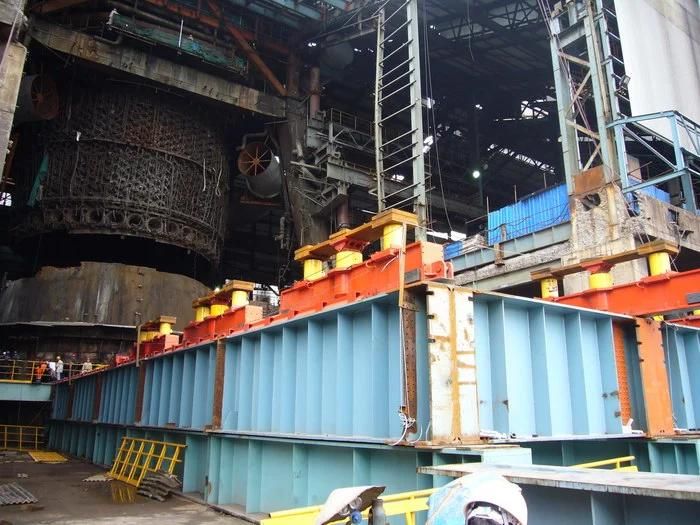

Single Acting Hydraulic Cylinder ( synchronous lifting for the maintenance work of
blast furnace in the steel mill )

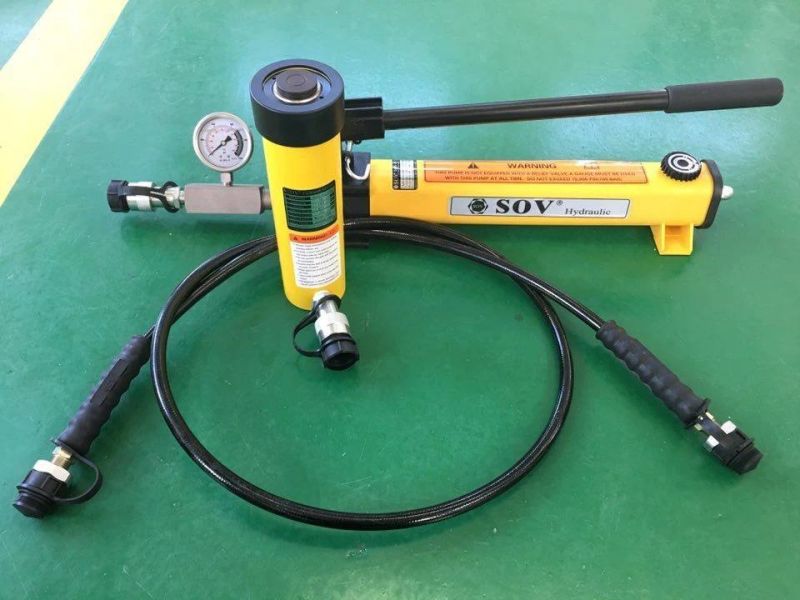

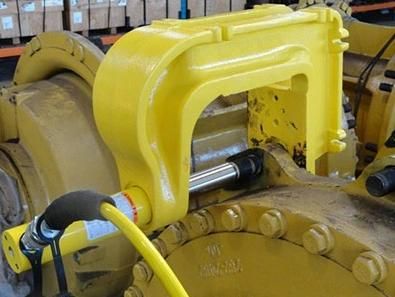

Single Acting Hydraulic Cylinder ( for use with hydraulic pusher )

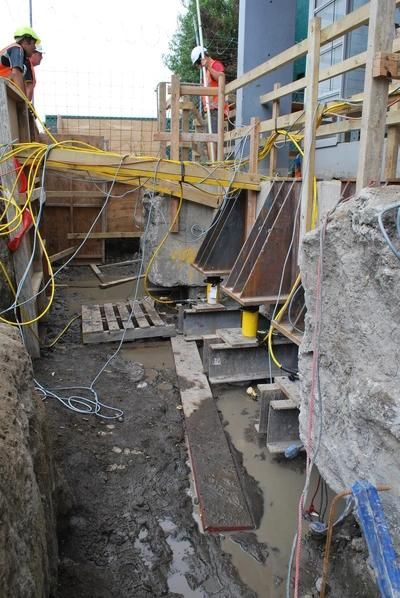

Single Acting Hydraulic Cylinder ( synchronous lifting for house translation )

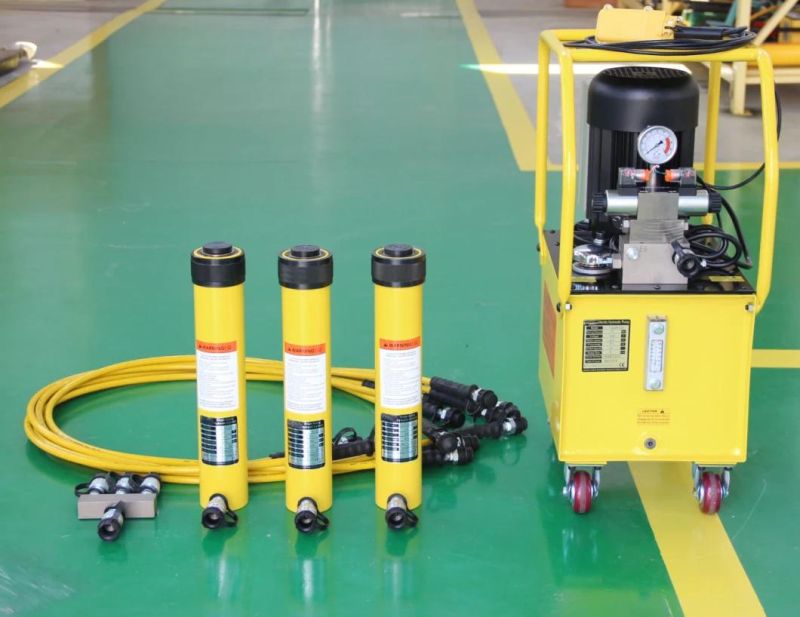

single Acting Hydraulic Cylinder ( Lifting for Adjustment at the massive equipment's manufacturing work site )


Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port


Our service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company information
SOV Hydraulic Technology(Shanghai )Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

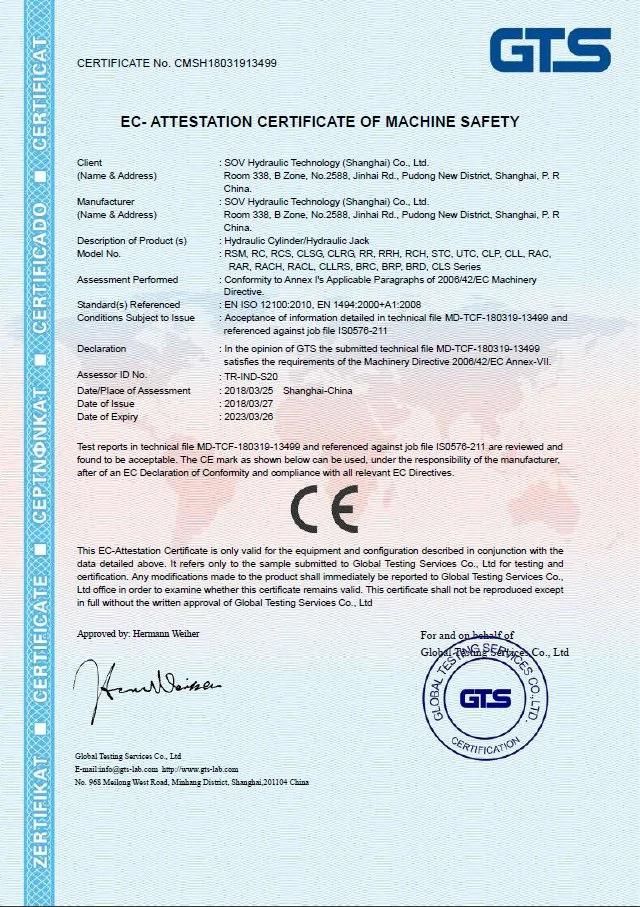

Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


Competitive Advantages
1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc.

WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.

Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.

Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.

Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.

Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
