• Model NO.：SJYL-10
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Extend Platform Size：900mm
• Charge：25V,24A
• Load Capacity：300kg
• Working Height：16000mm
• Weight：3900kg
• Battery：4*6V,210ah
• Max Woker：Two Men
• Machine Closed Height：1060mm
• Max Working Angle：2-3 Degree
• Color：Customizable
• Transport Package：Standard Export Packaging
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：Jinan, Shandong, China(Mainland)
• HS Code：842890
• Production Capacity：500sets Per Moth

Basic Info.

Model NO. SJYL-10 Feature Explosion-Proof Certification CE, ISO 9001 Extend Platform Size 900mm Charge 25V/24A Load Capacity 300kg Working Height 16000mm Weight 3900kg Battery 4*6V/210ah Max Woker Two Men Machine Closed Height 1060mm Max Working Angle 2-3 Degree Color Customizable Transport Package Standard Export Packaging Specification CE, ISO, SGS Trademark Moral Origin Jinan, Shandong, China(Mainland) HS Code 842890 Production Capacity 500sets Per Moth

Product Description

10 meters LED Light Maintain Self Propelled Battery Scissor Lift



Brief Introduction:
Battery driven scissor hydraulic lift is the professional high-altitude operation equipment. Its scissor mechanical structure makes the lifting platform lift more stable.
Wide working platform and large loading capacity can make the work scope bigger.
Therefore, It's suitable for several workers working together as well.
The height of the scissor lift is optional, generally, we have 4m, 6m, 8m, and 10m.
Moreover, the maximum height of the scissor lift can reach 20m.
Furthermore, the loading capacity of the scissor lift could be 300kg, 500kg, 800kg, 1000kg and so on.
Its maximum capacity can reach 7000kg


Control system:
1. Manual control and electric control
2. There are two control systems(optional). One is hand button, which may be placed in any position on the table rail for the convenience of operation.
The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.


Power:
1. Electricity or diesel. Local power is available at the working
Sites(110V, 220V, 380V, 415V), diesel engines and generators.
2. It can be equipped with manual hydraulic device, when there is no power accidentally,
Or the power supply goes out, the lift can still work normally.


Safety:
1. In special circumstances, the explosion-proof electric equipment can be utilized.
2. The platform is equipped with antiskid plate to prevent slipping,
It is safe enough when workers operate on the platform
3. The lift has hydraulic overload protective organization to ensure that equipment will not work
When the load beyond its rated load capacity.
4. The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure.
You can open the manual dropped valve to lower the platform to the home position.


Parameter:

Model	Lifting height (M)	Loading capacity (KG)	Table size (L*W )(mm)	Total dimension (L*W*H)(mm)	Power (KW)	Weight (KG)
SJY0.3-4	4	300	1500*750	1850*900*1900	2.2	400
SJY0.3-4	6	300	1650*750	1850*900*1970	2.2	650
SJY0.3-8	8	300	1650*800	2100*1200*2460	2.2	1200
SJY0.5-8	8	500	1800*900	2500*1550*2380	2.2	1400
SJY0.8-8	8	800	2000*1220	2600*1550*2640	2.2	1700
SJY0.3-10	10	300	2100*1220	2700*1550*2380	2.2	1500
SJY0.5-10	10	500	2100*1200	2700*1550*2380	2.2	1600
SJY1.0-10	10	1000	2200*1220	2820*1720*2850	3	2380
SJY0.3-12	12	300	2550*1500	3150*1860*2850	2.2	2580
SJY0.5-12	12	500	2550*1500	3150*1860*2850	2.2	2780
SJY1.0-12	12	1000	2600*1500	3200*2015*3090	3	3580
SJY0.3-14	14	300	2990*1600	3600*2000*2850	2.2	3000
SJY0.5-14	14	500	2990*1600	3600*2000*2850	3	3200
SJY0.3-16	16	300	3230*1600	3700*2000*3250	3	3900
SJY0.3-18	18	300	3230*1600	3700*2000*3250	3	4500
SJY0.3-20	20	300	3230*1600	3700*2000*3450	3	5100

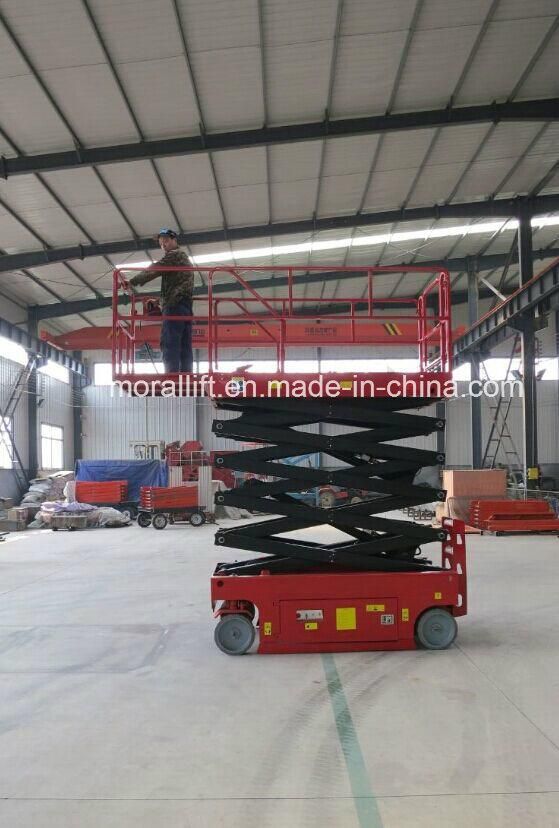

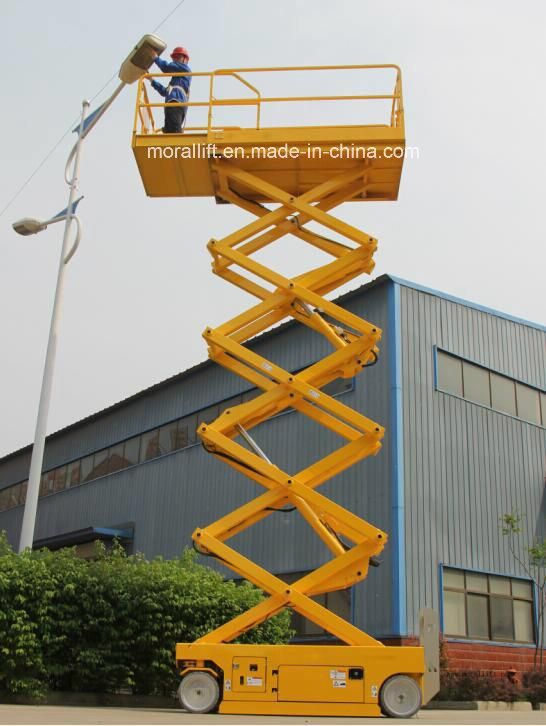

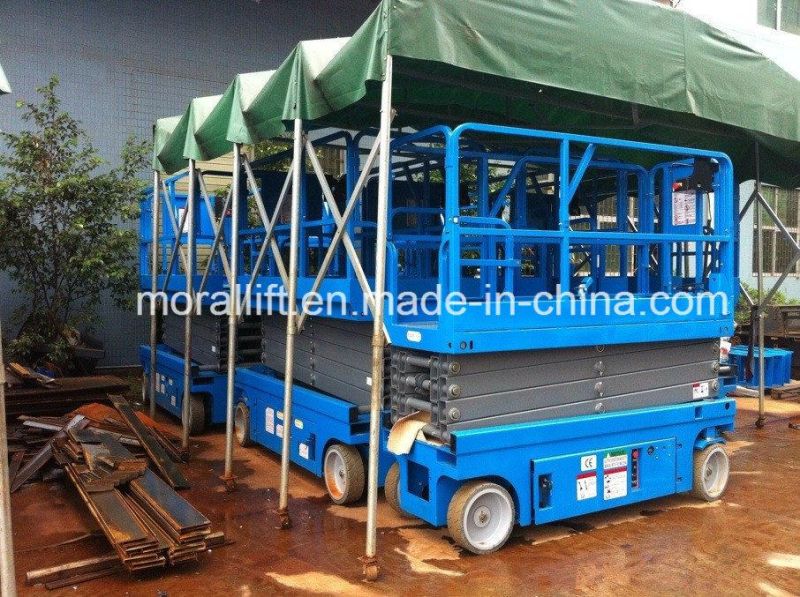

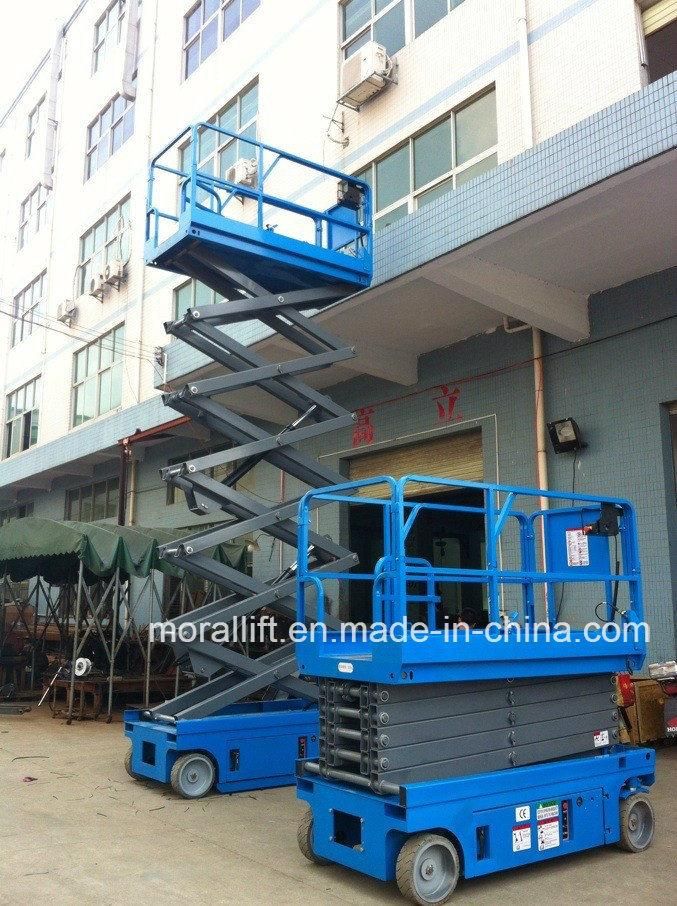

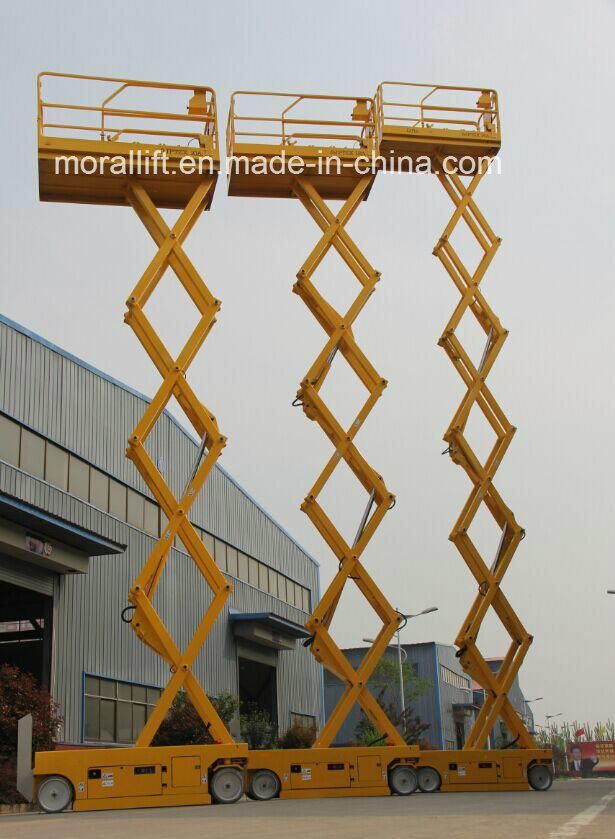

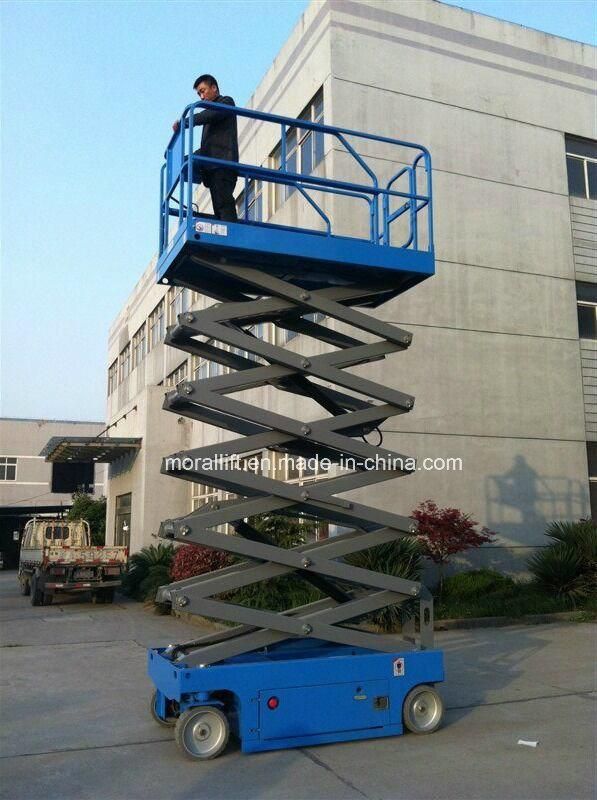

Detailed pics:
