• Model NO.：RSM
• Condition：New
• Name：Rsm Single Acting Portable Ultra Thin Telescopic
• Capacity：5-150t
• Oil Capacity：4-317cm^3
• Working Pressure：700bar or 70MPa
• Body Material：Stainless Steel
• Stroke：6-16mm
• Collapsed Height：32-100mm
• Extended Height：38-116mm
• Outside Diameter：58*41-215*190mm
• Weight：1-26.3kg
• Transport Package：Wooden Case
• Specification：CE, ISO, SGS
• Trademark：SOV, Can OEM
• Origin：Jiangsu Province in China
• HS Code：841221000
• Production Capacity：1000per Month

Basic Info.

Model NO. RSM Condition New Name Rsm Single Acting Portable Ultra Thin Telescopic Capacity 5-150t Oil Capacity 4-317cm^3 Working Pressure 700bar or 70MPa Body Material Stainless Steel Stroke 6-16mm Collapsed Height 32-100mm Extended Height 38-116mm Outside Diameter 58*41-215*190mm Weight 1-26.3kg Transport Package Wooden Case Specification CE, ISO, SGS Trademark SOV, Can OEM Origin Jiangsu Province in China HS Code 841221000 Production Capacity 1000per Month

Product Description

Features

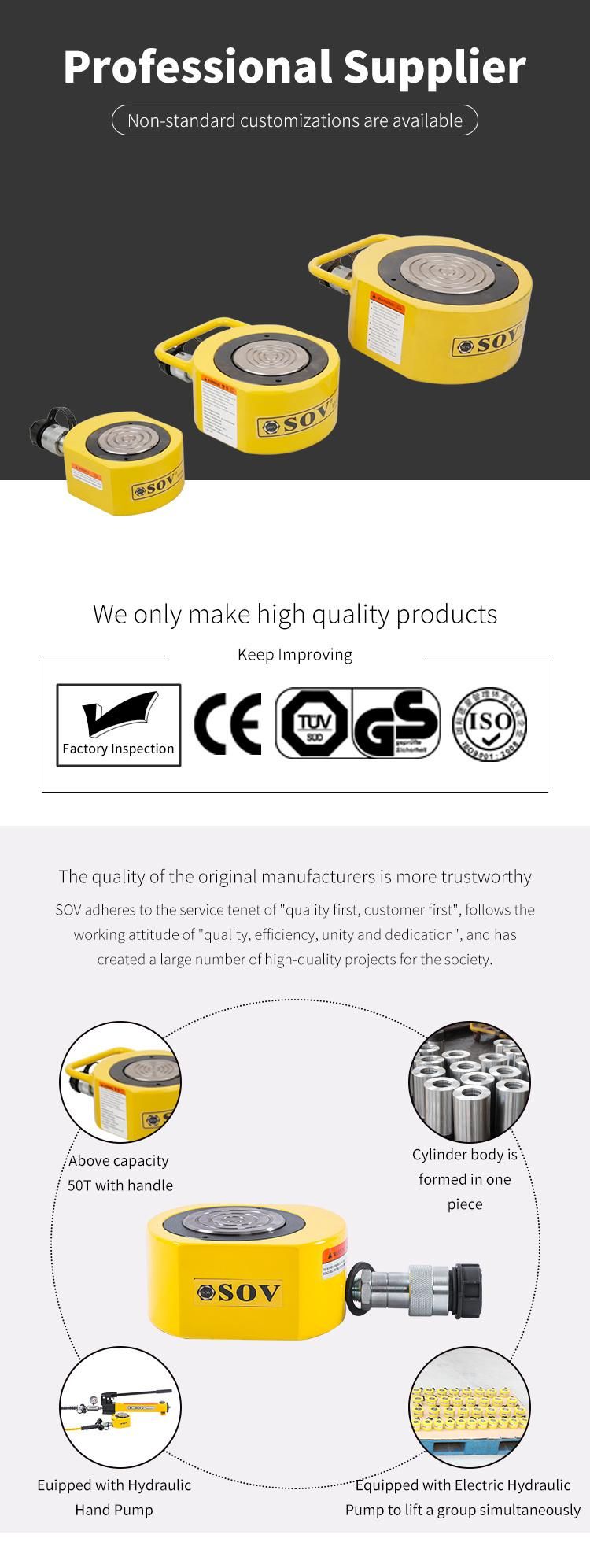

§ Compact, flat design for use where other cylinders will not fit
§ SOV-RSM-750, 1000 and 1500 have handle for easy carrying
§ Mounting holes permit easy fixturing
§ CR-400 coupler and dustcap included on all models
§ Hard chrome plated high quality steel plungers
§ Grooved plunger ends require no saddle
§ Single-acting, spring return

Product Parameter

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-RSM-501)	5 (45)	6	6,5	4	32	38	58 x 41	1
SOV-RSM-100	10 (101)	12	14,5	18	43	54	82 x 55	1,4
SOV-RSM-200	20 (201)	11	28,7	32	51	62	101 x 76	3,1
SOV-RSM-300	30 (295)	13	42,1	55	58	71	117 x 95	4,5
SOV-RSM-500	45 (435)	16	62,1	99	66	82	140 x 114	6,8
SOV-RSM-750	75 (718)	16	102,6	164	79	95	165 x 139	11,3
SOV-RSM-1000	90 (887)	16	126,7	203	85	101	178 x 153	14,5
SOV-RSM-1500	150 (1368)	16	198,1	317	100	116	215 x 190	26,3

§ 1) SOV-RSM-50 is fitted with an AR-400 coupler. Available as set, see note on next page.
*Also available as cylinder-pump sets.

Application

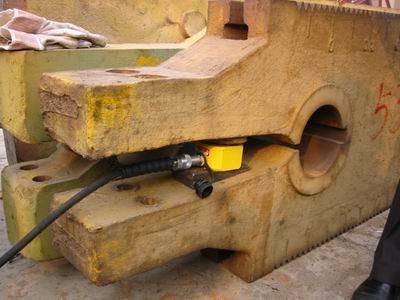

Low Profile Hydraulic Cylinder ( for the use of repairing wok of oil extraction machine in oil field )

Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port


Company information
Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

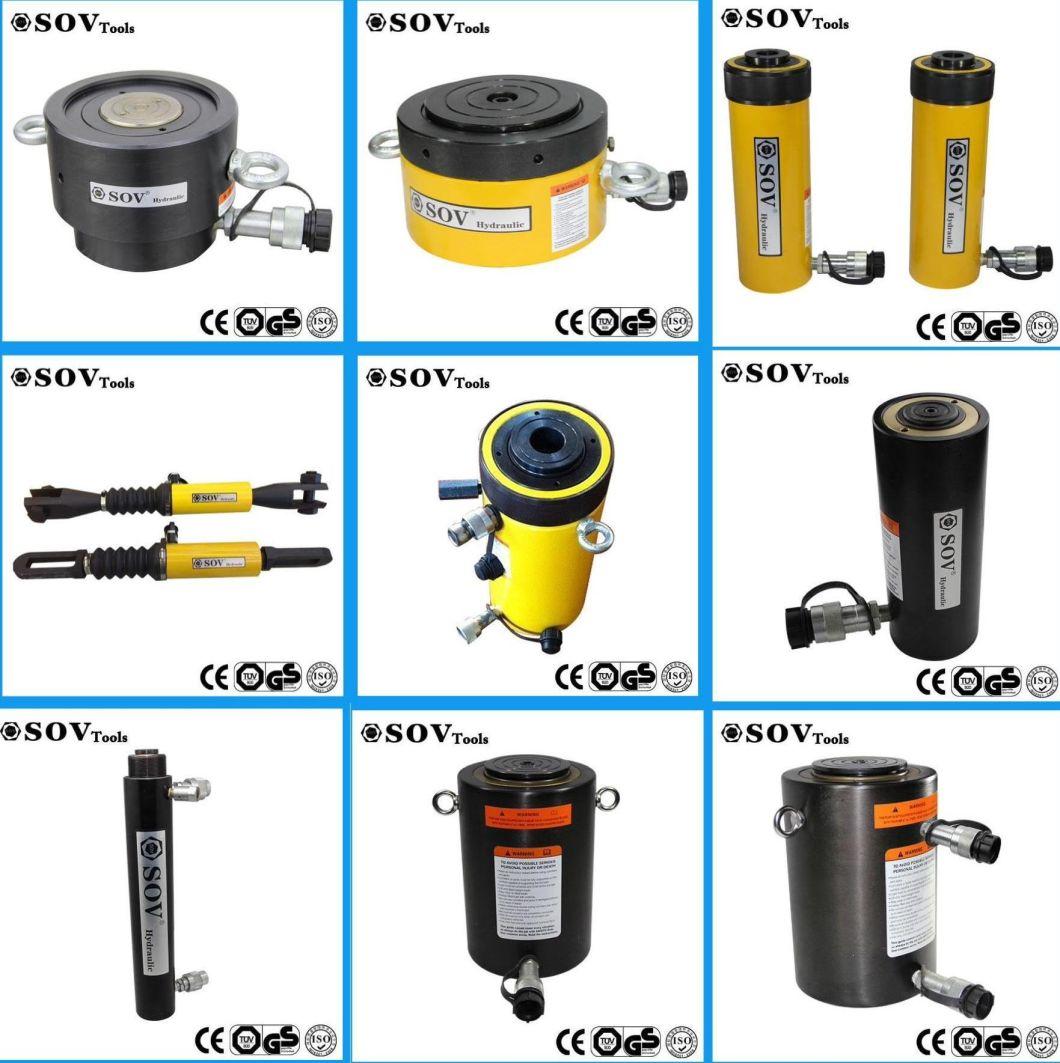

Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);

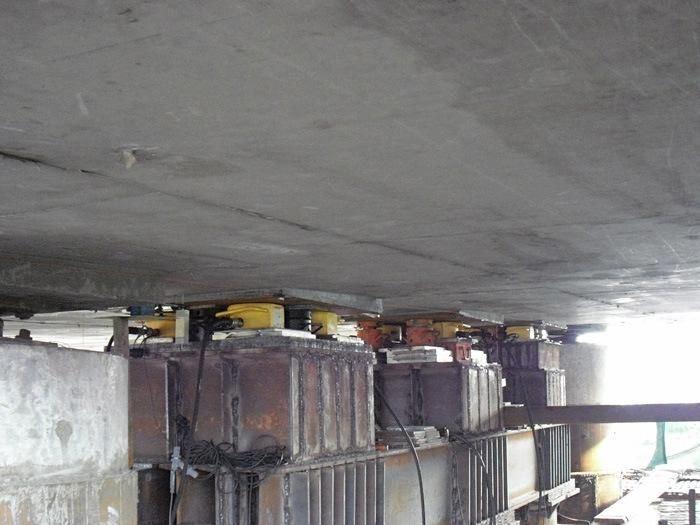

•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Competitive Advantages
1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc.

WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
