• Model NO.：TBL
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max. Lifting Height：12m
• Max. Working Height：14m
• Horizontal Span：5.5m
• Rotating degree：360 Degree
• Support Legs：Hydraulic
• Min. Lifting Height：1900mm
• Platform：Antiskid
• Power：3kw, AC, DC or Diesel Engine
• Color：Optional
• OEM：Yes
• Transport Package：Standard Export Pakage
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets,Per Month

Basic Info.

Model NO. TBL Feature Explosion-Proof Certification CE, ISO 9001 Max. Lifting Height 12m Max. Working Height 14m Horizontal Span 5.5m Rotating degree 360 Degree Support Legs Hydraulic Min. Lifting Height 1900mm Platform Antiskid Power 3kw, AC, DC or Diesel Engine Color Optional OEM Yes Transport Package Standard Export Pakage Specification CE, ISO, SGS Trademark Moral Origin China(Mainland), Shandong, Jinan HS Code 842890 Production Capacity 100sets/Per Month

Product Description

Hydraulic Work Platform with CE Certification



Features:
1. Platform
Aerial work platform can go up and down, extend horizontally, or rotate 360 degrees to stride across certain obstacles for works. So the aerial platform can realize multipoint works in wide scope.
2. Legs
With 4 full-automatic hydraulic outriggers, the aerial working platform can steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the work platform.
3. Drive
Aerial work platform can be driven by diesel or storage batteries according to customer's requirements.
4. Material
Aerial working platform adopts the high-quality structural steel with the production handicraft for single-side welding and double-side molding.
5. Hydraulic cylinder
Our aerial platforms are equipped with the hydraulic cylinders of original import or domestic joint venture, and with high quality, which extremely improves the reliability and prolongs the work time.
6. Safety equipment
Articulating boom lifts are equipped with a balanced valve, automatic pressure maintenance, etc.
7. Advantages
The aerial working platform is safe, reliable and durable. This type of work platform is with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.


Application:
Aerial work platforms are widely used in highways, boatyards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshops, residential property, construction sites, and any other high altitude maintenance operation of complex high-altitude construction and other large-range homework places.


Parameters:

Model:	TBL
Loading capacity	200kg
Travel height	12,000mm
Working height	14,000mm
Max working radius	5500mm
Rotation	360°
Platform size	900*700mm
Dimensions	5800*1800*2200mm
Lifting speed	50mm~90mm/s
Travel speed	15~30km/h
Working pressure	10 Mpa
Windproof level	<=5
Overload	Protection overcurrent relay
Control voltage	24V/DC
Power Input	AC 2.2KW
Drive System	Hydraulic
Control Mode	Button/remote controls
Platform	Non-skid Diamond steel platform
Hydraulic cylinder	Φ80*2 and Φ70*5
Controls parts	Delixi

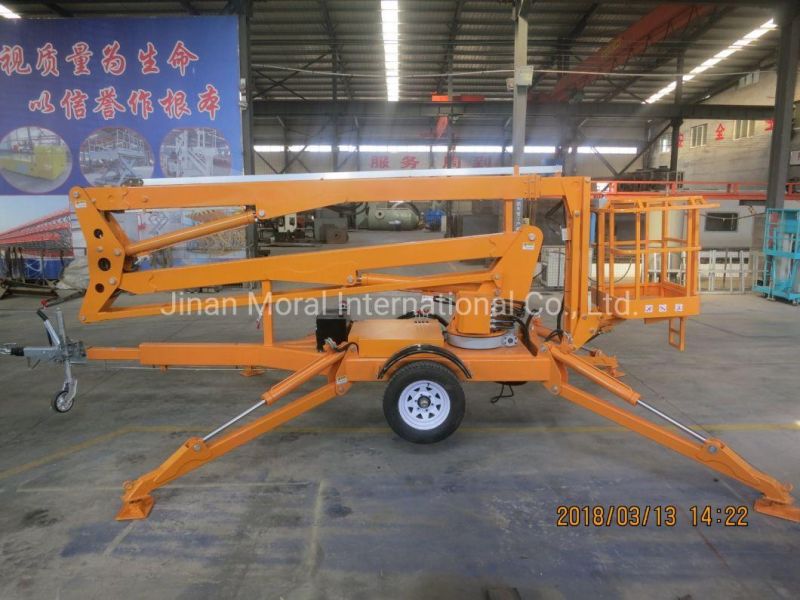

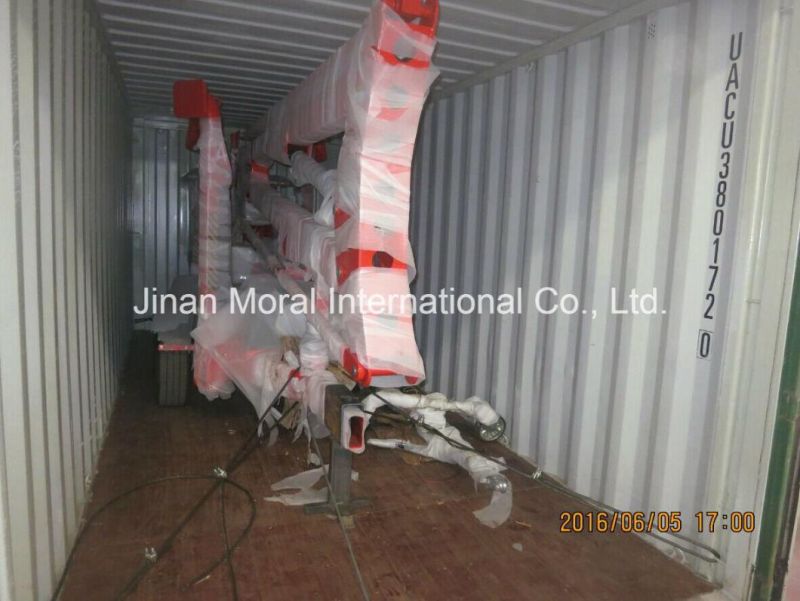

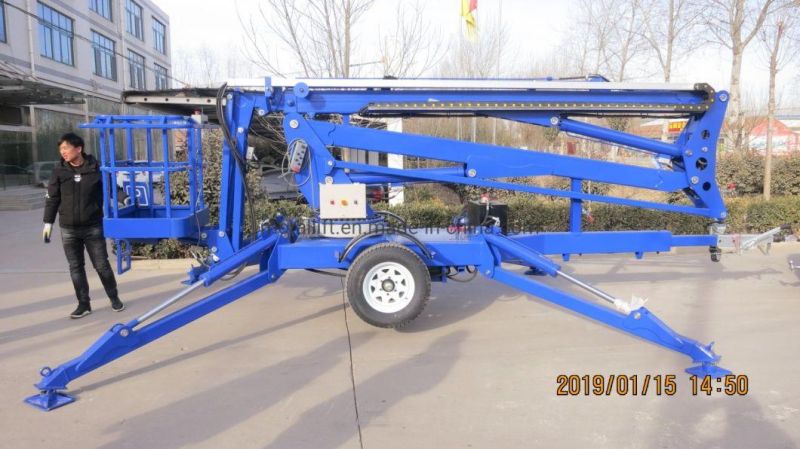

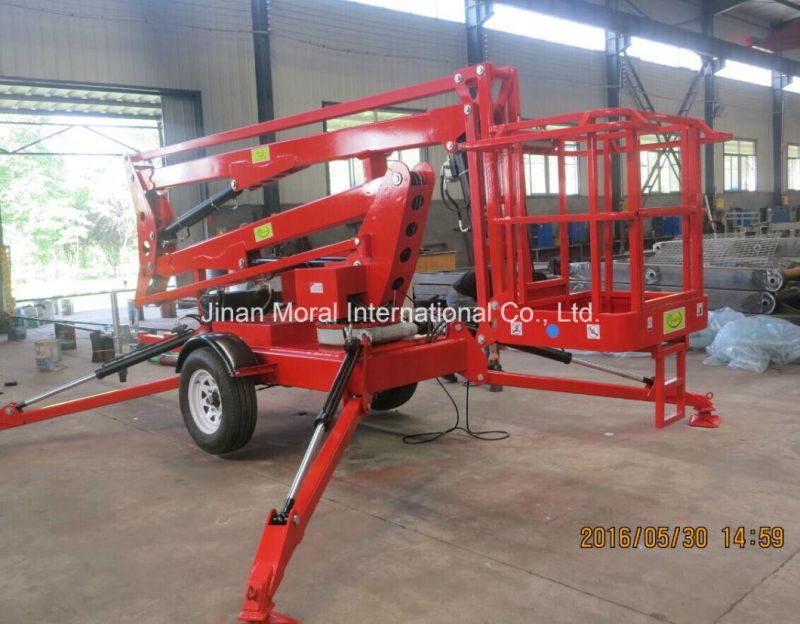

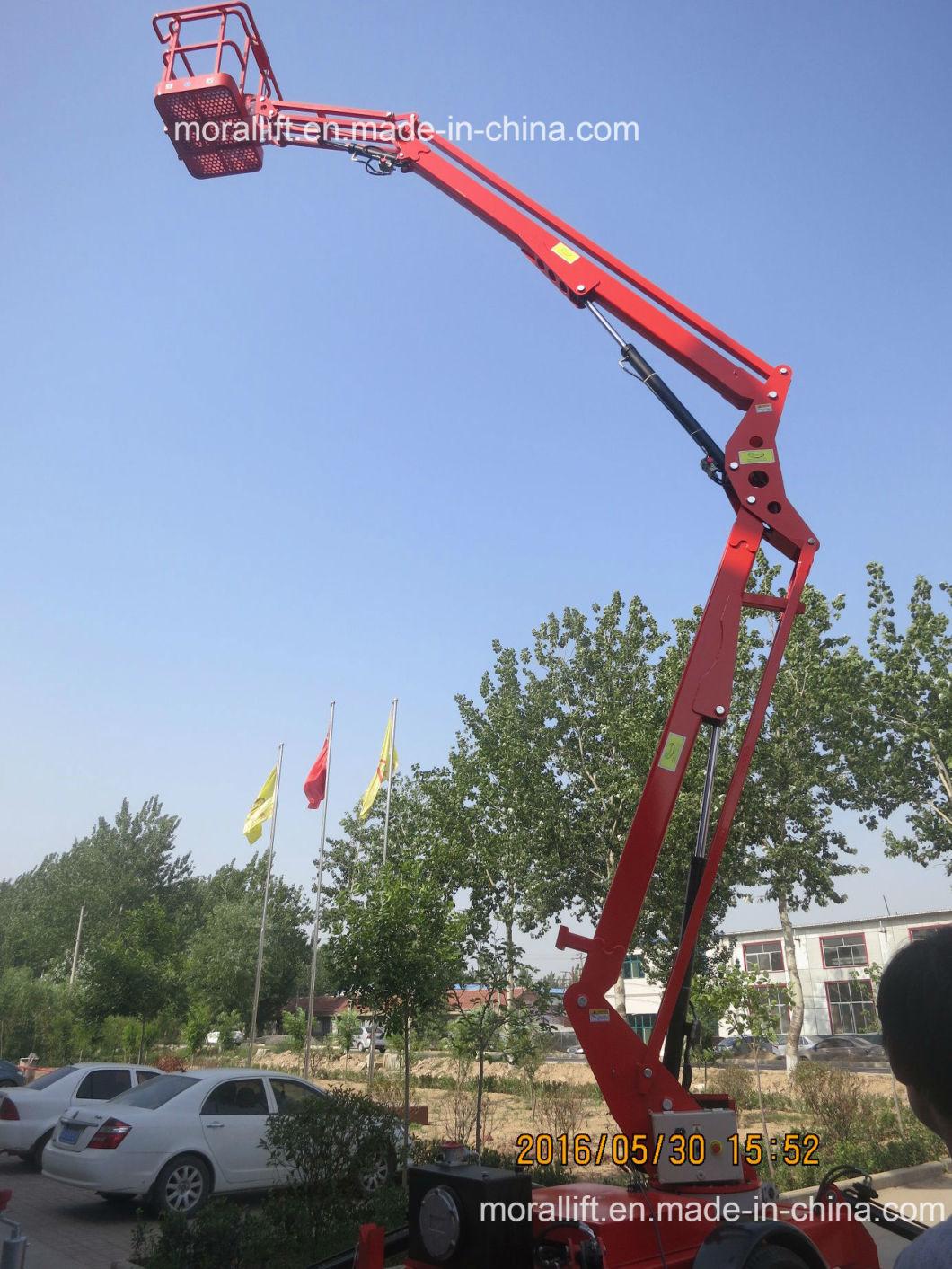

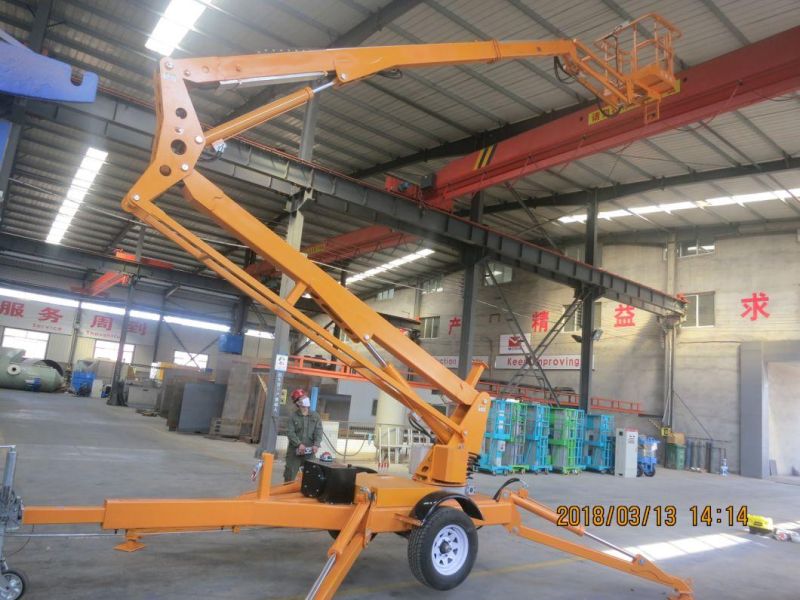

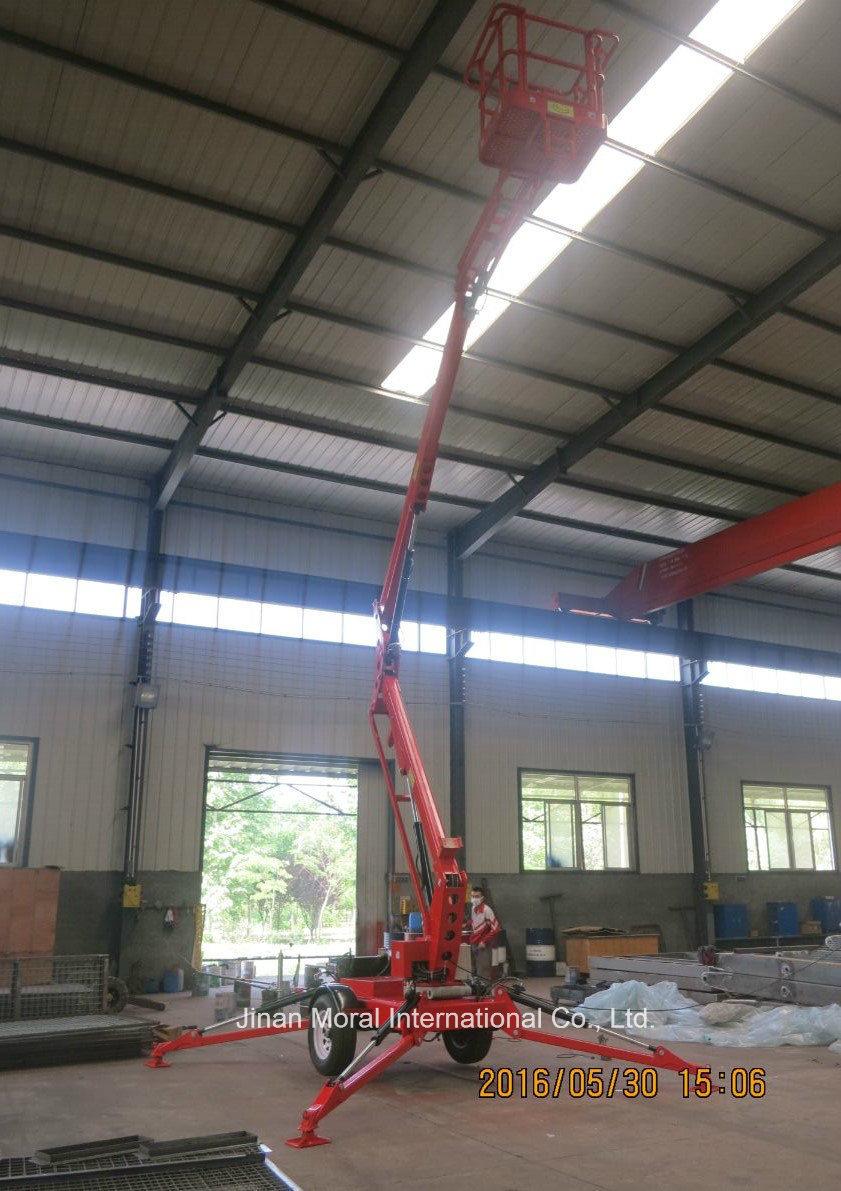

Product pics:








Our services:
A Technical support:
1. Technical support by phone, email or MSN/Skype 24 HOURS
2. Friendly English version manual and operation video
3. Engineer available to service machinery overseas

B After-sales services:
1. The aerial work platform is properly adjusted before dispatch.
2. You will be able to get free training advice for our machine in our factory.
3. You will also get free suggestions and consultation, technical support and service by Email/fax/tel and lifetime technical support.


FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are English manuals or teaching videos that show how to use a machine.
If there is still have any question, please contact us by e-mail/skype/ phone /trademanager online service at any time.

B If the machine has any problem after I receive it, what can I do?
Free parts send to you in the machine warranty period if the machine has any problem.

C MOQ?
The minimum order is 1 set machine, if you order more one time, the price will be better.

D How can I buy this machine from you? ( Very easy and flexible! )
1. Consult us about this product online or by e-mail.
2. Negotiate and confirm the final price, shipping, payment methods, and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on the proforma invoice.

E 9 good reasons why you should buy from us?
1. We are a real factory offering products.
2. Free technical advice by qualified mechanical engineers.
3. Company in business for many years.
4. Over 50 countries' customers served!
5. The direct purchase will save you money!
6. All machines with CE, ISO, BV certificate.
7. Our engineer can go to your country to provide technical guidance.
8. We have phone support in English, if you have any questions, you can call it, we can give you the best solution within 24 hours.
9. Fast delivery, save your time.


Thank you for visiting our products!
Welcome to patronize!
