• Model NO.：RCS Series
• Condition：New
• Name：Sov Low Height Hydraulic Cylinder
• Capacity：10-150ton
• Stroke：40-57mm
• Collesped Height：90-205mm
• Deiameter：68-205mm
• Piston Diameter：39-138mm
• Weight：2.4-41.5kg
• Working Pressure：700bar
• OEM：Yes
• Delivery Time：Stock or 15 Days
• Transport Package：Wooden Case Packing
• Specification：CE ISO9001: 2008
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：50000

Basic Info.

Model NO. RCS Series Condition New Name Sov Low Height Hydraulic Cylinder Capacity 10-150ton Stroke 40-57mm Collesped Height 90-205mm Deiameter 68-205mm Piston Diameter 39-138mm Weight 2.4-41.5kg Working Pressure 700bar OEM Yes Delivery Time Stock or 15 Days Transport Package Wooden Case Packing Specification CE ISO9001: 2008 Trademark SOV Origin Shanghai, China HS Code 8412210000 Production Capacity 50000

Product Description

Product Description
RCS Series Low Height Hydraulic Cylinder is designed with low thickness so as to be used in confined spaces.
1. Pressure: 700 bar
2. Capacity: 10-150 T
3. Stroke: 40-65 mm

Features
Single-acting, spring return;
Mounting holes permit easy fixturing;
Baked enamel finish for increased corrosion resistance;
Hard chrome plated high quality steel plungers;
Grooved plunger ends require no saddle;
NPT3/8 coupler and dust cap included on all hollow plunger models;
Plunger wiper reduces contamination, extending cylinder life;
Allow for 5° angle loading.

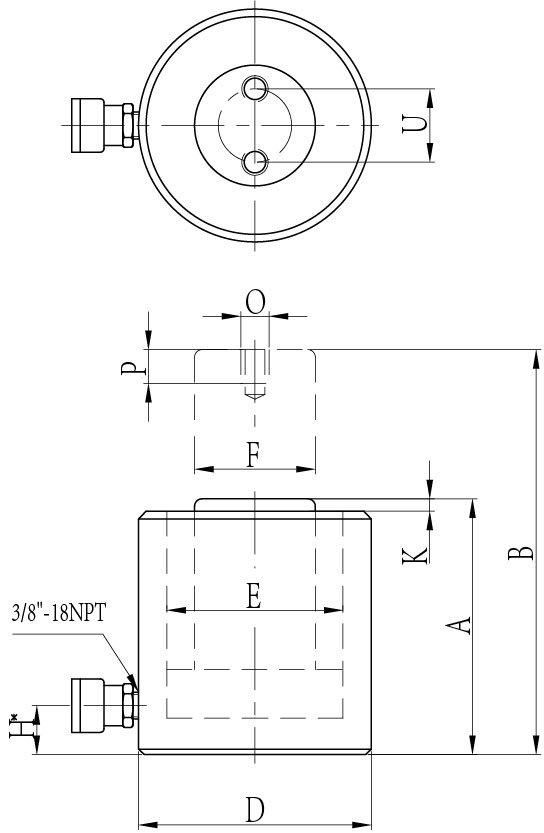

Specifications

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-RCS-101*	10 (101)	38	14,5	55	88	126	69	2,7
SOV-RCS-201*	20 (201)	45	28,7	129	98	143	92	5,0
SOV-RCS-302*	30 (295)	62	42,1	261	117	179	101	6,8
SOV-RCS-502*	45 (435)	60	62,1	373	122	182	124	10,0
SOV-RCS-1002*	90 (887)	57	126,7	722	141	198	165	20,7

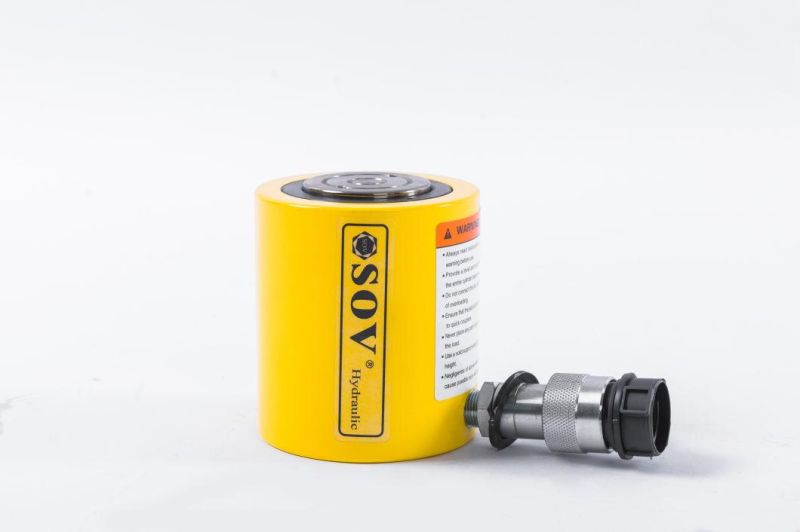

SOV LIGHTWEIGHT LOW PROFILE HYDRAULIC CYLINDERS

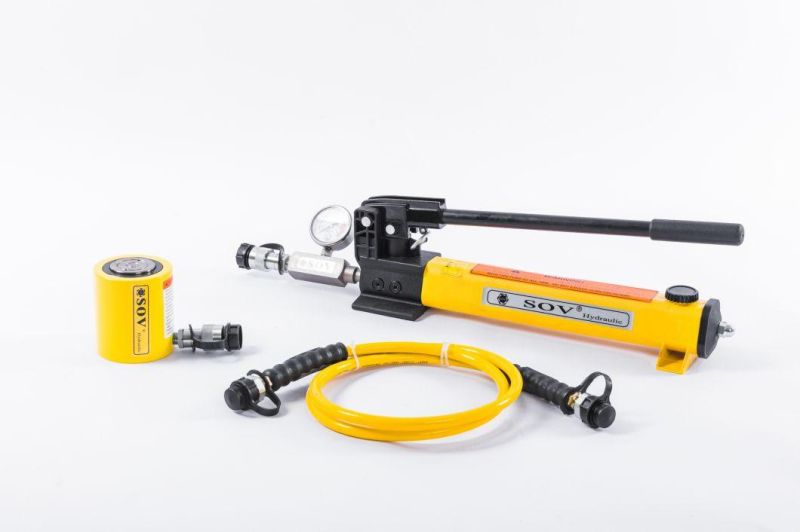

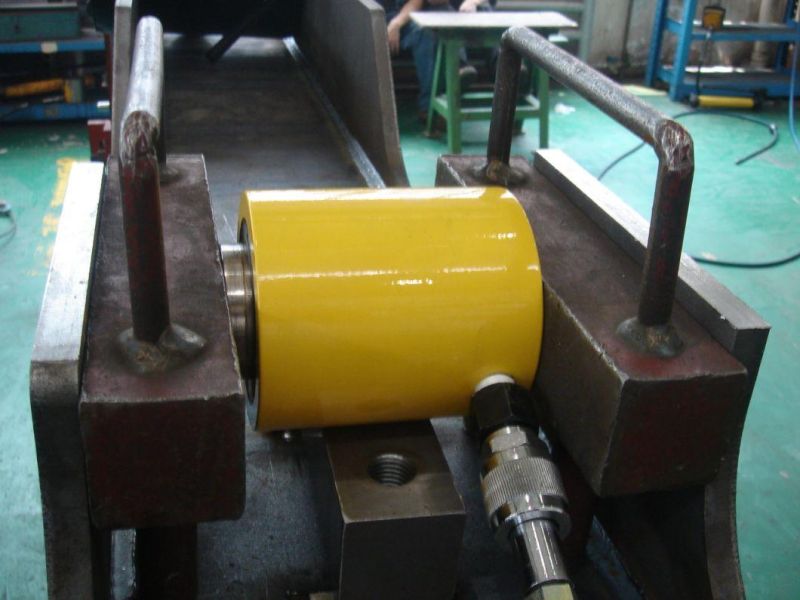

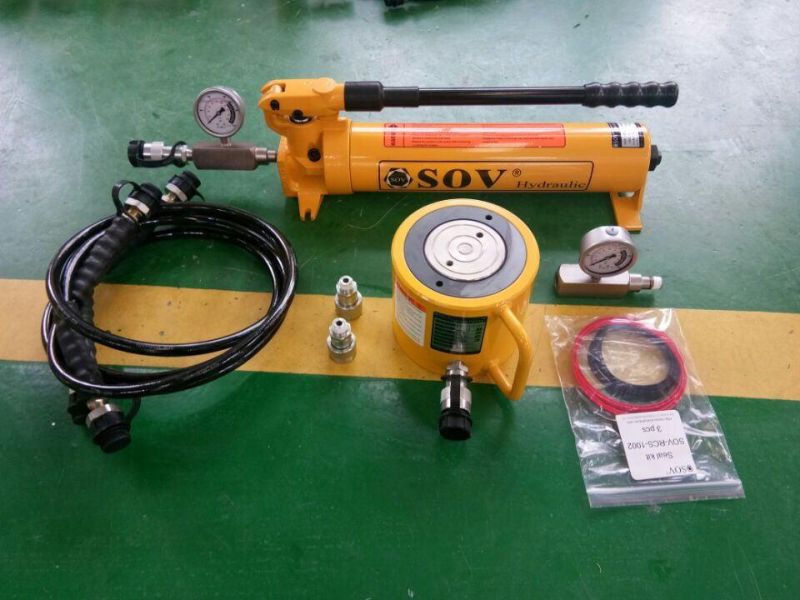

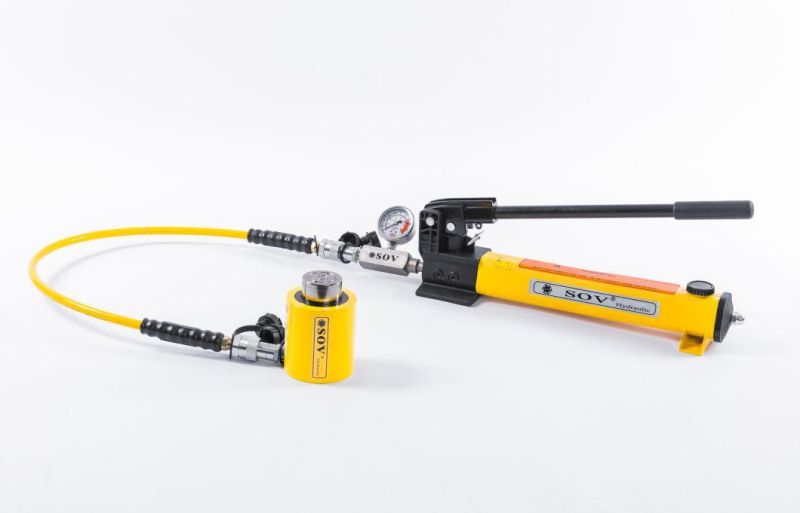

photos

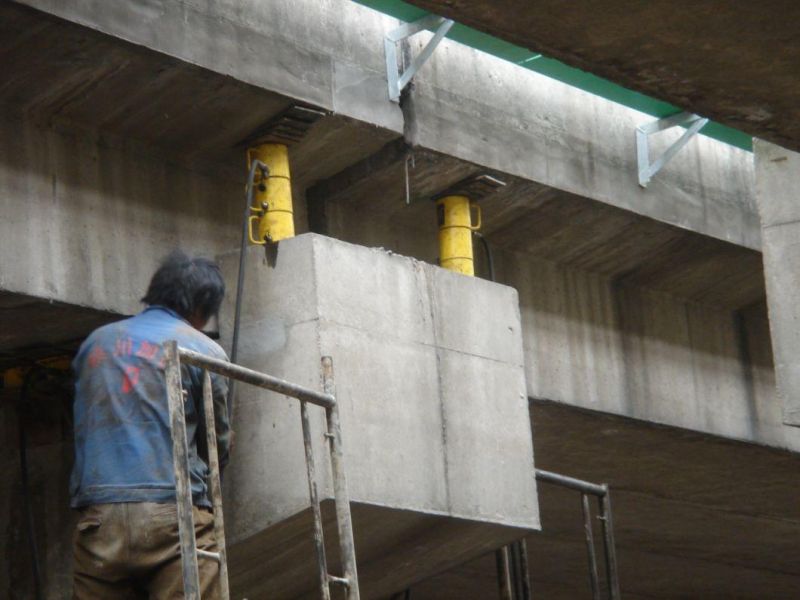

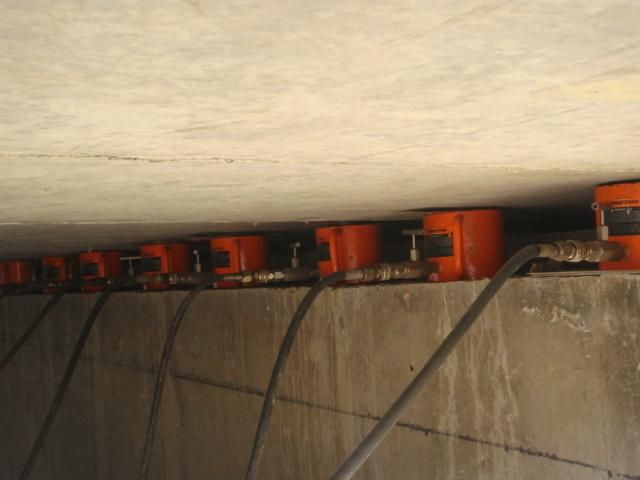

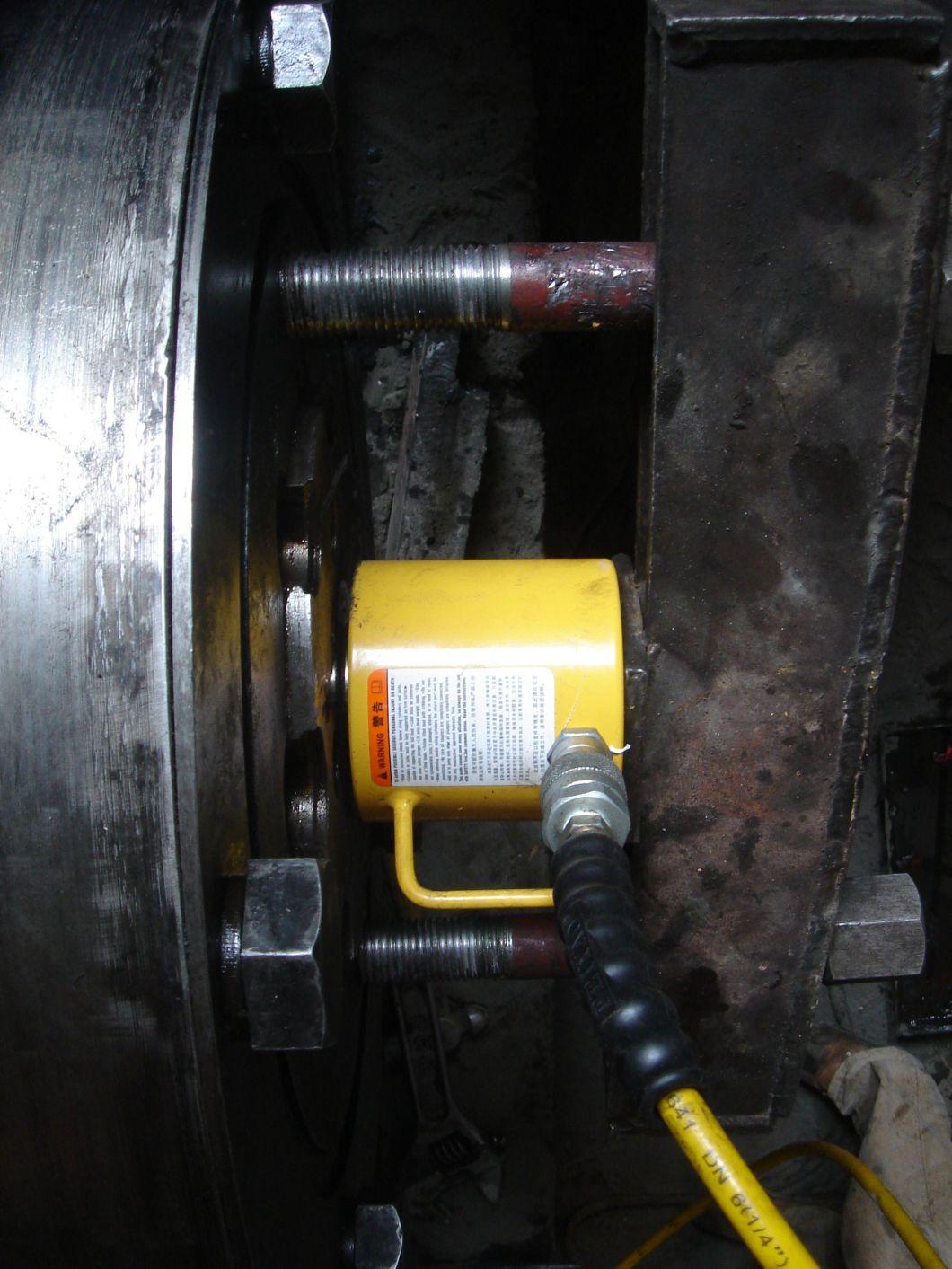

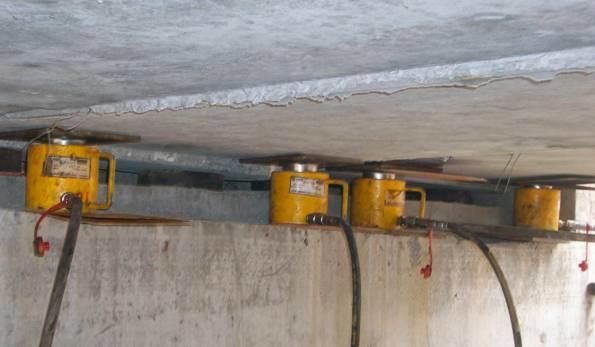

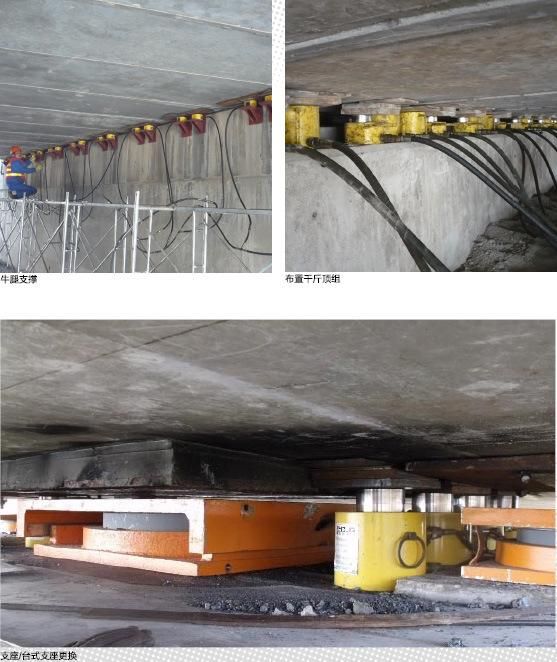

Applications








Packaging & Delivery
Packaging Details: Hydraulic cylinder
Packing: standard plywood case
Delivery Detail: Shipped in 7 days after payment


Our Services
One Year Warranty,repair and service for the whole life,question report response in 24 hours,and reply in 48 hours.

Company Information
SOV is a professional manufacturing in hydraulic tools and products,we have been in the industry for more than 20 years.Since the establishment in 1995,we successfully transformed from OEM manufacturer to create our own brand SOV,and our factory has been approved by CE,ISO9001:2008 consecutively.Our products have been widely used in petrochemical,cement,shipbuilding,steel plant,and heavy constructions areas,etc.

Our main product category includes:
Hydraulic cylinders and jacks
Hydraulic bolting tools such as hydraulic torque wrench
Hydraulic bolt tensioners,nut splitters.


Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.



WHY YOU NEED SOV?

Q1: What's the brand name of your products ?

A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.

Q2: Hydraulic cylinder internal leakage?

A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3: Does your piston rod get ruptured easily?

A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.

Q4: Is your design reasonable? What about your product safe coefficient?

A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.

Q5: How about the delivery time?

A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time.Generally ,it's 7-20 days.

Q6: What 's the after-service?

A: If the quality can't meet your requirement ,we will pay all your lost and offer technical support to solve your problem.
