Stationary Scissor Lift Platforms, Indoor Scissor Lifting Table Equipment

Shandong Lift Machinery Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Cargo Lift for Warehouse or Work Shop
  • Lift Mechanism：Scissor Lift, Hydraulic + Lift Chain
  • Carrying Capacity：Weight Level
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Model NO.：SJG1.5-3.6
  • Feature：Explosion-Proof
  • Certification：GS, CE, ISO 9001
  • Power：380V,50Hz,3pH,11kw
  • Lift Speed：3-4m,Min
  • Transport Package：The Normal Package Is Wooden Box for Cargo Lift
  • Trademark：SDLIFT
  • Origin：Shandong China
  • HS Code：84289090
  • Production Capacity：1000 Set Per Year

Description

The hydraulic scissor lift can be used to lift cargo, materials with different levels, suitable for cargo or material moving between stairs, from basement to first floor, or to second floor.Operation is easy. There are 2 sets control system installed on the stationary hydraulic scissor lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.The hydraulic scissor lift can be customized as your detailed size.

Safety:

Explosion-proof lock valve to avoid a sudden drop if emergency occurs.The safety rails to guarantee safety of the goods above lift platform.Equipped 4 guide rails, to ensure the stationary hydraulic scissor lift runs more smoothly and steadily.The limit switch system helps the stationary hydraulic scissor lift to stop at accurate position.Electricity leakage protection device is equipped on, all electric components are CE certified.All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform

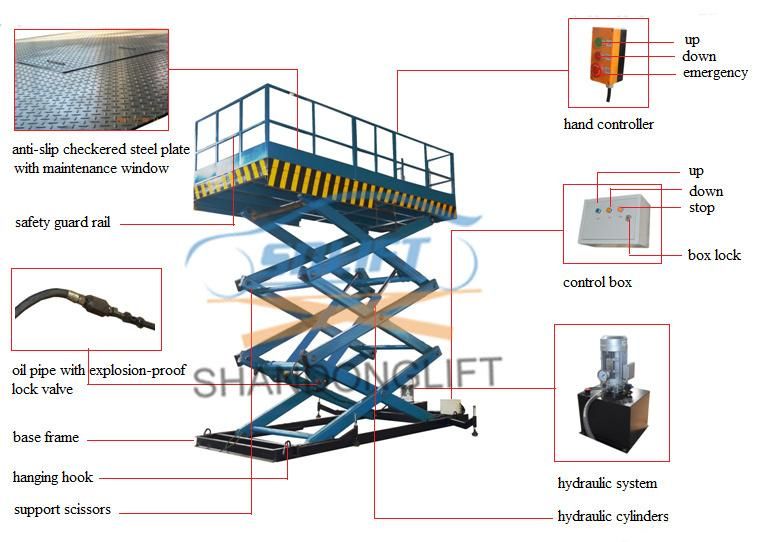

The picture of the lift :

Stationary Scissor Lift Platforms, Indoor Scissor Lifting Table Equipment


Our services:

1) We can design the customerized stationary hydraulic scissor lift as per your requirement.

2) The most suitable stationary hydraulic scissor lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 24 Months warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
