• Model NO.：SJG2-7
• Feature：Explosion-Proof
• Certification：GS, CE
• Control Mode：Control Panel and Control Box
• Safety Trip Bar：Yes, Under Platform
• Control Panel：Each Floor
• Loading Lips：Made as Your Requirements
• Manual Door：Two Units on Platform
• Lift System：Hydraulic System
• Transport Package：Iron Case or Plywood Case Package
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：5000 Set Per Year

The Scissor Cargo Lift Hydraulic Scissor Lift can be customized as your detailed size.

Safety:

1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.

2. The work table would equipped the guardrail to guarantee the safety.

3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.

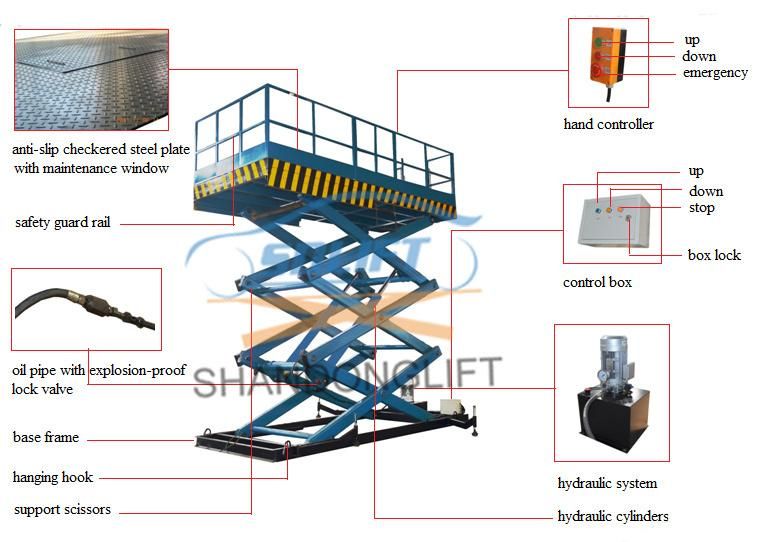

Configuration:

1) Platform Material: rectangular tube + checkered iron

2) Scissor material:  high strength Manganese Steel.

3) Hydraulic system: 380V/3.0Kw

4) High Precision Hydraulic Cylinder

5) Piston Rod:  hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

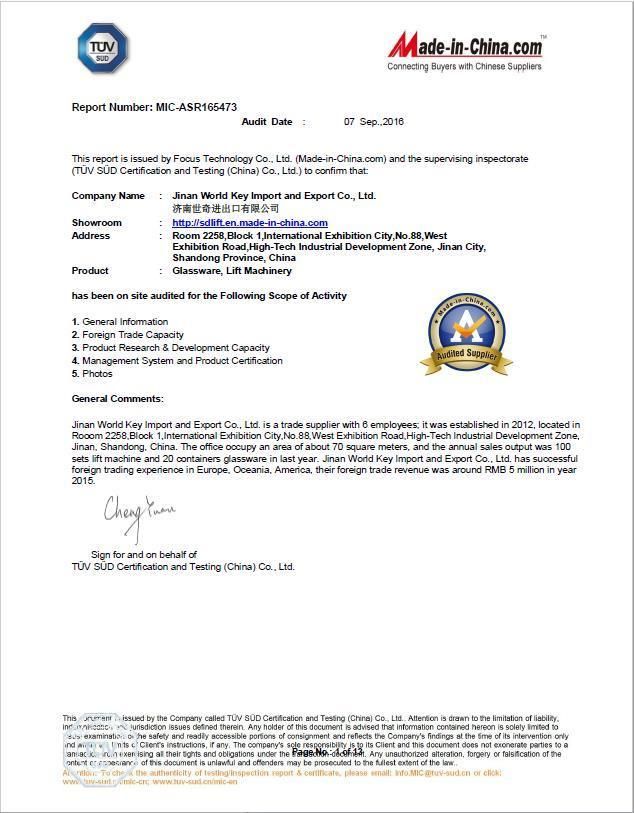

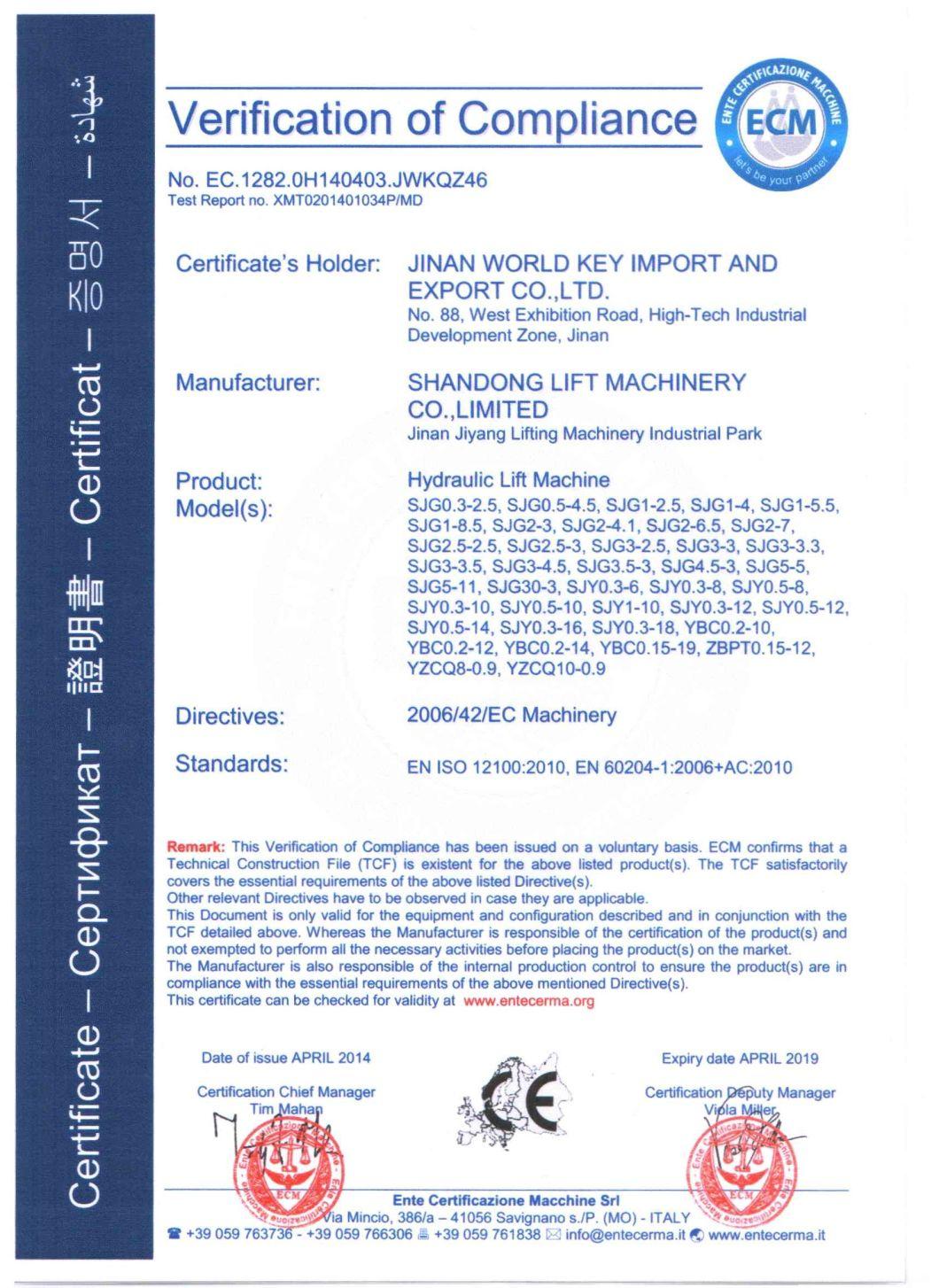

The Certificates:

Our services:

1) The Scissor Cargo Lift Hydraulic Scissor Lift can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
