• Model NO.：VWL
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Loading Capacity：300kg
• Platform Size：1200mm(L)* 900mm(W) or Customized
• Platform Material：Non-Skid Diamond Aluminum Platform
• Warranty：5 years for main structure, 1 year for parts
• Drive：Hydraulic
• Power Output：1.5kw
• Lead Rails：Double-T Steel
• Chain：16A
• Noise：50dB
• Work Conditions：Both Indoor and Outdoor
• Transport Package：Standard Exporting Plywood Package
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

1300mm(L)* 900mm(W) or  customizedMax Platform Height6000mmMin Platform height80mmSpeed60mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output1.5KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection Over current relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steel
 Operation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom -50°~60°CInstallation
 Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)Emergency Stop
 The lifting and lowering process can be stopped immediately
by pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control
 Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation.
 Emergency loweringThe platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
 Auto-flapTurn up after lifting

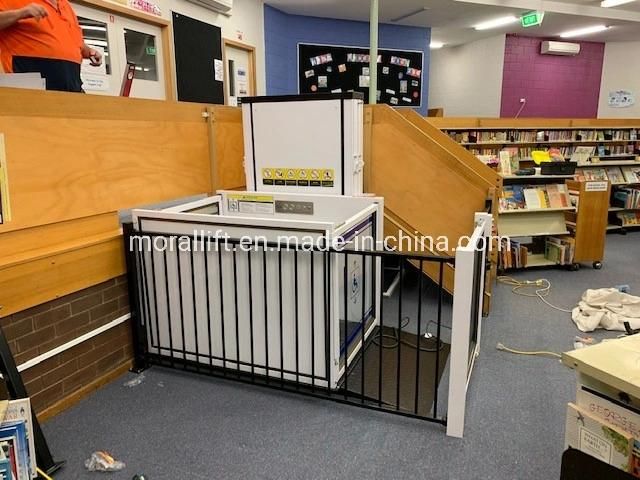

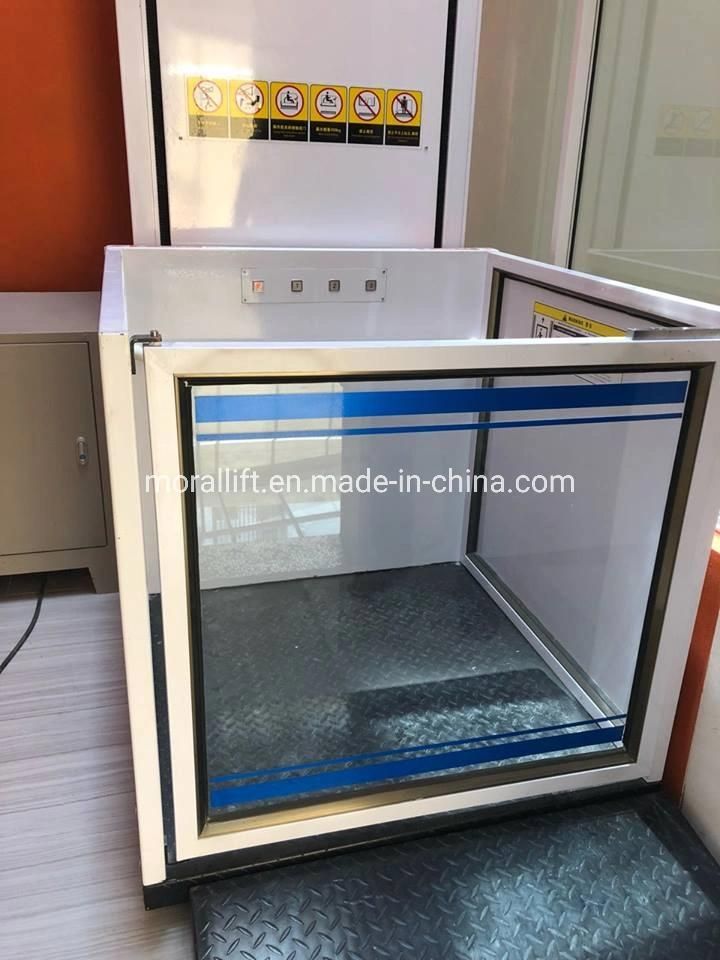

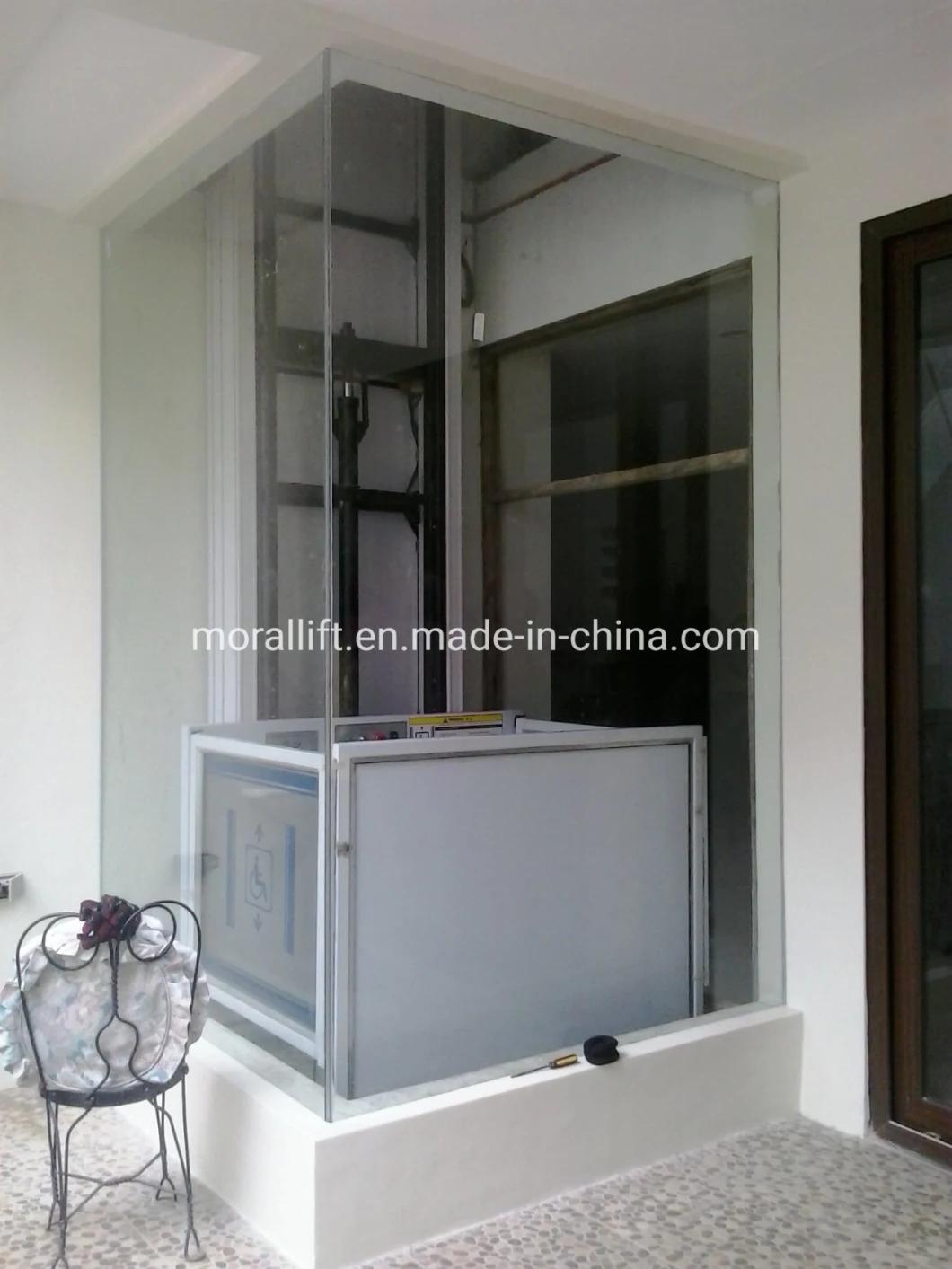

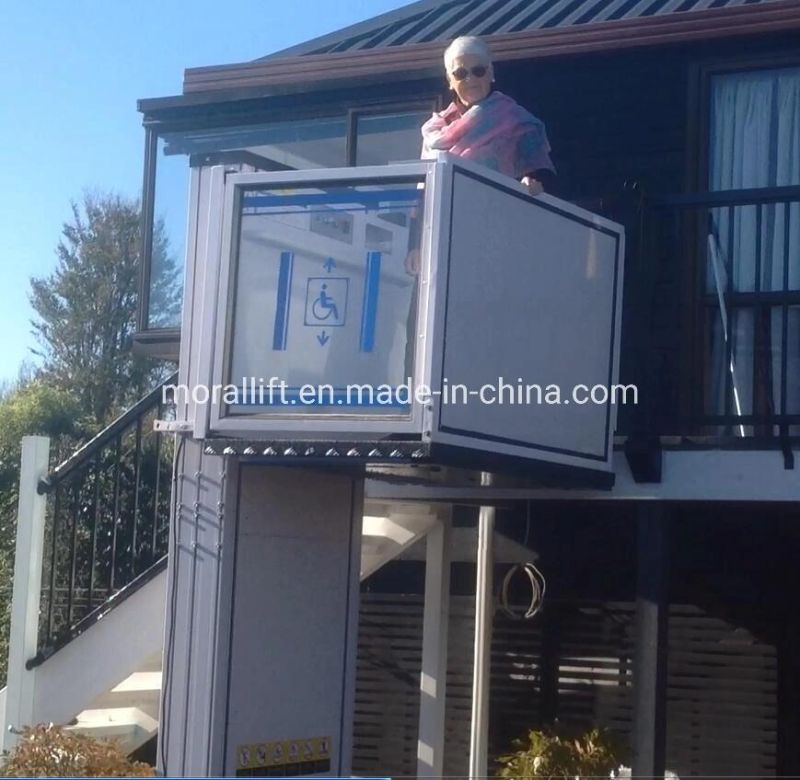

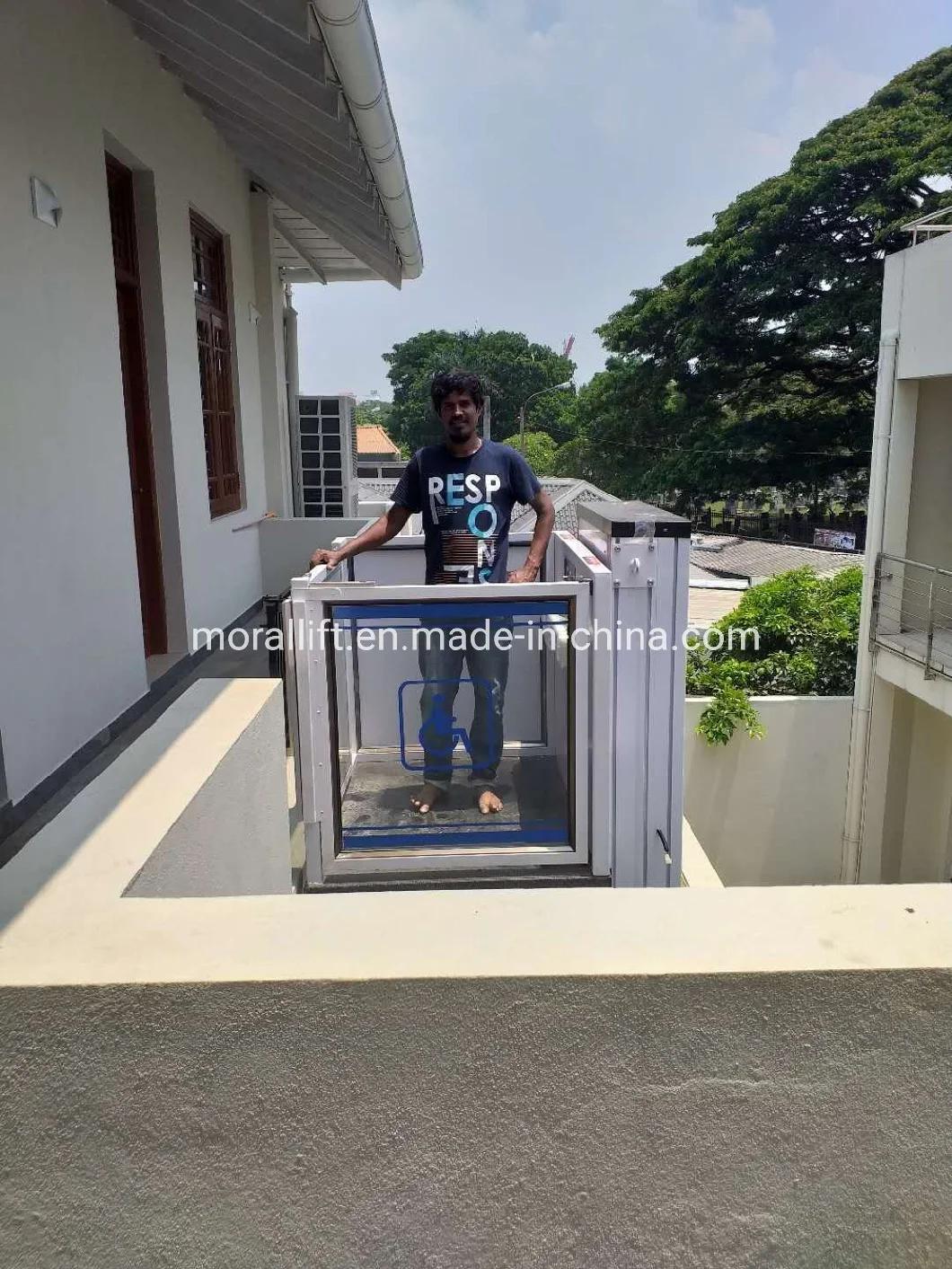

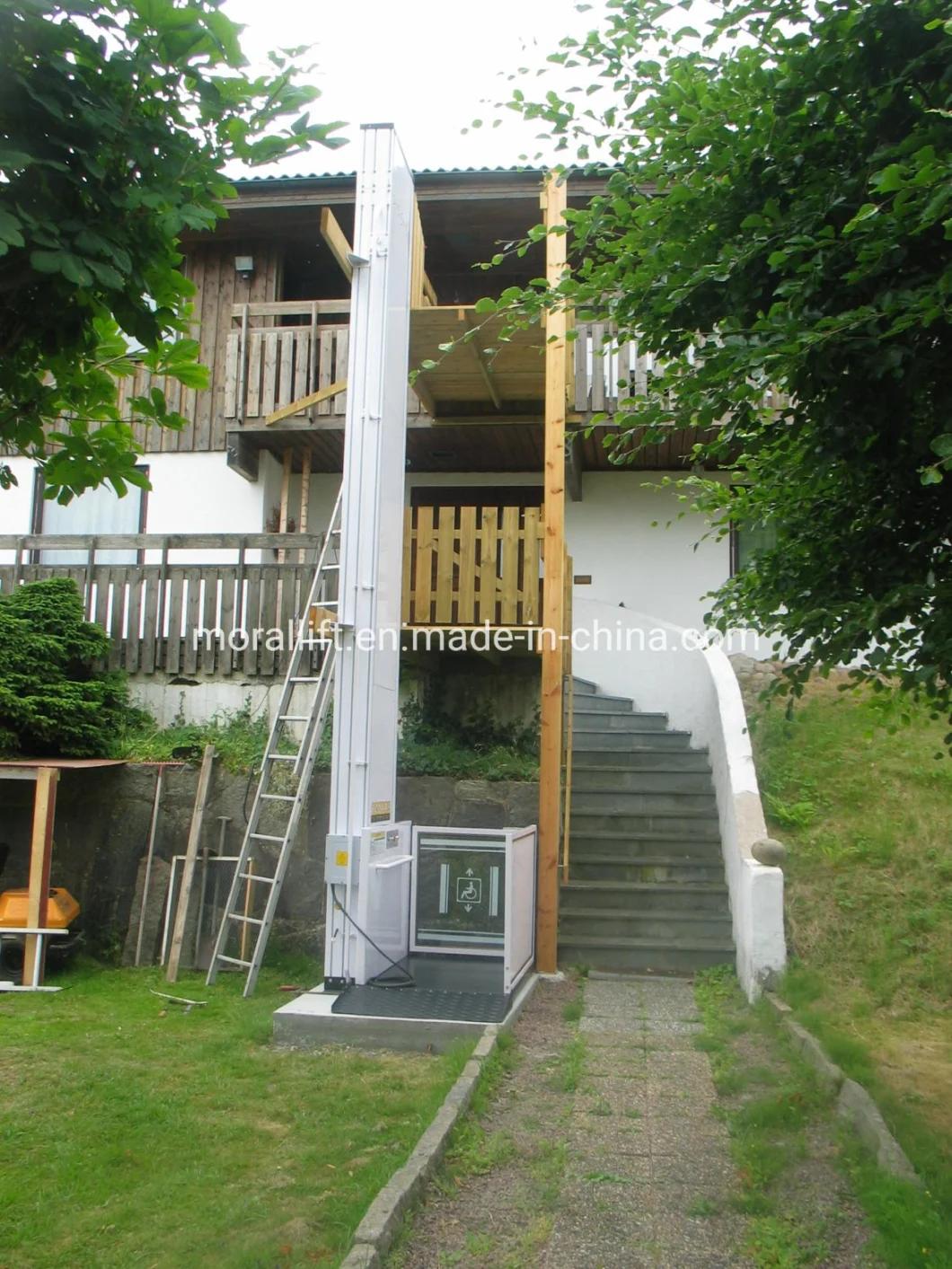

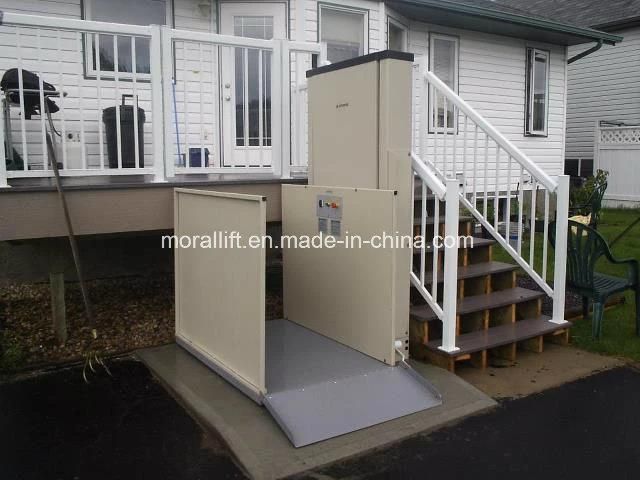

Photos:
















Our Services:
1. All the machines will be full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.


FAQ:
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
3. Trade term? ( FOB/CFR/CIF to your nearest seaport)
4. Working Height?-according to your need
5. Platform Size?-according to your need
6. load capacity?-according to your need
7. Demand power source?-electric or battery, per your need
8. OEM?-accepted
