Hydraulic Portable Scissor Mini Lift for Cargo
Jinan Moral International Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJG
- Feature：Explosion-Proof
- Certification：CE
- Material：High Strength Manganese Steel
- Motor：Hydr-APP
- Speed：100mm,s
- Color：Optional
- Control：24V
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：Moral
- Origin：Jinan, Shangdong, China
- HS Code：842890
- Production Capacity：50, 000 PCS,Year
Description
Basic Info.
Model NO. SJG Feature Explosion-Proof Certification CE Material High Strength Manganese Steel Motor Hydr-APP Speed 100mm/s Color Optional Control 24V Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/YearProduct Description
Hydraulic Portable Scissor Mini Lift for CargoMain feature:
1. Used for lifting cargo
2. Great loading capacity
3. Hydraulic system increase safety
4. Steady working
Product introduction:
1. The stationary scissor lift platform is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors
2. It is characterized by great loading capacity.
3. Hydraulic lift system Steady ascending and descending
4. Scissor hydraulic lift system can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
5. The limit switch system helps the lift to stop at accurate position.
6. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of cargo.
7. Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
8. Control system adopt elevator control system, very convenient and safety.
Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design for you.
Parameters for reference:
| Model | SJG3-5 |
| Load capacity | 3000KG |
| Platform size | 5500*2500MM |
| Lifting height | 5000MM |
| speed | 100mm/s |
| power | 5.5kw |
| power supply | AC 220V/380V 50HZ/60HZ |
| weight | 2950KG |

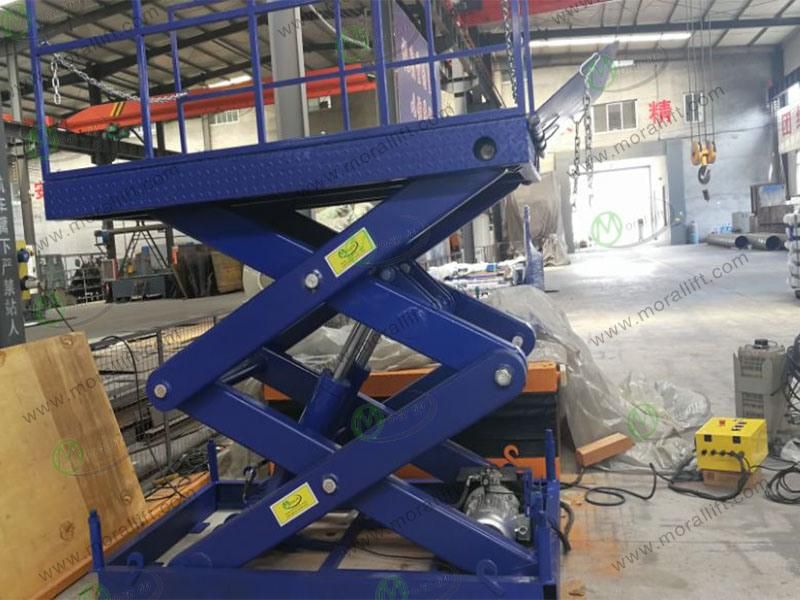

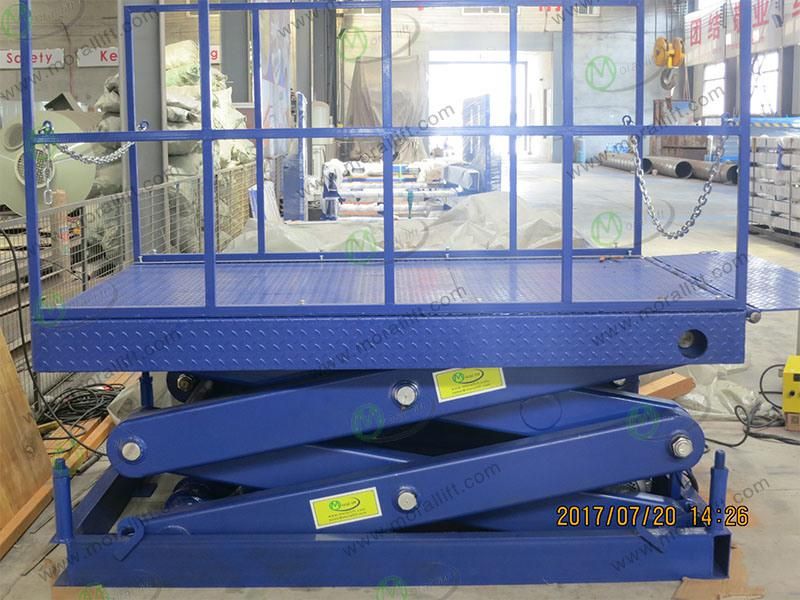

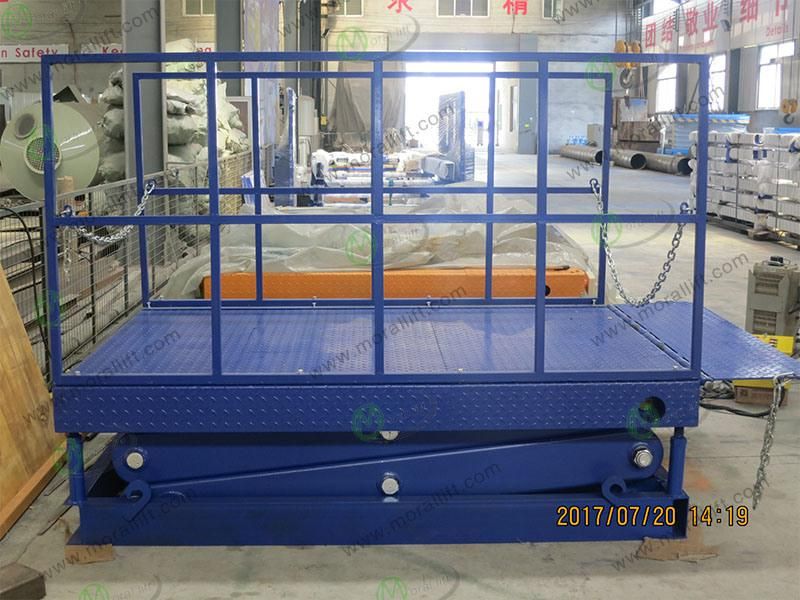

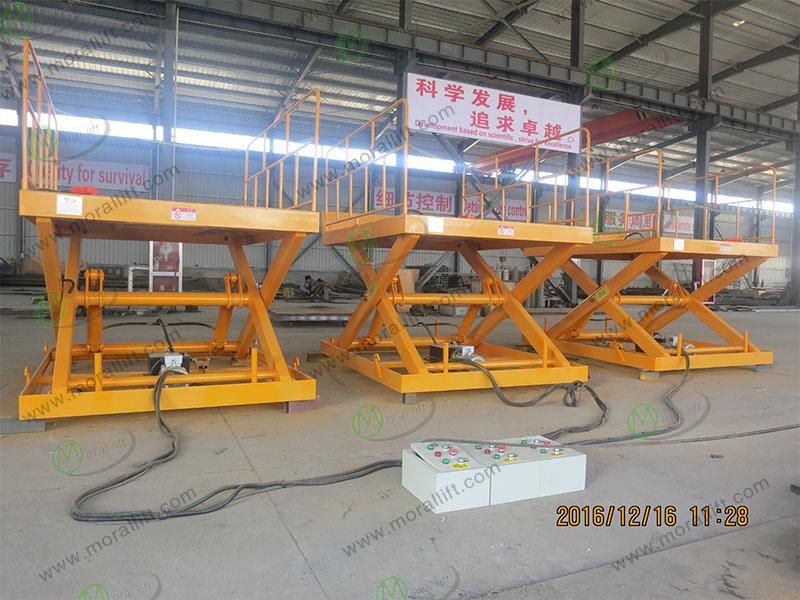

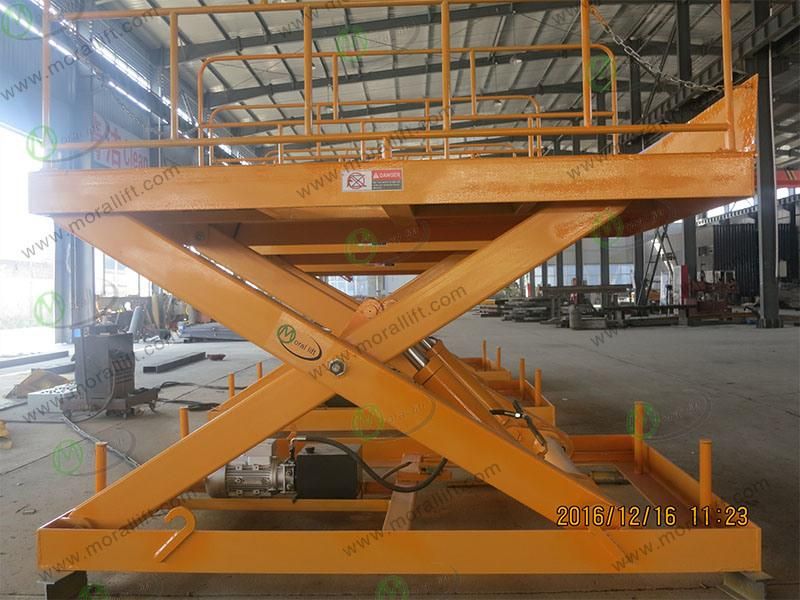

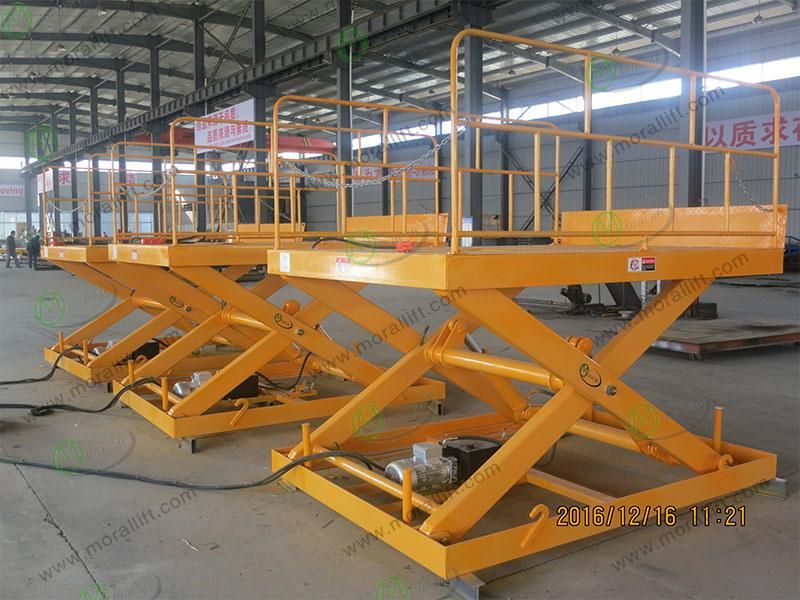

Product photos:
