• Model NO.：SJY
• Feature：Explosion-Proof
• Certification：CE
• Material：High Strength Manganese Steel
• Motor：Hydr-APP
• Speed：100mm,S
• Color：Optional
• Control：24V
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. SJY Feature Explosion-Proof Certification CE Material High Strength Manganese Steel Motor Hydr-APP Speed 100mm/S Color Optional Control 24V Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/Year

Product Description

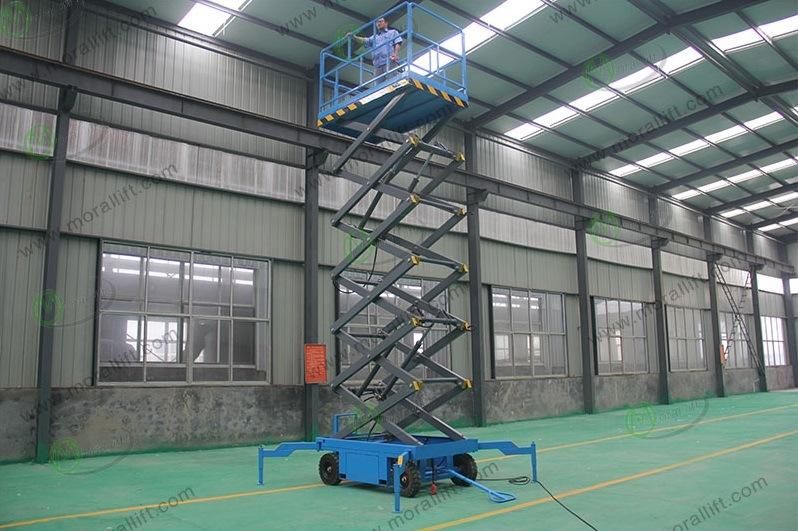

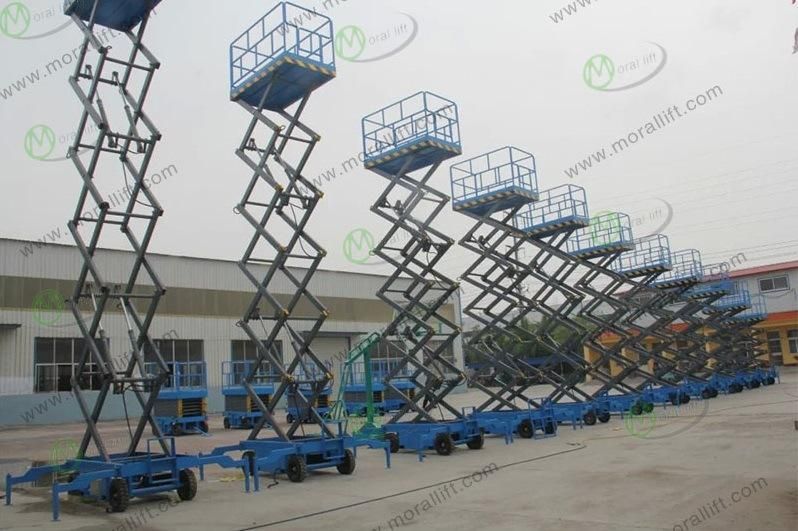

Mobile Scissor Lift Power Lift
Main feature:
Load capacity: 300kg-1000kg
Lifting height: 4-20m
Hydraulic system increase safety
Steady working

Brief introduction:
1. Scissor hydraulic lift is the professional high-altitude operation equipment.
2. Its scissor mechanical structure makes the lifting platform lift more stably. Wide working platform and large loading capacity can make the work scope bigger. It's suitable for several people working together.
3. Lifting height: 4m, 6m, 8m, 10m, the max height of the scissor lift is 20m.
4. Loading capacity: 300kg, 500kg, 800kg, 1000kg and so on. The Max capacity could be 7000kg.

Control system:
1. Manual control and electric control
2. Electric control: There are two control systems(optional). One is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.

Power:
1. Electricity or diesel. Local power available at the working sites(110V, 220V, 380V, 415V), diesel engines and generators.
2. It can be equipped with manual hydraulic device, so when there is no power at the occsions or the power supply goes out, the lift can still work normally

Safety:
1. In special circumstance, the scissor lift will use explosion-proof electric equipment
2. The platform is equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity
4. The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position
5. The platform is equipped with antiskid plate to prevent slipping, it is enough safe when it

Model	Lifting height (M)	Loading capacity (KG)	Table size (L*W )(MM)	Total dimension (L*W*H)(MM)	Power (KW)	Weight (KG)
SJY0.3-4	4	300	1500*750	1850*900*1900	2.2	400
SJY0.3-4	6	300	1650*750	1850*900*1970	2.2	650
SJY0.3-8	8	300	1650*800	2100*1200*2460	2.2	1200
SJY0.5-8	8	500	1800*900	2500*1550*2380	2.2	1400
SJY0.8-8	8	800	2000*1220	2600*1550*2640	2.2	1700
SJY0.3-10	10	300	2100*1220	2700*1550*2380	2.2	1500
SJY0.5-10	10	500	2100*1200	2700*1550*2380	2.2	1600
SJY1.0-10	10	1000	2200*1220	2820*1720*2850	3	2380
SJY0.3-12	12	300	2550*1500	3150*1860*2850	2.2	2580
SJY0.5-12	12	500	2550*1500	3150*1860*2850	2.2	2780
SJY1.0-12	12	1000	2600*1500	3200*2015*3090	3	3580
SJY0.3-14	14	300	2990*1600	3600*2000*2850	2.2	3000
SJY0.5-14	14	500	2990*1600	3600*2000*2850	3	3200
SJY0.3-16	16	300	3230*1600	3700*2000*3250	3	3900
SJY0.3-18	18	300	3230*1600	3700*2000*3250	3	4500
SJY0.3-20	20	300	3230*1600	3700*2000*3450	3	5100
