• Model NO.：SJYL
• Feature：Explosion-Proof
• Certification：CE
• Loading Capacity：100-200kg
• Lifting Height：4m-20m
• Platform size：600*600mm,Customized
• Power：2.2kw
• Speed：5m,Min
• Working area：Hotel, Road, Hospital, etc
• Weight：780kg
• Package：plywood box
• Warranty：12 months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. SJYL Feature Explosion-Proof Certification CE Loading Capacity 100-200kg Lifting Height 4m-20m Platform size 600*600mm/Customized Power 2.2kw Speed 5m/Min Working area Hotel, Road, Hospital, etc Weight 780kg Package plywood box Warranty 12 months Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/Year

Product Description

Vertical Lifting Aerial Maintenance Man Lift

Aluminum alloy hydraulic lift table: It is a new-era product through brand-new design, adopts new aluminum molding material. The lift table has tiny swing, because of high-strength molding material. Handy and light appearance makes it freely exert maximum lifting ability in limited room. As a result, this product makes it easy to carry out high-altitude working by one person. The power sources could be 220V/380V or chargeable battery.

Introduction:

1. This lift's working height: 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m; Can be controlled on the table or on the ground by remoter control.

2. The lift platform, high-duty aluminum alloy structure is suitable for aloft work. It is equipped with security rope and safety protection devices. Even if working at the 30 meter high, it's very safe and reliable. Our wheels can be moved easily.

3. It can be in and out of the elevators conveniently when equipped with belt control switch or remote control switch systems.

4. This kind of platforms has 2 types, one is equipped with single ladder and the other has double ladders on both sides. The biggest lifting height is 30 meters, the lifting capacity ranges from 100kg to200kg.

Advantage:

Mobile Aluminum Lifts with high-strength aluminum alloy high-quality aluminum alloy, beautiful in appearance, small size, light weight, lifting balance, safe and reliable, no pollution and can operate from up to down, smooth lifting, Operate conveniently in narrow space, Work efficient and balance well.

They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters, exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses.

Parameters:

Type	Capacity(kg)	Table size(mm)	lifting height(mm)	Working height(mm)	Weight(kg)
SJYL0.2-8	200	1470*800	8000	9850	500
SJYL0.2-10	200	1470*800	10000	11500	520
SJYL0.2-12	200	1470*800	12000	13500	530
SJYL0.2-14	200	1470*800	14000	15500	550
SJYL0.2-16	200	1470*800	16000	17500	570

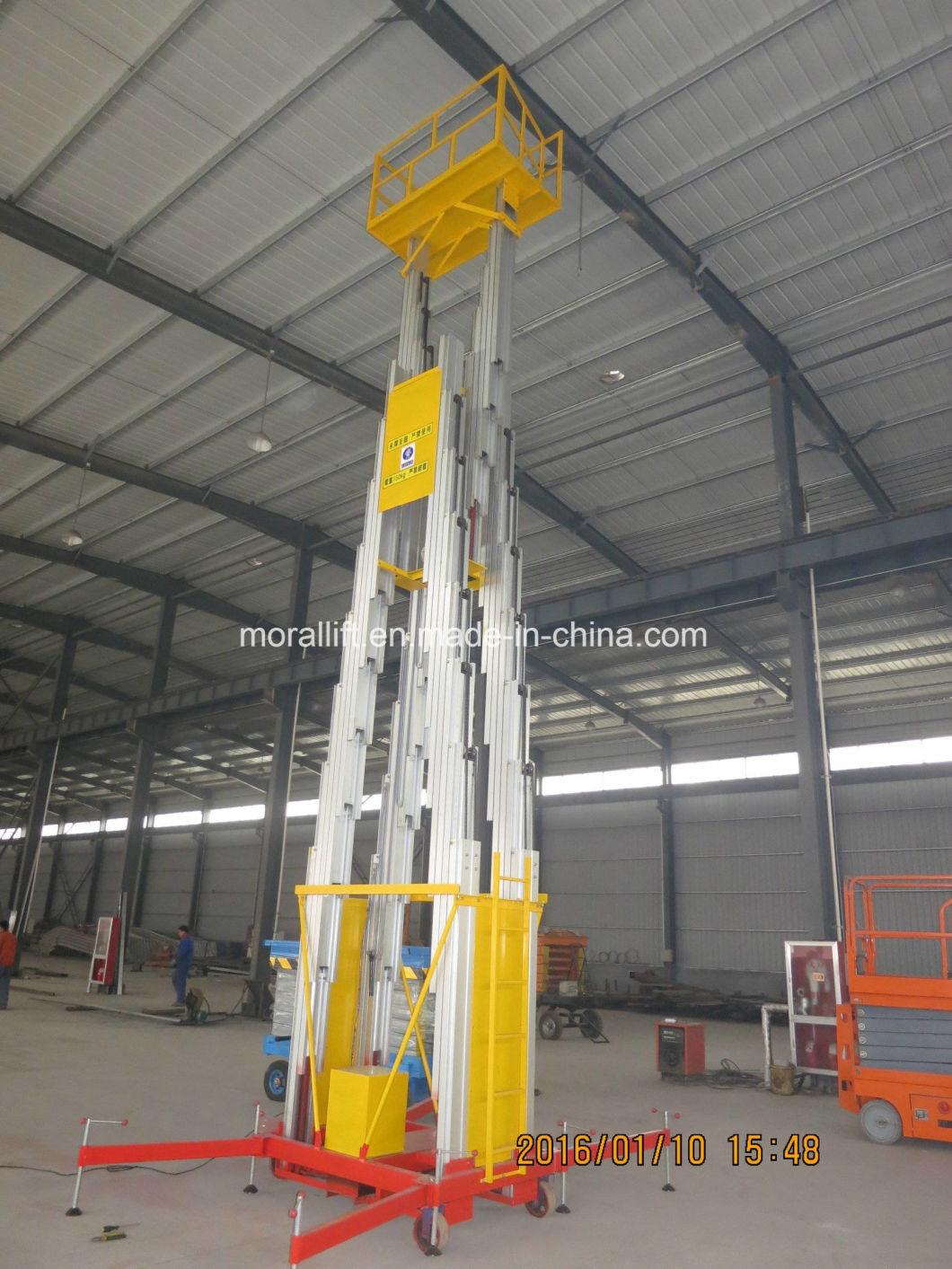

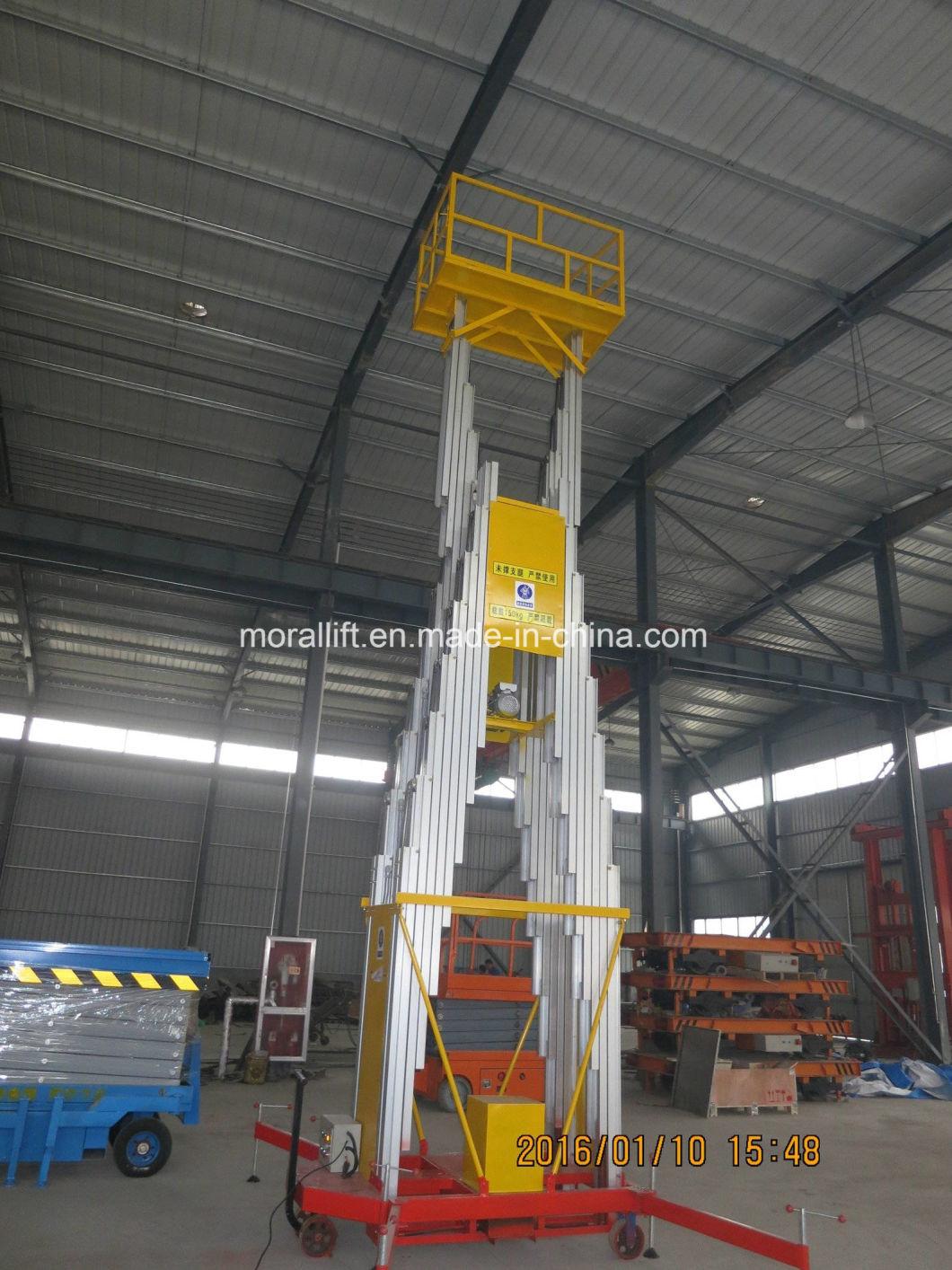

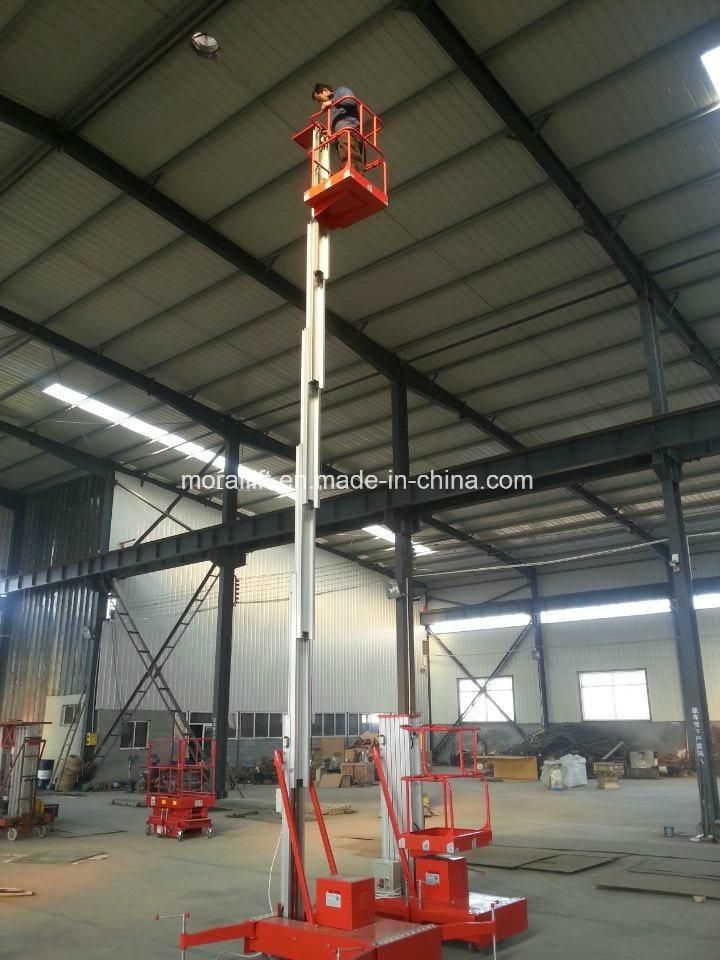

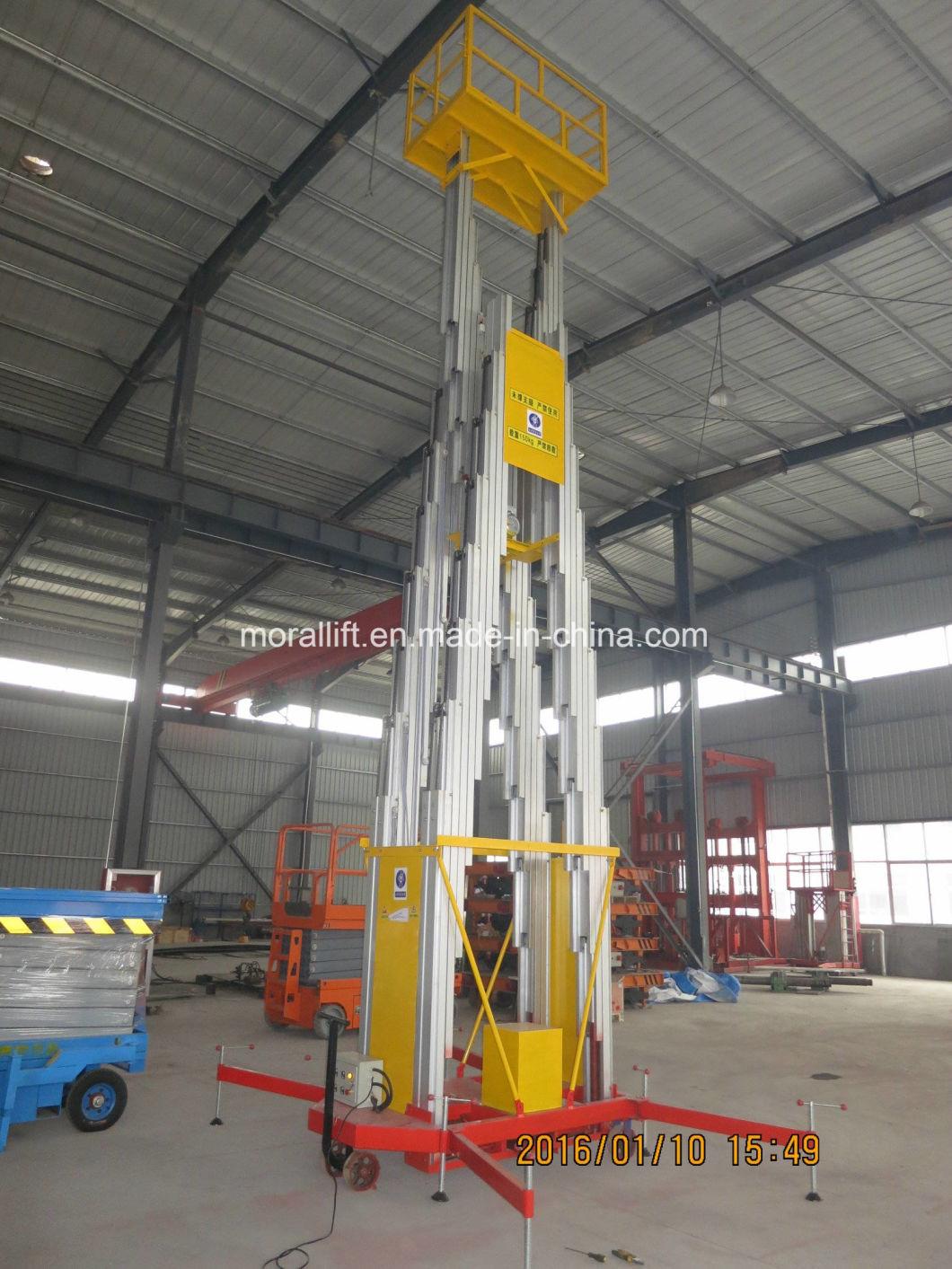

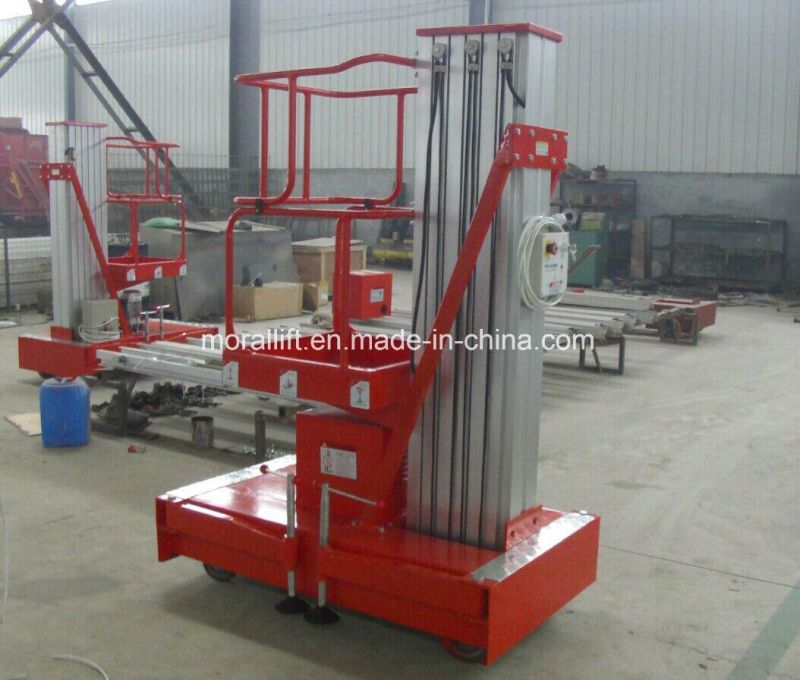

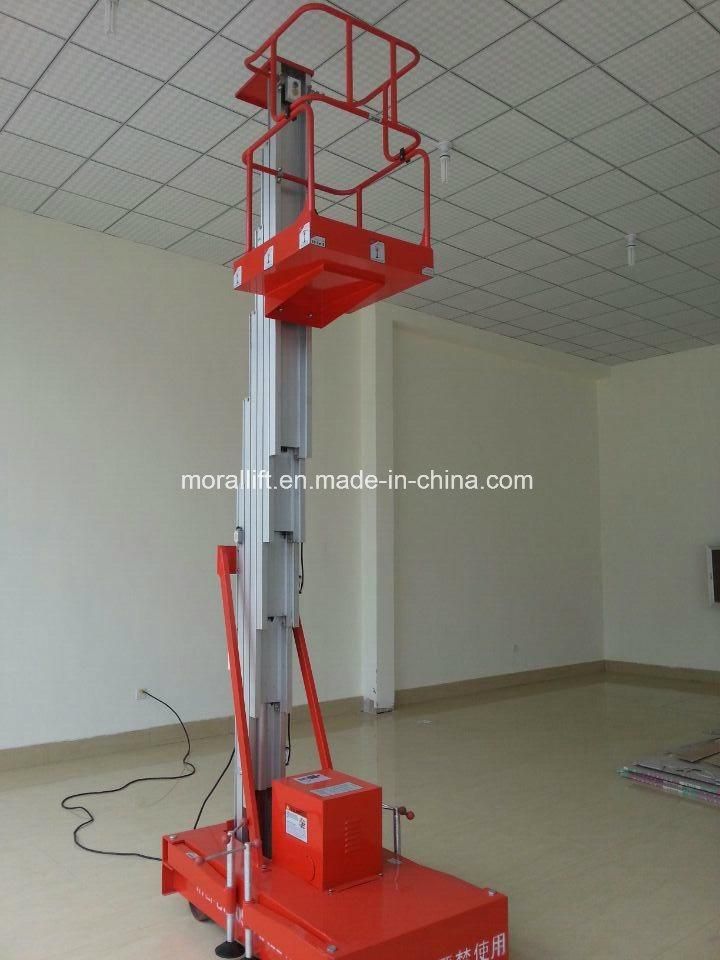

Pictures:
