• Model NO.：YO-Dock leveler
• Feature：Powder Coated
• Certification：CE, ISO 9001
• Bearing Weight：6t, 8t, 10t, 15t
• Adjustable Range：-35cm----35COM
• Tongue Plate：14-20mm Thickness of Alloy Steel
• Material：Q235 High Strength Alloy Plate
• Corner Protect：Anti Collision Rubber
• Size：2500*2000*600 ( Can Be Customized )
• Transport Package：Wooden Pallet Package
• Specification：Size can be customized
• Trademark：YUOU
• Origin：China
• HS Code：85308000
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. YO-Dock leveler Feature Powder Coated Certification CE, ISO 9001 Bearing Weight 6t, 8t, 10t, 15t Adjustable Range -35cm----35COM Tongue Plate 14-20mm Thickness of Alloy Steel Material Q235 High Strength Alloy Plate Corner Protect Anti Collision Rubber Size 2500*2000*600 ( Can Be Customized ) Transport Package Wooden Pallet Package Specification Size can be customized Trademark YUOU Origin China HS Code 85308000 Production Capacity 5000pieces/Year

Product Description

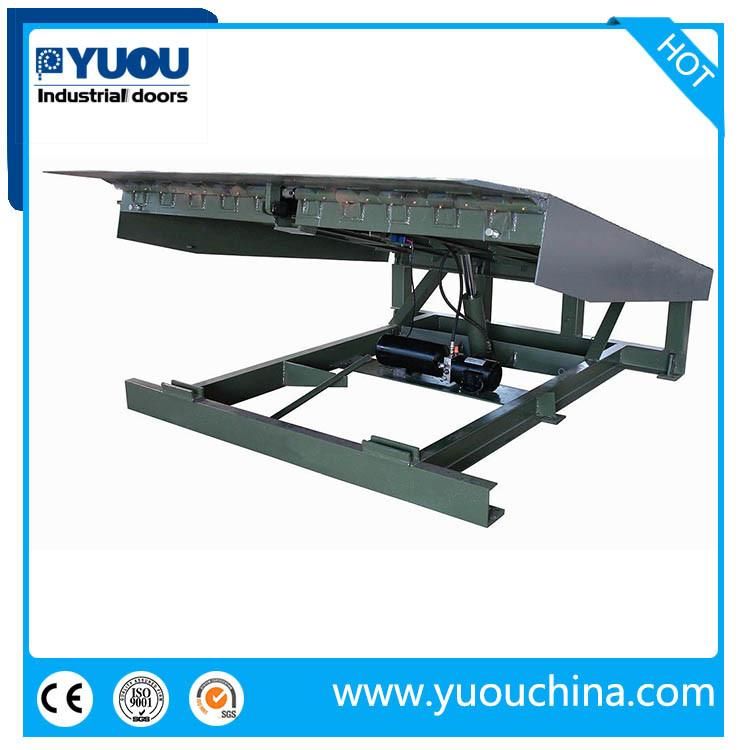

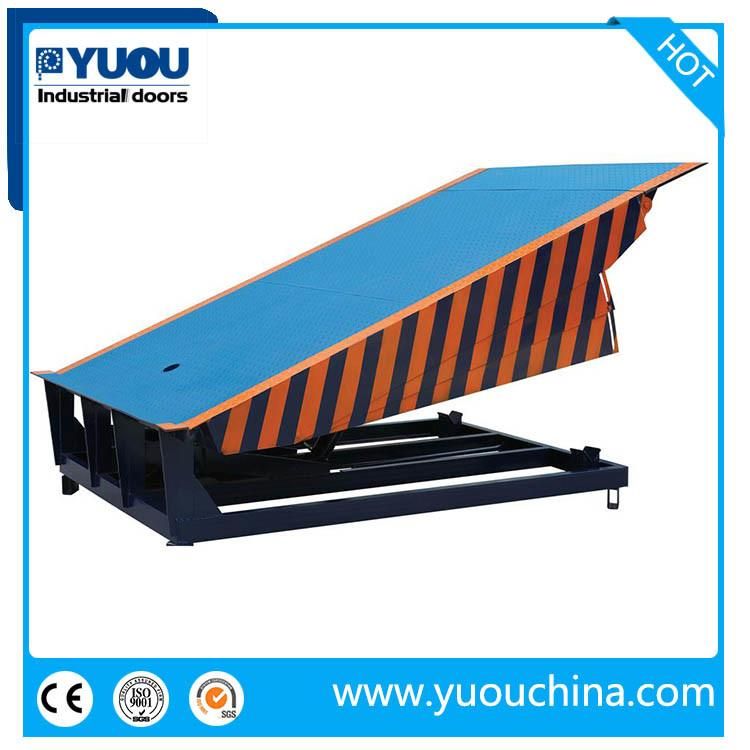

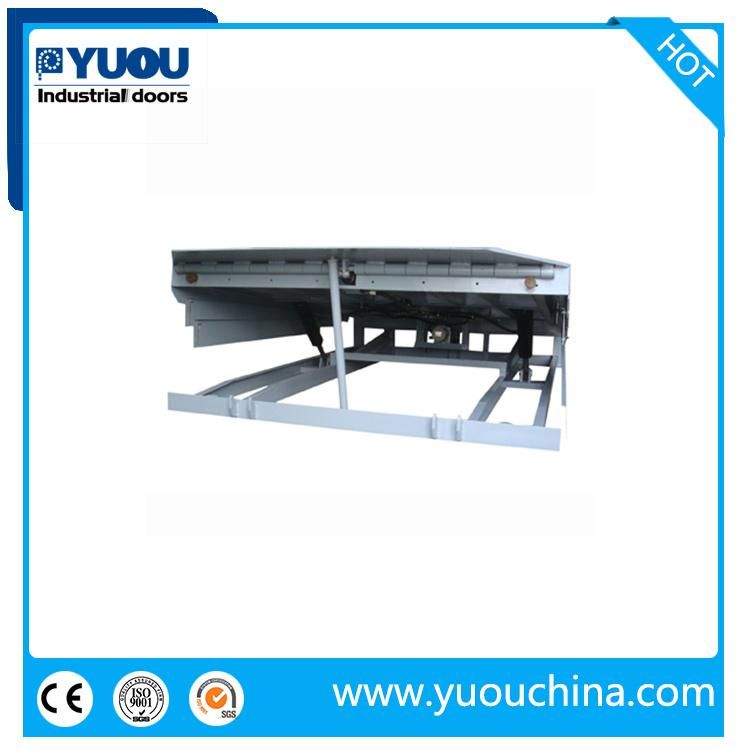

Dock leveler


 Widely used for docks, platforms, warehouses, etc., and the height adjustment can realize the seamless docking of the platform and trucks. The forklift can directly enter the truck through it. Carry out loading and unloading operations.


Features:

1. The overall assembly can bear 120% load of standard nominal load capacity. Under static pressure of 24 hours, the deformation is within 3mm. And after pressure released , the deformation will recover.
2. The high-strength "U"-shaped beam design ensures high load and long-term operation without deformation.
3. Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove milling to make it anti-skid.
4. Hinge and Shaft , are Super-High-Temperature heat treated, to reduce its deformation
5. Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high frequency because of very low work temperature of oil. High standard seal avoids oil leaking.
6. Surface treatment:Coated with epoxy resin paint, very durable and high anti-corrosive.
7. Anti-rolling skirt for safer maintenance

Anti-rolling skirts are provided on both sides to prevent accidental injury from reaching the platform. There is a support rod that ensures that maintenance personnel enter the docking bridge for maintenance.

Technical Data:


Power supply:	1-phase 220±10%V,50/60HZ, or 3-380V±10%V,50/60HZ
Load capacity:	6000KG/10000KG/15000KG
Adjusting scope:	-300mm to +350mm
Power of motor:	0.75KW-2.2KW
Standard size:	2500*2000*500 (can be customized)
Range of travel:	+400mm  -300mm
Lip size:	400mm

Export Packing stadard.

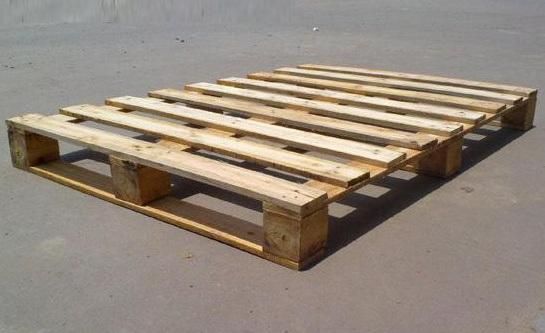

1.Wooden pallet Package



FAQ

1. What's the payment details?
Deposit before production, and balance payment before shipment.

2. What's the delivery time?
7-15 days.

3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.

4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

5. What's the MOQ?
We accept 1 set as sample order, but we prefer give your more discount.

6. How about the service?

A:Patient Pre-sale service:
Offter you the professional advice about the different door functions , and We are very happy to let you know all aboout our product,

B Strict packing standard and Professional and efficient export process.

C:Patient After-sale service:
We pay more attention about our product in customer factory. So we have already generate a whole set english version docements to help customer do the installtion work,
We can also provide the Patient installation guide and daily use guide by Internet or mobelphone.
