Hydraulic&Electric Vertical Home Disabled&Eldly Wheelchair Lift

Jinan Moral International Co., Ltd.
  • Lift Mechanism:Lift Chain
  • Carrying Capacity:Light Level
  • Moves:Stationary
  • Driven Type:Hydraulic
  • Running Mode:Stationary
  • Feature:Explosion-Proof

Base Info

  • Model NO.:VWL
  • Certification:CE
  • Platform Size:1430*900mm,optional
  • Lifting Height:Max 9m
  • Speed:100mm,s
  • Drive:Hydraulic
  • Load Capacity:300kg
  • Power:2.2kw
  • Control:Buttons,Remote
  • Materials:Aluminum extruded sections
  • Safety device:Emergency stop valve
  • Warranty:12 Months
  • Transport Package:Standard Export Packing
  • Specification:CE
  • Trademark:Moral
  • Origin:Jinan, Shangdong, China
  • HS Code:842890
  • Production Capacity:50, 000 PCS,Year

Description

1 30 0mm(L)* 9 00 mm(W)  or    customized Max Platform Height6000mmMin Platform height80mmSpeed60mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output1. 5 KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic  or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection Over current relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steel
 Operation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom - 5 0 ° ~60 ° CInstallation
 Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)Emergency Stop
 The lifting and lowering process can be stopped immediately
by pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation. Emergency loweringThe platform can be lowered by opening
hydraulic valve manually or rolling screw rod. Auto-flapTurn up after lifting

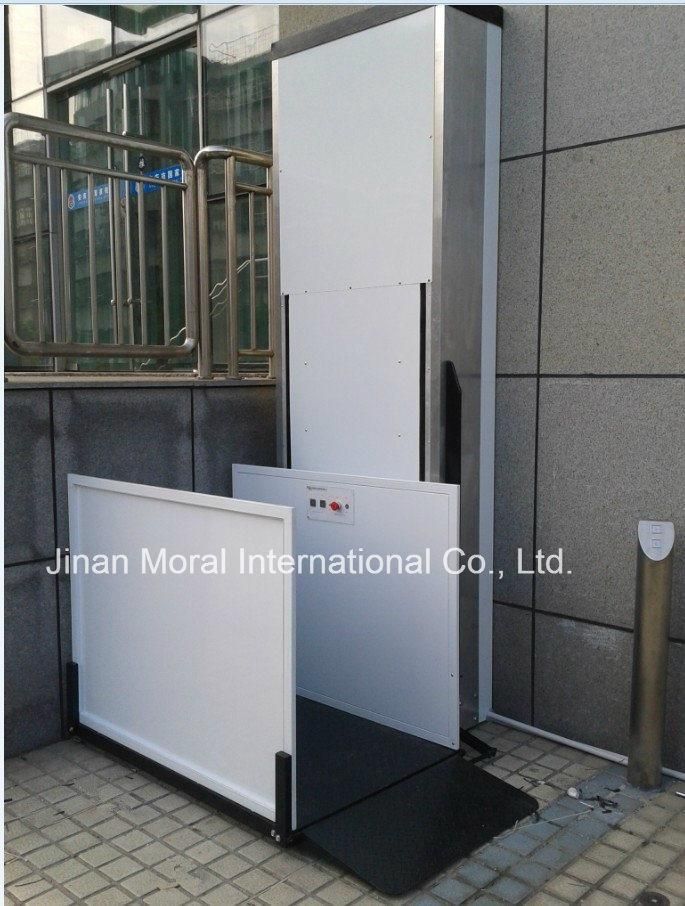

Hydraulic&Electric Vertical Home Disabled&Eldly Wheelchair Lift

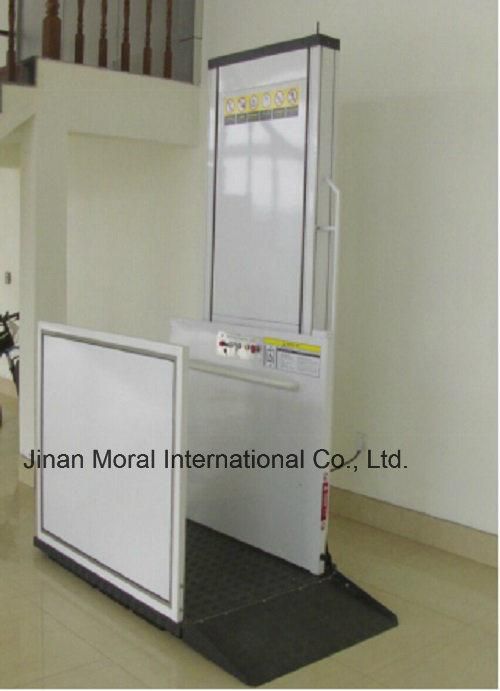

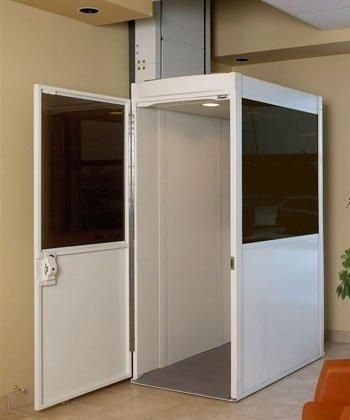

Hydraulic&Electric Vertical Home Disabled&Eldly Wheelchair LiftHydraulic&Electric Vertical Home Disabled&Eldly Wheelchair Lift

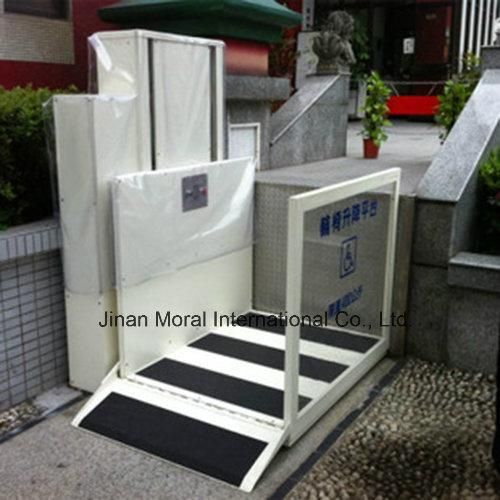

Hydraulic&Electric Vertical Home Disabled&Eldly Wheelchair Lift
