Hydraulic Motor Powered Aerial Mobile Electric Scaffolding Lift

Shandong Lift Machinery Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Light Level
  • Moves：Moving
  • Driven Type：Hydraulic
  • Running Mode：Moving

Base Info

  • Model NO.：SJG0.5-10
  • Feature：Explosion-Proof
  • Certification：GS, CE, ISO 9001
  • Item：Mobile Scaffolding Lift Electric Hydraulic Scaffol
  • Safety Device：Explosion Proof Lock Valve, Emergency
  • Control System：Electric or Hand Pump
  • Lift Drive：Electric Hydraulic Motor
  • Motor Power：Customer Required Brand or Chinese Famous Brand
  • Voltage：220V 240V 380V Optional
  • Leg：4 PCS Manual Supporting Legs
  • Transport Package：Iron Case or Plywood Case Package
  • Trademark：SDLIFT
  • Origin：Shandong China
  • HS Code：84289090
  • Production Capacity：5000 Set Per Year

Description

ModelCapacityTable sizeMax heightWork heightTotal dimensionNet weightSJY0.3-4300Kgs1500×750mm4m5.7m1850×900×1900mm400KgsSJY0.3-6300Kgs1500×750mm6m7.7m1850×900×1970mm650KgsSJY0.3-8300Kgs1650×1000mm8m9.7m2100×1200×2460mm1200KgsSJY0.5-8500Kgs1980×1220mm8m9.7m2500×1550×2380mm1400KgsSJY0.8-8800Kgs2000×1220mm8m9.7m2600×1550×2640mm1700KgsSJY0.3-10300Kgs2100×1220mm10m11.7m2700×1550×2380mm1500KgsSJY0.5-10500Kgs2100×1220mm10m11.7m2700×1550×2380mm1600KgsSJY1.0-101000Kgs2220×1220mm10m11.7m2820×1720×2850mm2380KgsSIY0.3-12300Kgs2550×1500mm12m13.7m3150×1860×2850mm2580KgsSIY0.5-12500Kgs2550×1500mm12m13.7m3150×1860×2850mm2780KgsSJY1.0-121000Kgs2600×1500mm12m13.7m3200×2015×3090mm3580KgsSJY0.3-14300Kgs2990×1600mm14m15.7m3600×2000×2850mm3000KgsSJY0.5-14500Kgs2990×1600mm14m15.7m3600×2000×2850mm3200KgsSJY0.3-16300Kgs3230×1600mm16m17.7m3700×2000×3030mm3900KgsSJY0.3-18300Kgs3230×1600mm18m19.7m3700×2000×3250mm4500KgsSJY0.3-20300Kgs3230×1600mm20m21.7m3700×2000×3450mm

5100Kgs

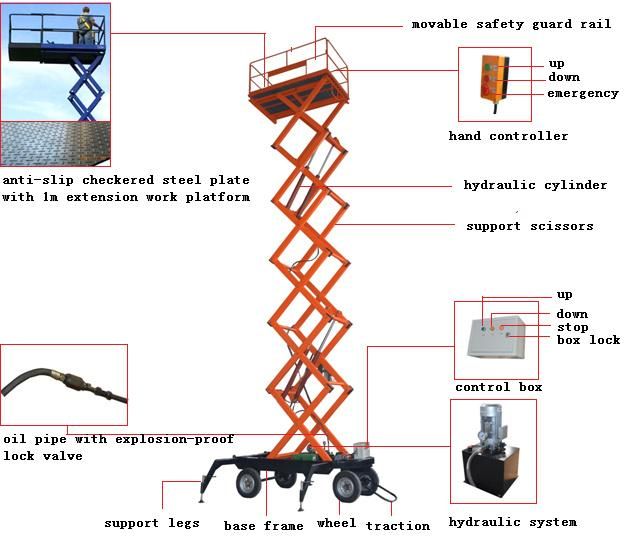

Detailed parts:

Hydraulic Motor Powered Aerial Mobile Electric Scaffolding Lift


The Certificate:

Hydraulic Motor Powered Aerial Mobile Electric Scaffolding Lift
Note:

1. Reply your inquiry in 24 working hours

2. Customized design is available,OEM are welcomed

3. Delivery the goods to our customer all over the world with speed and precision

4. Offer customer the lowest price with high quality lifting machine
