• Model NO.：SJG0.3-14
• Feature：Explosion-Proof
• Certification：GS, CE, ISO 9001
• Mobile：4 Wheels
• Control System：Electric
• Safe Device：Explosion-Proof Lock Valve
• Lift System：Hydraulic Lift Cylinders
• Material：High Strength Manganese Steel
• Voltage：110V 220V 240V 380V Optional
• Platform：Anti-Skid Checkered Plate
• Type：Sjy Mobile Scissor Lift
• Transport Package：Solid Iron Case or Anti-Suffocating Wooden Case
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：1000 Units , Year

Model

Capacity

Table size

Max height

Work height

Total dimension

Net weight

SJY0.3-4

300Kgs

1500×750mm

4m

5.7m

1850×900×1900mm

400Kgs

SJY0.3-6

300Kgs

1500×750mm

6m

7.7m

1850×900×1970mm

650Kgs

SJY0.3-8

300Kgs

1650×1000mm

8m

9.7m

2100×1200×2460mm

1200Kgs

SJY0.5-8

500Kgs

1980×1220mm

8m

9.7m

2500×1550×2380mm

1400Kgs

SJY0.8-8

800Kgs

2000×1220mm

8m

9.7m

2600×1550×2640mm

1700Kgs

SJY0.3-10

300Kgs

2100×1220mm

10m

11.7m

2700×1550×2380mm

1500Kgs

SJY0.5-10

500Kgs

2100×1220mm

10m

11.7m

2700×1550×2380mm

1600Kgs

SJY1.0-10

1000Kgs

2220×1220mm

10m

11.7m

2820×1720×2850mm

2380Kgs

SIY0.3-12

300Kgs

2550×1500mm

12m

13.7m

3150×1860×2850mm

2580Kgs

SIY0.5-12

500Kgs

2550×1500mm

12m

13.7m

3150×1860×2850mm

2780Kgs

SJY1.0-12

1000Kgs

2600×1500mm

12m

13.7m

3200×2015×3090mm

3580Kgs

SJY0.3-14

300Kgs

2990×1600mm

14m

15.7m

3600×2000×2850mm

3000Kgs

SJY0.5-14

500Kgs

2990×1600mm

14m

15.7m

3600×2000×2850mm

3200Kgs

SJY0.3-16

300Kgs

3230×1600mm

16m

17.7m

3700×2000×3030mm

3900Kgs

SJY0.3-18

300Kgs

3230×1600mm

18m

19.7m

3700×2000×3250mm

4500Kgs

SJY0.3-20

300Kgs

3230×1600mm

20m

21.7m

3700×2000×3450mm

 5100Kgs

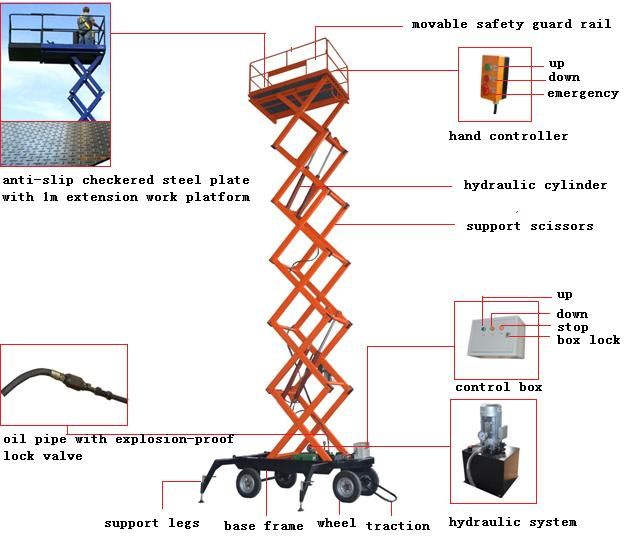

Parts Showing:

Configuration:

1) Platform Material: rectangular tube +checkered iron
2) Scissor material:  high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the people above work platform.

3) The limit switch system helps the work platform to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the work platform are passed 1.2 times loading test before leaving factory.

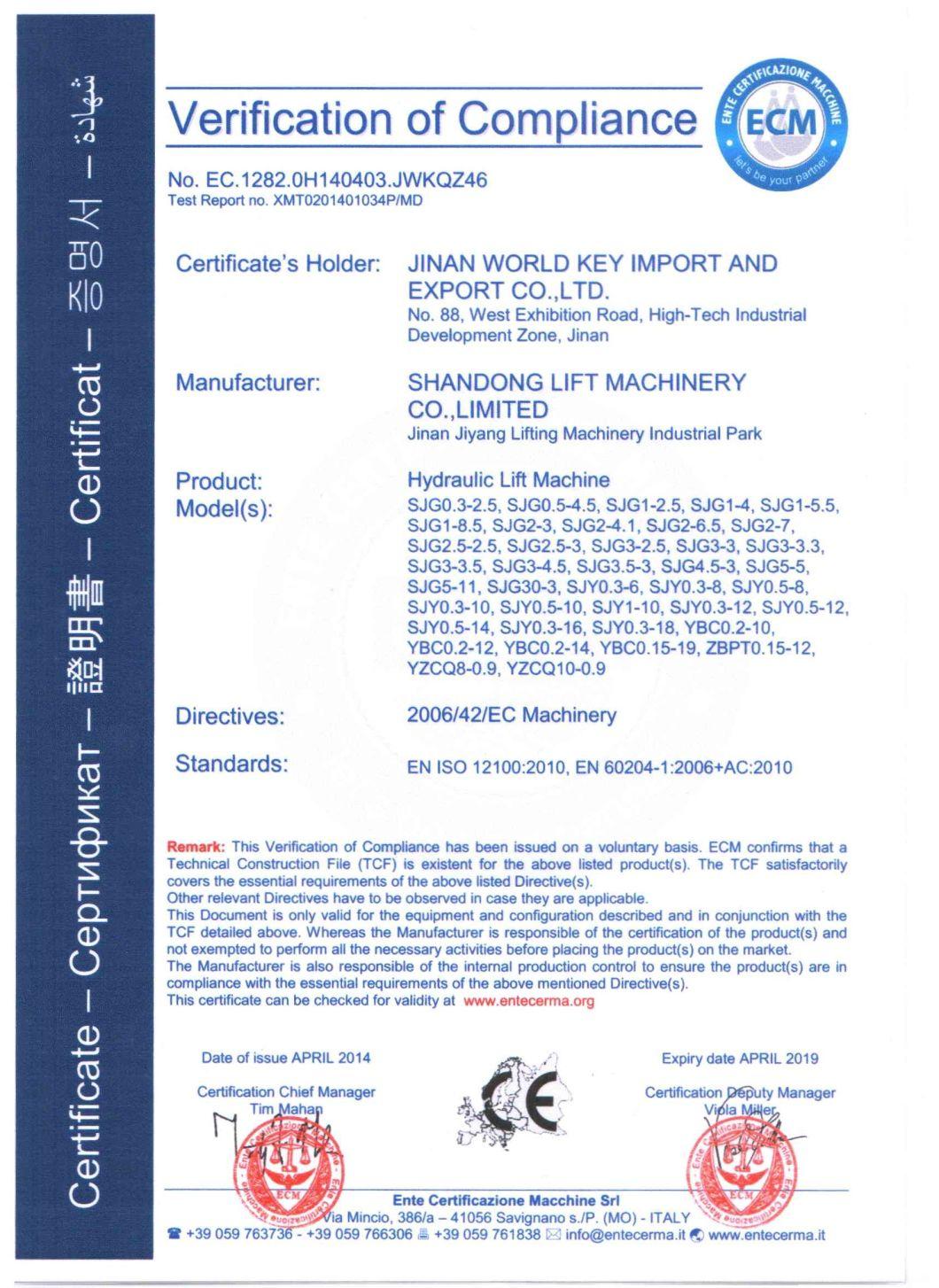

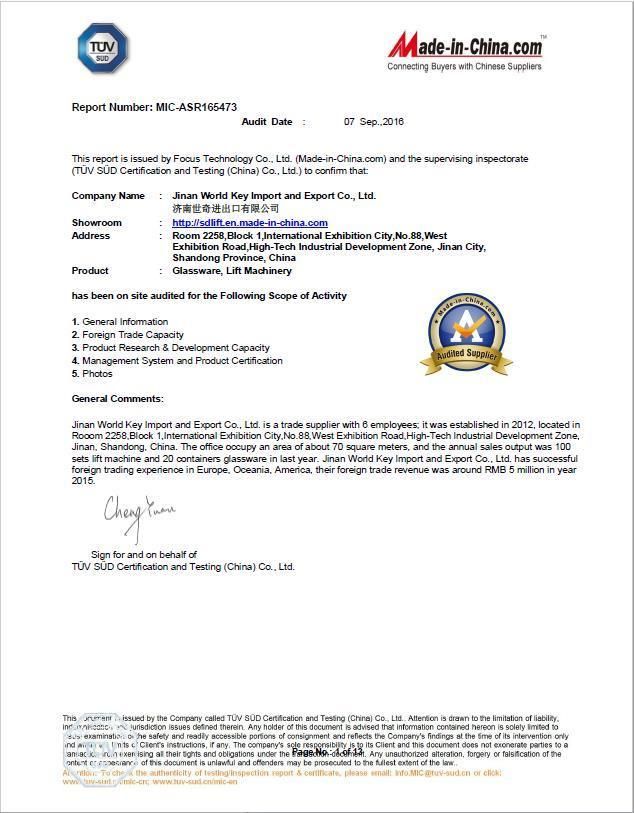

The Certificates:


Our Services

1) We can design the customerized work platform as per your requirement.
2) The most suitable work platform will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
    Engineers are available to your country if necessary.
