Hydraulic Basement Car Lift with Roof
Jinan Moral International Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJG
- Feature：Explosion-Proof
- Certification：CE
- Material：High Strength Manganese Steel
- Motor：5.5kw
- Speed：100mm,s
- Color：Optional
- Control：24V
- Load capacity：4T,optional
- Platform size：5.5*2.5m,optional
- Travel height：2.5m,optional
- Installation：pit
- Warranty：12 Months
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：Moral
- Origin：Jinan, Shangdong, China
- HS Code：842890
- Production Capacity：50, 000 PCS,Year
Description
Basic Info.
Model NO. SJG Feature Explosion-Proof Certification CE Material High Strength Manganese Steel Motor 5.5kw Speed 100mm/s Color Optional Control 24V Load capacity 4T/optional Platform size 5.5*2.5m/optional Travel height 2.5m/optional Installation pit Warranty 12 Months Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/YearProduct Description
Hydraulic Basement Car Lift with RoofMain features:
1)used for lifting kinds of cars
2)great loading capacity
3)hydraulic system increase safety
4)steady working
Parameter for reference:
1. Load weight: 3000kgs/customize
2. Table size: 5.5m X 2.5m/customize
3. Travel height: 5m/customize
4. Elevator controls system
5. Structure: High-strength Mn steel
| Model | SJG |
| Load capacity | 4000kg |
| lifting height | 2500mm |
| platform size | 5500*2500mm |
| speed | 100mm/s |
| power | 5.5kw |
| power supply | AC 220v/380v 50HZ/60HZ |
| weight | 4600KG |
Specifications and Safety:
1. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

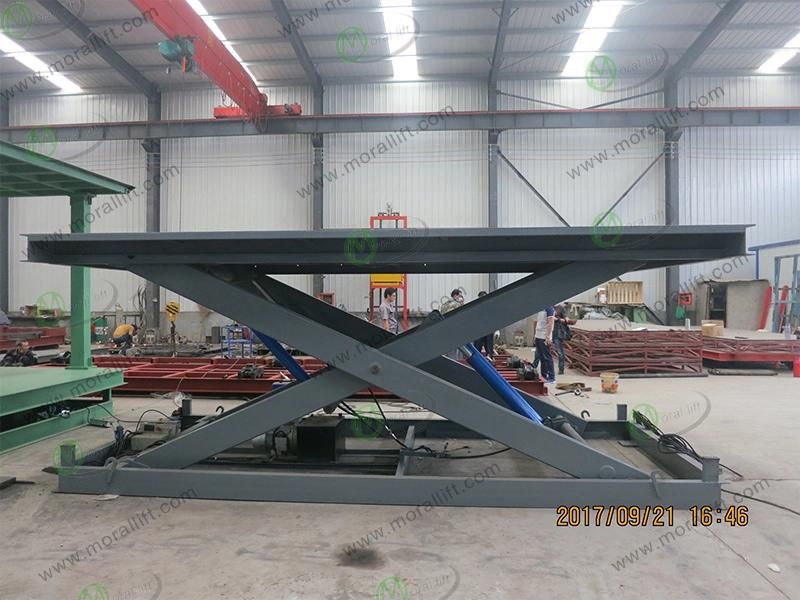

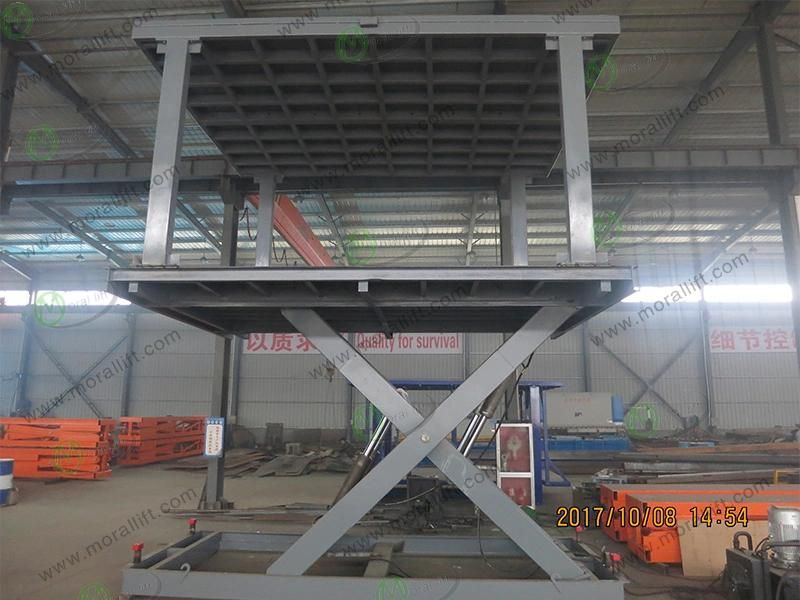

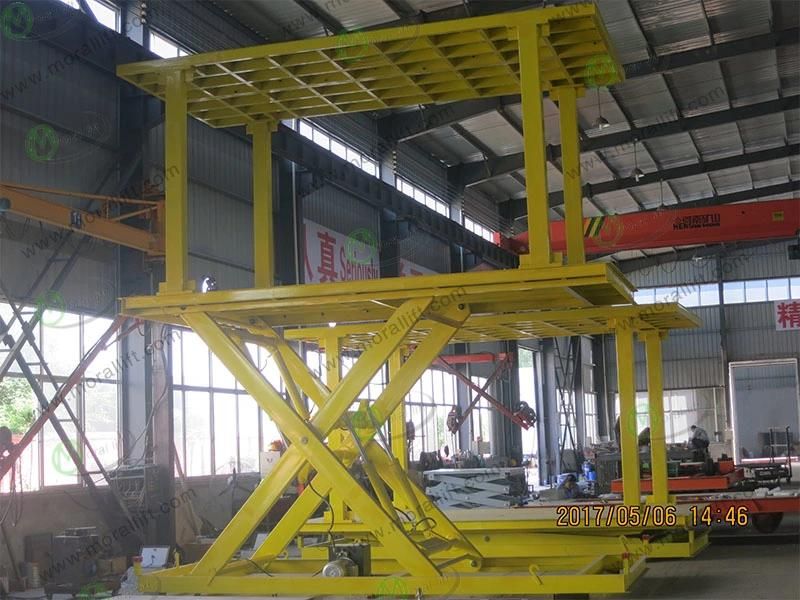

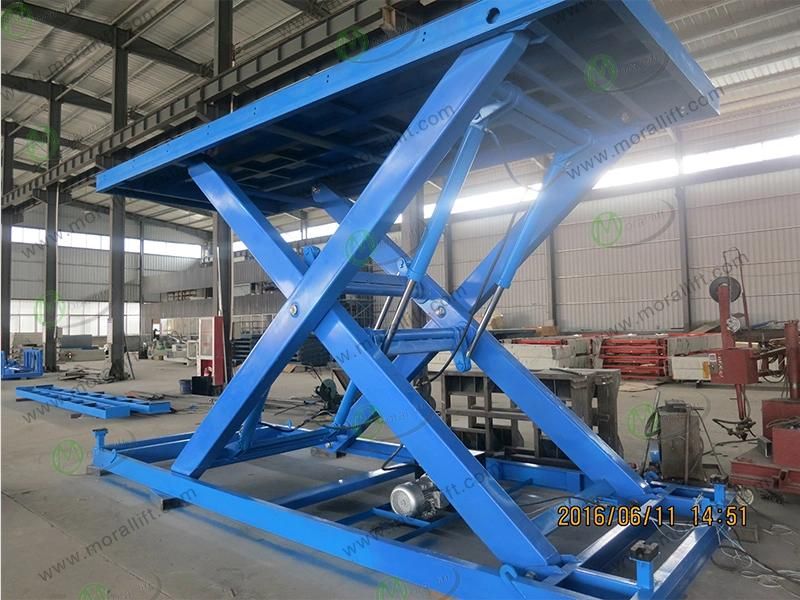

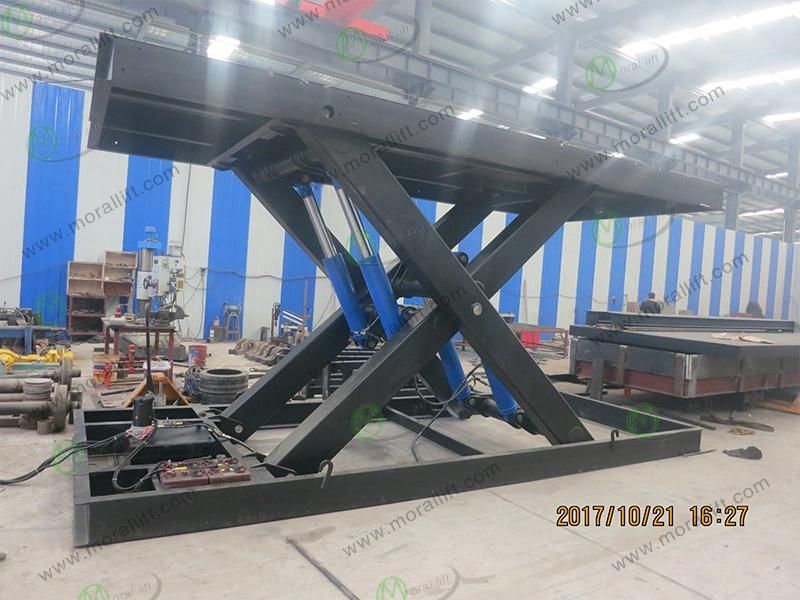

Product photos:
