Drivable Electric Lifting Vacuum Lifter Robot for Installing Glass Window

Qingdao Sinofirst Machinery Co., Ltd.
  • After-sales Service：1 Year Free Spare Parts Replacement
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Facotry
  • Lift Mechanism：Hydraulic Cylinder
  • Carrying Capacity：Weight Level
  • Moves：Moving,Self-Propelled,Vehicular

Base Info

  • Driven Type：AC
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating, Spillover Valve
  • Certification：GS, CE, RoHS, ISO 9001
  • Max Capacity：600kg
  • Safe Capacity：350kg
  • Lifting Height：3500mm
  • Qty of Cap：6PCS
  • Cap Diameter：300mm
  • Max. Plate Size：3300 X 1500mm
  • Handle：CH-2
  • Battery：2X12V,100A
  • Drive Motor：24V,700W
  • Lift Motor：24V,2000W
  • Transport Package：High Quality Seaworthy Package
  • Specification：CE, ISO, SGS
  • Trademark：SAGAFIRST
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：10000

Description

    1. Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps.Drivable Electric Lifting Vacuum Lifter Robot for Installing Glass WindowDrivable Electric Lifting Vacuum Lifter Robot for Installing Glass WindowDrivable Electric Lifting Vacuum Lifter Robot for Installing Glass Window
      2. GL-HD heavy duty vacuum lifter, easy to move around

      Description:

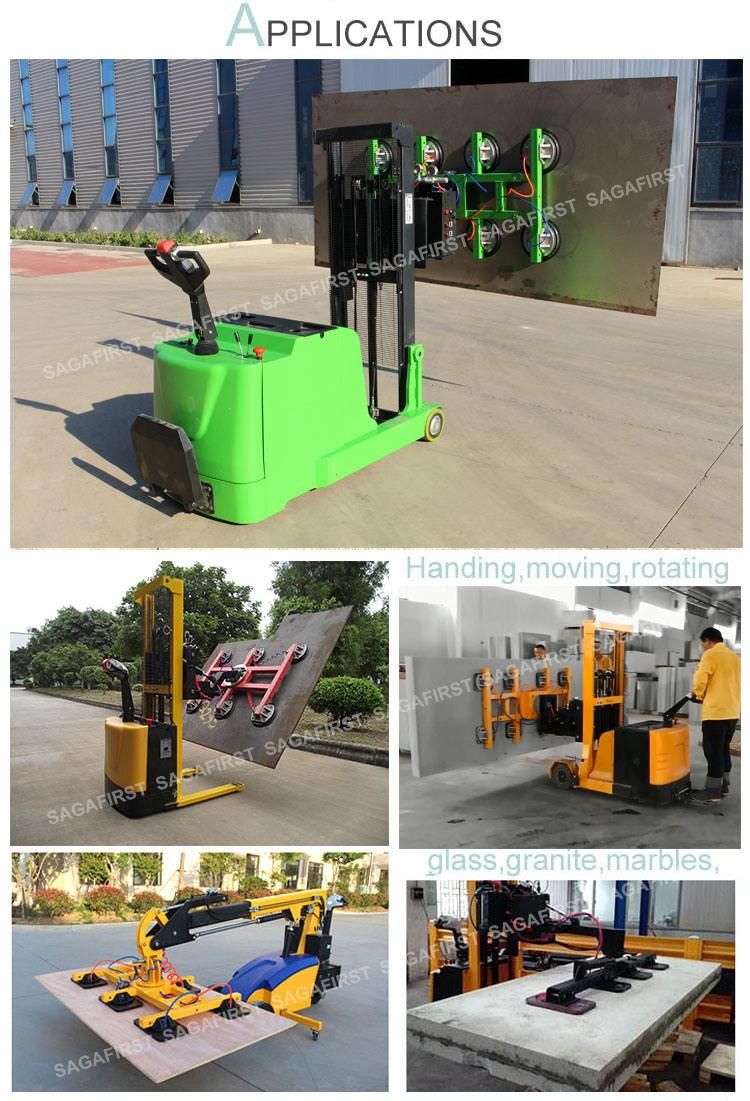

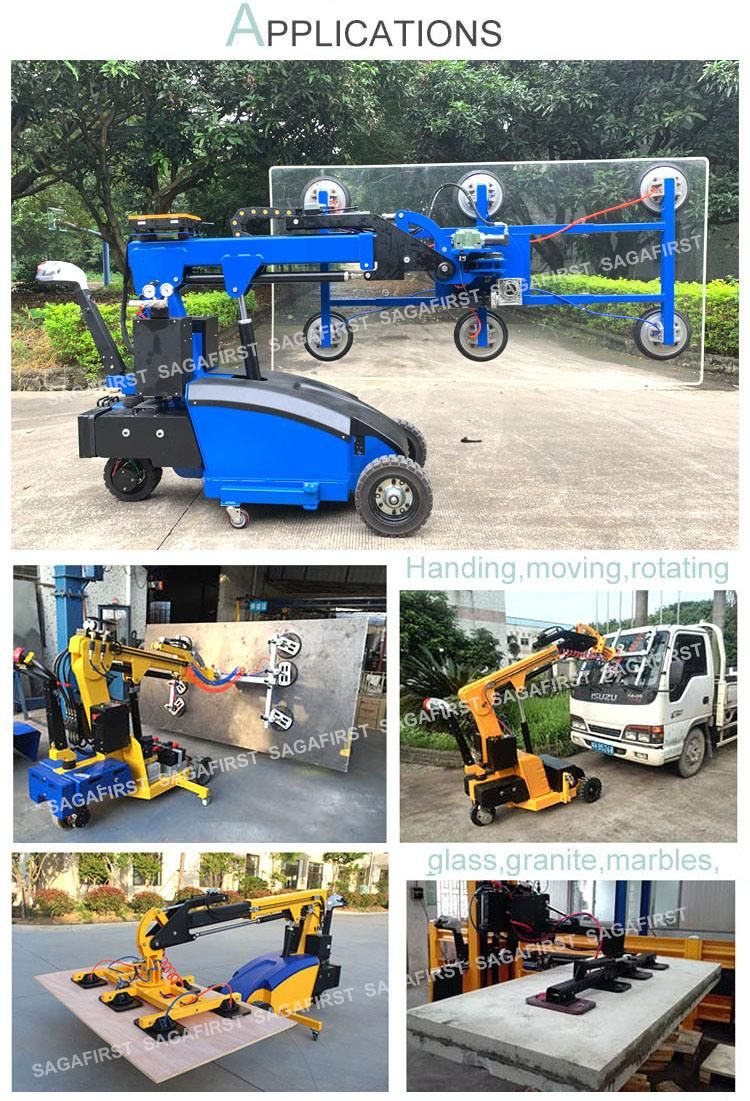

      Special designed for handling different kinds of heavy plate, board,glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

      Features & Advantages:
      Self-propelled drive, Higher lift cap, available upon request. Electric side shift 100mm both right & left. Electric tilting forwards&backwards from vertical to horizontal or reverse. Suction plate is manual rotating.

      Vacuum Robot:
      The vacuum suction is designed with automatic pressure control doable routes to avoid system failure.Ideal for loading & unloading transporting, rotating and installation.Easy for operation, with the following

      Functions:
       Self-propelled drive. Manual rotating.                   Electric lift up to 1.5/2.5M              Higher lift cap. is available upon request.    Electric side shift 100mm both right & left (optional).Electric tilting forwards & backwards from vertical to horizontal or reverse.
       Specifications:

      A. GL-HD-40 series:
      ModelGL-HD-4020(4x30)GL-HD-4020(6x25)GL-HD-4020(6x30)GL-HD-4020(8x25)
      Max. Load Capacity400kgs400kgs400kgs400kgs
      Safe Load Capacity200kgs200kgs200kgs200kgs
      Lifting Height1500mm1500mm1500mm1500mm
      QTY of Caps (customized)4pcs6pcs6pcs8pcs
      Cap DiameterØ300mmØ250mmØ300mmØ250mm
      Plate Size (customized)1220x1830mm1220x1830mm2440x1830mm2440x1830mm
      Load Center650mm650mm650mm650mm
      Drive Motor24V/500W24V/500W24V/500W24V/500W
      Hydraulic Motor24V/2000W24V/2000W24V/2000W24V/2000W
      Battery2x12V/70Ah2x12V/70Ah2x12V/70Ah2x12V/70Ah
      Charger24V/10A24V/10A24V/10A24V/10A
       B. GL-HD-60 series
      ModelGL-HD-6030(4x30)GL-HD-6030(6x25)GL-HD-6030(6x30)GL-HD-6030(8x30)
      Max. Load Capacity600kgs600kgs600kgs600kgs
      Safe Load Capacity300kgs300kgs300kgs300kgs
      Lifting Height1500mm1500mm1500mm1500mm
      QTY of Caps (customized)4pcs6pcs6pcs8pcs
      Cap DiameterØ300mmØ250mmØ300mmØ300mm
      Plate Size (customized)2440x1830mm2440x1830mm2440x1830mm2440x1830mm
      Load Center950mm950mm950mm950mm
      Drive Motor24V/700W24V/700W24V/700W24V/700W
      Hydraulic Motor24V/2000W24V/2000W24V/2000W24V/2000W
      Battery2x12V/100Ah2x12V/100Ah2x12V/100Ah2x12V/100Ah
      Charger24V/15A24V/15A24V/15A24V/15A
       C. GL-HD-80 series:
      ModelGL-HD-8040(6)GL-HD-8040(8)GL-HD-8040(10)GL-HD-8040-25(8)GL-HD-8040-25(10)
      Max. Load Capacity800kgs800kgs800kgs800kgs800kgs
      Safe Load Capacity400kgs400kgs400kgs400kgs400kgs
      Lifting Height1500mm1500mm1500mm2500mm2500mm
      QTY of Caps (customized)6pcs8pcs10pcs8pcs10pcs
      Cap DiameterØ300mmØ300mmØ300mmØ300mmØ300mm
      Plate Size (customized)3660x2440mm3660x2440mm3660x2440mm3660x2440mm3660x2440mm
      Load Center1250mm1250mm1250mm1250mm1250mm
      Drive Motor24V/900W24V/900W24V/900W24V/900W24V/900W
      Hydraulic Motor24V/2000W24V/2000W24V/2000W24V/2000W24V/2000W
      Battery2x12V/160Ah2x12V/160Ah2x12V/160Ah2x12V/160Ah2x12V/160Ah
      Charger24V/20A24V/20A24V/20A24V/20A24V/20A

      Drivable Electric Lifting Vacuum Lifter Robot for Installing Glass Window
      Drivable Electric Lifting Vacuum Lifter Robot for Installing Glass WindowDrivable Electric Lifting Vacuum Lifter Robot for Installing Glass Window
      Drivable Electric Lifting Vacuum Lifter Robot for Installing Glass Window
