• Model NO.：SJYZ
• Feature：Explosion-Proof
• Certification：CE
• Product name：Self-propelled Scissor Lift Table
• Platform size：2260*800mm
• Raise weight：320kg
• Power：3kw
• Voltage：24V,25A
• Battery：4*6V,210Ah
• Max worker：2 man
• Drive speed(folding)：4.0km,h
• Drive speed(rising)：0.8km,h
• Weight：1850kg
• Transport Package：Plywood Package
• Specification：2460*1000*6000mm
• Trademark：Moral
• Origin：China
• HS Code：842890
• Production Capacity：20sets,Month

Basic Info.

Model NO. SJYZ Feature Explosion-Proof Certification CE Product name Self-propelled Scissor Lift Table Platform size 2260*800mm Raise weight 320kg Power 3kw Voltage 24V/25A Battery 4*6V/210Ah Max worker 2 man Drive speed(folding) 4.0km/h Drive speed(rising) 0.8km/h Weight 1850kg Transport Package Plywood Package Specification 2460*1000*6000mm Trademark Moral Origin China HS Code 842890 Production Capacity 20sets/Month

Product Description

★★Mobile elextric rising work platform for man★★★Brief introduction:

1) Can travel at slow speed and rapid speed self propelled.

2) Only one person is needed  to lower, raise, forward, backward, steer the machine.It improves working efficiency and reduces man-power and labor intensity greatly

3) Maneuverable, extremely easy to use

4) Safe ground clearance for indoor/outdoor Operation

5) Robust, reliable and easy to maintain

6) Slope alarm,overload alarm, charger indicator

7) Pit protection system for max. Safety

8) Flexible turning unit

9) Slope alarm/ Double wheel traveling speed/Double wheel driving & turning

10) It is especially good for long time work at airport terminals, stations, docks, shopping markets, stadiums and work shops.

★Safty:

1.In special circumstance, the scissor lift will use explosion-proof electric equipment
2.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity
4.The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position
5.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when it works

★Parameter:

NO.	Data	Parameter
1	Load capacity	320kg
2	Extend platform load	113kg
3	Max worker	2 man
4	Platform height	10000mm
5	Working height	12000mm
6	Drive speed(folding)	4.0km/h
7	Drive speed(rising)	0.8km/h
8	motor	24v/3kw
9	Battery	4*6v/210Ah
10	Charge	24V/25A
11	Max working angle	2-3
12	Wheels size	406x mm
13	Weight	2730kg

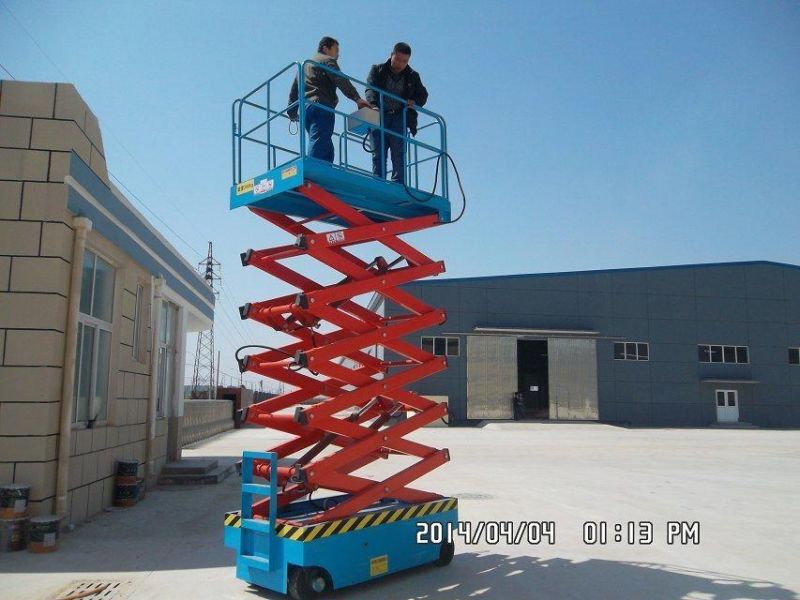

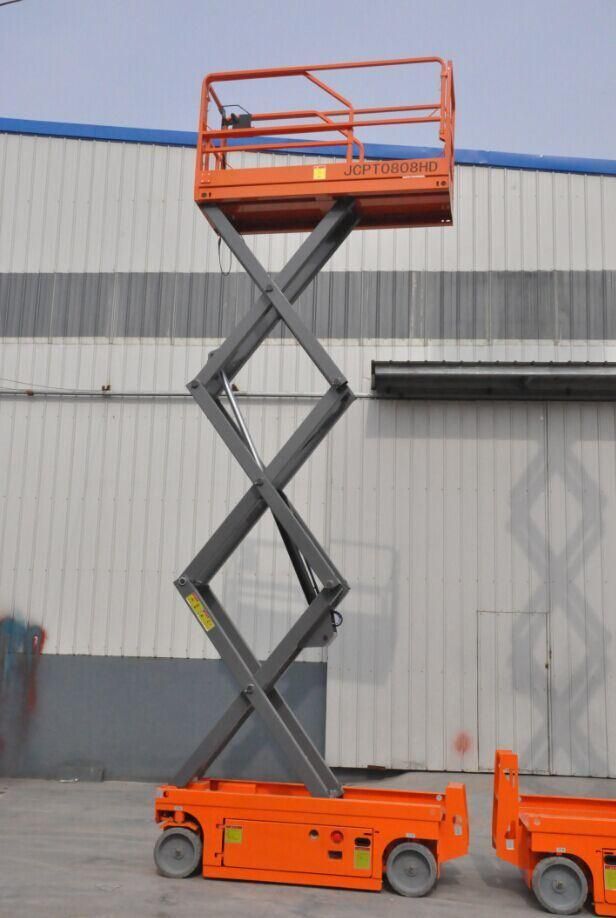

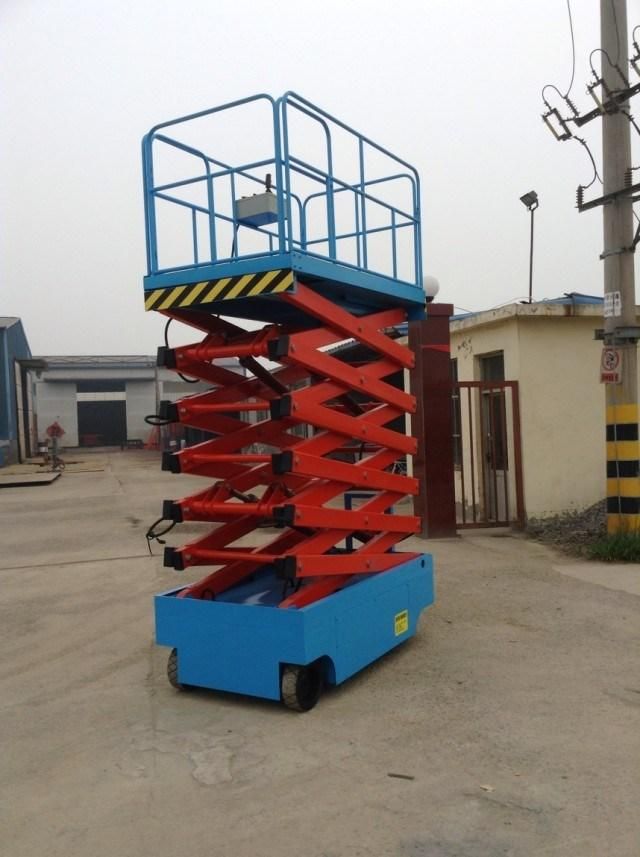

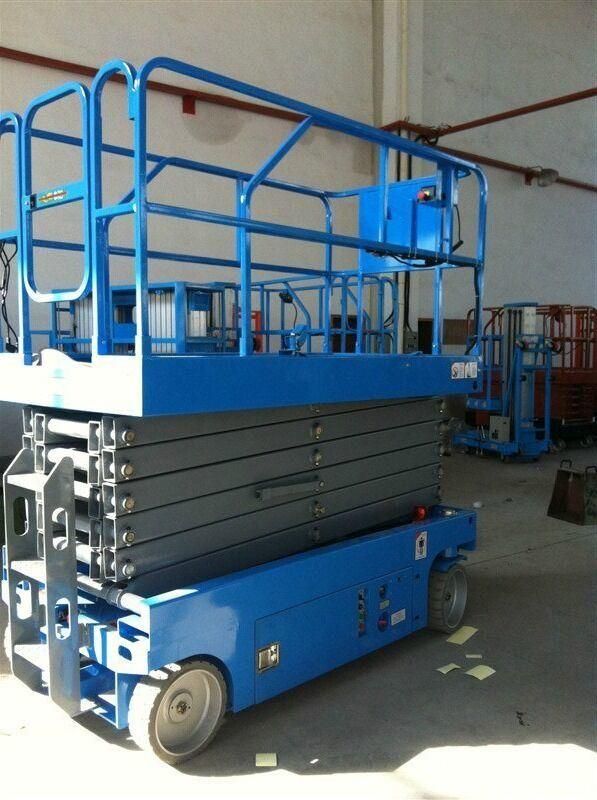

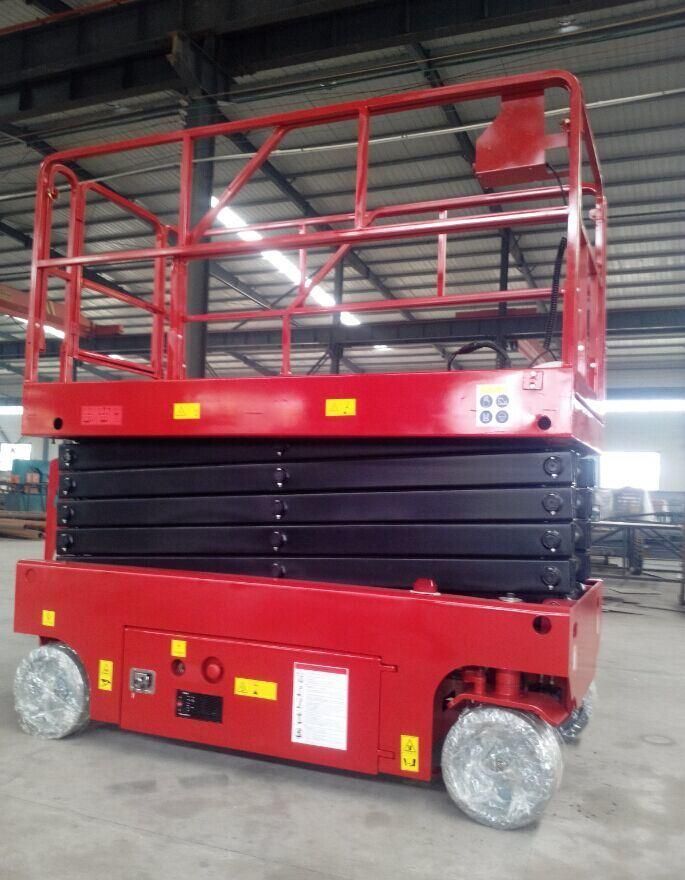

★Detailed images:
