• Model NO.：SJD
• Feature：Explosion-Proof
• Certification：CE
• Speed：100mm,S
• Load Capacity：3000kg,customized
• Platform Size：1500*1200mm,customized
• Lifting Height：3000mm,customized
• Power：3kw
• Material：Double T Steel
• Drive System：Hydraulic
• Control Mode：Buttons,remote control
• Safety Device：Emergency stop button
• Warranty：12 months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. SJD Feature Explosion-Proof Certification CE Speed 100mm/S Load Capacity 3000kg/customized Platform Size 1500*1200mm/customized Lifting Height 3000mm/customized Power 3kw Material Double T Steel Drive System Hydraulic Control Mode Buttons/remote control Safety Device Emergency stop button Warranty 12 months Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/Year

Product Description

1T 2T 3T Hydraulic Small Goods Elevator

Main feature:
1)chain features lifting goods
2)hydraulic driven and lift by chain
3)steady up and down

Product introduction:

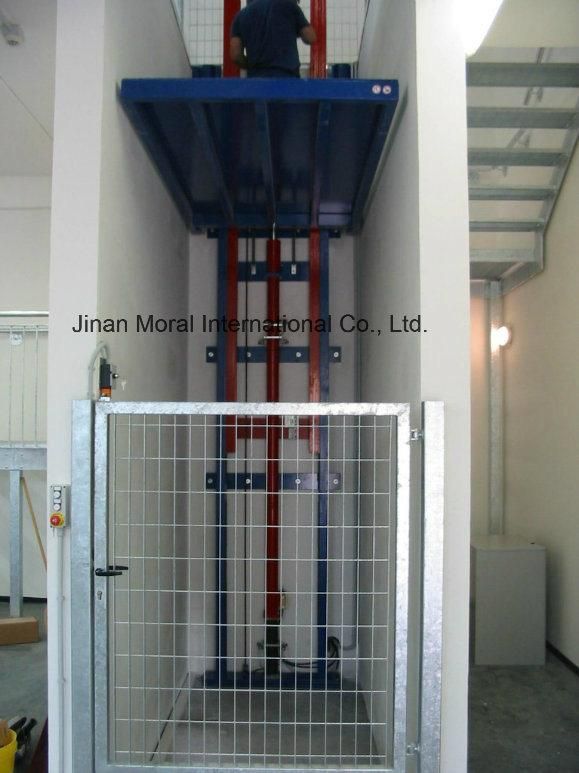

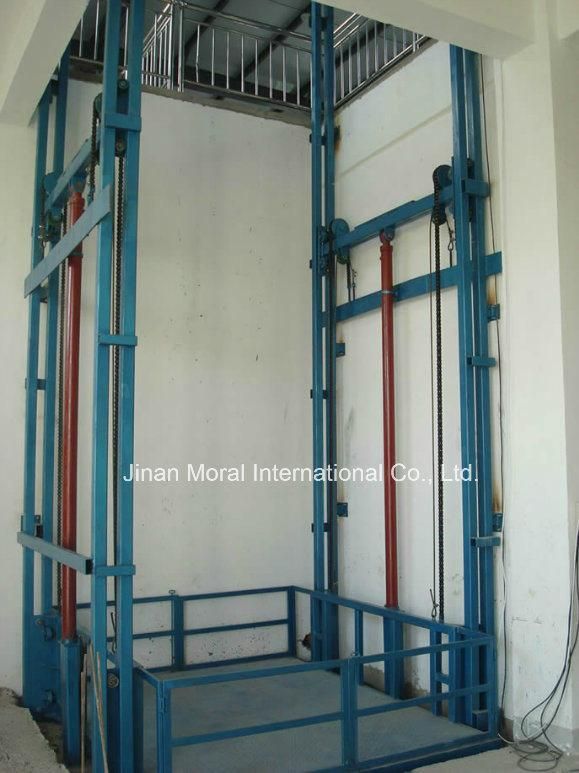

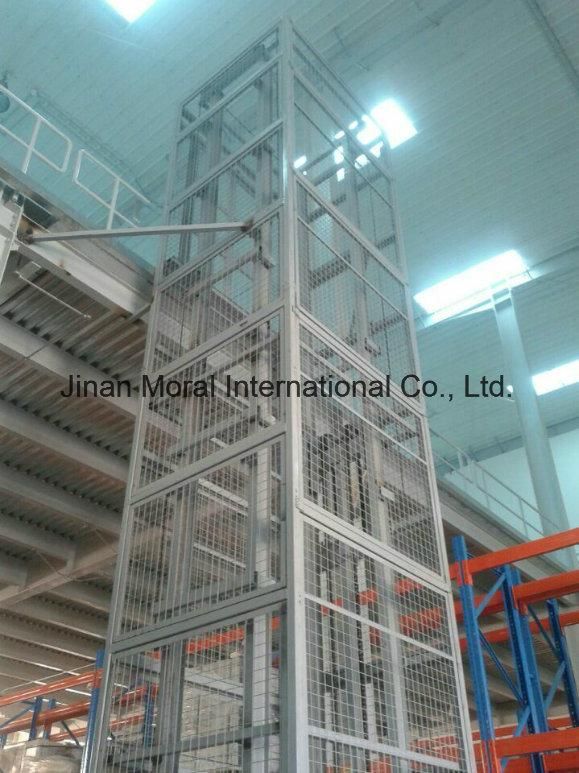

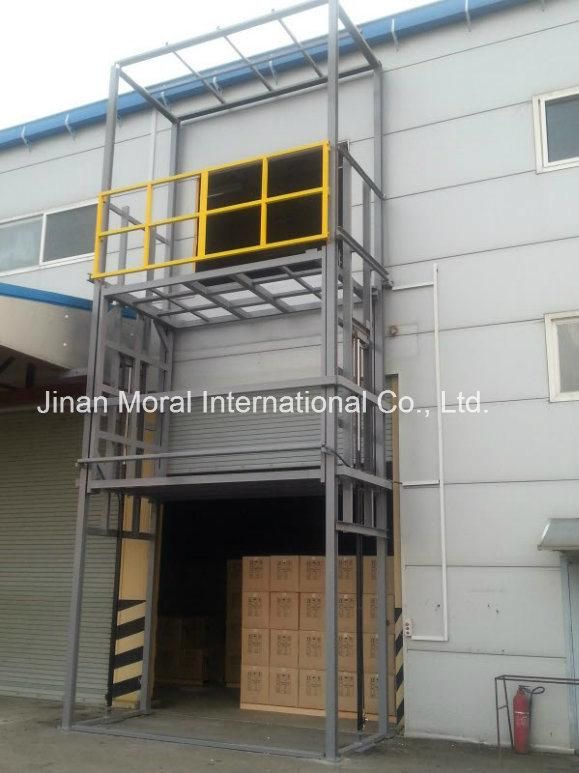

Vertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.

This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.

We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.

1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.


Model	SJD0.5-10
Load capacity	500--1000KG
Platform size	1500*1200MM
Lifting height	10000MM
speed	100mm/s
power	3kw
power supply	AC 220V/380V  50HZ/60HZ
weight	800KG
