• Model NO.：SJG3-3
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Installation：Underground
• Safety Device：Explosion Proof Lock Valve, Emergency
• Stationary Hydraulic Scissor Lift：Scissor Lift
• Motor：Customer Required Brand or Chinese Famous Brand
• Color& Size：Red, Blue, Gray Optional for Car Lift
• Power：220V, 240V, 380V, 400V or Other
• Warranty：24monthes
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：5000 Set Per Year

MODELLOAD CAPACITYPLATFORM SIZELIFT HEIGHTPIT DEPTHPOWERSJG2.5-32.5T5.2m x 2.6m3m750mm220V, 240V, 380V or 400VSJG2-6.52T5.2m x 2.8m6.5m800mm220V, 240V, 380V or 400VSJG2.5-3.52.5T5.2m x 2.6m3.5m800mm220V, 240V, 380V or 400VSJG2.5-52.5T5.6m x 3m5m800mm220V, 240V, 380V or 400VSJG3-2.53T5m x 2.3m2.5m750mm220V, 240V, 380V or 400VSJG3-33T5.2m x 2.6m3m800mm220V, 240V, 380V or 400VSJG3-3.53T5.6m x 2.7m3.5m800mm220V, 240V, 380V or 400VSJG5-105T4.5m x 2.5m10m1150mm220V, 240V, 380V or 400VSJG8-2.58T6.5m x 4.5m2.5m850mm220V, 240V, 380V or 400VSJG12-312T5.5m x 2.8m3m950mm220V, 240V, 380V or 400VSJG15-4.515T8m x 2.2m4.5m1150mm220V, 240V, 380V or 400VSJG20-520T6m x 3m5m1200mm220V, 240V, 380V or 400V The hydraulic car lift can be customized as your detailed size.

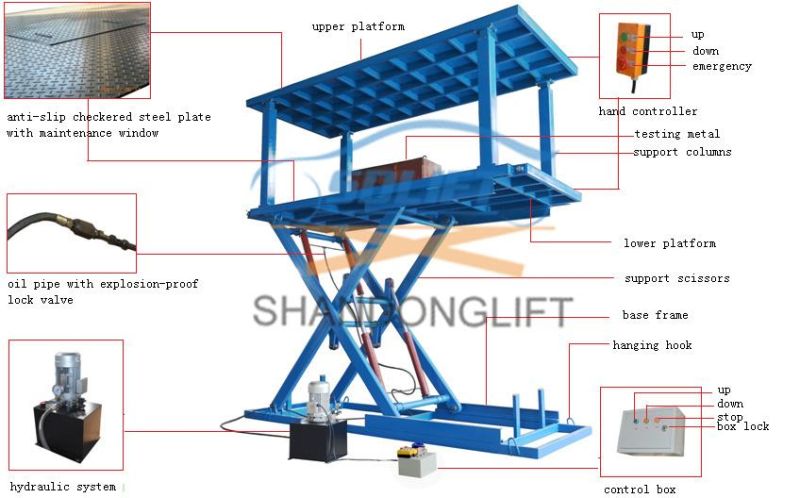

Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 220V, 240V, 380V, 400V or Other.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps hydraulic car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic car lift are passed 1.2 times loading test before leaving factory.
Our service:
1) We can design the customerized hydraulic car lift as per your requirement.
2) The most suitable hydraulic car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
