Aerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale

Jinan Moral International Co., Ltd.
  • Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Telescoping Lift
  • Carrying Capacity:Light Level
  • Moves:Moving
  • Driven Type:Hydraulic
  • Running Mode:Moving

Base Info

  • Model NO.:TBL
  • Feature:Explosion-Proof
  • Certification:CE, ISO 9001
  • Max.Working Height:8m,Customize
  • Max.Working Radius:8m,Customize
  • Working Pressure:10 MPa
  • Control Voltage:24V,DC
  • Platform:Non-Skid Diamond Steel Platform
  • Controls Parts:Delixi
  • Control Mode:Button,Remote Control
  • Travel Speed:15-30km,H
  • Transport Package:Standard Export Pakage
  • Specification:CE, ISO, SGS
  • Trademark:Moral
  • Origin:China(Mainland), Shandong, Jinan
  • HS Code:842890
  • Production Capacity:100sets,Per Month

Description

Basic Info.

Model NO. TBL Feature Explosion-Proof Certification CE, ISO 9001 Max.Working Height 8m/Customize Max.Working Radius 8m/Customize Working Pressure 10 MPa Control Voltage 24V/DC Platform Non-Skid Diamond Steel Platform Controls Parts Delixi Control Mode Button/Remote Control Travel Speed 15-30km/H Transport Package Standard Export Pakage Specification CE, ISO, SGS Trademark Moral Origin China(Mainland), Shandong, Jinan HS Code 842890 Production Capacity 100sets/Per Month

Product Description

Aerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale



Features:
1. Platform
Its platform can lift up, extend horizontally, or turn around 360 degrees to stride across certain obstacles for work. So it can realize multipoint work in wide scope.
2...Legs
With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3. Drive
It can be diesel or storage battery according to customer's requirements.
4. Material
Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5. Hydraulic cylinder:
Original import or domestic joint venture hydraulic cylinder, with high quality, improving the reliability and prolonging the work time,
6. Aloft work platform
Equipped with balanced valve, automatic pressure maintaining, etc.
7. Advantages
The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.




Application:
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.



Parameters:
Model:TBL
Loading capacity200kg
Travel height8,000mm/Customize
Working height10,000mm/Customize
Max working radius8000mm/Customize
Rotation 359°
Platform size900*700mm/Customize
Dimensions 5400*1600*1900mm
Lifting speed50mm~90mm/s
Travel speed15~30km/h
Working pressure10 Mpa
Windproof level<=5
OverloadProtection over current relay
Control voltage24V/DC
Power InputAC 2.2KW
Drive SystemHydraulic
Control ModeButton/remote controls
PlatformNon-skid Diamond steel platform
Hydraulic cylinderΦ80*2 and Φ70*5
Controls partsDelixi

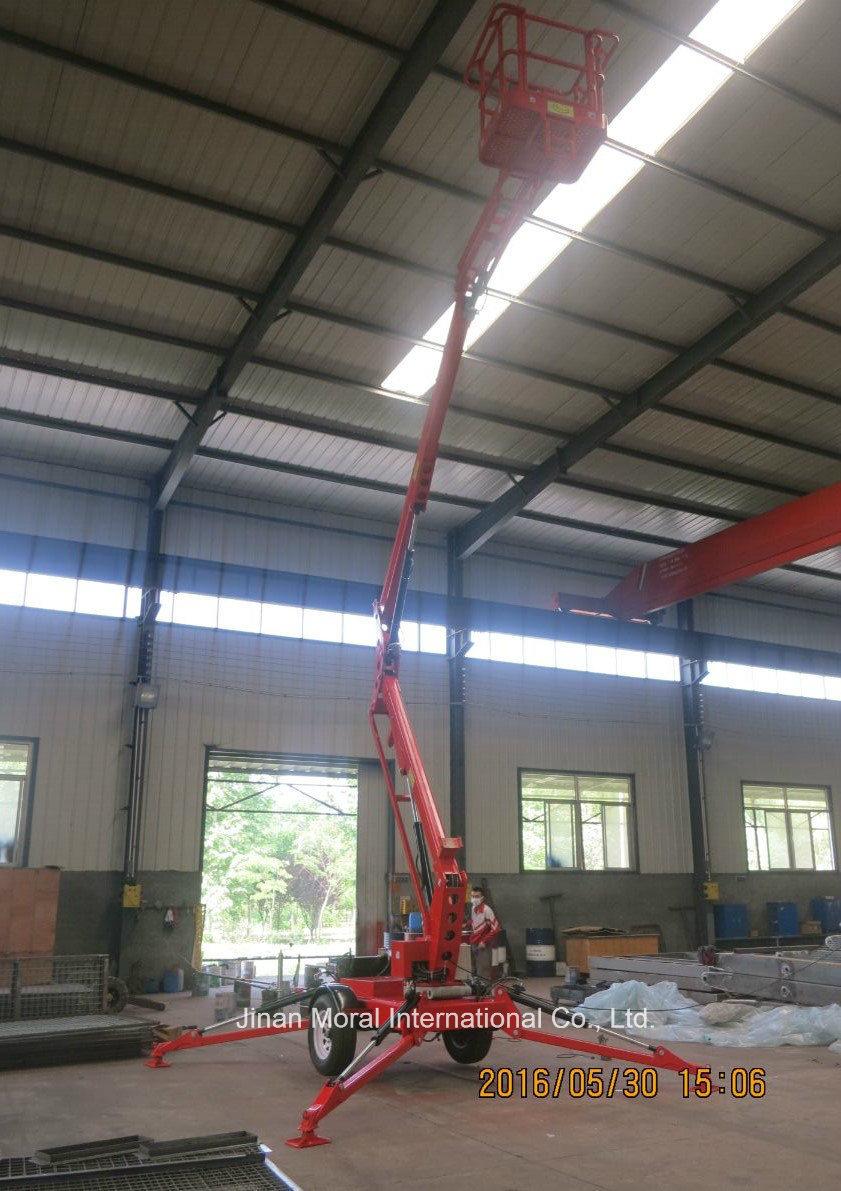

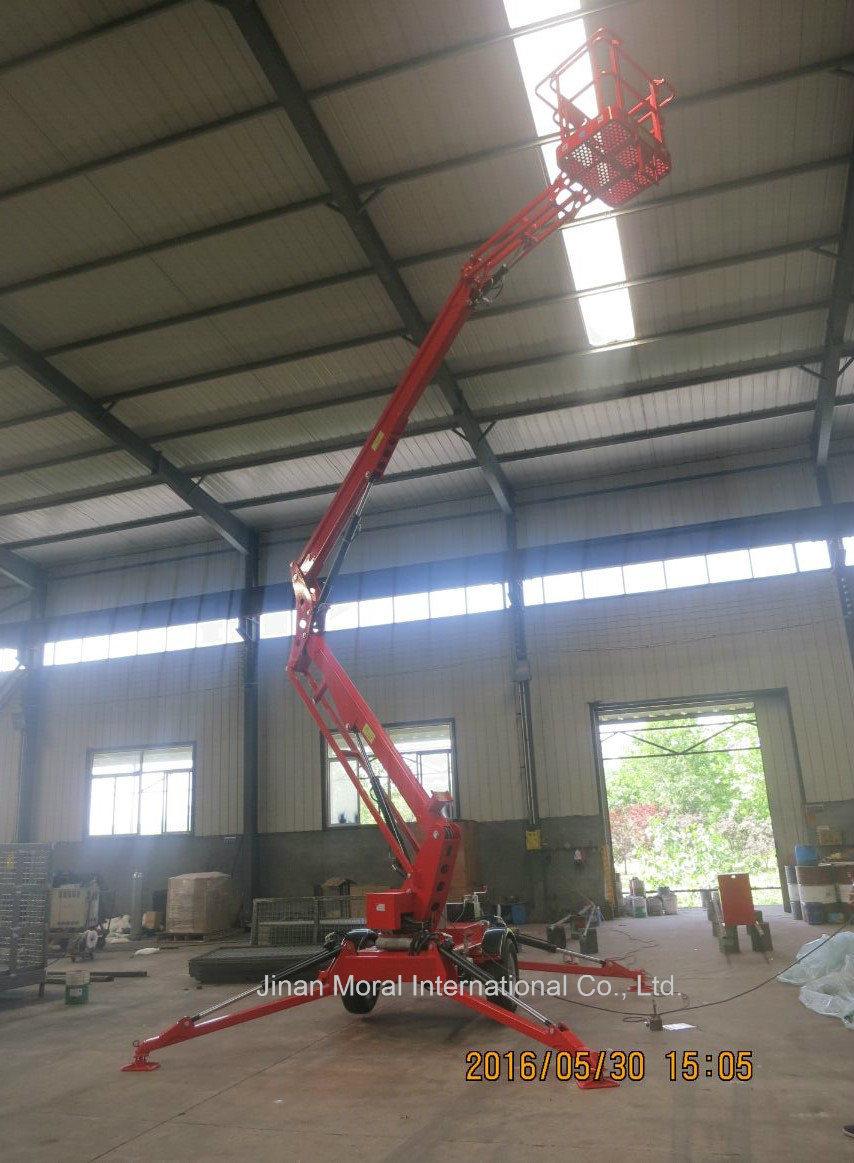

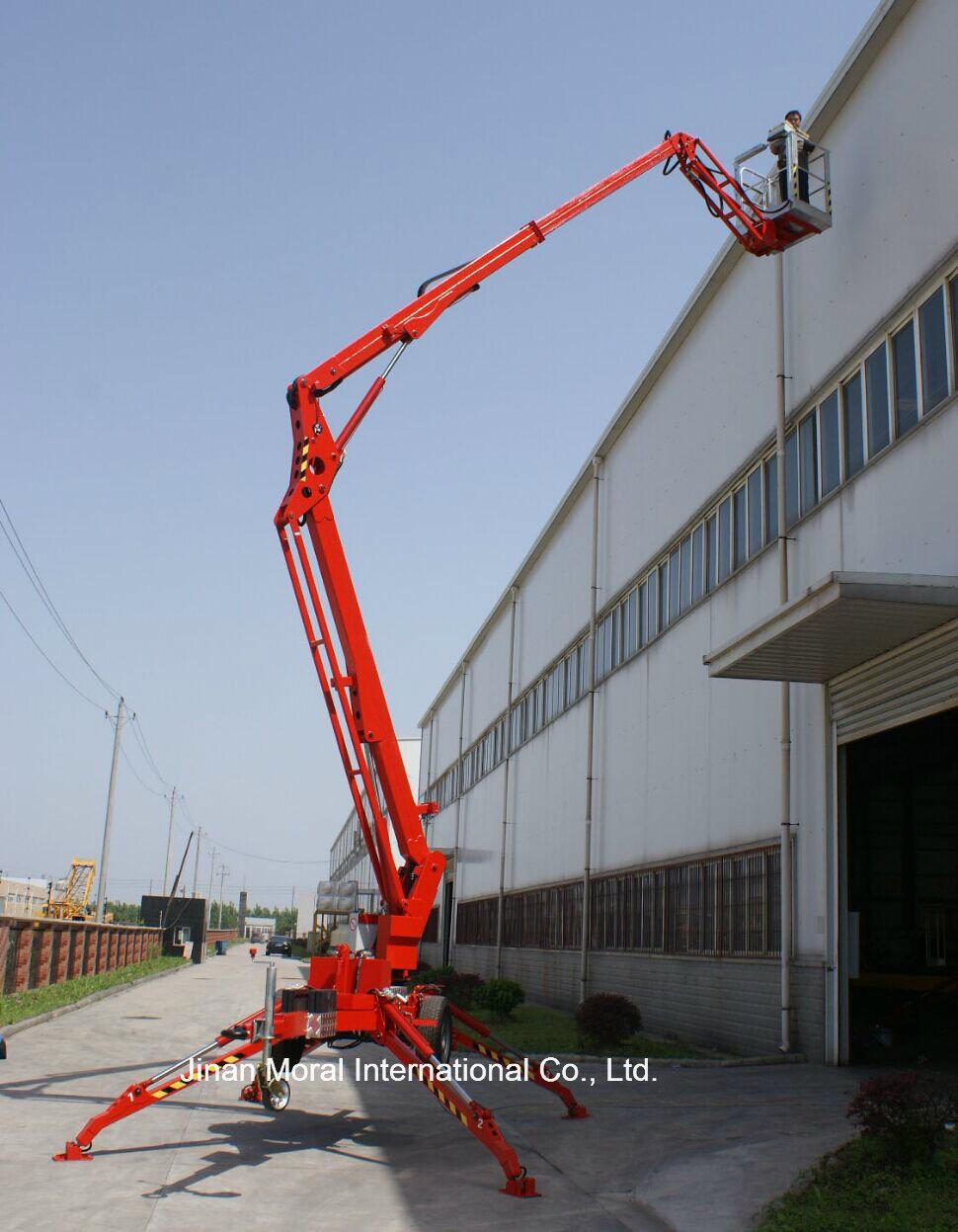

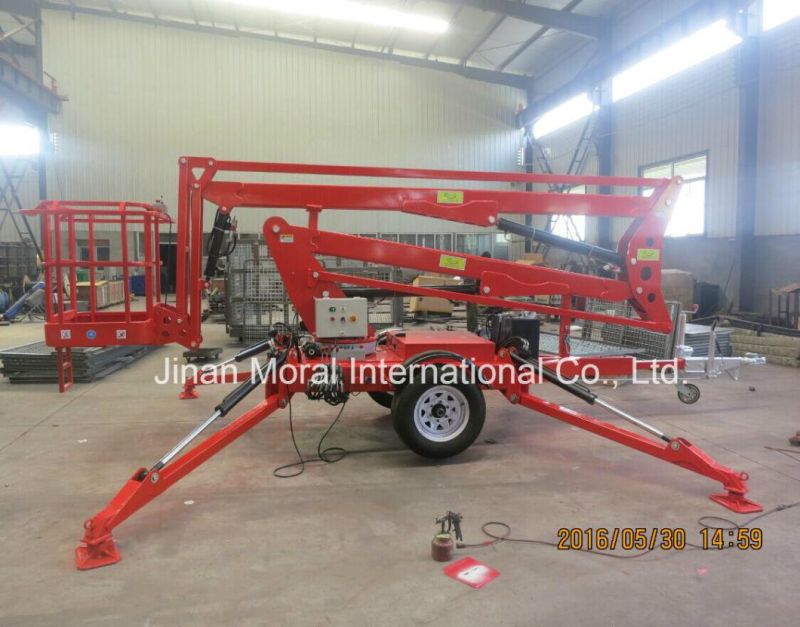

Product pics:
Aerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale
Aerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale
Aerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale
Aerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale
Aerial Hydraulic Towable Trailed Telescoping Boom Lift for SaleAerial Hydraulic Towable Trailed Telescoping Boom Lift for Sale
