High Rise Working Platform Boom Lift

Jinan Moral International Co., Ltd.
  • Lift Mechanism:Articulated Lift
  • Carrying Capacity:Light Level
  • Moves:Moving
  • Driven Type:AC
  • Running Mode:Moving
  • Certification:CE

Base Info

  • Model NO.:TBL
  • Load Capacity:200kg
  • Working Height:4-15m
  • Motor:2.2kw
  • Power:Electric or Diesel
  • Lifting Speed:50-90mm,S
  • Platform Size:900*700mm
  • Rotation:360 Degree
  • Max Working Radius:4000mm
  • Platform:Non-Skid Diamond Steel Platform
  • Control:Button,Remote Controls
  • Transport Package:Standard Export Packing
  • Specification:CE
  • Trademark:Moral
  • Origin:Jinan, Shandong, China
  • HS Code:84289090
  • Production Capacity:50.000 PCS,Year

Description

Basic Info.

Model NO. TBL Load Capacity 200kg Working Height 4-15m Motor 2.2kw Power Electric or Diesel Lifting Speed 50-90mm/S Platform Size 900*700mm Rotation 360 Degree Max Working Radius 4000mm Platform Non-Skid Diamond Steel Platform Control Button/Remote Controls Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shandong, China HS Code 84289090 Production Capacity 50.000 PCS/Year

Product Description

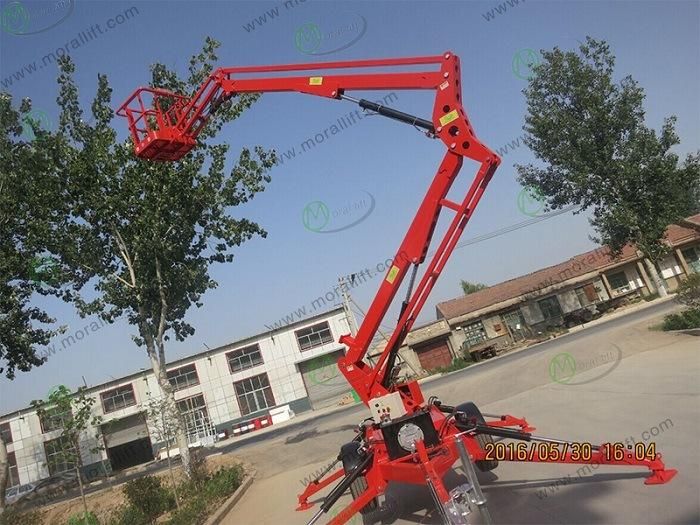

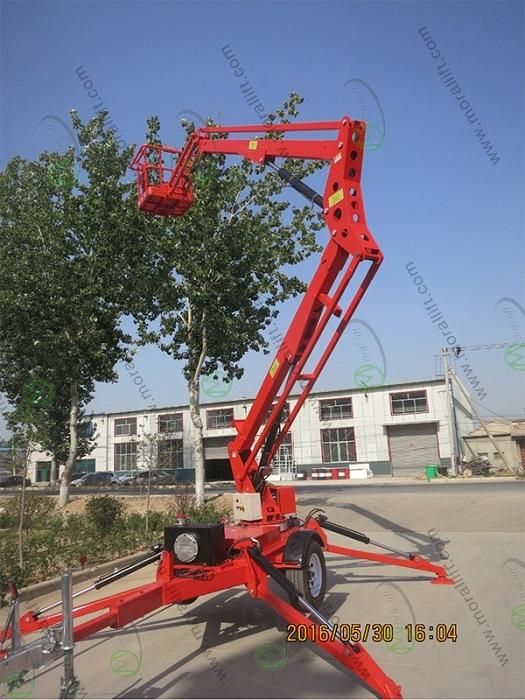

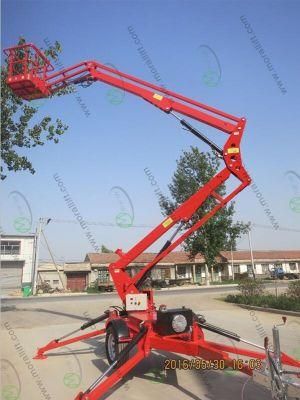

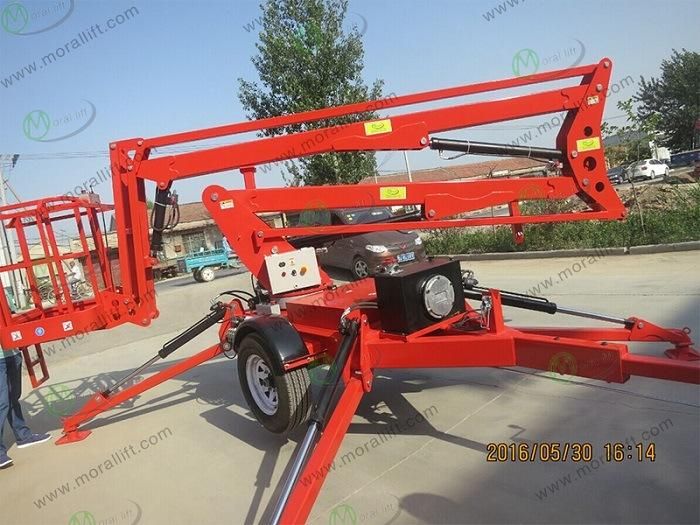

High Rise Working Platform Boom Lift

Specifications:
1.Compact, narrow design is easy to maneuver in congested work areas
2.Big Horizontal working reach
3.Automatic leveling system and tilt alarm

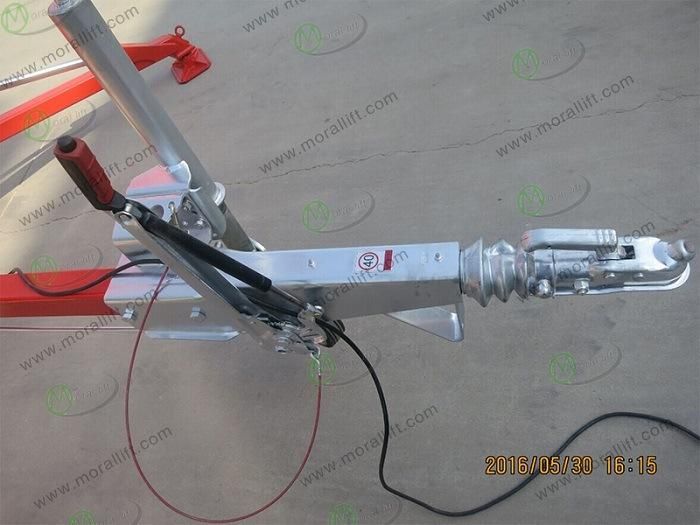

4.Easily towed behind a pickup or SUV
5.Safe, easy to operate
6.359˚non-continuous turntable rotation
7.Articulating boom
8.Multiple job site application, indoors and outdoors
9.High and low operation panel
10.Hydraulic outriggers and outrigger interlocks
11.Made of high strength steel, famous china brand
12.All pipelines put inside the machine, to aviod tangled sun and rain or other objects

Application:
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction  and other large range homework place.


Parameter:
Model TBL
Max.working height 16.00M
Max.platform height 14.00M
Loading Capacity 200KG
Lateral Outreach 8.0M
Jib Rotation 100°
Turntable Rotation 359°
Size of basket 0.9×0.8×1.1 M
Overall stowed length 5.60M
Overall stowed width  1.82M
Overall stowed height 2.2M
Total weight 2500KG
Traveling speed 40KM/H
Standard power source 220V AC power
Optional power source Battery
Optional power source Diesel engine
Optional power source Gasoline
