• Model NO.：TBL-10
• Feature：Explosion-Proof
• Certification：CE
• Load Capacity：200kg
• Lifting Height：10m
• Platform Size：900*700mm
• Dimension：4800*1600*1800mm
• Power：AC power, Diesel, Battery
• Motor：2.2kw
• Rotation：360 Degree
• Lifting Speed：50-90mm,s
• Travel Speed：15-30km,Hour
• Max Working Radius：3000mm
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：500PCS,Year

Basic Info.

Model NO. TBL-10 Feature Explosion-Proof Certification CE Load Capacity 200kg Lifting Height 10m Platform Size 900*700mm Dimension 4800*1600*1800mm Power AC power, Diesel, Battery Motor 2.2kw Rotation 360 Degree Lifting Speed 50-90mm/s Travel Speed 15-30km/Hour Max Working Radius 3000mm Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 500PCS/Year

Product Description

Towed Hydraulic Articulating Boom Lift


Specifications:


1. Power: electrical,diesel,battery.

 2. Loading capacity: 200kg.

 3. Hydraulic system ensure safety.

 4. Rotating:360 degree.

 Towable hydraulic articulating lift is for the use of indoor and outdoor high-altitude operations. Which
 can be car-carring to everywhere, easy to use, large operations, in particular to cross certain obstacles
 or in a take-off and landing can be more characteristic of high-altitude operations. Widely used in roads,
 terminals, shopping malls, stadiums, residential property, factories and mines operating large-scale work-
 shop.


 Features:
1.Platform
   Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles
   for workso it can realize multipoint work in wide scope.

2.Legs
   With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions.
When the road is uneven, four full-automatic legs or single leg can support the machine.

3.Drive
   It can be diesel or storage battery according to customer's requirements.

4.Material
   Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,

5.Hydraulic cylinder
   Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time,

6.Aloft work platform
   Equipped with balanced valve, automatic pressure maintaining ,etc.

Application:

The articulating lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.

Parameters:


Model	Load capacity(kg)	Platform size (mm)	Max working height (m)	Turn around angle (°)	Weight (kg)	Wind-resistant
TBL-8	200	900*700	8	360	1400	≤5
TBL-10	200	900*700	10	360	1500	≤5
TBL-12	200	900*700	12	360	1600	≤5
TBL-14	200	900*700	14	360	1800	≤5
TBL-16	200	900*700	16	360	2500	≤5
TBL-18	200	900*700	18	360	2800	≤5

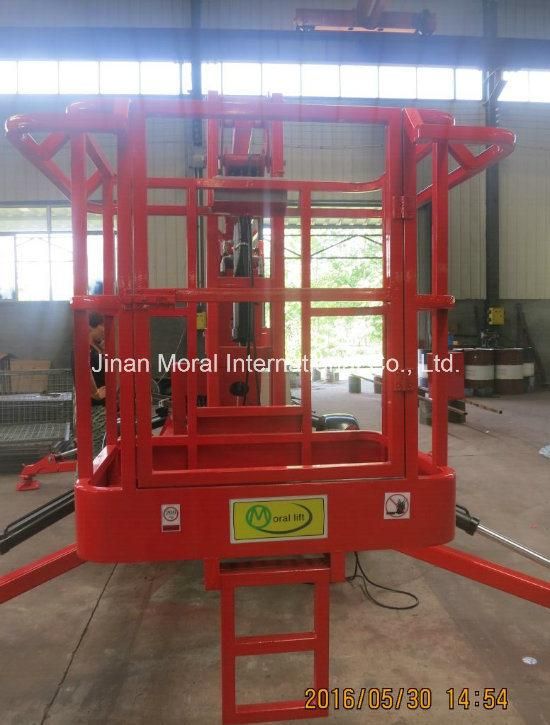

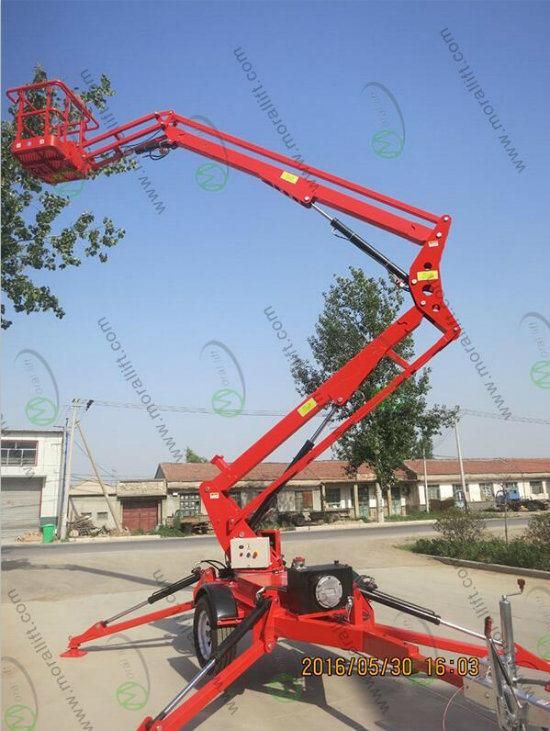

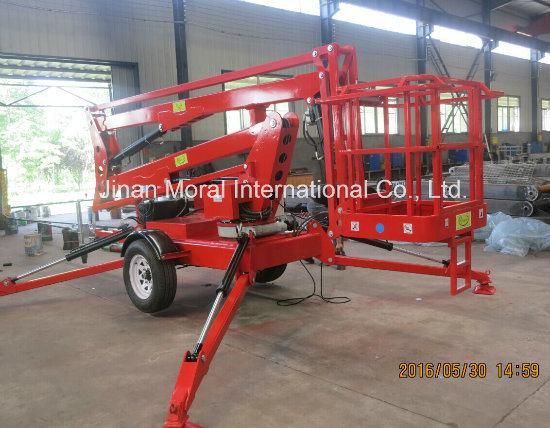

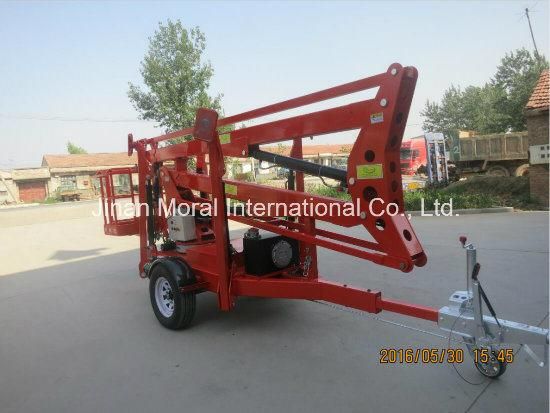

Detailed Pictures:
