• Model NO.：TBL
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Max.Lifting Height：14m
• Max.Working Radius：3500mm
• Turn Around Angle：359 Degree
• Load (Kg)：250kg
• Lifting Speed：50-90mm,S
• Usage：High-Altitude Operations
• Working Pressure：10 MPa
• Platform：Non-Skid Diamond Platform
• Overall Dimensions：5400*1600*1900mm
• Warranty：12months
• Transport Package：Standard Export Pakage
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets,Per Month

Basic Info.

Model NO. TBL Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Max.Lifting Height 14m Max.Working Radius 3500mm Turn Around Angle 359 Degree Load (Kg) 250kg Lifting Speed 50-90mm/S Usage High-Altitude Operations Working Pressure 10 MPa Platform Non-Skid Diamond Platform Overall Dimensions 5400*1600*1900mm Warranty 12months Transport Package Standard Export Pakage Specification CE, ISO, SGS Trademark Moral Origin China(Mainland), Shandong, Jinan HS Code 842890 Production Capacity 100sets/Per Month

Product Description

Hydraulic trailer aerial work boom lift for sale



Advantage:
1. Towable Articulated Man Lift  has Two sources of power:Storage battery and Diesel engine.
2. Towable Articulated Man Lift  With four full-automatic hydraulic legs,it can be most safe stable.
3. Towable Articulated Man Lift so it can work across the barriers.


specification and safety:
Pull-behind lift table/ Towable Articulated Man Lift for the use of indoor and outdoor high-altitude operations. Which can be car-carring to everywhere, easy to use, large operations, in particular to cross certain obstacles or in a take-off and landing can be more characteristic of high-altitude operations.
Towable Hydraulic Articulating Lift
Widely used in roads, terminals, shopping malls, stadiums, residential property, factories and mines operating large-scale workshop


Safety device:
---hydraulic support legs would automatically open
---Working light alarm
---High pressure hydraulic oil pipe with double steel net
---Explosion proof value for cylinder
---Emergency stop button
---Emergency down valve when power failure
----Upper final limit safety switch


 Technical data:

Model:	TBL
Loading capacity	200kg
Travel height	8,000mm
Working height	10,000mm
Max working radius	3500mm
Rotation	360°
Platform size	900*700mm
Dimensions	5400*1600*1900mm
Lifting speed	50mm~90mm/s
Travel speed	15~30km/h
Working pressure	10 Mpa
Windproof level	<=5
Overload	Protection over current relay
Control voltage	24V/DC
Power Input	AC 2.2KW
Drive System	Hydraulic
Control Mode	Button/remote controls
Platform	Non-skid Diamond steel platform
Hydraulic cylinder	Φ80*2 and Φ70*5
Controls parts	Delixi

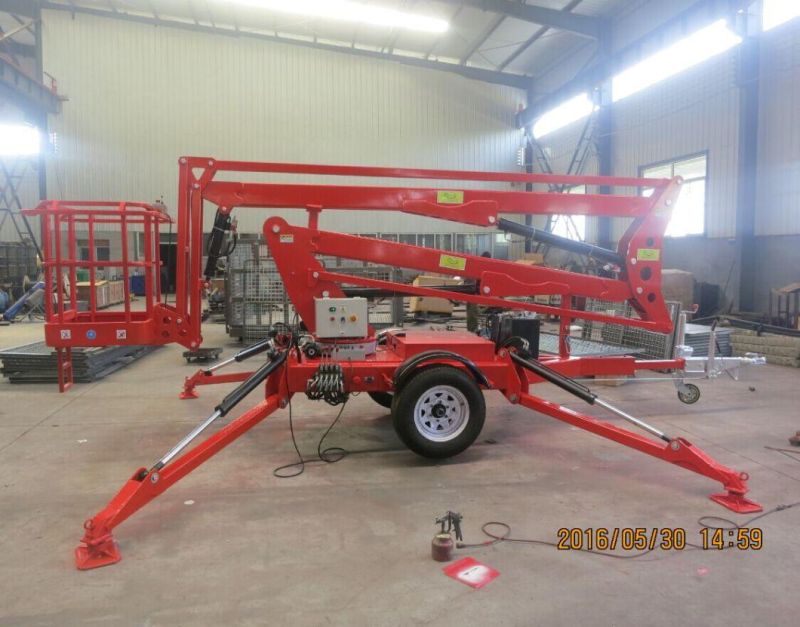

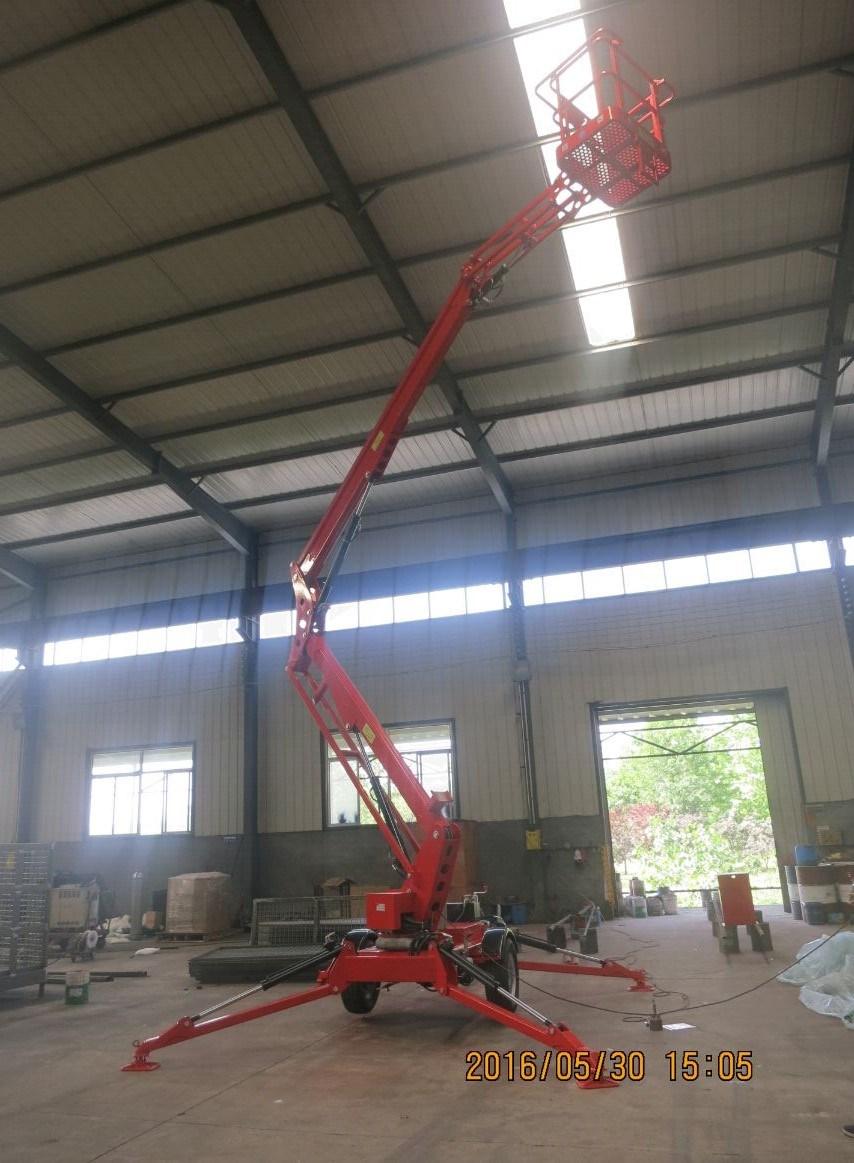

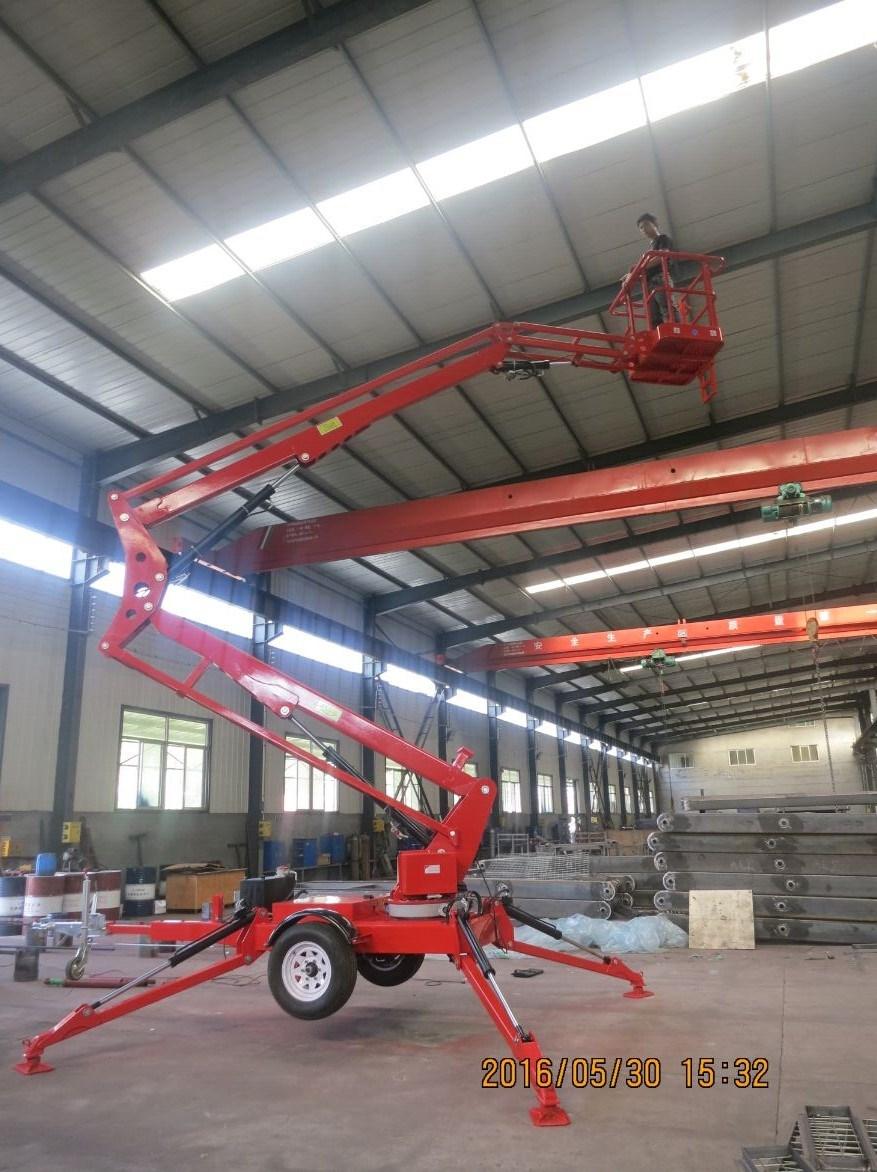

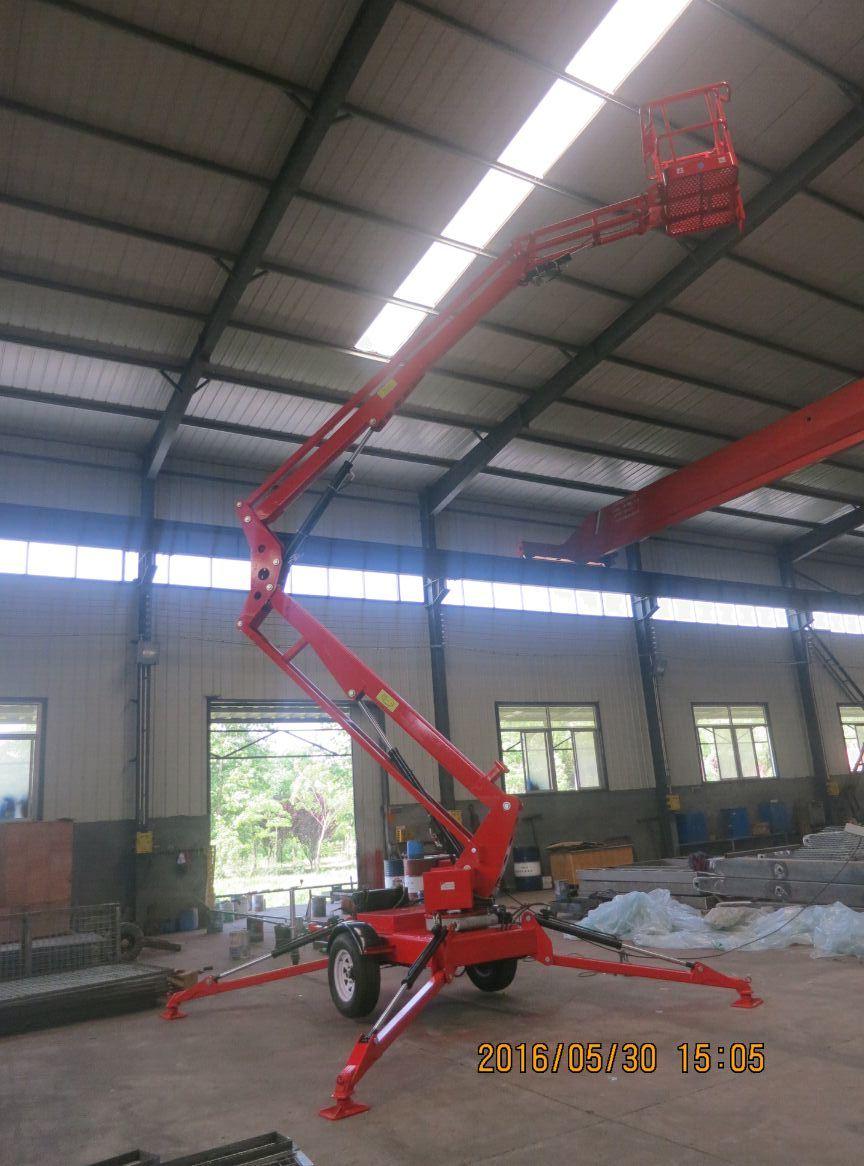

Photos:



Our Services:
1. All the machines will be full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.


FAQ:
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
3. Trade term? ( FOB/CFR/CIF to your nearest seaport)
4. Working Height?-according to your need
5. Platform Size?-according to your need
6. load capacity?-according to your need
7. Demand power source?-electric or battery, per your need
8. OEM?-accepted
