• Model NO.：VC-B
• Certification：Ce ISO
• Condition：New
• Color：Orange
• Chain：100 Grade
• Hook：Forged
• Max Lifting Weight：50 T
• Standard Lifting Height：2.5m, 3 M
• Hook Feature：More Widen and Thicken
• Cover：High Quality Alloy
• Gear：International Standard
• Warranty：1 Year
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Transport Package：Colour Paper Case or Wooden Case
• Specification：CE, ISO
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：1000000PCS,Year

Basic Info.

Model NO. VC-B Certification Ce ISO Condition New Color Orange Chain 100 Grade Hook Forged Max Lifting Weight 50 T Standard Lifting Height 2.5m/ 3 M Hook Feature More Widen and Thicken Cover High Quality Alloy Gear International Standard Warranty 1 Year Payment Term T/T, L/C Loading Port Shanghai Transport Package Colour Paper Case or Wooden Case Specification CE, ISO Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 1000000PCS/Year

Product Description

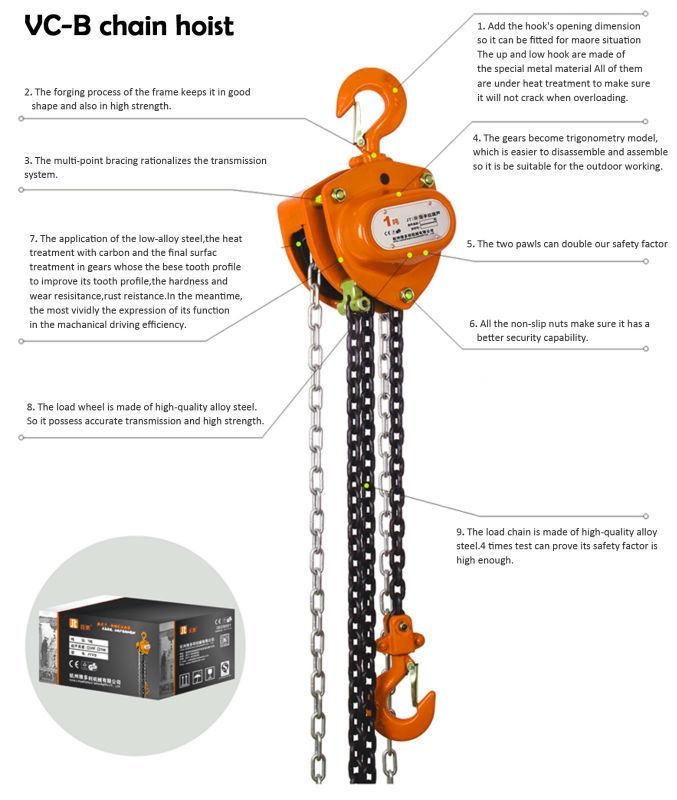

                                             HUGO 1 Ton VC-B Hand Manual Hoist



Parameters of VC-B hand chain hoist


Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B  5 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9
Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

CE certificate
