• Model NO.：VD
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Orange
• Capacity：0.5-50 Ton
• Max Lifting Height：12 Meter
• Warranty：1 Year
• Chain：80 Grade
• Usage：Lifting
• Hook：Forged
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Transport Package：Colour Paper Case or Plywood
• Specification：CE, ISO, SGS
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：1000000PCS,Year

Basic Info.

Model NO. VD Certification CE, ISO9001:2000 Condition New Color Orange Capacity 0.5-50 Ton Max Lifting Height 12 Meter Warranty 1 Year Chain 80 Grade Usage Lifting Hook Forged Payment Term T/T, L/C Loading Port Shanghai Transport Package Colour Paper Case or Plywood Specification CE, ISO, SGS Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 1000000PCS/Year

Product Description

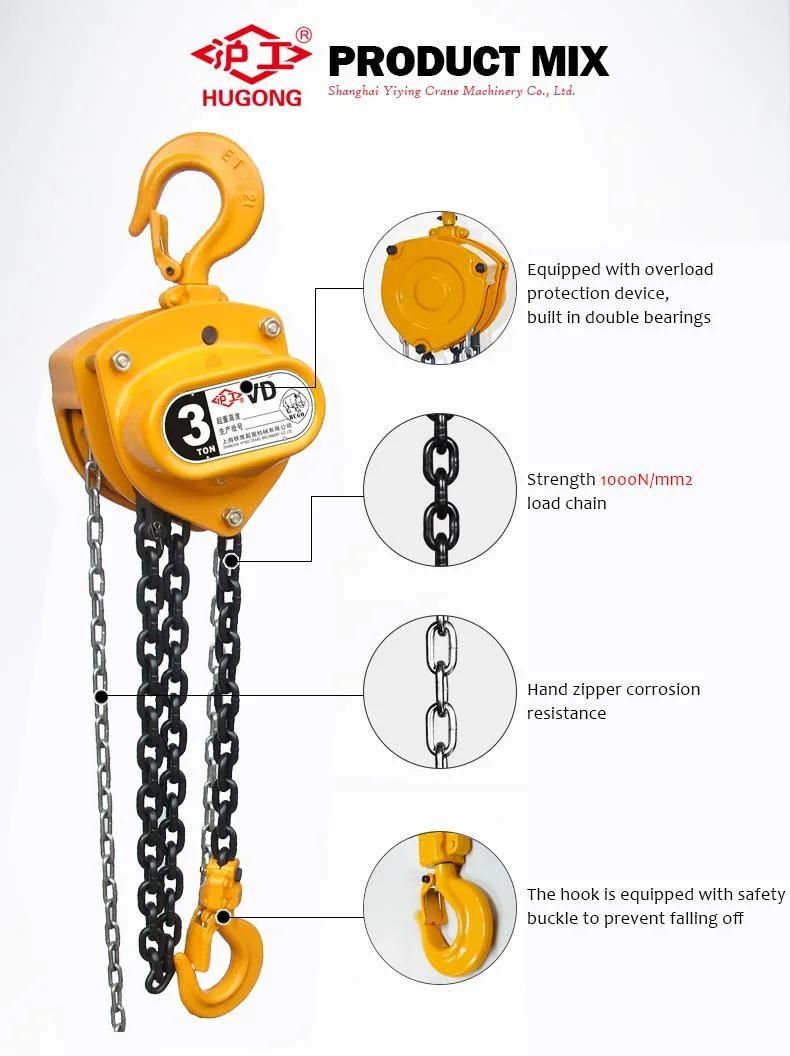

                VD Double Pawl Brake System Chain Block Hoist



Parameters of VD double pawl brake system manual chain block


Model	HSZ-CD1/2	HSZ-CD1	HSZ-CD1 1/2	HSZ-CD2	HSZ-CD3	HSZ-CD5	HSZ-CD10	HSZ-CD20	HSZ-CD30	HSZ-CD50
Capacity T	0.5	1	1.5	2	3	5	10	20	30	50
Standard liftng Height  M	2.5	2.5	2.5	2.5	3	3	3	3	3	3
Test load T	0.75	1.5	2.25	3	4.5	7.5	12.5	25	27.5	62.5
Min distance betweeb Hook  mm	270	270	368	444	486	616	700	890	980	1300
Full Load Pull  N	225	309	343	314	343	383	392	392	450*2	450*2
Chain Full	1	1	1	2	2	2	4	8	12	22
Dia of Chain  mm	6	6	8	6	8	10	10	10	10	10
Gw  kg	12	13	20	17	28	45	83	193
Packing size (L*W*H cm)	28 × 21 × 17	30 × 24 × 18	34 × 29 × 20	33 × 25 × 19	38 × 30 × 20	45 × 35 × 24	62 × 50 × 28	70 × 46 × 75
Extra weight per meter of extra lift  kg	1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4	28.3	50

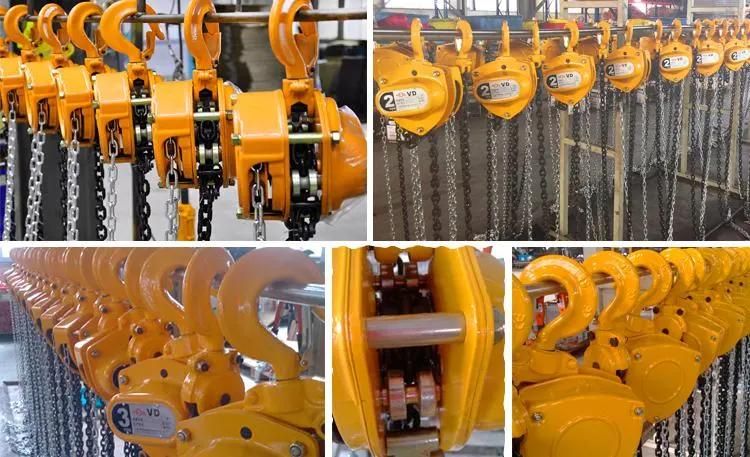

More pictures

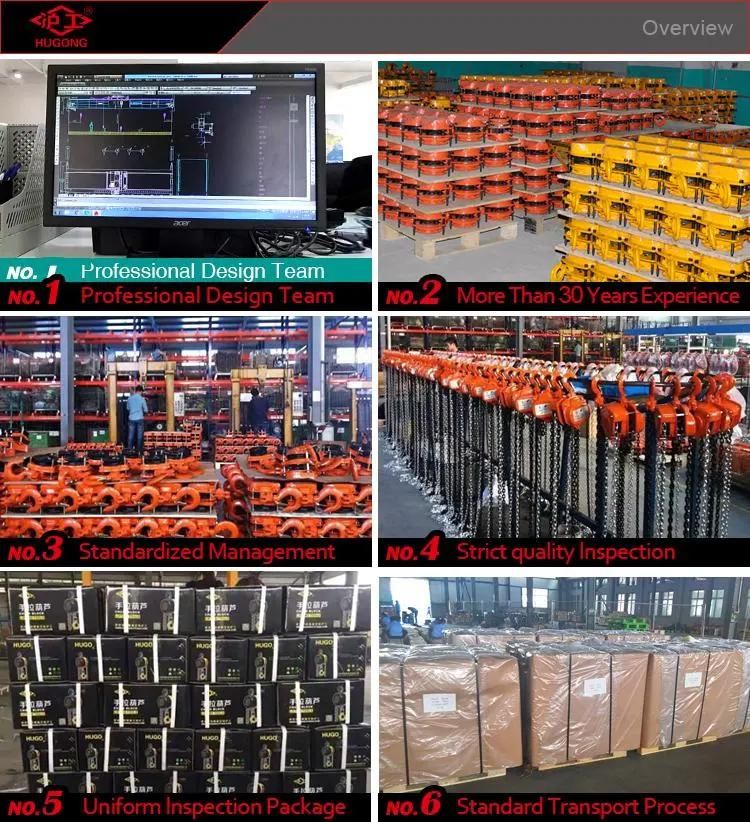

Production process

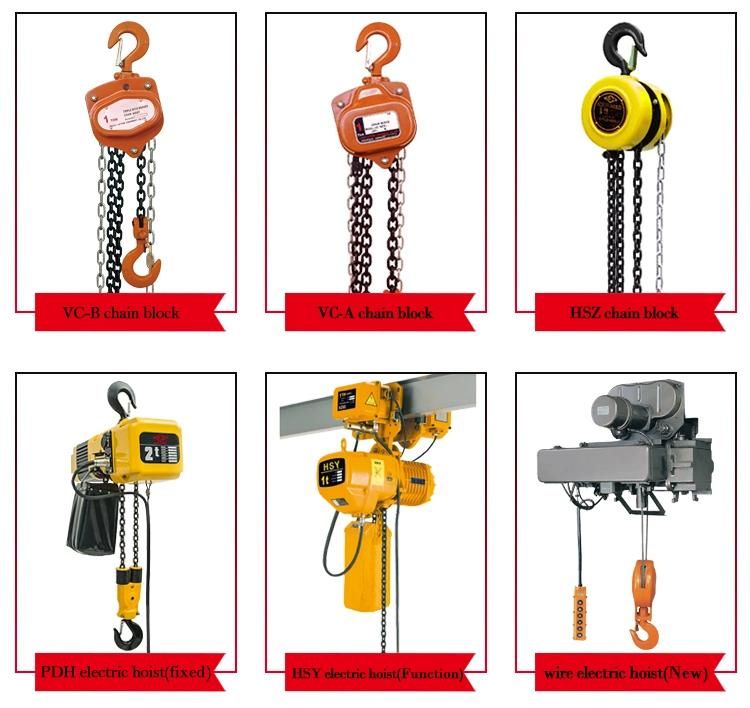

related products:


 Our service:
