Wholesale 1 Ton Chain Pulley Blocks Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：3m
- Chain Falls：1
Base Info
- Model NO.：VC-B
- Certification：CE, ISO9001:2000, GS
- Condition：New
- Color：Yellow
- Warranty：1 Year
- Chain：80 Grade
- Hook：Forged
- Max Lifting Height：12 M
- Max Lifting Weight：50 T
- Request Lifting Height and Weight：Available
- Payment Term：T,T
- Delivery Time：10 Days
- Loading Port：Shanghai
- Trail Order：Yes
- Transport Package：Plywood, Pallet
- Specification：ISO,CE,SGS
- Trademark：HUGO
- Origin：Shanghai, China
- HS Code：842519000
- Production Capacity：5000000PCS,Year
Description
Basic Info.
Model NO. VC-B Certification CE, ISO9001:2000, GS Condition New Color Yellow Warranty 1 Year Chain 80 Grade Hook Forged Max Lifting Height 12 M Max Lifting Weight 50 T Request Lifting Height and Weight Available Payment Term T/T Delivery Time 10 Days Loading Port Shanghai Trail Order Yes Transport Package Plywood, Pallet Specification ISO/CE/SGS Trademark HUGO Origin Shanghai, China HS Code 842519000 Production Capacity 5000000PCS/YearProduct Description

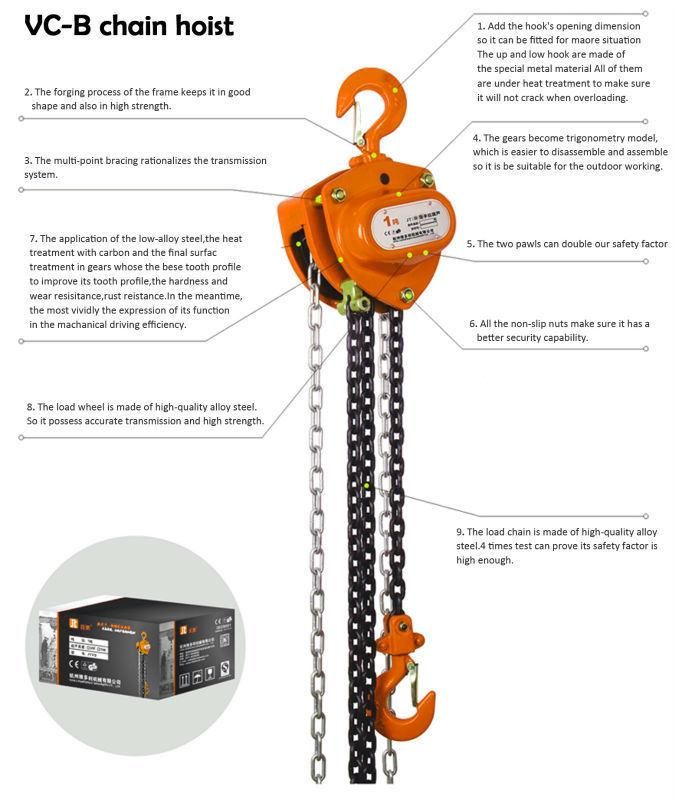

Wholesale 1 Ton Chain Pulley Blocks Hoist Hand Tools1. VC-B chain hoist Introduction:
VC-B chain hoist series is newly designed with the advanced technology in the world. Besides those traditional characteristics, it is more labor saving and beautiful and it has higher practica
bility.

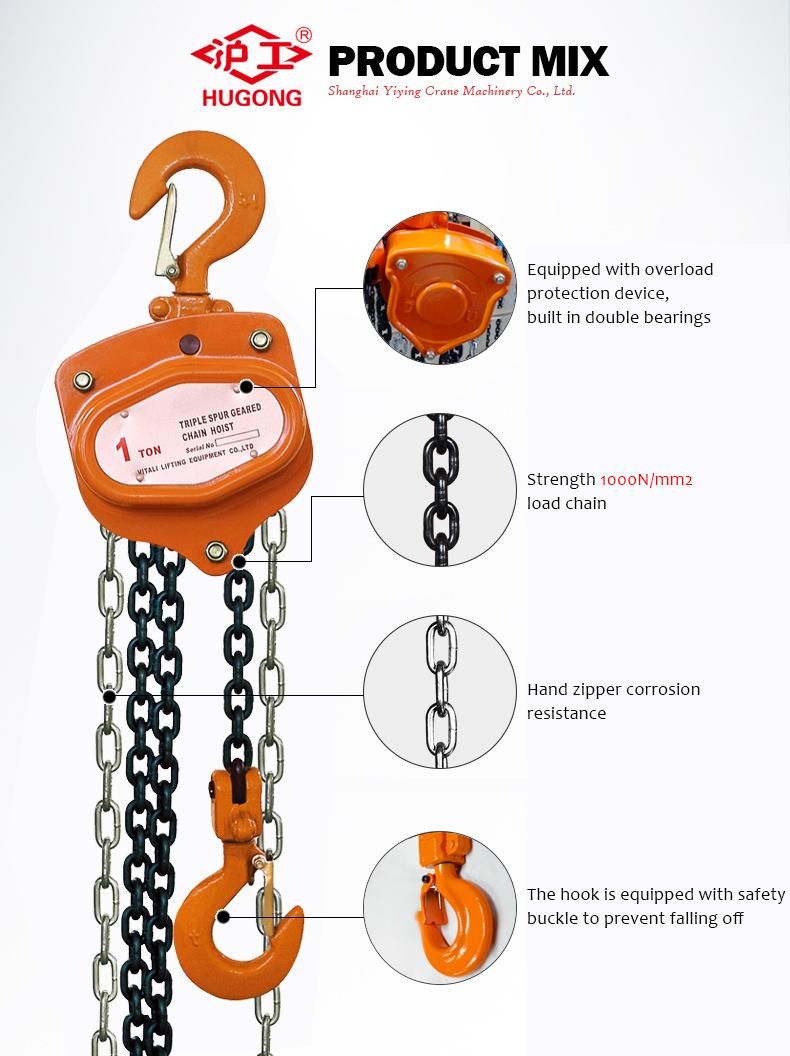

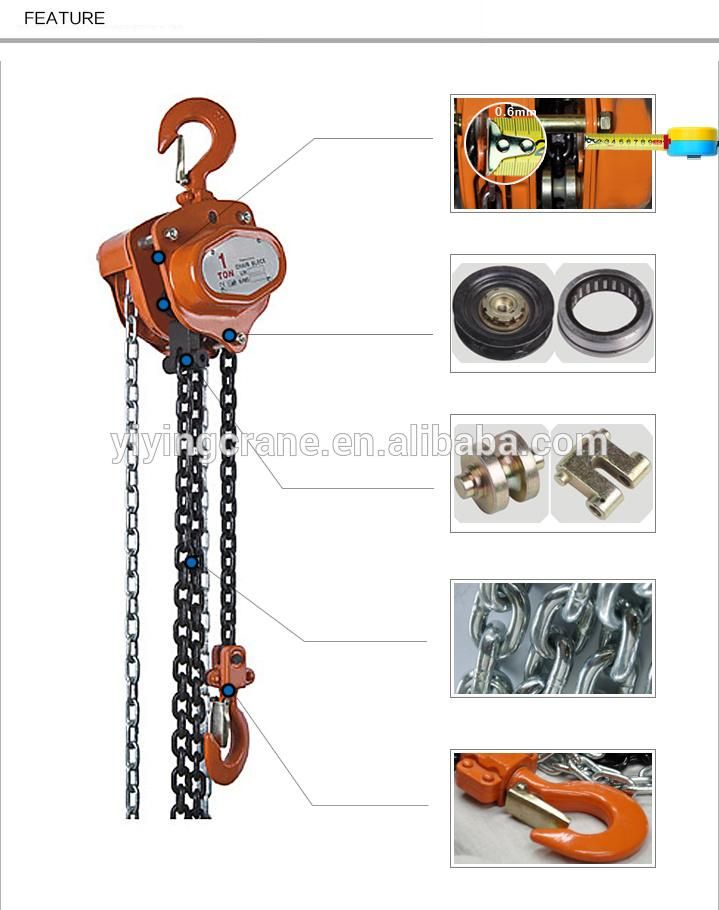

2. Features
Condition: New
Test: 100% test before assembling and loading
Certificate: CE, ISO
Hook: Forged, 2.0 manganese steel
Chain Grade: 80
Capacity T: 0.5-20
Lifting Height M: 2.5-
Parameters:
| Model | VC-B 0.5 | VC-B 1 | VC-B 1.5 | VC-B 2 | VC-B 3 | VC-B 5 | VC-B 10 | VC-B 20 | VC-B 30 | VC-B 50 |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Running test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75 |
| No.of falls of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 24 |
| Load chain diameter(mm) | 5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 9 | 9 |
| Dimension(mm) A | 129 | 149.5 | 157.5 | 161.5 | 151.5 | 163 | 207 | 215 | 350 | 406 |
| B | 136 | 145 | 164.5 | 187 | 164.5 | 211 | 398 | 650 | 680 | 962 |
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 |
| Net weight(kg) | 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092 |
| Packing(L*W*H)(cm) | 22*14*15 | 25*19*16 | 33*24*16 | 33*24*19 | 34.5*24*16 | 40*30*19 | 48*42*18.5 | 78*68*20 | 85*67*30 | 110*100*130 |
