• Model NO.：VA
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Orange
• Hook：2.0 Manganese Steel
• Chain：80 Grade
• Pulling Angle：360 Dgree
• Warranty：1 Year
• Loading Port：Shanghai Tianjin
• Standard Lift Weight：0.75t 1.5t 3t 6t 9t
• Standard Lift Height：1.5m 3m 6m 9m 12m
• Transport Package：Plywood Box or Carton
• Specification：net weight 24kgs for 6T
• Trademark：HUGO - China Well-Know Trademark
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：3000set,Month

Basic Info.

Model NO. VA Certification CE, ISO9001:2000 Condition New Color Orange Hook 2.0 Manganese Steel Chain 80 Grade Pulling Angle 360 Dgree Warranty 1 Year Loading Port Shanghai Tianjin Standard Lift Weight 0.75t 1.5t 3t 6t 9t Standard Lift Height 1.5m 3m 6m 9m 12m Transport Package Plywood Box or Carton Specification net weight 24kgs for 6T Trademark HUGO - China Well-Know Trademark Origin Shanghai, China HS Code 8425190000 Production Capacity 3000set/Month

Product Description

Chinese Supplier Manufacture Price Lever Hoists Lever Chain Block

Product Description

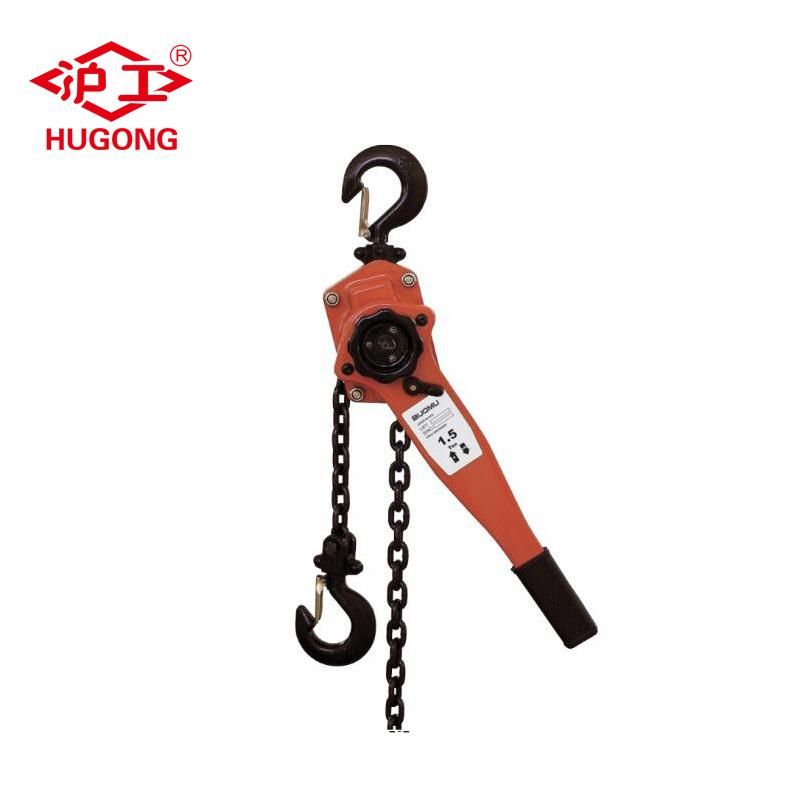

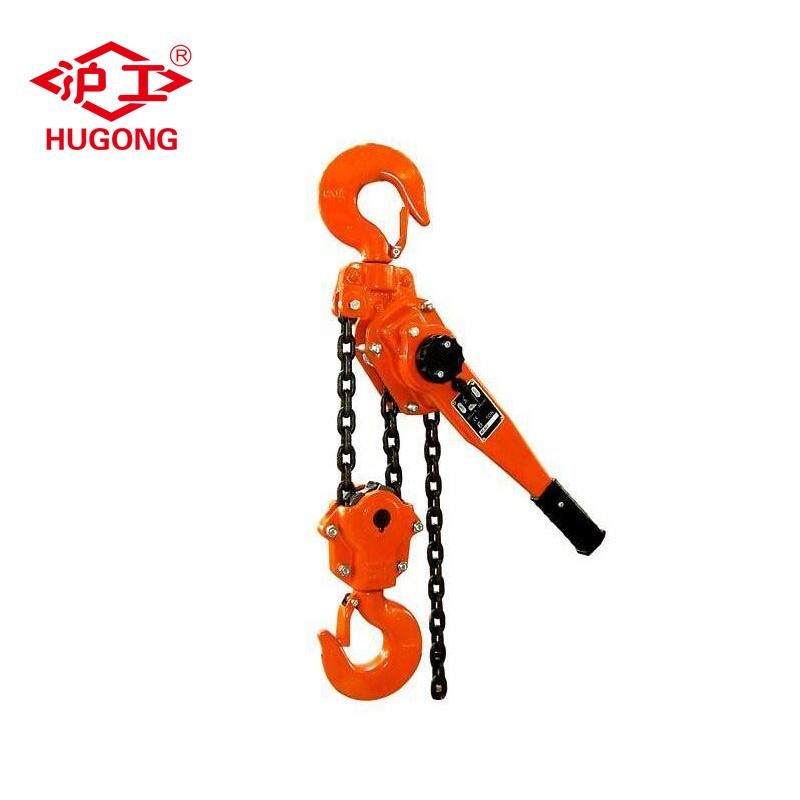

VA series lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance,
Applied in electricity, mines, ship buildings, construction sites, transports, postage and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc.

Lever hoist is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles.

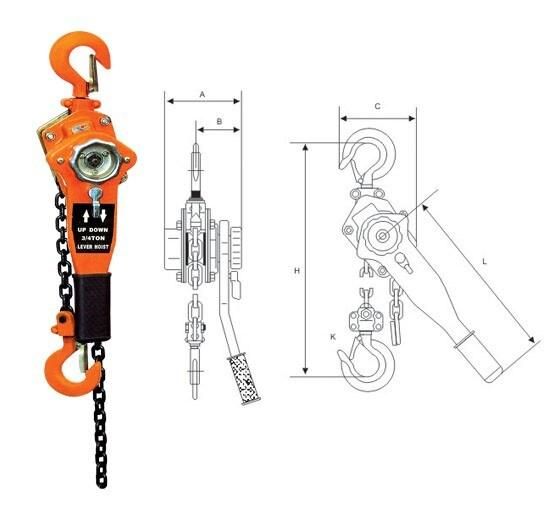

Model	VA0.25	VA0.5	VA0.75	VA1	VA1.5	VA2	VA3	VA6
Capacity    t	0.25	0.5	0.75	1	1.5	2	3	6
Standard Lift    m	1	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Running test load    t	0.375	0.75	1.13	1.5	2.25	3	4.5	9
Min distance between hooks			325	335	380	380	480	620
Effort required to lift max load  N			140	140	220	220	320	3404
Diameter of load chain   mm	4	5	6	6	8	8	10	10
Net weight  kg			7	7.5	11	12	21	31
Extra weight per meter of extra lift cm			0.92	0.92	1.6	1.6	2.4	4.8
