100 400 600 1000 2000 Kg Round Steel Used Lifting Magnet 3.5 Times Permanent Magnetic Lifter

Shanghai Yiying Crane Machinery Co., Ltd.
  • Material：Steel
  • Lifting Capacity：100kg-10t Magnet Lifting

Base Info

  • Model NO.：Magnetic Lifter -1
  • Fixed Form：Bolt Type
  • Lifting Eye Type：Folded Eye
  • Rope Core Type：Hemp Core
  • Power Source：Magnet Lifting
  • Shape：Yellow
  • Certification：CE
  • Sling Color：Yellow
  • Produt：Lifting Magnet Permanent Magnetic Lifter
  • Capacity：100kg-10t
  • Gw of Magnetic Lifter：39kg
  • Magnet Activation：Locking on,off Handle
  • Material of Magnetic Lifter：Steel
  • Usage：Lifting
  • Operation Temperature (°c)：Lower Than 80
  • Key Words：Magnetic Lifter
  • Color：as Your Order
  • Safety Time：3.5 Times
  • Transport Package：Wood Box
  • Specification：lifting magnet
  • Trademark：HOGO
  • Origin：China
  • HS Code：8505901000
  • Production Capacity：1000piece,Month
  • Package size per unit product：23.00cm * 25.00cm * 50.00cm
  • Gross weight per unit product：36.000kg

Description

ModelRated capacity(Ton)Max tension(kg)Size(mm)Net weight(kg)LBHRYS-1001003009063681453YS-40040012001609518016011YS-600600180022011512523020YS-10001000300026014514528040YS-15001500375031014514528048YS-20002000500034016016541060YS-30003000750042018518551090YS-4000400010500480200200510120YS-5000500015000580300300650400

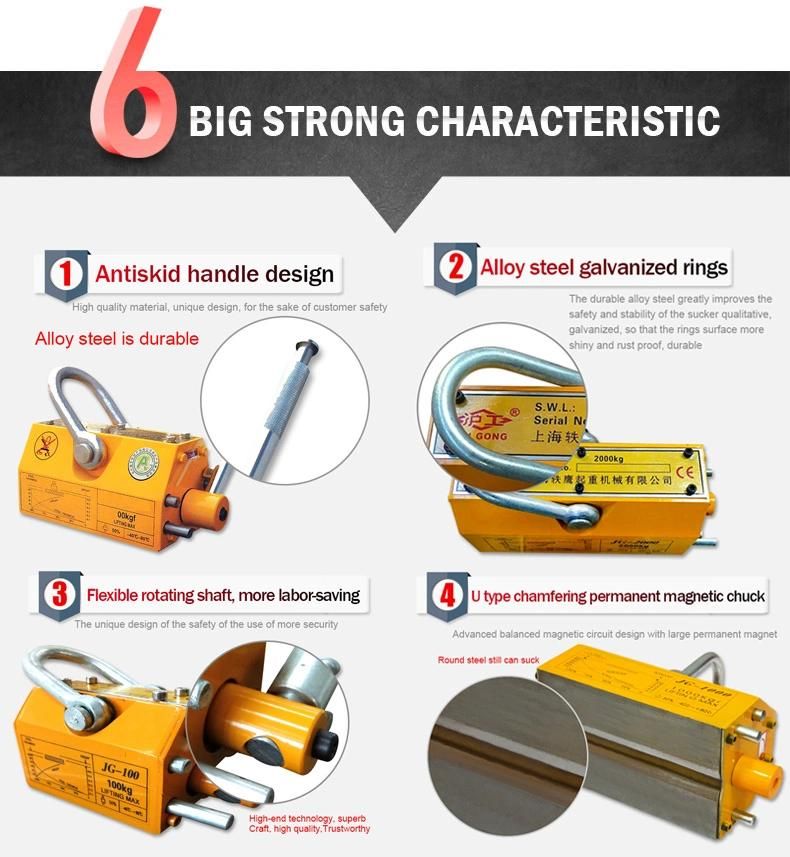

Advantage of Round Steel Use Lifting Magnet Permanent Magnetic Lifter

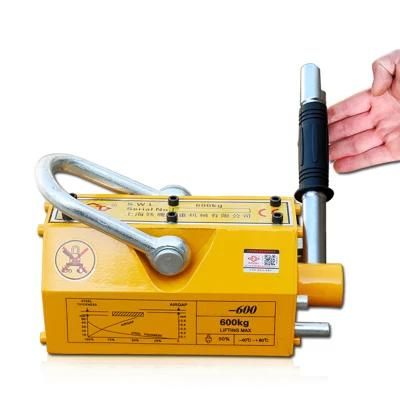

100 400 600 1000 2000 Kg Round Steel Used Lifting Magnet 3.5 Times Permanent Magnetic Lifter




1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

3. Using high-performance permanent magnet, ensure the power and high safety.

4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.

5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.

6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.

7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.



Usage and application of Round Steel Use Lifting Magnet Permanent Magnetic Lifter

:
The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.

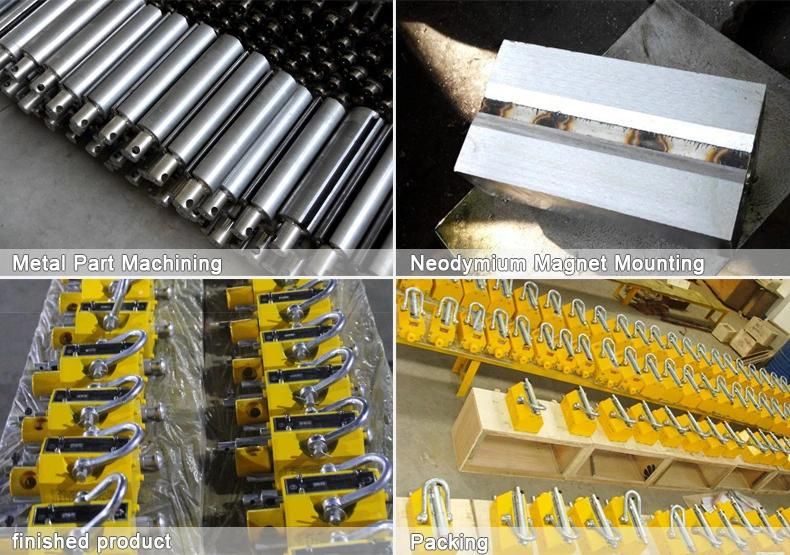

magnetic lifting parts

100 400 600 1000 2000 Kg Round Steel Used Lifting Magnet 3.5 Times Permanent Magnetic Lifter

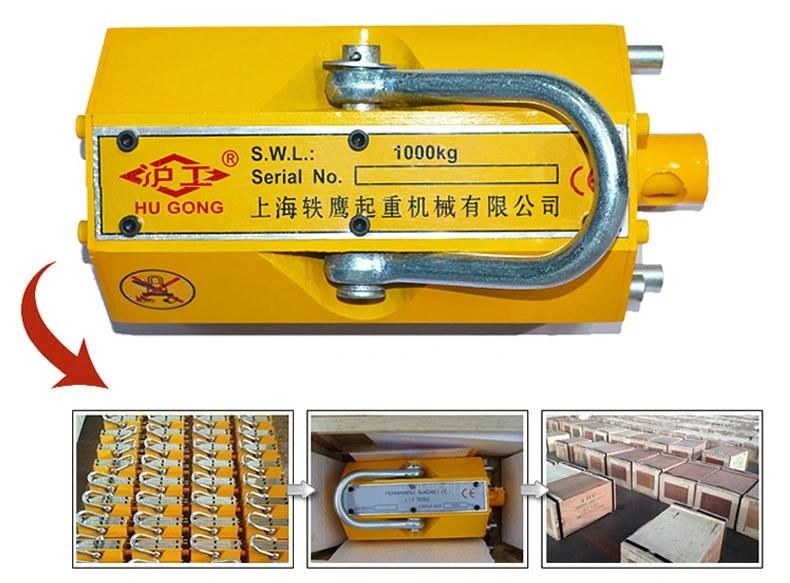

Package of Round Steel Use Lifting Magnet Permanent Magnetic Lifter

100 400 600 1000 2000 Kg Round Steel Used Lifting Magnet 3.5 Times Permanent Magnetic Lifter

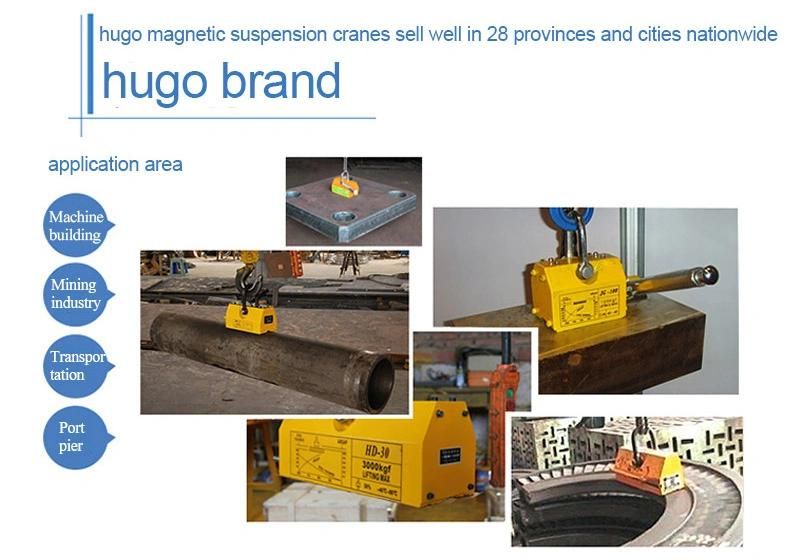

magnetic lifting application case



100 400 600 1000 2000 Kg Round Steel Used Lifting Magnet 3.5 Times Permanent Magnetic Lifter




100 400 600 1000 2000 Kg Round Steel Used Lifting Magnet 3.5 Times Permanent Magnetic Lifter
