• Model NO.：HS-VT
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Red
• Hook：Forged
• Usage：Lifting
• Material：High Quality Steel
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Chain：G80 Chain
• Capacity：0.5t-50t
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：Hugong, Yiying
• Origin：Shanghai
• HS Code：84279000
• Production Capacity：2000 Set ,Month

Basic Info.

Model NO. HS-VT Certification CE, ISO9001:2000 Condition New Color Red Hook Forged Usage Lifting Material High Quality Steel Payment Term T/T, L/C Loading Port Shanghai Chain G80 Chain Capacity 0.5t-50t Transport Package Plywood Specification CE, ISO Trademark Hugong/ Yiying Origin Shanghai HS Code 84279000 Production Capacity 2000 Set /Month

Product Description

Introduction for Chain Hoists (VC-B) 2.0 Manganese Steel Hook
KII series chain block is one kind of use simple, carries the convenience the manual hoisting machinery. It is in the structural design and the operational performance.

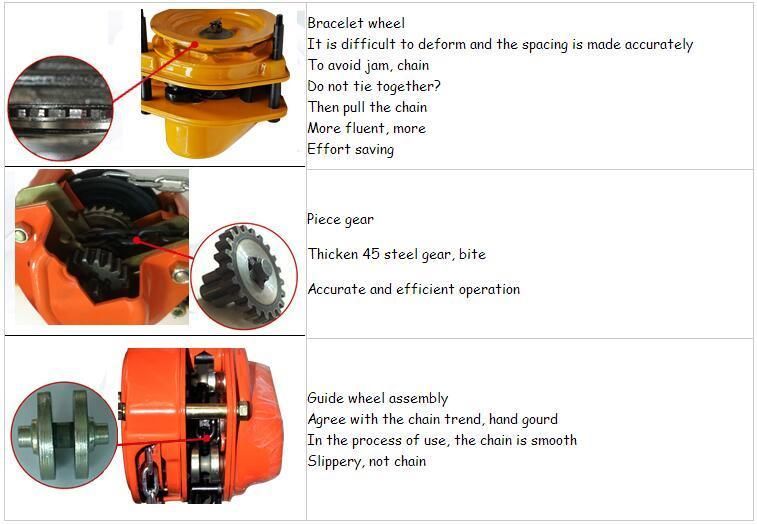

Characteristics for Chain Hoists (VC-B) 2.0 Manganese Steel Hook

1). Uses safely reliable, maintains easily.
2). Mechanical efficiency is high, the bracelet pulling force is small
3). It is self-possessed lightly, and advantageous carries.
4). Durable
5). Small size

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B  5 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9

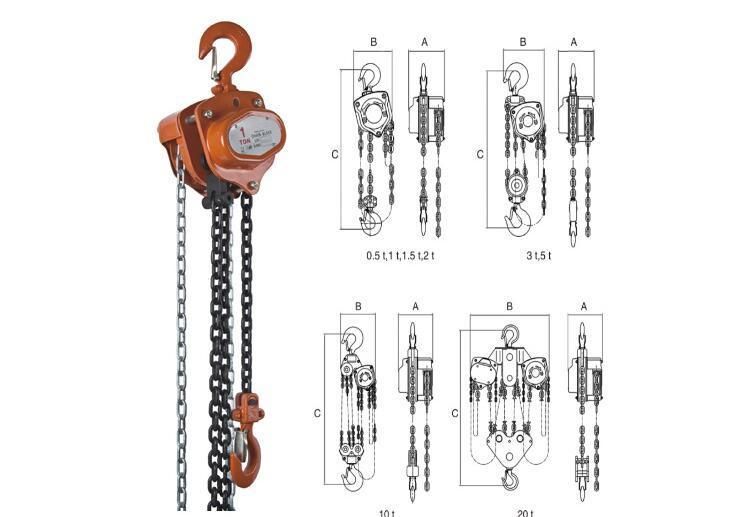

Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

Package for the VC-B manual chain block
