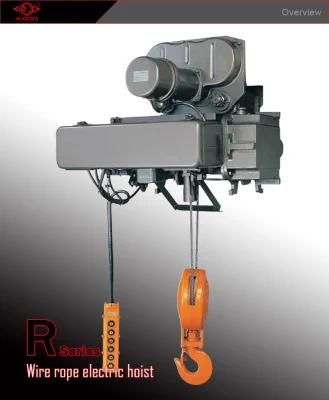

Lowheadroom 5t European Electric Hoist with 9 Meter Lifting Height

Henan Kuangshan Crane Co., Ltd.
  • Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
  • Type：Electric Hoist
  • Sling Type：Wire Rope
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：>20m
  • Chain Falls：1

Base Info

  • Model NO.：KD
  • Certification：CE, ISO9001:2000, BV, GOST,Eac
  • Condition：New
  • Color：Yellow
  • Capacity：5ton
  • Lifting Height：9meter
  • Motor for Lifting：Abm Brand Dual Speed Motor
  • Motor for Traveling：Sew Brand Inverter Motor
  • Lifting Speed：5m,Min and 0.8m,Min
  • Traveling Speed：2~20m,Min
  • Packaging Size：1420mm*1230mm*760mm
  • Leading Time：7 Days
  • Protection Grade：IP55
  • Insulation Class：F
  • Transport Package：Fumigation Wooden Case with Rain Proof Woven
  • Specification：450Kg
  • Trademark：Kuangyuan
  • Origin：China
  • HS Code：84261990
  • Production Capacity：5000sets Per Year

Description

More speed, productivity, and precisionThe 5T electric wire rope hoist is developed by listening customer's needs in material handling. The hoist can be adapted to almost any application to ensure efficient and reliable operation, regardless of the operating conditions. All our hoist are united by speed and usability, enabling improved productivity.Lowheadroom 5t European Electric Hoist with 9 Meter Lifting HeightSafety firstThe operator has to be able to rely on safe performance of the crane. High quality components and precise manufacturing based on years of experience enable enhanced durability of the hoist.
Advanced features improve hoist safety and operation in varying conditions.
For example, the sway control of the load and the protected area properties work reliably and tirelessly, increasing both safety and productivity. Konecranes' product development has invested in speeding up and extending hoist operation cycles, and in crane safety and durability.Lowheadroom 5t European Electric Hoist with 9 Meter Lifting HeightHigh technology in a compact sizeThe compact dimensions allow for a more efficient use of space, which makes the hoist suitable and flexible or use in more confined applications.
We manufacture the critical components ourselves, and we use

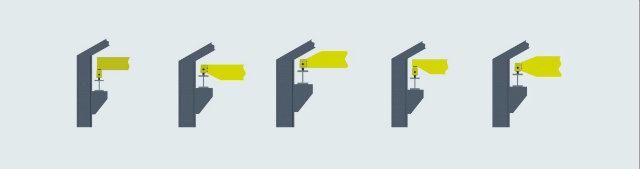

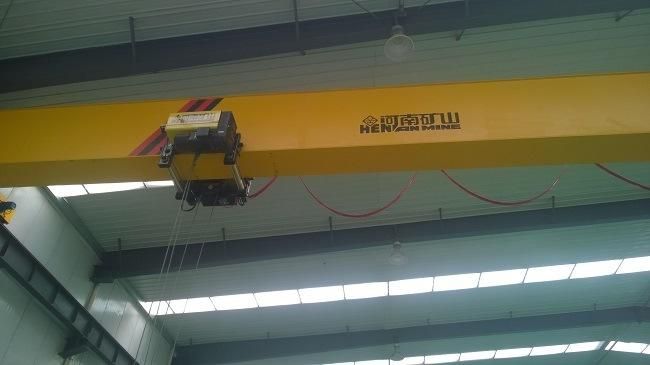

carefully selected suppliers.Lowheadroom 5t European Electric Hoist with 9 Meter Lifting HeightAppearance and structure form for different applicationLowheadroom 5t European Electric Hoist with 9 Meter Lifting HeightApplication for different type of Single girder overhead craneLowheadroom 5t European Electric Hoist with 9 Meter Lifting HeightThe 5Ton electric hoist can be installed under all kinds of single girder overhead crane,all size of the main beam, for example: H beam, I steel, width ranges from 60mm~500mm.Lowheadroom 5t European Electric Hoist with 9 Meter Lifting HeightTechnical details of 5T hoistDescriptionRemarksCapacity:5TRange from 3T to 20TLifting height: 9meterRange from 6m to 200mWorking duty: M5Range from M5~M7Lifting speed: 0.8m/min and 5m/minDual speedCross traveling speed: 2~20m/minVVVFMain beam size: 60mm~500mmTailoredWeight: 450Kg Packaging size:1420mm*1230mm*760mm PackagingFumigation wooden case with rain proof wovenAftersell service12 month after final commissioning Payment terms of 5T hoist 30%T/T and 70% T/T before delivery,100%irrevocable L/C at sightInstallation/ test/ commissioning Online supporting 7*24h available for free; engineer to site available with cost charge.Any questions, feel free to contact us!
