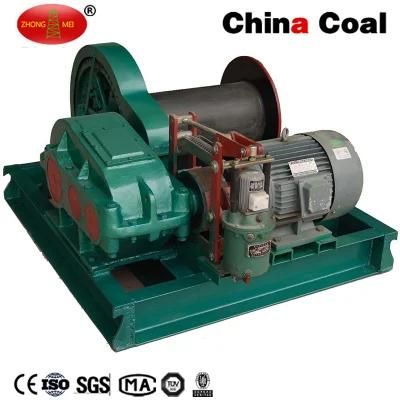

• Model NO.：Explosion-Proof Mining Wire Rope Electric Winch
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE
• Standard：National Standards
• 0.5t to 10t Electric Hoisting Winches in：Jm
• Capacity (Kn)：20
• Rated Speed (M/Min)：24
• Standard Rope Length (M)：150
• Rope Diameter (mm)：13
• Motor Power (Kw)：7.5
• Model：Jm2
• Place of Origin：China
• Brand：China Coal
• Keywords：Mine Winch
• Transport Package：Wooden Case or Carton Case
• Trademark：China Coal
• Origin：Shandong, China
• HS Code：8425391000
• Production Capacity：1000 Sets Per Month

ModelJM2JM3JM5JM8JM10Line pull capacity (kg)200030005000800010000average speed (m/min)121010109Wire rope(mm):12.515.521.52630Reduction boxTypeJZQ350JZQ350JZQ400JZQ500JZQ650Transmission ratio23.3431.523.3431.540.17Drum (mm)Diameter(mm)273325406500550Length4805206459001000Capacity(m)150180250300450motorTypeYZ160M2-6YZ160M2-6YZ160L-6YZR225M-8YZR250M1-8Power(kW)7.57.5112230Rotate speed(r/min)948948953720720Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-300Equipment Dimension (mm)1060x
500x7501600x
1100x8201400x
1910x9502050x1640
x10002470x2280

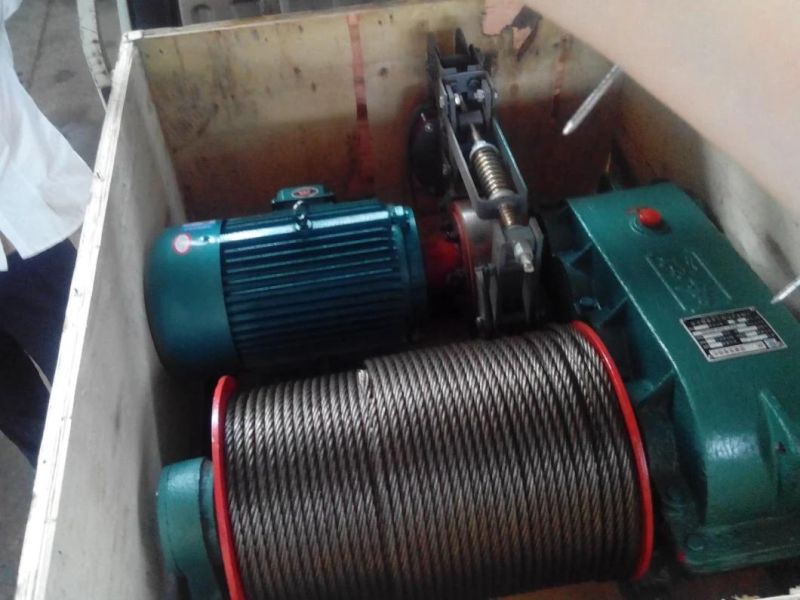

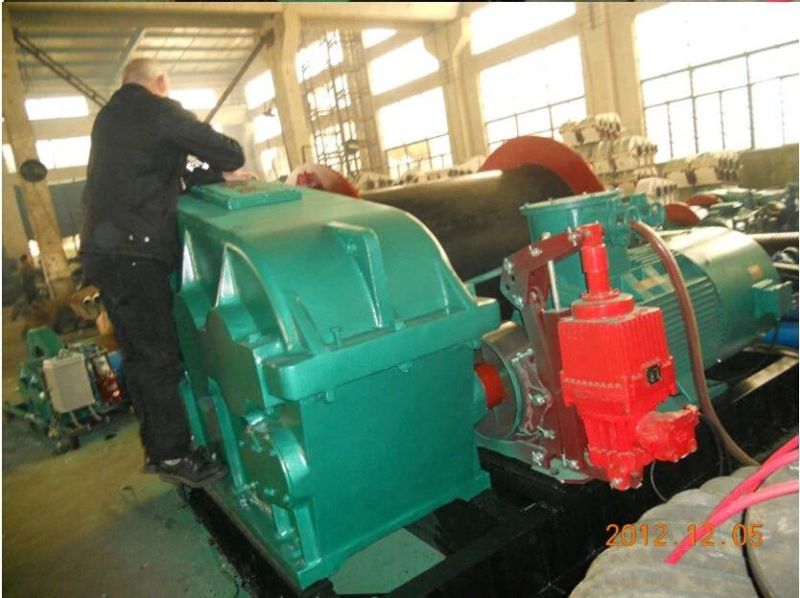

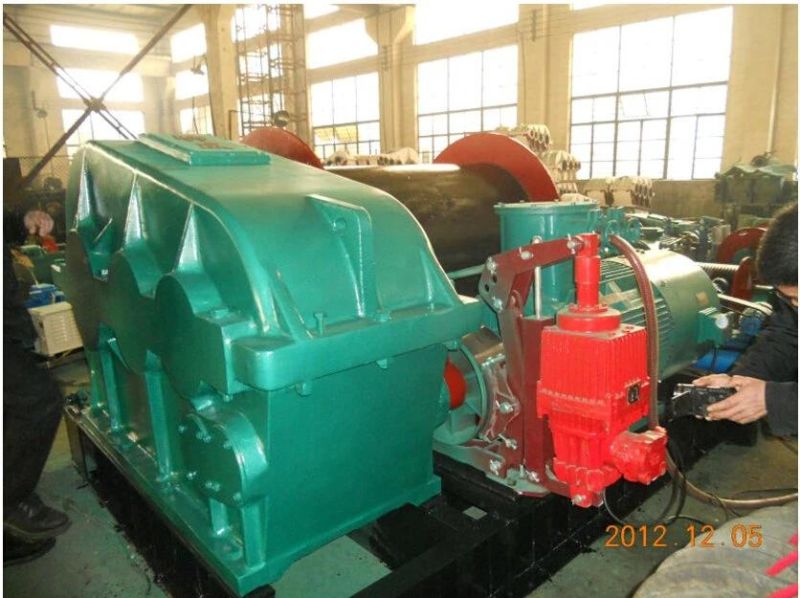

x1180Weight(kg)630680140030004000Photos Of Best quality 10 ton JM Series Lifting Mining Electric Winch
