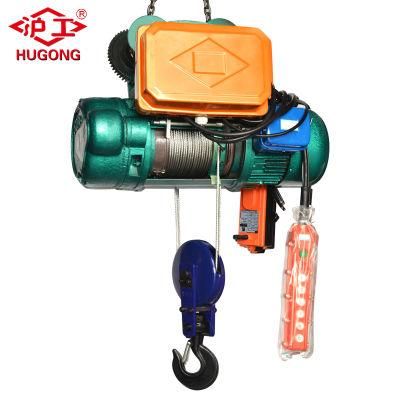

2t Remote Control Wire Rope Electric Hoist
Henan Kuangshan Crane Co., Ltd.- Warranty：12 Months
- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Wire Rope
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
Base Info
- Model NO.：CD, MD
- Chain Falls：Rope
- Certification：CE, ISO9001:2000, BV GOST SGS
- Condition：New
- Color：by Requirements
- Weight Overload Protection Device：Include
- Voltage Lower Protection Function：Include
- GB/T 24001-2004 Idt ISO14001: 2004：Pass
- Sandblast：Could Supply
- GB/T 19001-2000 Idt ISO 9001: 2000：Pass
- Painting Color：According to Your Demand
- Current Overload Protection System：Include
- GB/T 28001-2001, Ohsas18001: 1999：Pass
- Industrial Voltage：According to Your Demand
- Electric Hoist Double Limit：Include
- Transport Package：Packed by Plywood Crate All by Export Standard
- Specification：China National standard
- Trademark：KUANGYUAN
- Origin：Xinxiang, Henan Province
- HS Code：84251100
- Production Capacity：28, 000 Sets,Year
Description
Product Description

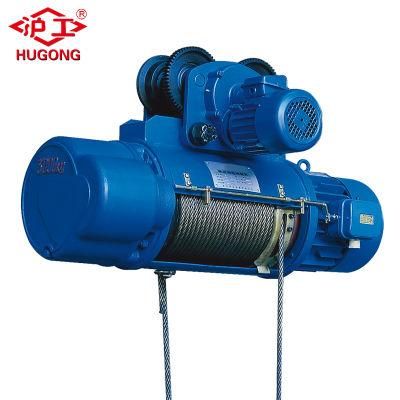

CD1 MD1 wire rope Electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and jib cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, is essential in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only one normal speed and low speed, which can satisfy normal application, model MD1 electric hoist provides two speeds: Normal speed and low speed. Thus model MD1 electric hoist is more widely used than model CD1.

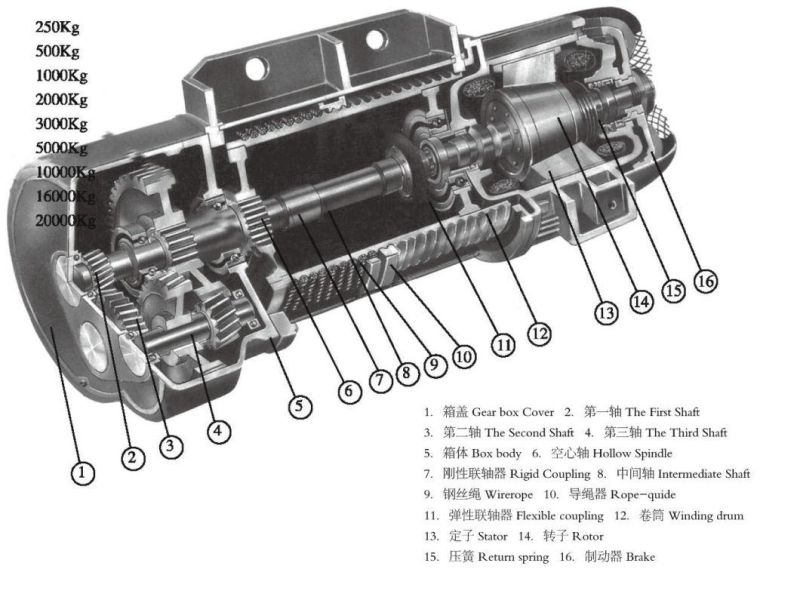

Electric wire rope Hoist is assembled from different independent units. All these units are separately accessible and promptly disassembled cost and downtime.
Motor: Hoist Motor is an taper type rotor motor with braking, it is made by Nanjing special motor factory, it is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Wire Rope: Hoisting rope comply with the exporting standards. The leading rope taken by the Drum, does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
Rope Drum: Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
Electric apparatus controlling system: Model CD1 and MD1 is composed of the contactor box, controlling switch, cut-off limiter.
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
Hook: The Hook Block is tested to 150 % of full load before assembly. The rope sheaves are fully guarded with protective steel casting. All sheaves rotate on ball bearing. The pulley is thicken and dilated than domestic common pulley.

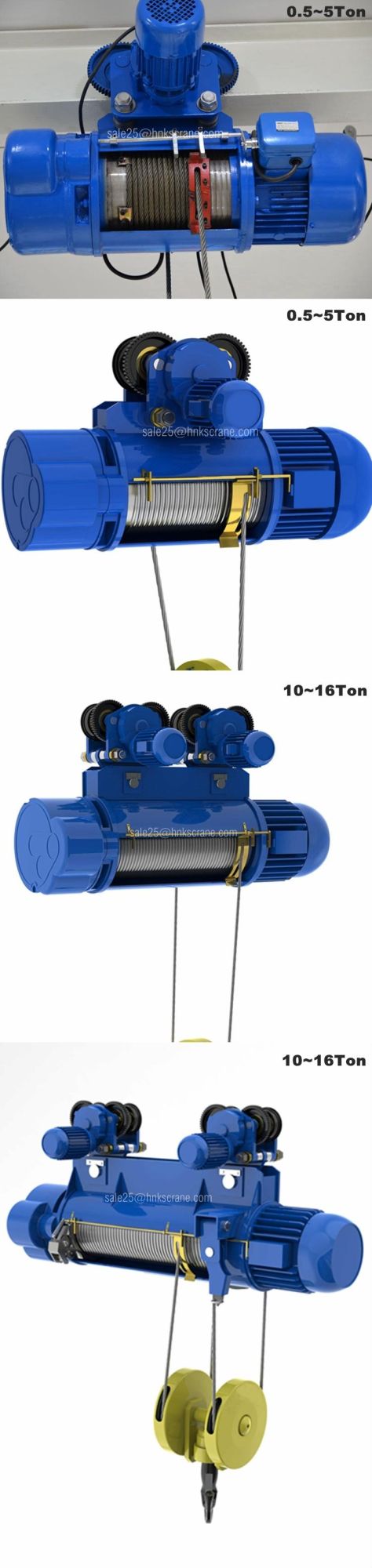

Detailed Photos
Product Parameters
Rope
speed
speed

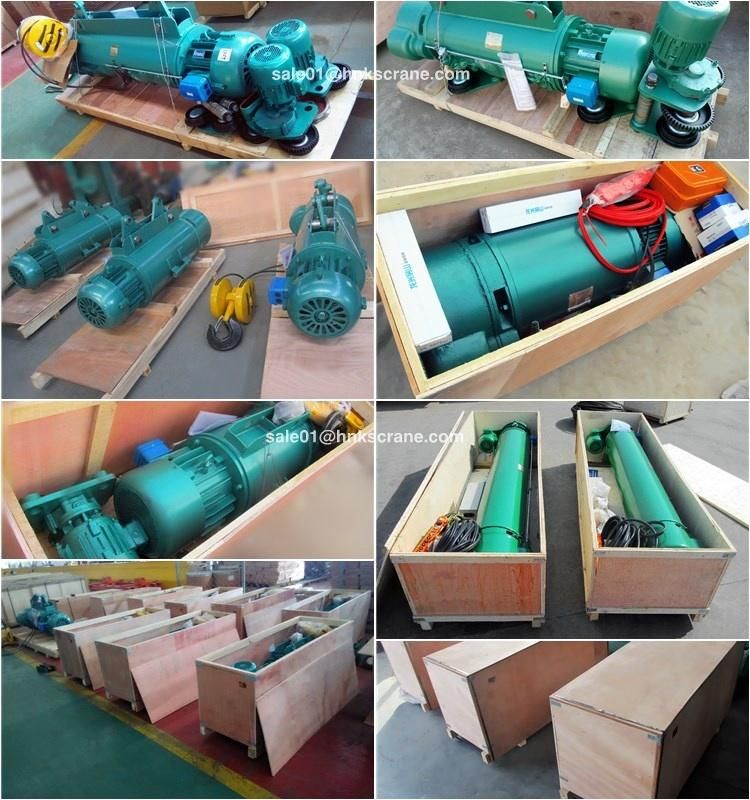

Packaging & Shipping
Company Profile
Our Advantages

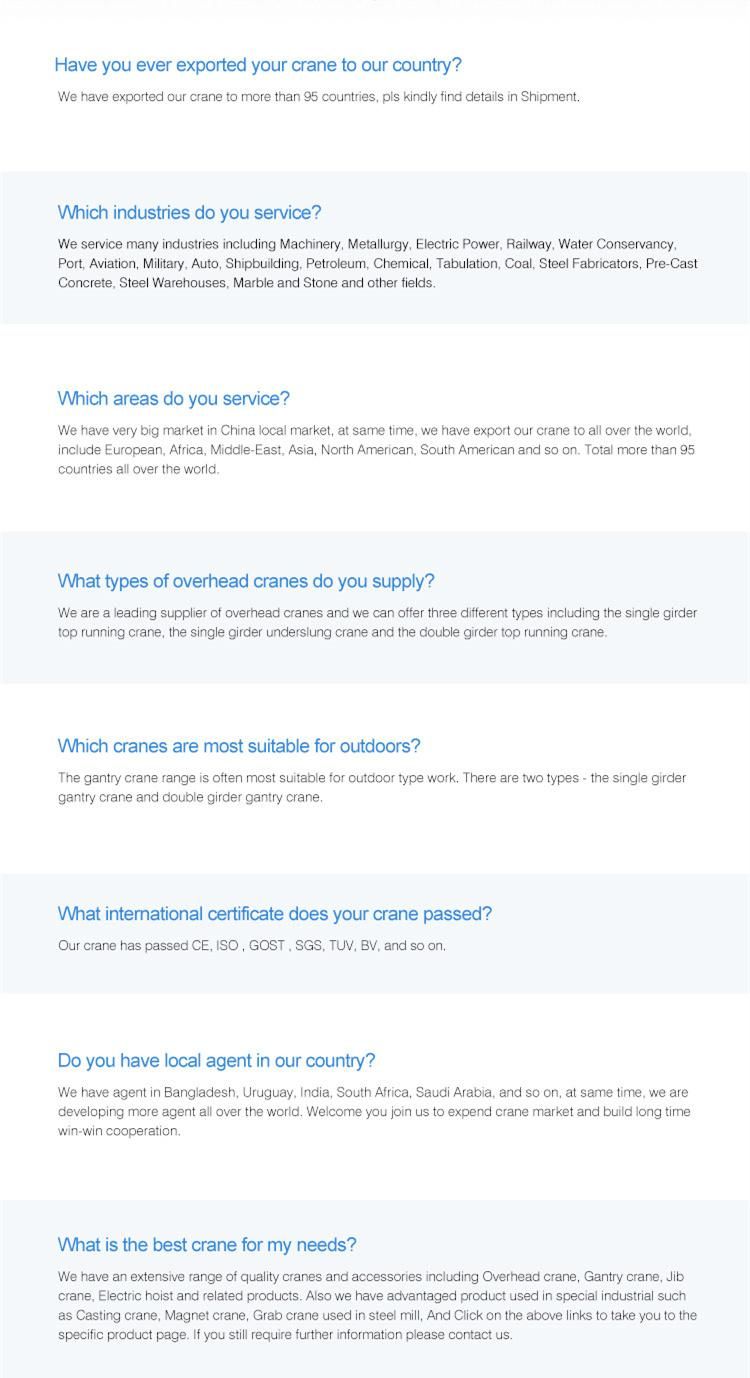

FAQ
