• Model NO.：HD500
• Carrying Capacity：Special Weight Level
• Tonnage：0.5T
• Reel Number：1
• Running Mode：Stationary
• Feature：Insulating
• Certification：CE, ISO 9001
• Standard：National Standards
• Hoist Name：Hot Sale Electric Winch (HD500)
• Warranty：1 Year
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Color：Optional
• Customerized：Yes
• Transport Package：Ton or Colored Paper Box
• Specification：E, ISO
• Trademark：Hugong, Yiying
• Origin：Hanghai, China
• HS Code：8425110000
• Production Capacity：500000PCS,Year
• Package size per unit product：50.00cm * 49.00cm * 72.00cm
• Gross weight per unit product：97.000kg

  Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.4.Protection grade: IP54, work grade: M35.Over load limit is available. Hook is widen and thicken 6.Power-Off protection, Emergency stop system.

Model

CD1-0.25

CD1-0.5

CD1-1

CD1-2

CD1-3

CD1-5

CD1-10

Capacity(t)

0.25

0.5

1

2

3

5

10

Standard lift(m)

3-9

6-12

6-30

6-30

6-30

6-30

9-30

Lifting speed(m/min)



88/0.8

88/0.8

88/0.8

88/0.8

88/0.8

77/0.7

Running speed(m/min)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

Wire rope type



6x37-4.8-180

6x37-7.4-180

6x37-11-155

6x37-13-170

6x37-15-200

6x37-17.5-200

I Beam track type

16-22b

16-28b

16-28b

20a-32c

20a-32c

25a-63c

28a-63c

Motor

Power(KW)

04

0.8

1.5

3.0

4.5

7.5

13

R.P.M(r/min)

1400

1380

1380

1380

1380

1380

1380

Voltage(V)

380

380

380

380

380

380

380

Frequency(Hz)

50

50

50

50

50

50

50

Phase

3

3

3

3

3

3

3

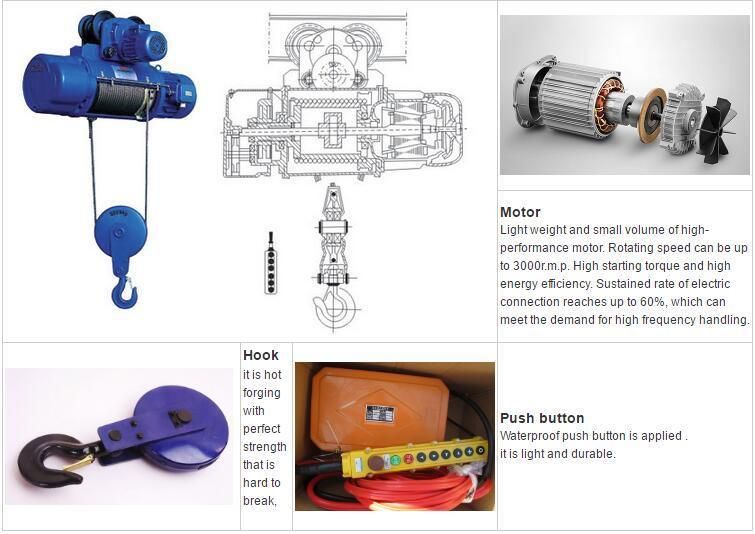

CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

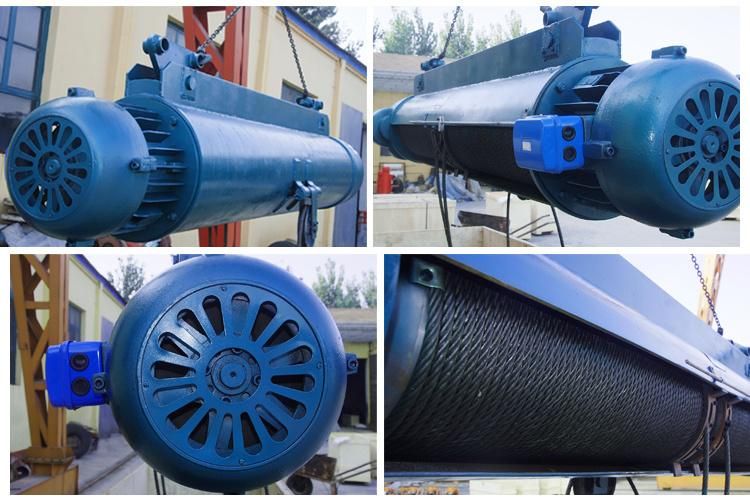

CD1 Model wire rope electric hoist Material object

CD1 Model wire rope electric hoist lifting block production process
