• Model NO.：HBSQ
• Lift Speed：2~8m,min
• Maximum Lifting Height：10m
• Certification：CE, ISO9001:2000, GS
• Condition：New
• Color：Optional
• Material：High Quality H62 Copper
• Usage：Construction Hoists
• Characteristic：Explosion Proof
• Hand Chain Material：Pure Copper
• Capacity：0.5-20 Ton
• Lifting Height：2.5-5 Meter
• Lifting Chain：Copper
• Payment Term：T,T, L,C
• Warranty：1 Year
• Loading Port：Shanghai
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：Hugong, Yiying
• Origin：Shanghai
• HS Code：8425190000
• Production Capacity：3000 Set ,Month

Basic Info.

Model NO. HBSQ Lift Speed 2~8m/min Maximum Lifting Height 10m Certification CE, ISO9001:2000, GS Condition New Color Optional Material High Quality H62 Copper Usage Construction Hoists Characteristic Explosion Proof Hand Chain Material Pure Copper Capacity 0.5-20 Ton Lifting Height 2.5-5 Meter Lifting Chain Copper Payment Term T/T, L/C Warranty 1 Year Loading Port Shanghai Transport Package Plywood Specification CE, ISO Trademark Hugong/ Yiying Origin Shanghai HS Code 8425190000 Production Capacity 3000 Set /Month

Product Description

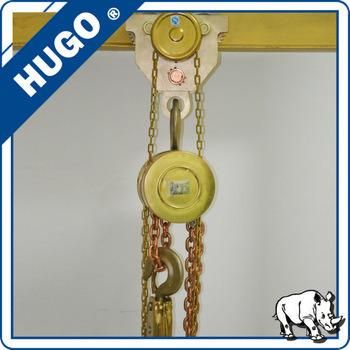

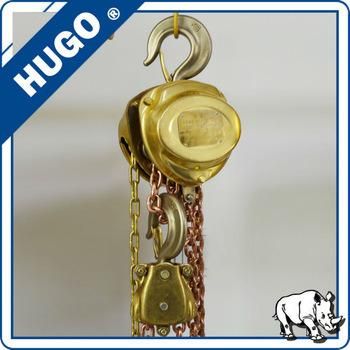

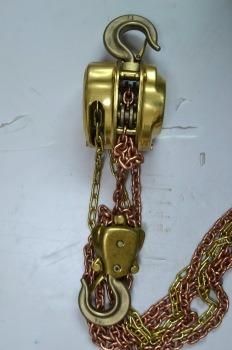

Explosion-Proof Hand Chain Hoist (HBSQ) with Copper Lifting Chains
1. Introduction
Material: Aluminum bronze & beryllium bronze as roughcast
Surface of chain block adopts to H62 copper alloy materia
Apply to the flammable occasion, Oil, petrifaction, oil station, oil depot, gas production, chemical industry, war industry, electric power and mines, etc.
Reasonable price, high quality and service
More than 20 yesrs experience in hoists producing
100% test before assembling and loading
CE, ISO certificate
Forged alloy steel hooks
Fast delivery





2. Features
Hand Tools Chain Hoist Explosion-proof Chain Hoist
MAT: Copper alloy
Certificate: ISO, CE
Application: Anti spark, Explosion-proof Area
Transmission gear is durable after high-temperature heat treatment
Technology: Casting polishing
High Quality and Competitive Price With Various Size, Color & Styles
Prompt Delivery and Excellent Service


model	HBSQ0.5	HBSQ1	HBSQ1.5	HBSQ2	HBSQ2.5	HBSQ3	HBSQ5	HBSQ10	HBSQ20
capacity ton	0.5	1	1.5	2	2.5	3	5	10	20
lifting height Meter	2.5/3	2.5/3	2.5/3	2.5/3	2.5/3	3/5	3/5	3/5	3/5
headroom (hook to hook distance) MM	280	300	360	380	430	470	600	730	1000
chain pull to lift full load KN	16	32	37	33	41	38	42	45	45
net weight KG	9.5/10.5	10/11	15/16	14/15.5	28/30	24/31.5	36/47	68/88	155/192
