• Model NO.：HSZ-CD
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Orange
• Hook：Forged
• Chains：G80
• Bearing：Double Bearing
• Material：High Quality Steel
• Capacity：1-15ton
• Usage：Lifting
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Chain Hoist Pulley：4:1
• Technology：Japan Technology
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：HUGO
• Origin：Shanghai
• HS Code：84251900
• Production Capacity：2000 Set ,Month

Basic Info.

Model NO. HSZ-CD Certification CE, ISO9001:2000 Condition New Color Orange Hook Forged Chains G80 Bearing Double Bearing Material High Quality Steel Capacity 1-15ton Usage Lifting Payment Term T/T, L/C Loading Port Shanghai Chain Hoist Pulley 4:1 Technology Japan Technology Transport Package Plywood Specification CE, ISO Trademark HUGO Origin Shanghai HS Code 84251900 Production Capacity 2000 Set /Month

Product Description

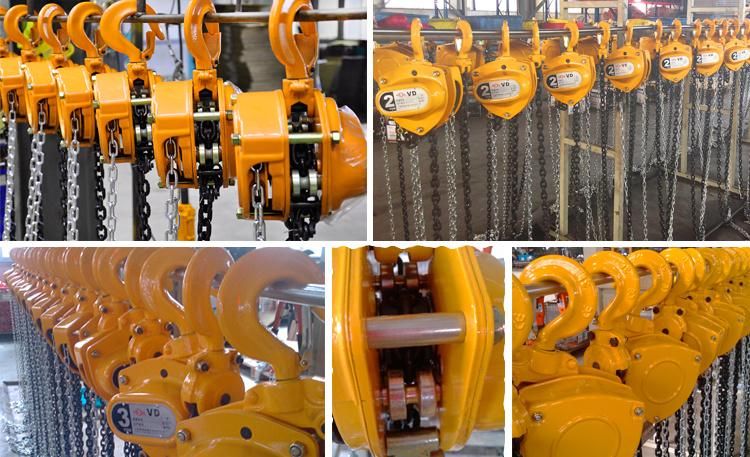

2 Ton Manual Hand Chain Hoists with G80 Chain

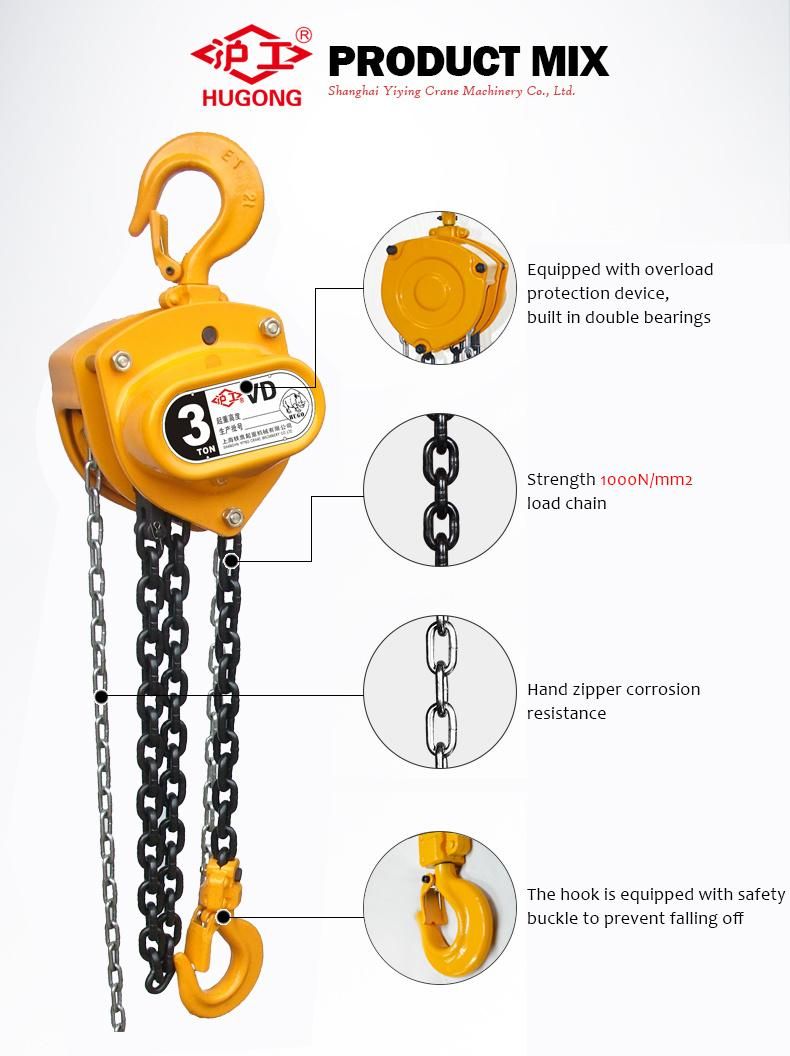

2. Features

Heat treated low-wear, 80 grade chain

Forged upper and lower hooks

Ratchet type brake warrants, safe and dependable operation

Standard lift heights is 2.5-3.5 meters and optional lift heights also available upon request

Shanghai Yiying Crane machinery Co., ltd products in strict accordance with the national 3 packets, the quality of the products by the China People's Insurance Company (PICC), Please use it relieved.

Model	HSZ-CD1/2	HSZ-CD1	HSZ-CD1 1/2	HSZ-CD2	HSZ-CD3	HSZ-CD5	HSZ-CD10	HSZ-CD20	HSZ-CD30	HSZ-CD50
Capacity T	0.5	1	1.5	2	3	5	10	20	30	50
Standard liftng Height  M	2.5	2.5	2.5	2.5	3	3	3	3	3	3
Test load T	0.75	1.5	2.25	3	4.5	7.5	12.5	25	27.5	62.5
Min distance betweeb Hook  mm	270	270	368	444	486	616	700	890	980	1300
Full Load Pull  N	225	309	343	314	343	383	392	392	450*2	450*2
Chain Full	1	1	1	2	2	2	4	8	12	22
Dia of Chain  mm	6	6	8	6	8	10	10	10	10	10
Gw  kg	12	13	20	17	28	45	83	193
Packing size (L*W*H cm)	28  ×  21 ×  17	30  ×  24 ×  18	34  ×  29 ×  20	33  ×  25 ×  19	38  ×  30 ×  20	45  ×  35 ×  24	62  ×  50 ×  28	70  ×  46 ×  75
Extra weight per meter of extra lift  kg	1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4	28.3	50
