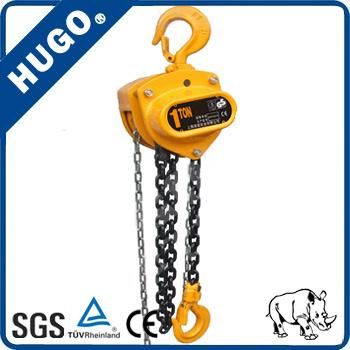

Chain Pulley Blocks Manaul Chain Hoist Hand Block
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：12m
- Chain Falls：1
Base Info
- Model NO.：( HSZ)
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Orange
- Capacity：0.5-20
- Lifting Height：2.5-3m
- Payment Term：T,T, L,C
- Warranty：1 Year
- Loading Port：Shanghai

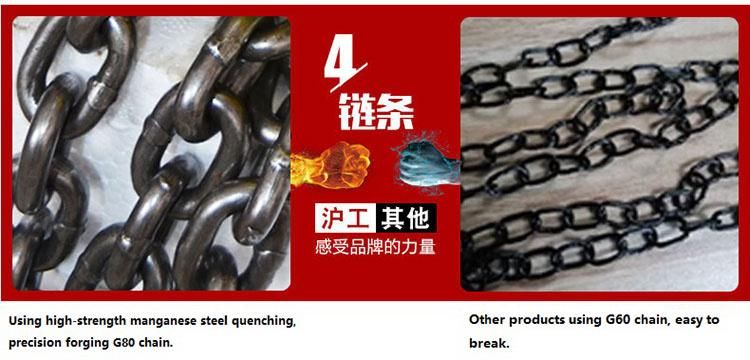

- Chain：G80
- Transport Package：Wooden Box
- Specification：ISO,CE
- Trademark：hugong, yiying
- Origin：Shanghai, China
- HS Code：842519000
- Production Capacity：500000PCS,Year
Description
ModelHSZ-1/2 HSZ-1 HSZ-1 1/2 HSZ-2 HSZ-3 HSZ-5 HSZ-10 HSZ-15 HSZ-20 HSZ-30 Capacity ( t) 0.5 1 1.5 2 3 5 10 15 20 30 Lift (m) 2.5 2.5 2.5 2.5 3 3 3 3 3 3 Test load (KN) 6.13 12.25 19.6 24.5 39.2 61.25 122.5 196 245 392 Headroom (Hook to Hook)Hmin 280 320 390 410 485 600 820 920 1040 1390 Chain pull to lift full load (N) 210 330 390 330 390 420 450 475 450 475 No. Of load chain fall lines 1 1 1 2 2 2 4 6 8 12 Dimensions(mm) A 120 142 178 142 178 120 358 415 580 705 B 107 130 147 130 147 168 168 208 200 485 Hook opening Dimensions(mm) C 23 27 31 35 39 45 57 57 75 75 C1 26 30 34 38 42 48 65 65 85 85 Net weight (kg) 7 10 15 14 24 36 75 117 164 400 Gross weight (kg) 10 13 20 18 30 45 89 170 214 520 Carton size(cm) 30x25x17 30x25x19 33x30x22 33x30x20 40x30x24 50x33x25 60x50x27 75x49x77 75x45x77 100x99x90 Extra weight per meter of extra lift (kg) 1.5 1.7 2.3 2.5 3.7 5.3 9.7 14.5 19.4 2

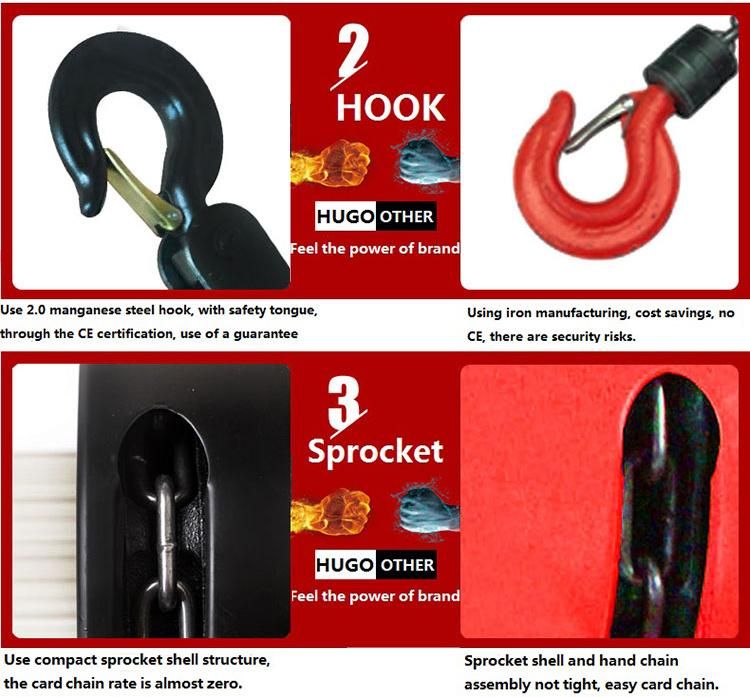

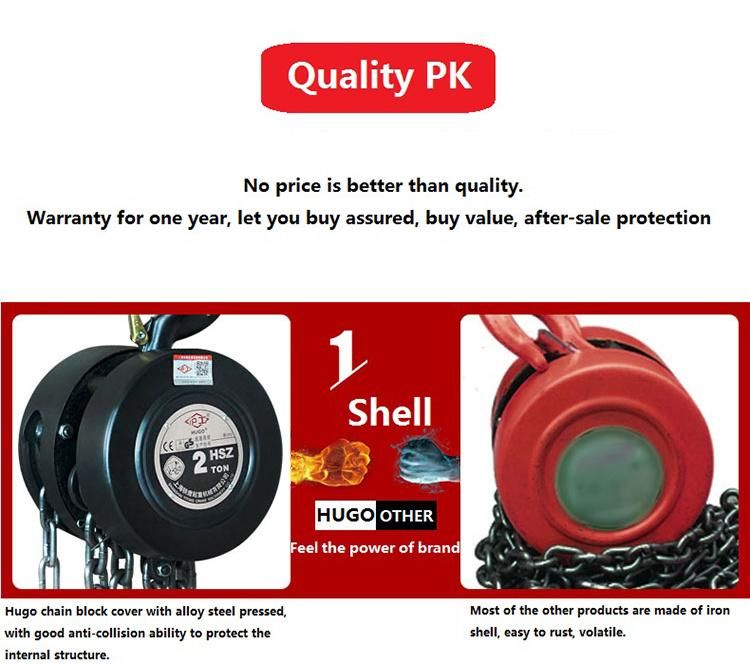

Advantage of chain block
