Jk Electric High Speed Winch

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：High Speed Winch
  • Driven Type：AC
  • Speed：Fast
  • Carrying Capacity：Light Level
  • Reel Number：1
  • Feature：Explosion-Proof

Base Info

  • Model NO.：JK
  • Certification：CE
  • Standard：National Standards
  • Model：Jk1
  • Line Pull Capacity (Kg)：1000
  • Wire Rope Average Speed (M/Min)：30
  • Wire Rope Dia.( mm)：9.3
  • Capacity(M)：110
  • Dimension (Cm)：945X97X60
  • Condition：New
  • Keywords：Electric Winch
  • Rotating Speed(R/Min)：1440
  • Hydraulic Brake：Ywz-200,25
  • Transport Package：Wooden Case or Carton Case
  • Specification：945x97x60 cm
  • Trademark：China Coal
  • Origin：Shandong, China
  • HS Code：8425391000
  • Production Capacity：1000 Sets Per Month

Description

ModelJK1JK3JK5JK8JK10Line pull capacity (kg)100030005000800010000Wire rope average speed (m/min)3030282019Wire rope Dia.( mm):9.315.521.52630Reduction boxTypeJZQ350JZQ500JZQ650JZQ650JZQ750Transmission ratio31.523.3440.1723.3423.34Drum (mm)Diameter()190325406500550Length3605208409001000Capacity(m)110200300300450motorTypeY132M-4YZR225M-8YZR250M1-8YZR250M1-6YZR250M2-6Power(kW)7.522303745Rotating speed(r/min)1440715864960960Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-400Dimension (cm)945x97x60147x140x95186x166x95240x180x110250x190x120Weight(kg)4601200270040005000Photos of JK Electric High Speed Winch

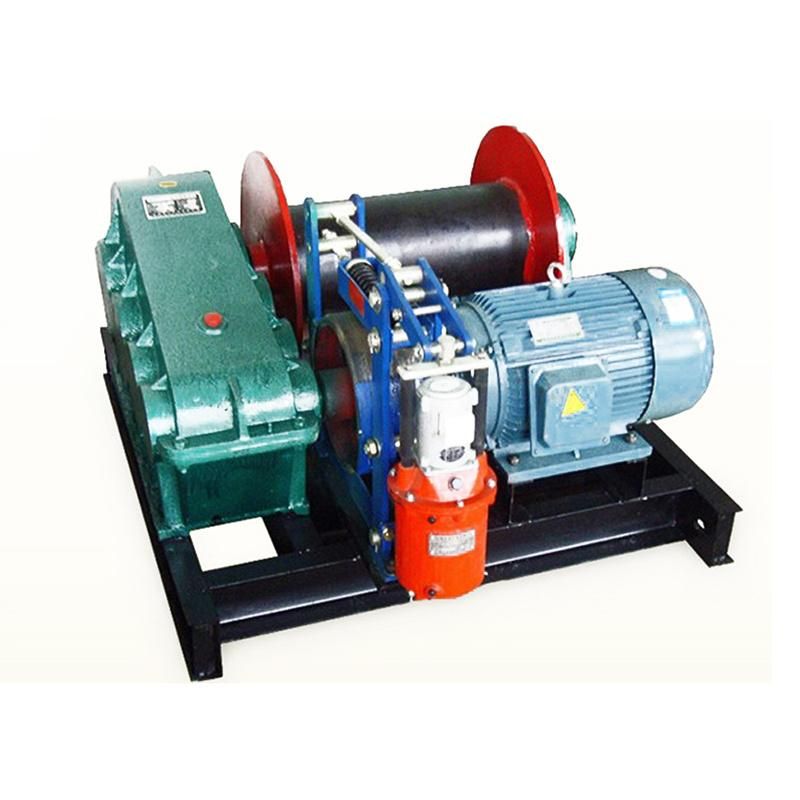

Jk Electric High Speed Winch

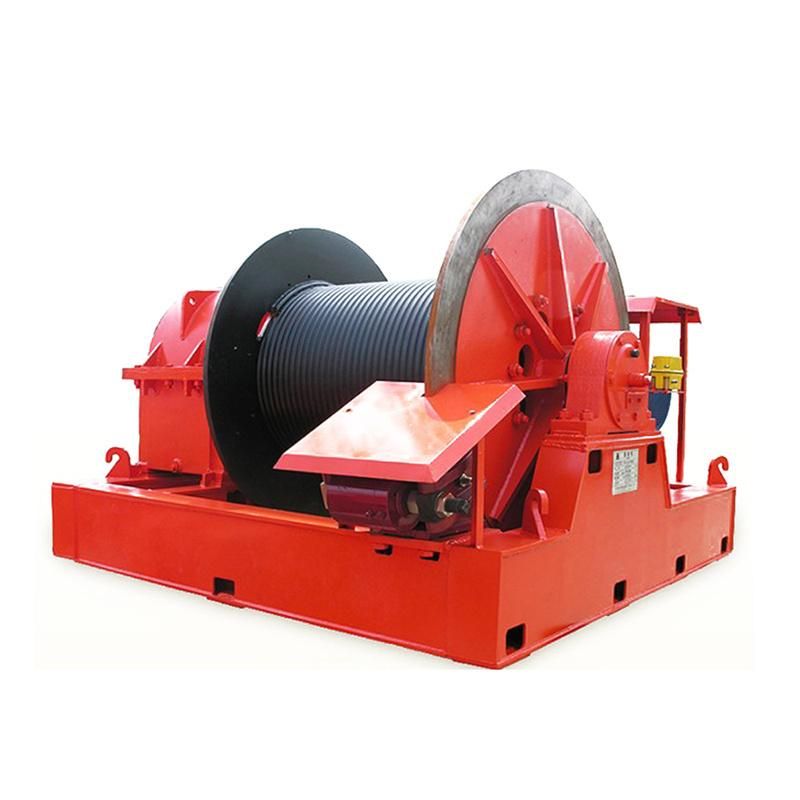

Jk Electric High Speed Winch

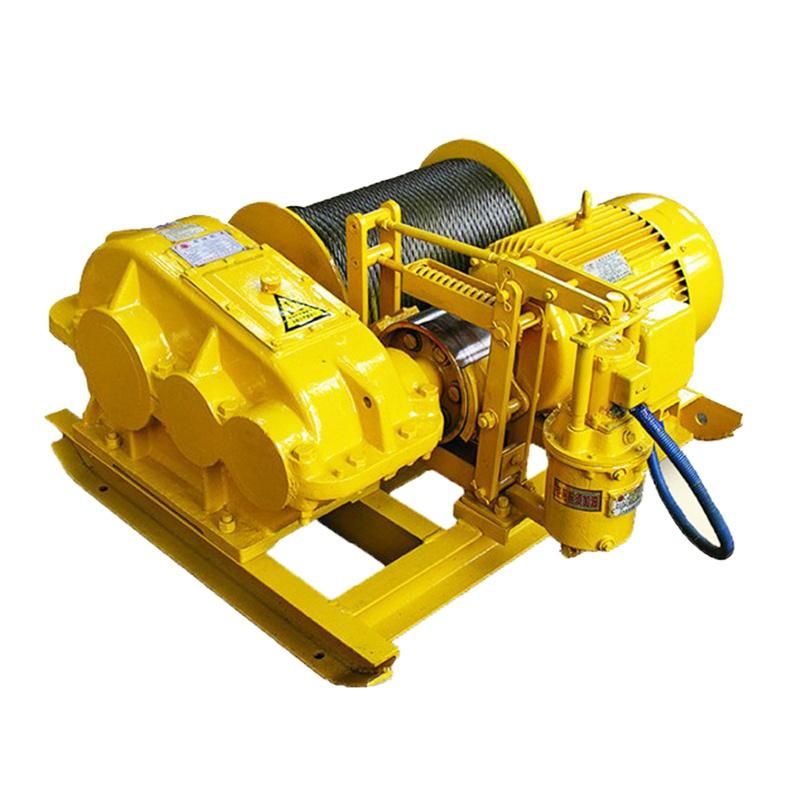

Jk Electric High Speed Winch
Jk Electric High Speed Winch
